Selecting the correct high-pressure heavy-duty hose determines whether mining equipment, construction machinery, and industrial presses operate reliably or suffer dangerous line bursts. When equipment operators evaluate heavy-duty Hydraulic Hose specifications, comparing SAE 100R12, SAE 100R13, and SAE 100R15 becomes essential.
These three standards represent the high-performance spiral steel wire family under SAE J517. While standard wire-braided lines work well under low-to-medium pressure, intense impulse cycles and extreme pressure spikes require heavy-duty hydraulic hose constructions. Choosing the wrong spiral hose leads to premature wire fatigue, oil leaks, and costly machine downtime.
This guide provides an engineering evaluation of SAE R12, R13, and R15 spiral hydraulic hose options. It breaks down working pressure limits, steel wire reinforcement structures, minimum bend radii, and real-world industrial application scenarios.
To understand how heavy-duty hydraulic hose options handle intense pressure spikes, we must examine their internal steel reinforcement. Standard braided hoses crisscross steel wire strands over each other. Under repeated impulse pressure shocks, those overlapping wires rub together, causing friction and wire failure.
Spiral wire construction wraps high-tensile steel wire in parallel layers wrapped in opposite directions around the inner synthetic rubber tube. This design distributes internal force evenly, eliminating wire friction points and doubling impulse cycle life.
SAE 100R12 Heavy-Duty Hydraulic Hose Structure: Built with four spiral layers of high-tensile steel wire over an oil-resistant synthetic rubber inner tube. It handles heavy-duty impulse cycles in medium-to-large bore applications.

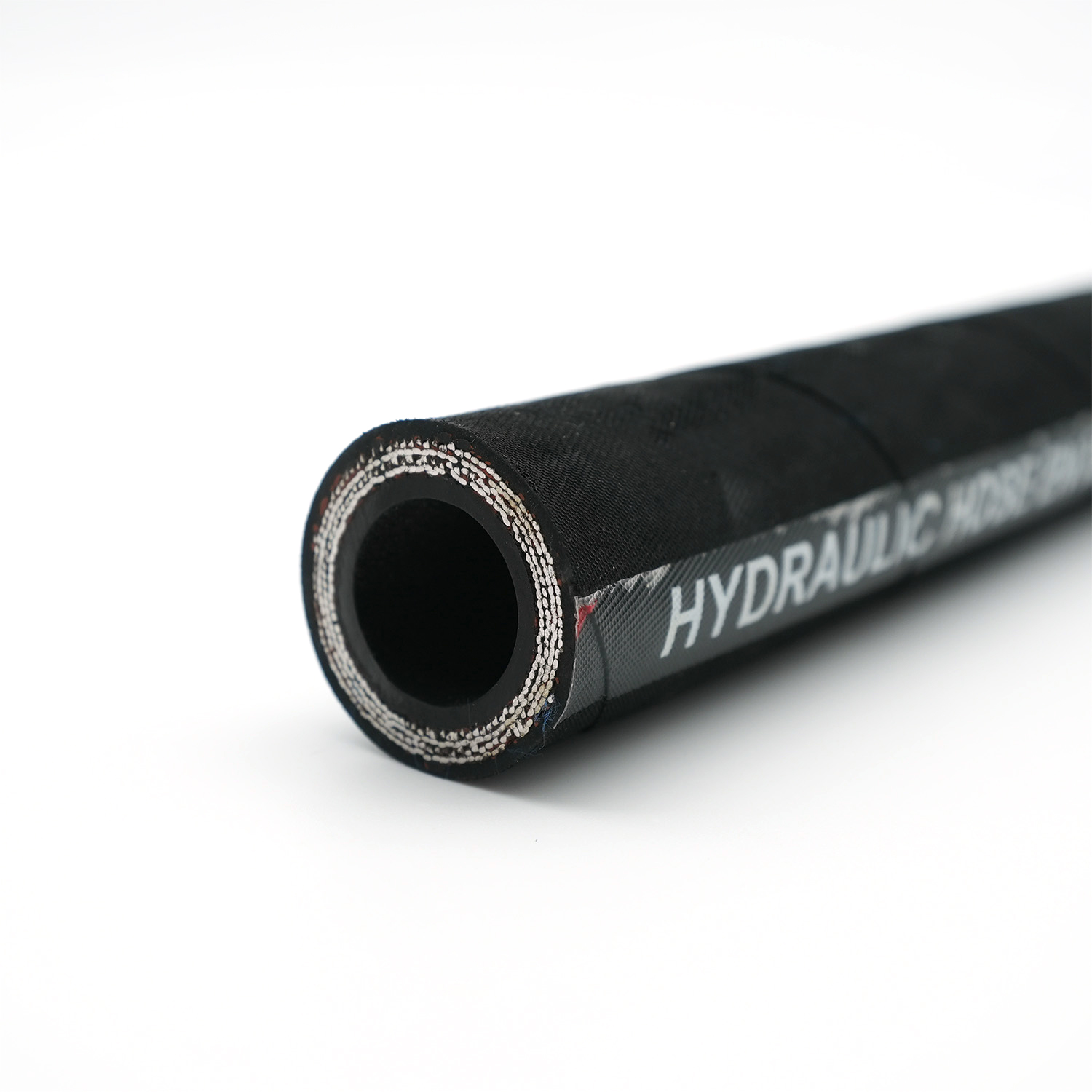

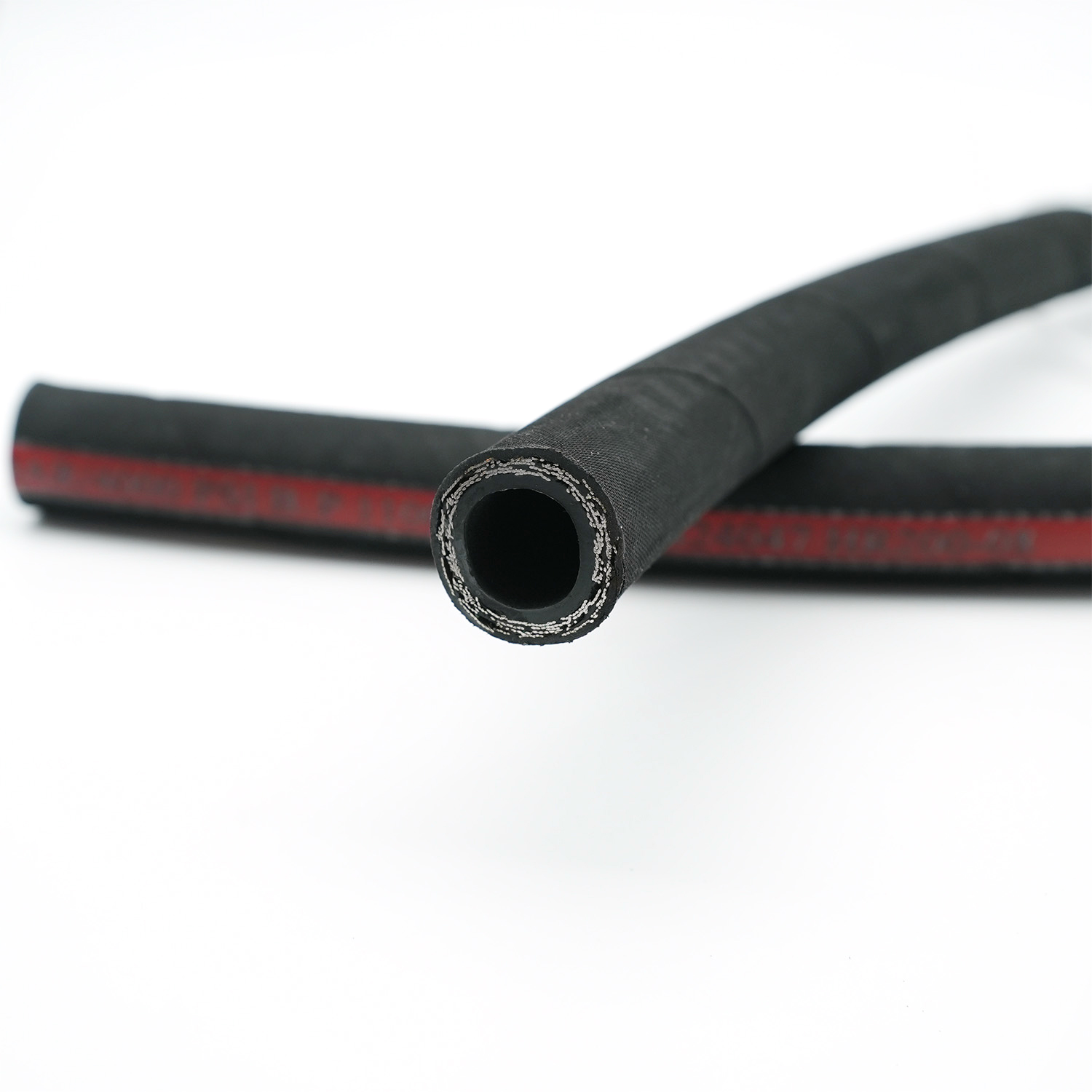

SAE 100R13 Heavy-Duty Hydraulic Hose Structure: Uses four or six spiral layers of high-tensile steel wire depending on the internal diameter size. Sizes up to 1 inch typically feature four spiral layers, while 1-1/4 inch and larger sizes require six spiral wire layers.
SAE 100R15 Ultra High-Pressure Hydraulic Hose Structure: Engineered with four or six spiral layers of ultra-high-tensile steel wire. It is built specifically to maintain constant working pressures up to 6,000 PSI (420 Bar) across all available dash sizes.
Understanding how working pressure changes across hose sizes is critical when selecting a high-pressure hydraulic hose.
SAE 100R12 uses a non-isobaric rating system. Its maximum working pressure decreases as the inner hose diameter grows larger. A smaller 3/8-inch R12 line handles up to 4,000 PSI, but a 2-inch R12 line manages only 2,500 PSI.
SAE 100R13 and SAE 100R15 follow an isobaric (constant pressure) system. They maintain uniform maximum working pressure limits regardless of bore size. SAE 100R13 maintains a constant 5,000 PSI working pressure across all sizes, while SAE 100R15 holds a constant 6,000 PSI working pressure across all sizes.
Standard Specification | Steel Wire Layers | Pressure Rating System | Constant Max Working Pressure | Target Operating Environment |
SAE 100R12 | 4 Spiral Layers | De-rated by Size | 2,500 to 4,000 PSI | Heavy mobile equipment main lines |
SAE 100R13 | 4 or 6 Spiral Layers | Isobaric (Constant) | 5,000 PSI (350 Bar) | High-impulse industrial machinery |
SAE 100R15 | 4 or 6 Spiral Layers | Isobaric (Constant) | 6,000 PSI (420 Bar) | Extreme-pressure hydrostatic drives |
Selecting the right hydraulic hose requires balancing pressure ratings with minimum bend radii and weight constraints.
Hose Standard | Dash Size | Inner Diameter (Inches / mm) | Max Working Pressure (PSI / Bar) | Minimum Burst Pressure (PSI / Bar) | Minimum Bend Radius (mm) |
SAE 100R12 | -06 | 3/8" (9.5 mm) | 4,000 PSI / 280 Bar | 16,000 PSI / 1,120 Bar | 127 mm |
SAE 100R12 | -12 | 3/4" (19.0 mm) | 4,000 PSI / 280 Bar | 16,000 PSI / 1,120 Bar | 240 mm |
SAE 100R12 | -32 | 2" (50.8 mm) | 2,500 PSI / 175 Bar | 10,000 PSI / 700 Bar | 630 mm |
SAE 100R13 | -12 | 3/4" (19.0 mm) | 5,000 PSI / 350 Bar | 20,000 PSI / 1,400 Bar | 240 mm |
SAE 100R13 | -16 | 1" (25.4 mm) | 5,000 PSI / 350 Bar | 20,000 PSI / 1,400 Bar | 300 mm |
SAE 100R13 | -32 | 2" (50.8 mm) | 5,000 PSI / 350 Bar | 20,000 PSI / 1,400 Bar | 630 mm |
SAE 100R15 | -12 | 3/4" (19.0 mm) | 6,000 PSI / 420 Bar | 24,000 PSI / 1,680 Bar | 265 mm |
SAE 100R15 | -16 | 1" (25.4 mm) | 6,000 PSI / 420 Bar | 24,000 PSI / 1,680 Bar | 330 mm |
SAE 100R15 | -24 | 1-1/2" (38.1 mm) | 6,000 PSI / 420 Bar | 24,000 PSI / 1,680 Bar | 500 mm |
(Note: Technical ratings follow standard SAE J517 guidelines. Always verify manufacturer datasheets for exact tolerances.)
Safety Factor: All three standards maintain a strict 4:1 safety factor (burst pressure is 4 times higher than maximum working pressure).
Impulse Resistance: SAE 100R13 and R15 lines are tested up to 1,000,000 impulse cycles at high temperatures, whereas standard R12 lines undergo 500,000 cycle verification tests.
Flexibility vs Strength: The extra steel layers in SAE 100R15 increase hose wall thickness and weight, making tight routing more challenging than with an R12 line.
Deploying the correct hydraulic hose specification ensures peak machine performance and protects against premature line failure.
Pressure Demand Hierarchy:
SAE 100R12 (2,500 - 4,000 PSI) ──► Moderate High-Pressure Systems
SAE 100R13 (5,000 PSI Constant) ──► Heavy High-Impulse Machinery
SAE 100R15 (6,000 PSI Constant) ──► Ultra-High-Pressure Severe Applications
Heavy construction equipment like excavators, wheel loaders, and backhoes.
Medium-bore industrial hydraulic presses and hydraulic oil return systems.
General forestry logging machinery operating under 4,000 PSI limits.
High-horsepower mobile equipment with frequent pressure surges.
Heavy mining equipment including underground continuous miners and large haul trucks.
Large industrial injection molding machines operating continuously at 5,000 PSI.
Heavy hydrostatic drive systems requiring high fluid delivery under 6,000 PSI working pressure.
Large-scale oil rig drilling equipment and high-pressure blow-out preventer control lines.
Heavy-tonnage hydraulic shears, scrap balers, and demucking machinery.
Pairing a high-pressure hydraulic hose with incorrect fittings creates a severe burst hazard. Spiral hoses require specialized heavy-duty crimp fittings.
Use Interlock Crimp Fittings: Heavy-duty R13 and R15 lines require interlock fittings. These fittings grip both the internal tube wall and the outer steel wire layer, preventing the hose from blowing off under extreme pressure shocks.
Match Skive Requirements: Depending on fitting design, technicians must skive (strip away) the outer cover rubber down to the bare steel wire before crimping. Skiving creates a direct metal-to-metal bond between crimp collar and steel wire.
Inspect Bend Radius Limits: Bending a heavy spiral hydraulic hose beyond its minimum bend radius causes internal wire layers to spread, creating stress concentrations that lead to early failure.
At Qingdao Grantseed Rubber Co., Ltd., we manufacture certified fluid transfer products for global equipment builders and distributors. Operating strictly under ISO 9001:2008 quality management protocols, our advanced factory produces high-pressure rubber lines engineered for heavy mining, agricultural, and construction equipment.
Comprehensive Product Range: We produce full ranges of wire-braided and wire-spiral lines, including certified SAE 100R12, R13, R15, and DIN EN 856 standards.
Rigid Quality Assurance: Every production batch undergoes rigorous impulse testing, burst verification, and abrasion checks to ensure leak-free performance.
Global B2B Supply: Exporting across 60 countries, we offer custom brand printing, specialized outer covers, and tailored hose assemblies for international distributors.
Our engineering staff assists clients with custom hose specifications to optimize fluid conveyance performance in demanding environments.
Comparing SAE R12, R13, and R15 standards shows that choosing the right hydraulic hose depends on system pressure, impulse intensity, and hose diameter. SAE 100R12 offers a proven four-spiral solution for systems up to 4,000 PSI. SAE 100R13 provides a constant 5,000 PSI rating for heavy impulse equipment. SAE 100R15 delivers maximum strength with a constant 6,000 PSI working pressure for extreme industrial and mining applications.
Matching system pressure requirements with the correct spiral hydraulic hose specification ensures long service life, safe operation, and minimal equipment downtime.
Yes, replacing an R12 line with an R13 line is acceptable because R13 offers higher working pressure ratings and greater impulse resistance. However, verify that the outer diameter and bend radius fit your equipment space.
Never use standard wire-braided crimp fittings on a spiral hydraulic hose. High spiral pressure will push standard fittings off the line. Always use specialized spiral interlock fittings.
SAE 100R15 uses ultra-high-tensile steel wire wrapped in four or six heavy spiral layers. This thick steel structure provides high pressure resistance, which increases hose stiffness and weight.
A quality spiral hydraulic hose rated for 1,000,000 impulse cycles can last several years when operated within temperature, pressure, and bend radius limits. Regular visual inspection helps detect cover abrasion before line failure occurs.
