Understanding pressure ratings is the single most critical factor in preventing catastrophic fluid power failures, equipment downtime, and workplace injuries. Engineers, plant managers, and procurement specialists often evaluate Hydraulic Hose Working Pressure vs Burst Pressure: What Is the Difference? to ensure their fluid conveyance lines operate safely under intense pressure spikes and continuous fluid flow.
While working pressure defines the continuous maximum load a hose line handles safely during daily operations, burst pressure represents the extreme destruction limit where the hose wall fails completely. Confusing these two distinct engineering metrics leads to premature line degradation, oil leaks, and hazardous hose whip events on heavy equipment.
Below is an in-depth, technical guide comparing working pressure and burst pressure in hydraulic hoses, featuring safety factor calculations, pressure surge mitigation strategies, testing standards, and expert insights from our specialized OEM hose manufacturing facility.
Maximum Working Pressure (MWP) represents the maximum pressure a hydraulic hose line is engineered to endure during continuous, uninterrupted operation. Design standards like SAE J517 and DIN EN specifications mandate that internal fluid pressures must never exceed this value during standard machine cycles.
Working Pressure Operating Zone:
[ 0 PSI ] ────────────── Maximum Working Pressure Limit ──────────────► [ Safe Continuous Operation Zone ]
Continuous Load Capacity: It defines the sustained internal fluid force a hydraulic hose assembly handles without structural degradation, inner tube seepage, or wire fatigue over its operational lifespan.
Safety Boundary: Engineers build system pressure relief valves based on the working pressure rating of the lowest-rated hydraulic hose or fitting in the circuit.
Pressure Spike Sensitivity: While a heavy-duty hydraulic hose tolerates minor internal pressure surges, frequent spikes exceeding working pressure cause micro-fractures in the steel reinforcement layers over time.
Selecting a flexible hydraulic hose solely based on static system pressure without accounting for dynamic shock loads degrades inner tube elasticity, leading to premature failures.
Burst pressure represents the precise pressure level where a hydraulic hose suffers complete structural failure, bursting open and releasing pressurized fluid. Manufacturers determine this metric through destructive laboratory testing on newly manufactured hose samples.
Destructive Test Sequence:
[ Working Pressure ] ──► [ Proof Pressure (2x) ] ──► [ Burst Pressure Point (4x) ] ──────► [ Catastrophic Rupture ]
Destructive Testing Threshold: Burst pressure is verified by pumping hydraulic fluid or water into a static braided hydraulic hose sample until physical rupture occurs.
Not an Operating Limit: Burst pressure is strictly a laboratory benchmark for safety factor validation—never an acceptable operational parameter for fluid machinery.
Wire Braid Rupture Point: When internal pressure reaches the burst threshold, the high-tensile steel wire braid stretches beyond its elastic limit, causing immediate hose failure.
Exposing any high-pressure hydraulic hose to pressures near its burst threshold structurally compromises the reinforcement layers, making subsequent failure inevitable.
The core connection between working pressure and burst pressure lies in the design safety factor ratio. The standard safety factor for a typical wire-braided hydraulic hose is 4:1 under international specifications like SAE J517.
4:1 Safety Ratio Breakdown:
┌─────────────────────────────────────────────────────────┐
│ Working Pressure: 100% (e.g., 4,000 PSI / 275 Bar) │
│ Proof Pressure: 200% (e.g., 8,000 PSI / 550 Bar) │
│ Burst Pressure: 400% (e.g., 16,000 PSI / 1,100 Bar) │
└─────────────────────────────────────────────────────────┘
Standard Industrial Systems (4:1 Ratio): Most general construction machinery, injection molding equipment, and agricultural implements use a 4:1 safety factor for rubber hydraulic hose lines.
Static Water Discharge (3:1 Ratio): Non-critical static fluid discharge applications sometimes utilize a reduced 3:1 safety margin.
Gaseous & Hazardous Applications (5:1 or Higher): Highly volatile fluids or compressed gases transported through specialized reinforced hydraulic hose assemblies require higher safety margins to protect workers.
Hose Standard | Construction Type | Nominal Size (Dash Size) | Max Working Pressure | Proof Pressure (2x) | Min Burst Pressure (4x) |
SAE 100R1AT | Single Wire Braid | -04 (1/4") | 3,270 PSI (225 Bar) | 6,540 PSI (450 Bar) | 13,080 PSI (900 Bar) |
SAE 100R1AT | Single Wire Braid | -08 (1/2") | 2,320 PSI (160 Bar) | 4,640 PSI (320 Bar) | 9,280 PSI (640 Bar) |
SAE 100R2AT | Double Wire Braid | -04 (1/4") | 5,800 PSI (400 Bar) | 11,600 PSI (800 Bar) | 23,200 PSI (1,600 Bar) |
SAE 100R2AT | Double Wire Braid | -08 (1/2") | 3,980 PSI (275 Bar) | 7,960 PSI (550 Bar) | 15,920 PSI (1,100 Bar) |
SAE 100R12 | Four-Spiral Steel Wire | -12 (3/4") | 4,000 PSI (280 Bar) | 8,000 PSI (560 Bar) | 16,000 PSI (1,120 Bar) |
SAE 100R13 | Heavy Four/Six Spiral | -16 (1") | 5,000 PSI (350 Bar) | 10,000 PSI (700 Bar) | 20,000 PSI (1,400 Bar) |
(Note: Data derived from standard SAE J517 guidelines [needs verification for specific manufacturer series]. Always consult official manufacturer datasheets before installing high-pressure lines.)
Static calculations rarely cause hydraulic hose failures in field operations—dynamic pressure surges do. When heavy machinery valves shut abruptly or hydraulic cylinders hit hard mechanical stops, intense fluid pressure spikes propagate through the circuit.
Impulse Spikes: Fast-acting control valves trigger momentary pressure spikes reaching 130% to 150% of nominal system pressure within milliseconds.
Reinforcement Fatigue: Repeated exposure to pressure surges causes high-tensile steel wire braids to flex, heat up, and weaken, lowering the actual burst point of an aging spiral hydraulic hose.
Selection Adjustment: Systems with severe dynamic shock loads (such as hydraulic hammers or rock crushers) require choosing a durable hydraulic hose rated higher than the peak measured impulse pressure.
A new hydraulic hose achieves its full factory-tested burst pressure under pristine laboratory conditions. In real-world industrial environments, physical wear, thermal stress, and chemical exposure significantly degrade its structural limits.
High operating fluid temperatures break down the synthetic rubber inner tube.
Overheated oil reduces elastomer elasticity, causing micro-cracking and wire exposure under high pressure.
Rubbing against steel machinery frames wears away the outer protective cover.
Exposed steel wire braids rust quickly, losing structural strength and reducing burst margins.
Bending a hydraulic hose assembly tighter than its minimum bend radius distorts the wire braid structure.
Wire pinching concentrates pressure loads on specific points, causing localized bursting below rated capacity.
Transporting incompatible synthetic hydraulic fluids degrades internal tube compounds.
Chemical softening reduces structural adhesion between the rubber inner tube and outer wire braid.
Selecting the correct pressure rating prevents catastrophic line bursts while avoiding unnecessary component expenses. Follow this standard engineering methodology when specifying hydraulic hose units for new machinery or replacement projects.
Measure Peak System Pressure: Install digital pressure transducers to capture transient shock loads during peak machine cycles rather than relying on average pump pressure alone.
Determine Maximum Operating Temperature: Ensure both fluid and ambient operating temperatures remain within the rated thermal envelope of the oil-resistant hydraulic hose.
Apply Safety Margins for Impulse Conditions: If peak shock pressures exceed standard working pressure limits, upgrade to a four-spiral heavy-duty hydraulic hose (such as SAE 100R12 or 100R13).
Inspect End Fitting Compatibility: Ensure crimped fittings and flange connectors match or exceed the maximum working pressure rating of the bulk hydraulic hose line.
Establish Routine Inspection Schedules: Periodically check external covers for blistering, cracking, wire exposure, or fitting displacement to replace failing lines before catastrophic rupture occurs.
At Qingdao Grantseed Rubber Co., Ltd., we manufacture certified, high-performance fluid conveyance solutions for global equipment builders, industrial distributors, and OEM partners. Operating under rigorous ISO 9001:2008 quality management frameworks, our advanced manufacturing facility produces high-pressure rubber hose lines engineered to withstand demanding working conditions.
Stringent Pressure & Impulse Testing: Every batch of our wire-braided hydraulic hose and spiral steel hydraulic hose products undergoes proof pressure validation, impulse cycling, and burst pressure testing to guarantee compliance with SAE J517 and DIN EN specifications.
Advanced OEM Customization: We supply custom hose branding, customized working pressure builds, high-temperature inner tubes, and extreme abrasion-resistant covers built for mining, construction, and agricultural equipment.

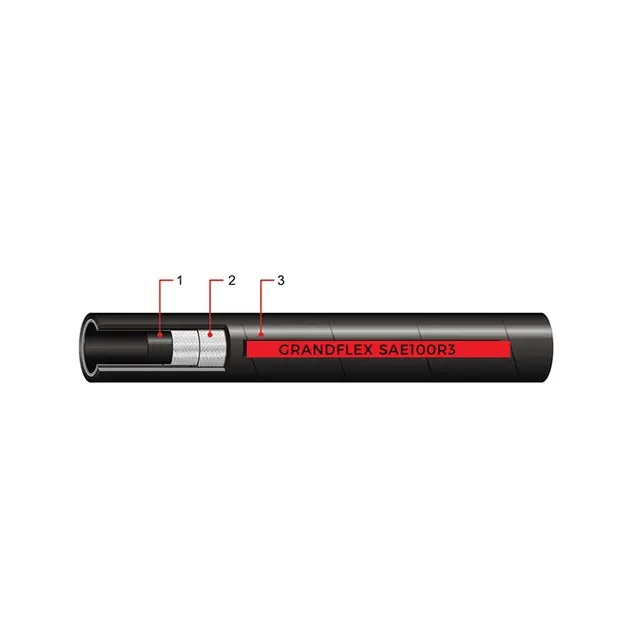

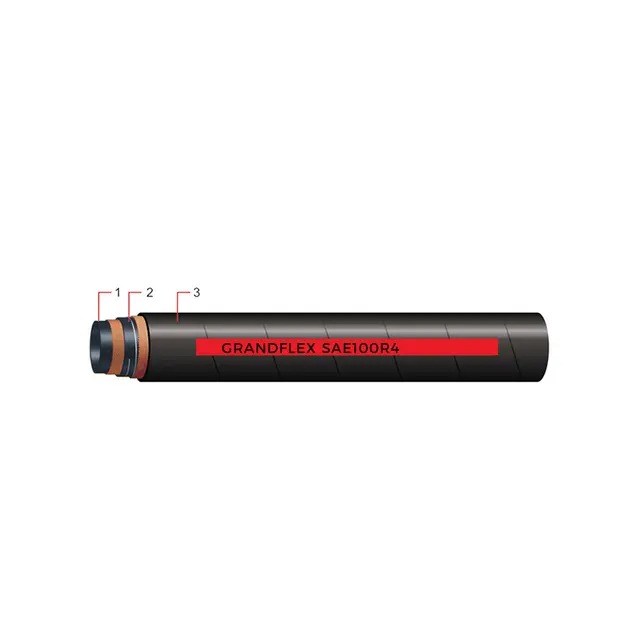

Comprehensive Product Range: Our production portfolio spans single/double wire braided lines (100R1AT, 100R2AT), high-pressure spiral steel wire lines (100R12, 100R13, 100R15), industrial rubber hoses, and complementary fluid transfer solutions exported to over 60 countries.
Our engineering team collaborates directly with technical procurement managers to deliver long-lasting, leak-free hydraulic hose assemblies that maximize machine uptime.
Distinguishing between working pressure and burst pressure is essential for safe fluid power design. Maximum working pressure represents the safe, continuous operating threshold for a hydraulic hose, whereas burst pressure defines the laboratory failure limit under destructive pressure loads.
By applying standard 4:1 safety factors, accounting for dynamic pressure spikes, and sourcing high-quality hydraulic hose lines from certified manufacturers, operators ensure safe fluid power performance across all industrial machinery.
No. Proof pressure (typically 2x working pressure) is strictly a factory test limit used to verify assembly integrity without causing permanent structural damage. Operating a hydraulic hose continuously at proof pressure causes premature wire fatigue and line failure.
Hoses fail below their factory burst pressure due to external mechanical abrasion, extreme bending below minimum bend radius limits, severe thermal degradation, chemical incompatibility, or repeated pressure spikes exceeding working limits.
High-frequency impulse spikes cause micro-movements between steel wire braid layers, generating internal friction and heat. Over time, this wire fatigue weakens the reinforcement structure, reducing the effective burst strength of the braided hydraulic hose.
Not always. A hydraulic hose assembly is only as strong as its lowest-rated component. Always confirm that the working pressure ratings of crimped end fittings, adapters, and quick-disconnect couplings equal or exceed the working pressure of the bulk hose.
