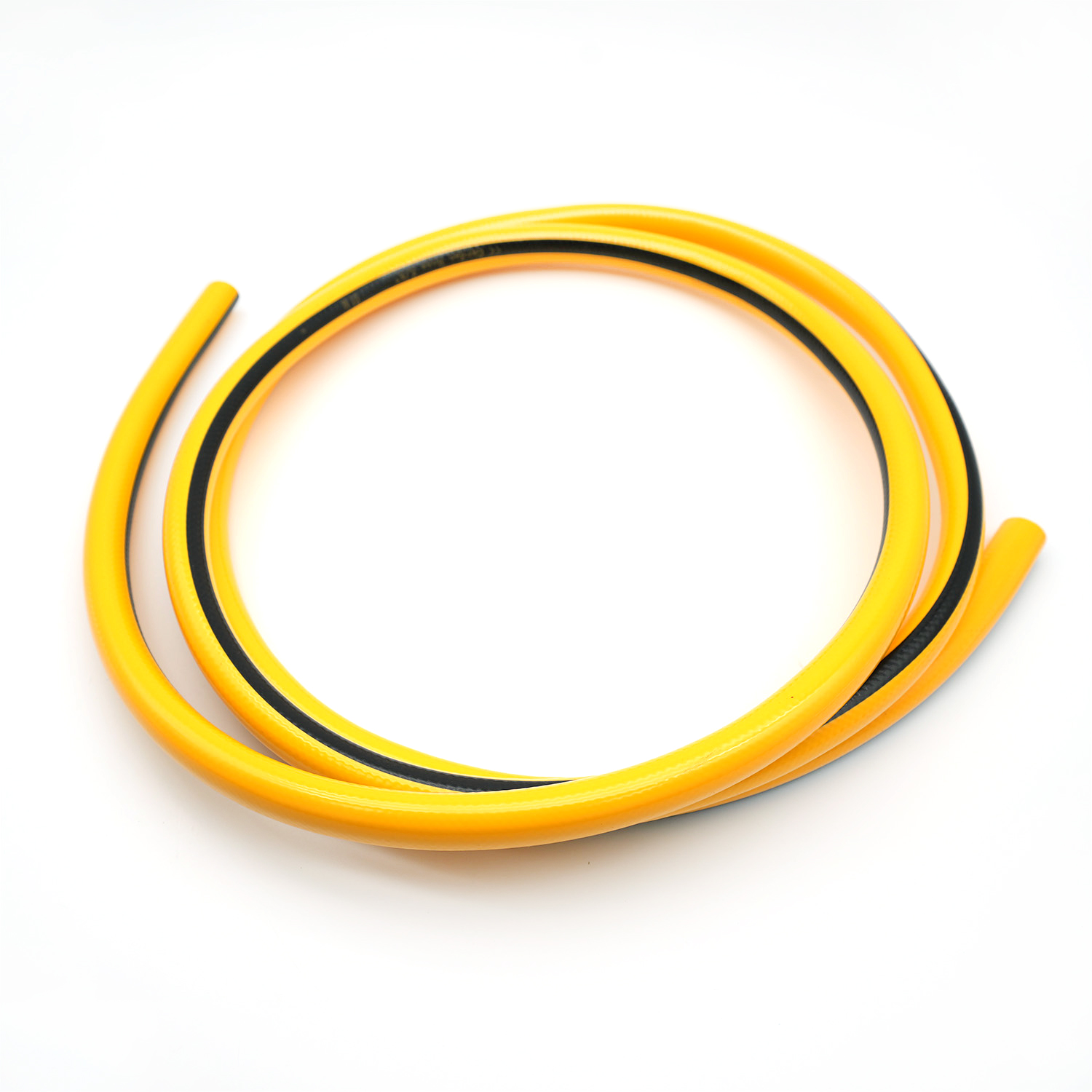

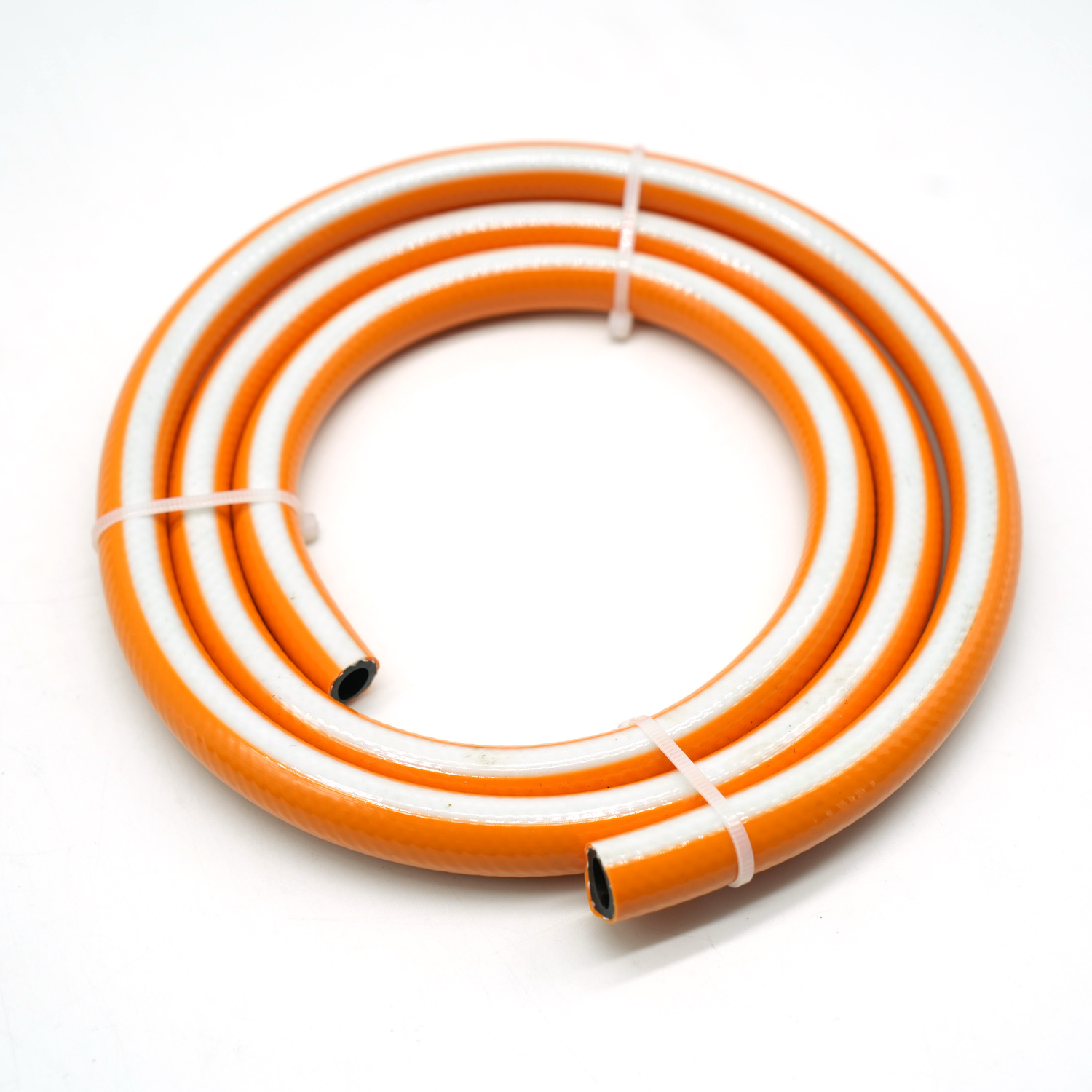

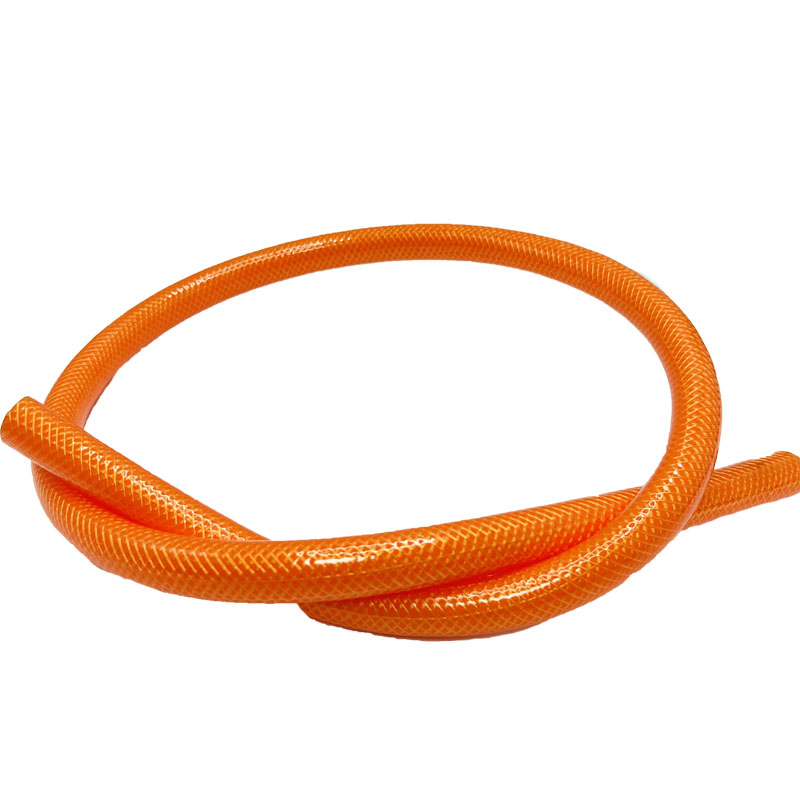

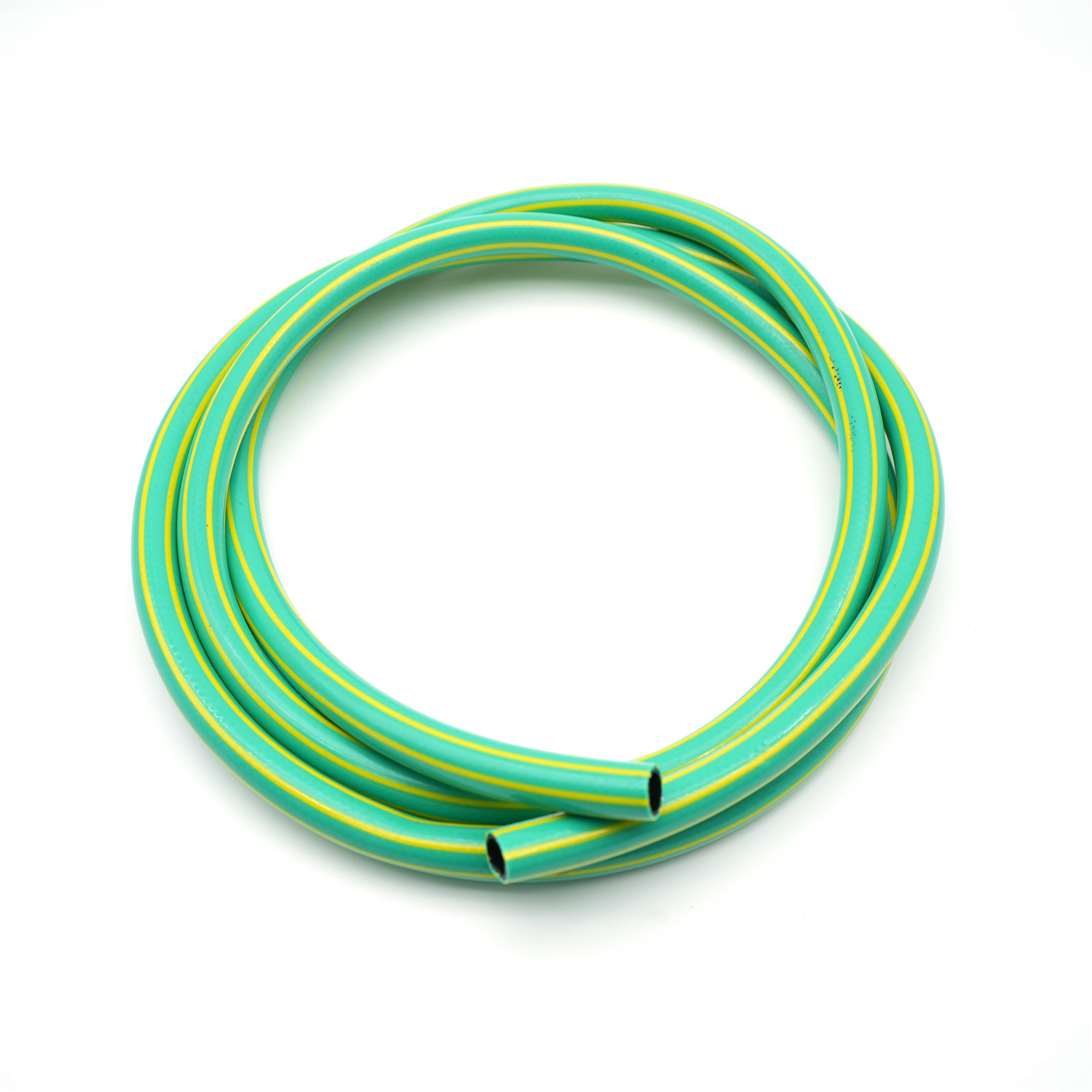

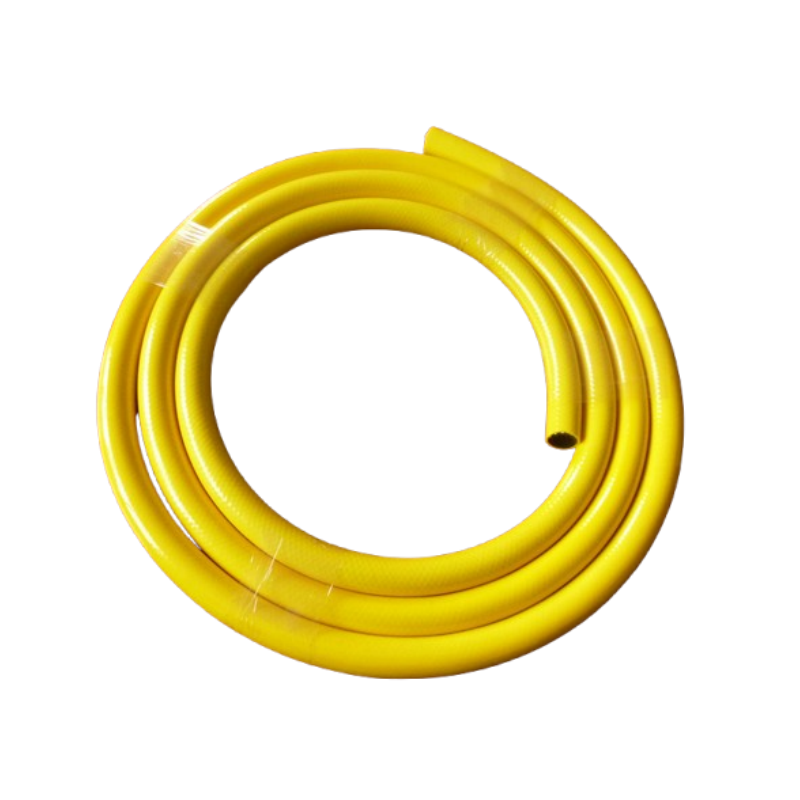

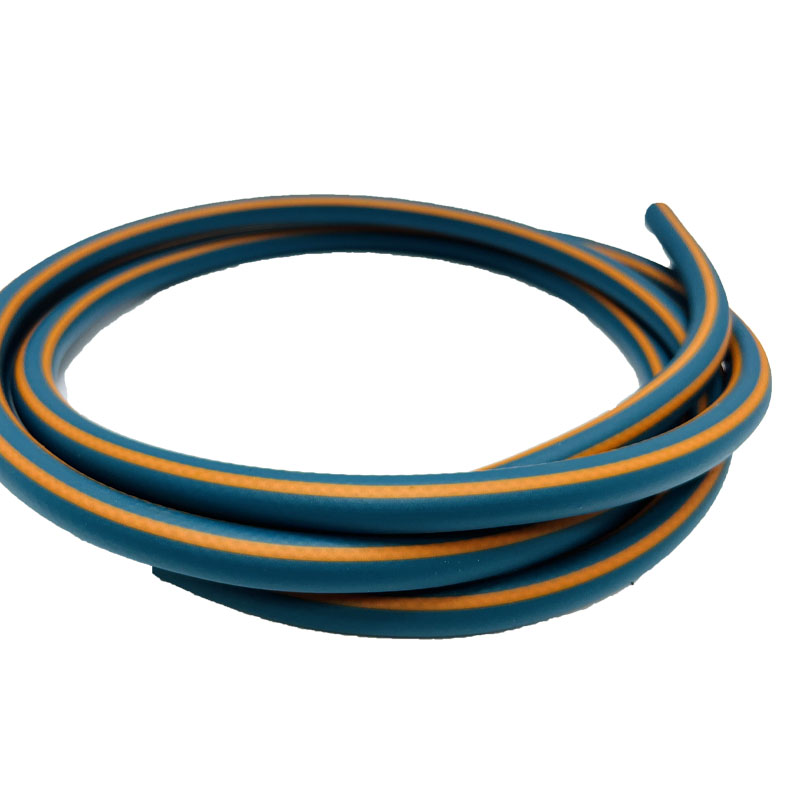

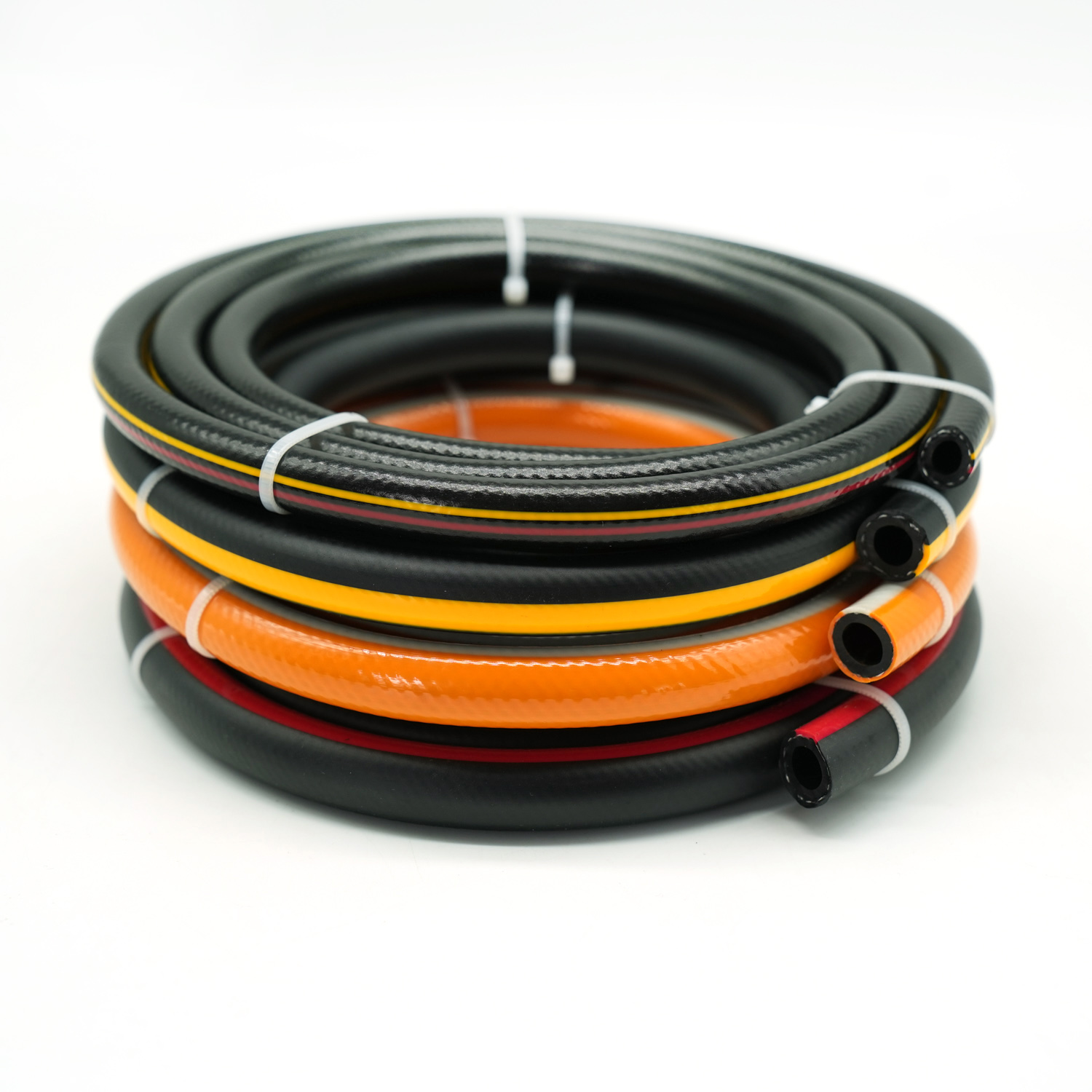

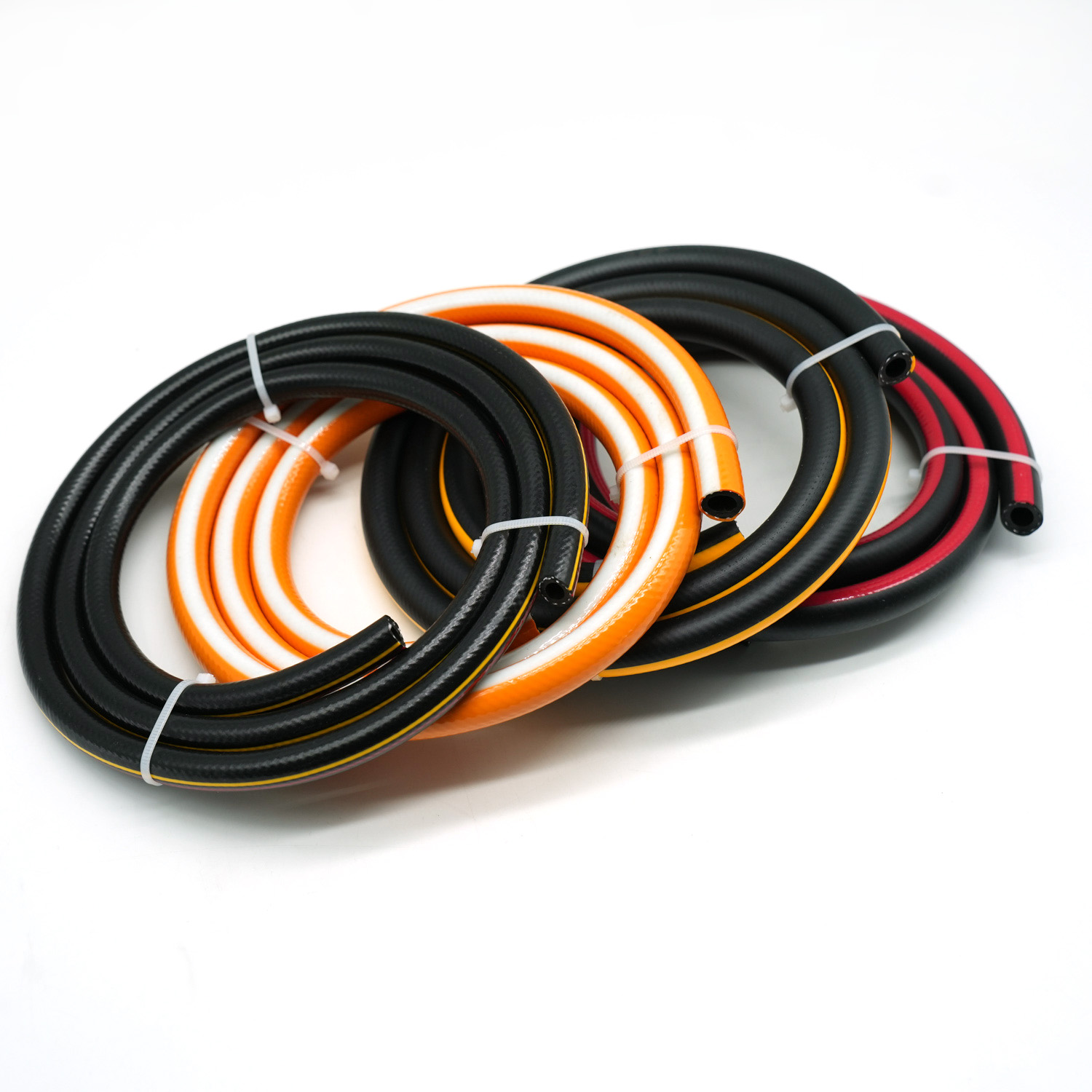

The PVC air hose is a high - performance product meticulously crafted from virgin resin PVC, which guarantees exceptional flexibility and remarkable low - temperature resistance.
1. Construction and Material Superiority
The outer cover of this hose is also made of virgin resin PVC. This material endows the hose with outstanding resistance to UV radiation, oil, and abrasion. Meanwhile, the inner tube is reinforced with extra - strong polyester braiding. This innovative design not only enhances the structural integrity of the hose but also results in a significant weight reduction. In fact, it weighs 20% less per foot compared to comparable rubber hoses. Additionally, the hose is highly resistant to cracking and fading, ensuring its long - term aesthetic appeal and functionality.
2. Performance Specifications
This PVC air hose can maintain its flexibility even at extremely low temperatures, down to - 40°F. It is rated to withstand pressures up to 300 PSI, making it suitable for a wide range of applications. It is an ideal choice for power tools, tire inflation, and other compressed - air applications.
3. Application Scope
Owing to its resistance to UV, oil, and abrasion, the hose is well - suited for daily use in various settings, including construction, automotive, industrial, agricultural, and fleet operations. Its lightweight design is a significant advantage, as it allows for easy handling and maneuverability. Moreover, the hose is highly durable and does not change color or fade when exposed to natural elements, ensuring that it remains in good condition even after prolonged outdoor use.
In summary, the PVC air hose combines the benefits of high - quality materials, excellent performance, and wide - ranging applicability, making it a reliable solution for compressed - air needs in diverse industries.
Item Code | I.D | O.D | W.P. | B.P. | Length | Weight | Volume | |||
inch | mm | mm | psi | bar | psi | bar | m/roll | kg/m | m3/roll | |
PAH-06 | 1/4" | 6.4 | 12 | 300 | 20 | 900 | 60 | 100 | 0.108 | 0.024 |
PAH-08 | 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 100 | 0.143 | 0.029 |
PAH-10 | 3/8" | 10 | 16 | 300 | 20 | 900 | 60 | 100 | 0.169 | 0.040 |
PAH-13 | 1/2" | 13 | 20 | 300 | 20 | 900 | 60 | 100 | 0.250 | 0.058 |
PAH-16 | 5/8" | 16 | 25 | 300 | 20 | 900 | 60 | 50 | 0.392 | 0.040 |
PAH-19 | 3/4" | 19 | 28 | 300 | 20 | 900 | 60 | 50 | 0.468 | 0.057 |
PAH-25 | 1" | 25 | 35 | 300 | 20 | 900 | 60 | 50 | 0.660 | 0.094 |
PAH-32 | 1-1/4" | 32 | 44 | 300 | 20 | 900 | 60 | 50 | 1.010 | 0.169 |
PAH-38 | 1-1/2" | 38 | 50 | 300 | 20 | 900 | 60 | 50 | 1.170 | 0.227 |
PAH-50 | 2" | 50 | 64 | 300 | 20 | 900 | 60 | 50 | 1.766 | 0.375 |
