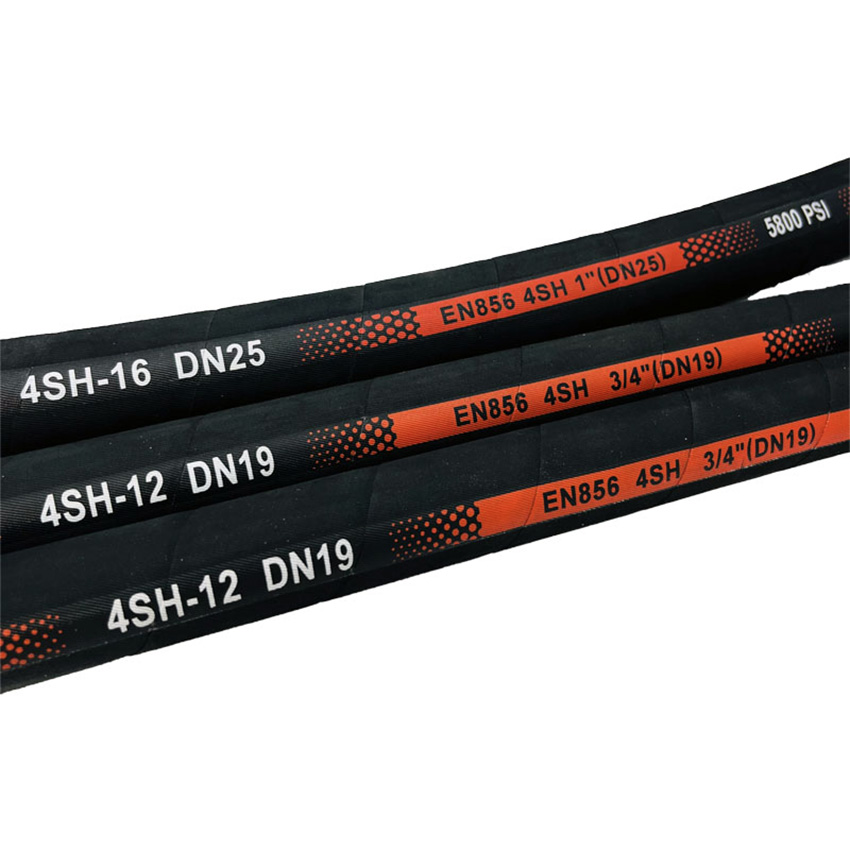

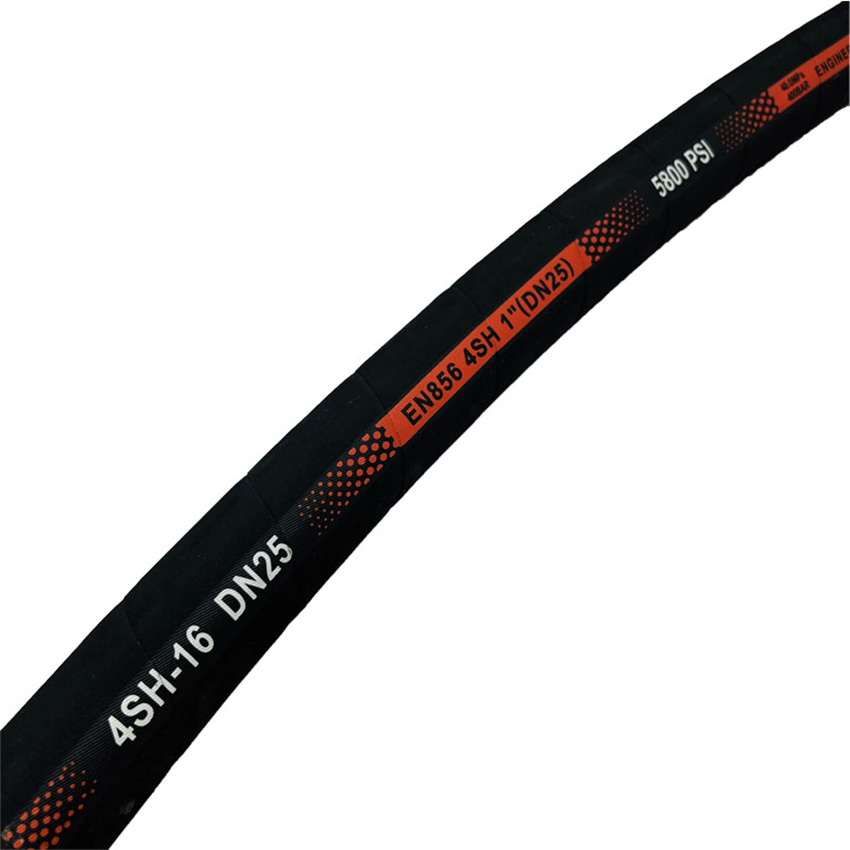

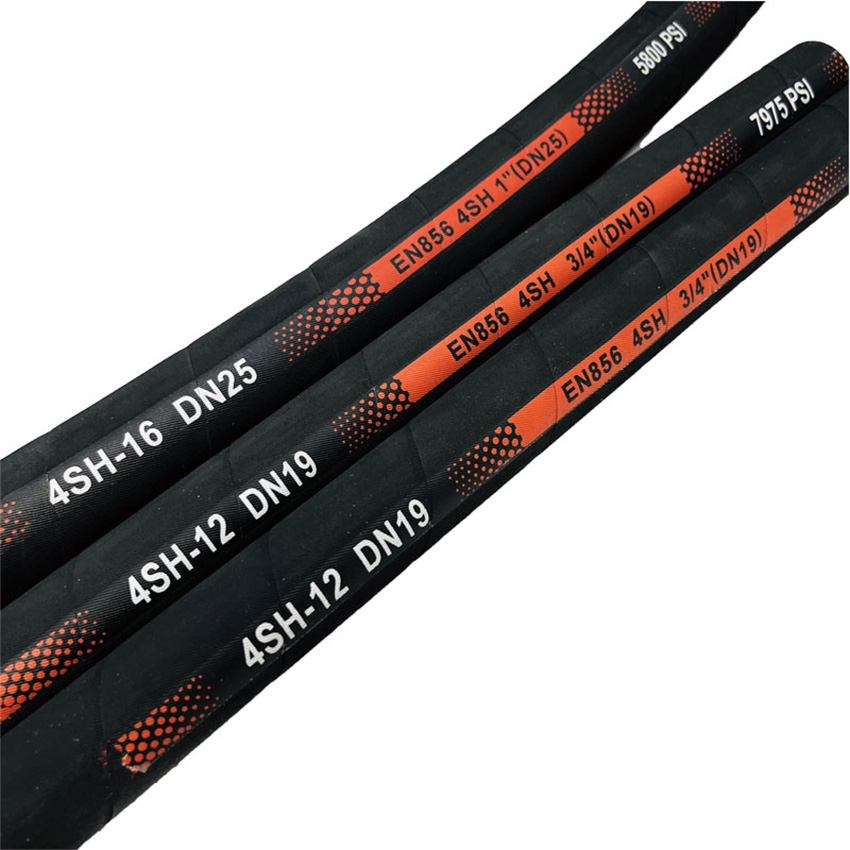

DIN EN856 4SH Hydraulic Hose is designed for very high-pressure hydraulic systems that require a stable hose structure, strong impulse resistance, and dependable service life under severe operating conditions. This hose uses a four-spiral steel wire reinforcement design combined with an oil-resistant synthetic rubber tube and a durable outer cover to support demanding hydraulic fluid transfer in construction machinery, mining equipment, industrial hydraulic systems, and other heavy-duty applications. It is especially suitable for installations where pressure retention, abrasion resistance, and mechanical durability are critical to hose performance and replacement intervals.
Designed for very high-pressure hydraulic service
Reinforced with four layers of high-tensile spiral steel wire
Built for petroleum-based hydraulic fluids
Resistant to abrasion, weather, ozone, oil, cut damage, and aging
Suitable for demanding hydraulic systems exposed to vibration, outdoor service, and repeated pressure cycles
Compatible with multiple common industrial fitting standards
Item | Details |
|---|---|
Product Name | DIN EN856 4SH Hydraulic Hose |
Standard | EN 856 4SH |
Inner Tube | Black synthetic rubber |
Reinforcement | Four layers of high tensile and high strength spiraled steel wire |
Cover | Black synthetic rubber resistant to abrasion, weather, ozone, oil, cut, and aging |
Temperature Range | -40°C to +100°C |
Main Application | Very high-pressure hydraulic applications for petroleum-based hydraulic fluids |
Fitting Compatibility | DKM, DKL, DKOL, DKS, DKOS, DKR, DKRO, ORFS, JIC 37°, SFL, SFS, Female CM, CORFS, CJIC 37°, CEL, CES, Banjo |

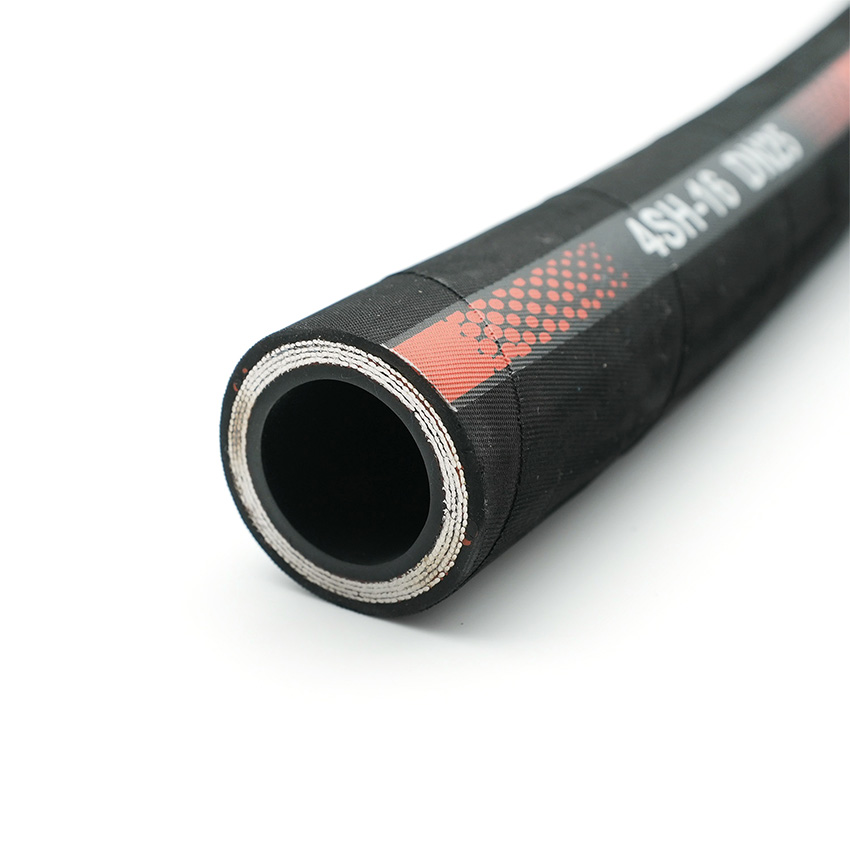

DIN EN856 4SH Hydraulic Hose is a four-spiral wire reinforced hose developed for hydraulic circuits exposed to high pressure, pulse loading, and mechanically demanding service conditions. Compared with lighter-duty constructions, the 4SH structure is intended for systems where reinforcement strength, hose stability, and outer cover durability all have direct impact on service reliability. The hose combines an oil-resistant synthetic rubber tube for hydraulic media conveyance, four spiral steel wire layers for pressure-bearing performance, and a durable synthetic rubber cover to protect the hose in abrasive and weather-exposed environments.
This hose is suitable for hydraulic systems used in construction, mining, transport equipment, industrial machinery, and similar applications where pressure fluctuations and harsh site conditions are common. From a selection standpoint, the value of a 4SH hose is not only in nominal pressure class, but also in how the construction supports dimensional stability, fitting assembly, and durability over time. For users managing replacement schedules, equipment uptime, or hydraulic assembly standardization, this hose provides a more application-oriented option than general lower-pressure hose types.

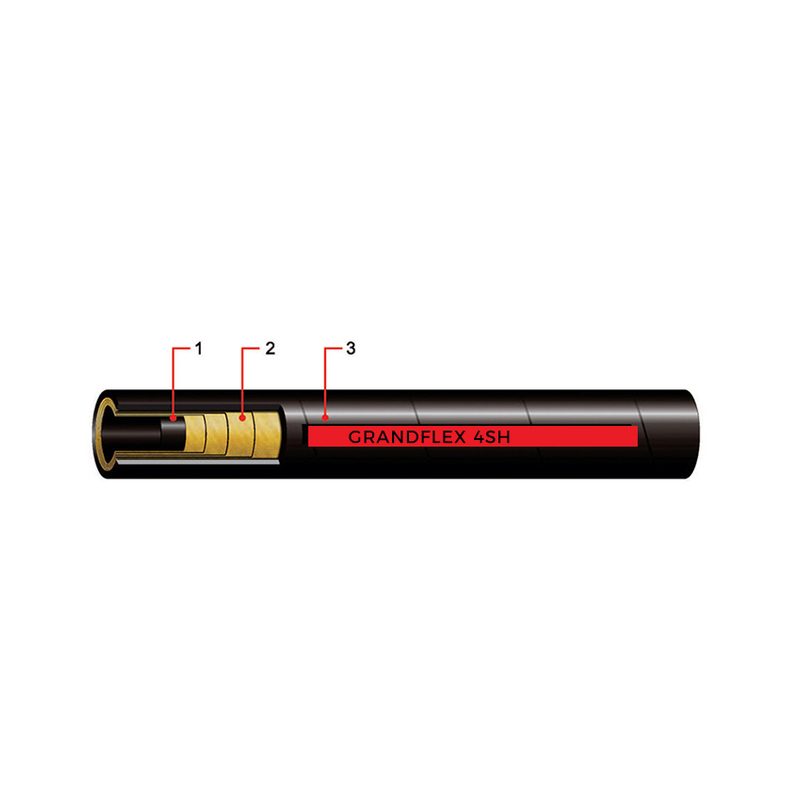

Layer | Description | Practical Value |
|---|---|---|
Inner Tube | Black synthetic rubber, resistant to abrasion, corrosion, and oil | Supports fluid compatibility and internal sealing stability |
Reinforcement | Four layers of high tensile and high strength spiraled steel wire | Provides the core pressure-bearing strength for very high-pressure systems |
Cover | High quality black synthetic rubber, resistant to abrasion, corrosion, weather, ozone, cut, oil, and aging | Helps reduce external wear and supports service life in rough environments |
Four-spiral reinforcement supports very high-pressure hydraulic service
Suitable for applications with repeated pressure fluctuations
Helps maintain hose structure under demanding hydraulic cycles
Cover compound helps resist abrasion from contact, handling, and surface wear
Weather and ozone resistance support outdoor service conditions
Oil and aging resistance help maintain cover integrity in industrial environments
Suitable for a wide range of common fittings
Clear pressure, bend radius, and weight data support faster engineering review
Useful for assembly planning, replacement matching, and standardized specification control
Metric Size (mm) | Inch Size | SAE Dash | I.D Min (mm) | I.D Max (mm) | O.D Min (mm) | O.D Max (mm) | Max W.P (MPa) | Max W.P (psi) | Min B.P (MPa) | Min B.R (mm) | Weight (Kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
19 | 3/4 | 12 | 18.6 | 19.8 | 31.4 | 33.0 | 42.0 | 6090 | 168.0 | 280.0 | 1.64 |
25 | 1 | 16 | 25.0 | 26.4 | 37.5 | 39.9 | 38.0 | 5510 | 152.0 | 340.0 | 2.03 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 43.9 | 47.1 | 32.5 | 4713 | 130.0 | 460.0 | 2.45 |
38 | 1-1/2 | 24 | 37.7 | 39.3 | 51.9 | 55.1 | 29.0 | 4205 | 116.0 | 560.0 | 3.35 |
51 | 2 | 32 | 50.4 | 52.0 | 66.5 | 69.7 | 25.0 | 3625 | 100.0 | 700.0 | 4.50 |
Temperature Range: -40°C to +100°C
Main Applications: very high-pressure applications used for petroleum-based hydraulic fluids
Suitable Fittings: DKM, DKL, DKOL, DKS, DKOS, DKR, DKRO, ORFS, JIC 37°, SFL, SFS, Female CM, CORFS, CJIC 37°, CEL, CES, Banjo.
Construction machinery
Mining and quarry equipment
Oilfield hydraulic systems
Transport and mobile hydraulic equipment
Industrial hydraulic units
Outdoor heavy-duty machinery
Very high-pressure hydraulic circuits
Equipment exposed to vibration, dirt, and mechanical wear
Installations where hose cover durability matters
Systems requiring stable hose performance under repeated pressure cycles
Both types are intended for high-pressure hydraulic systems
EN856 4SH is commonly used where robust spiral wire reinforcement and heavy-duty service performance are required
Final selection should be based on system pressure, bend radius, installation space, fitting compatibility, and actual operating conditions

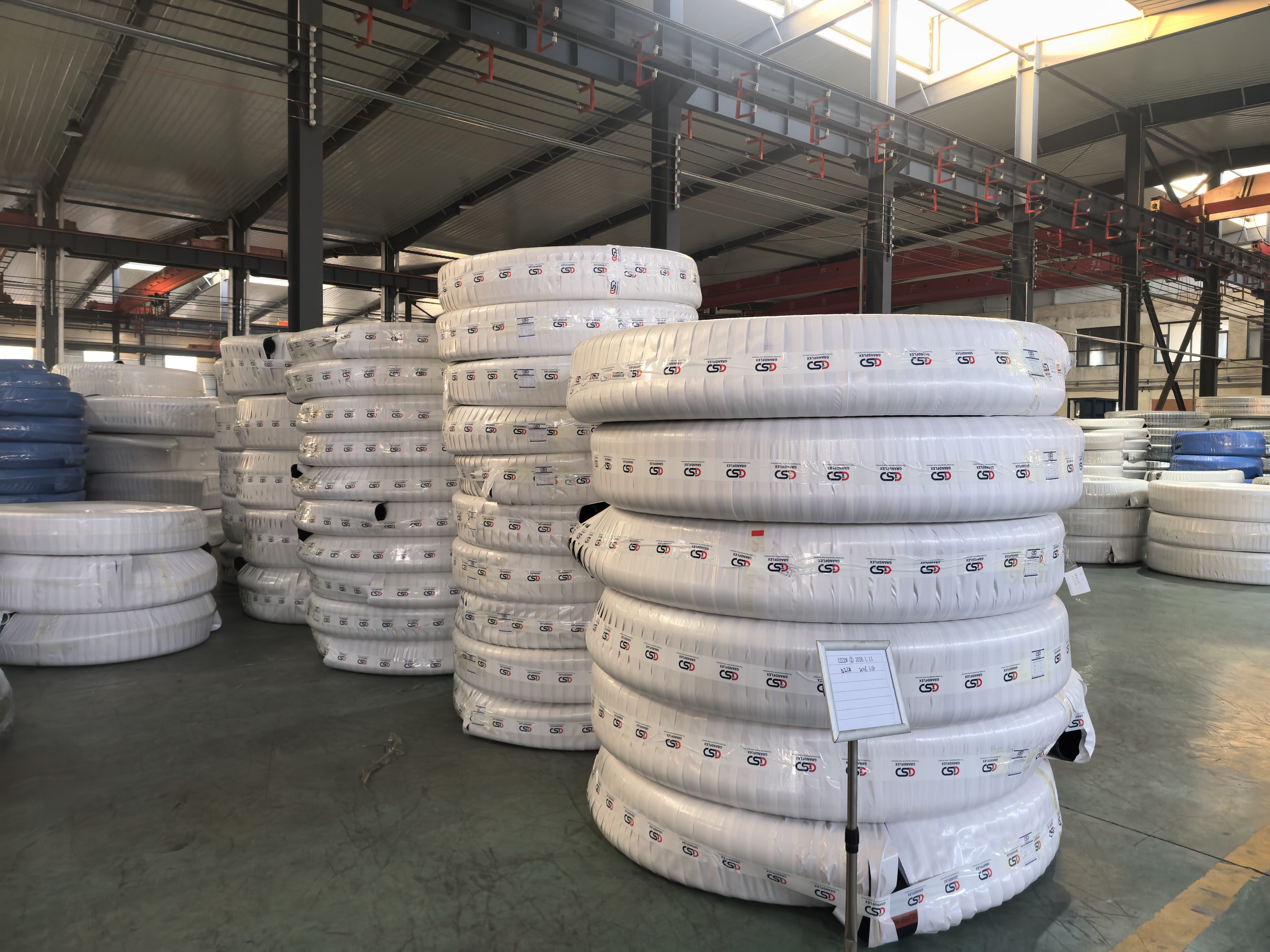

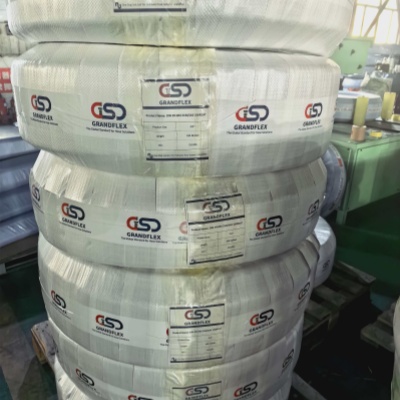

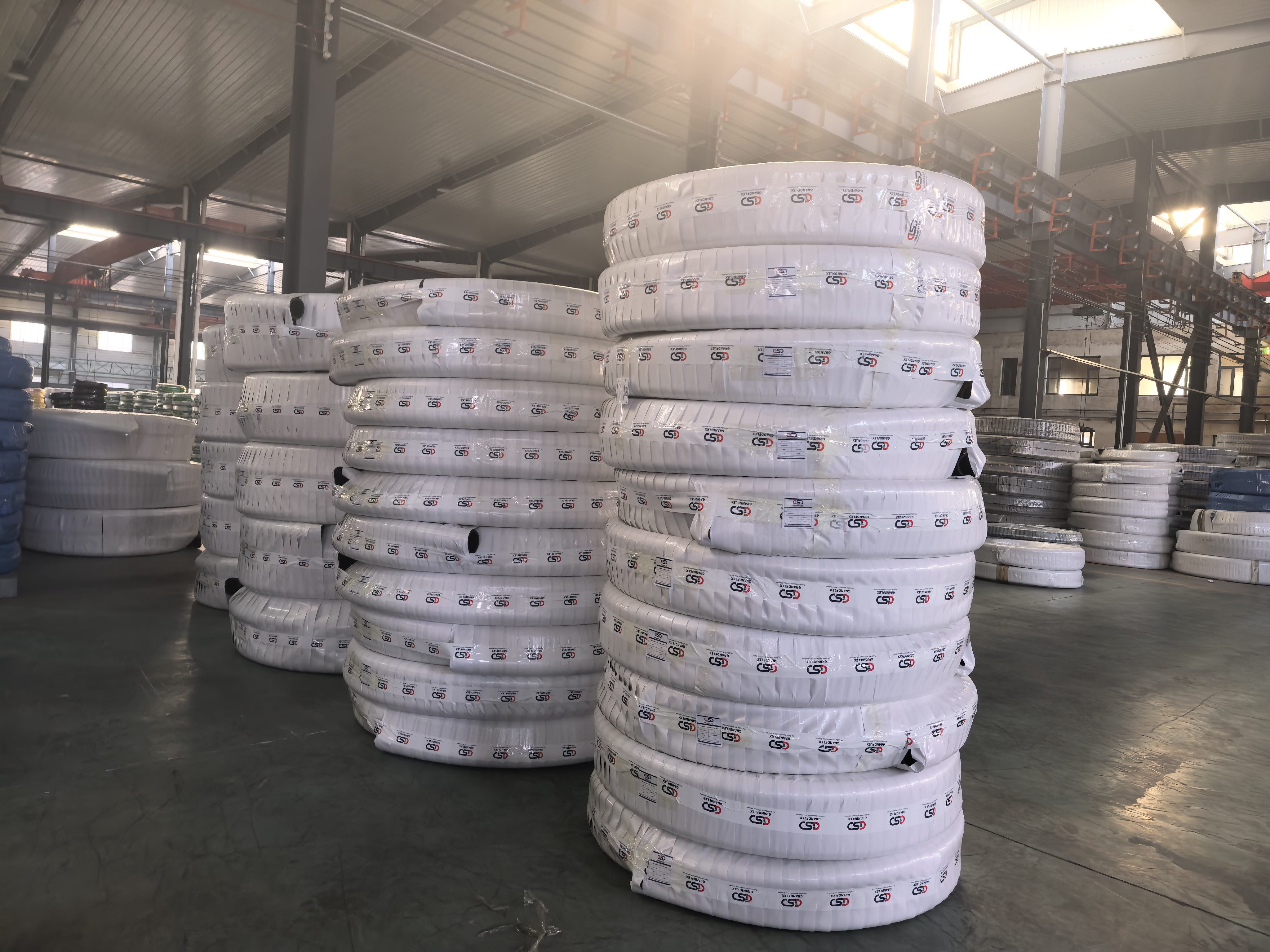

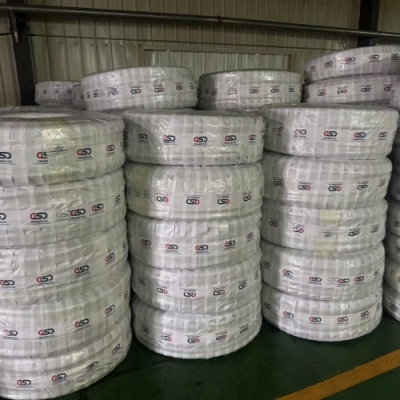

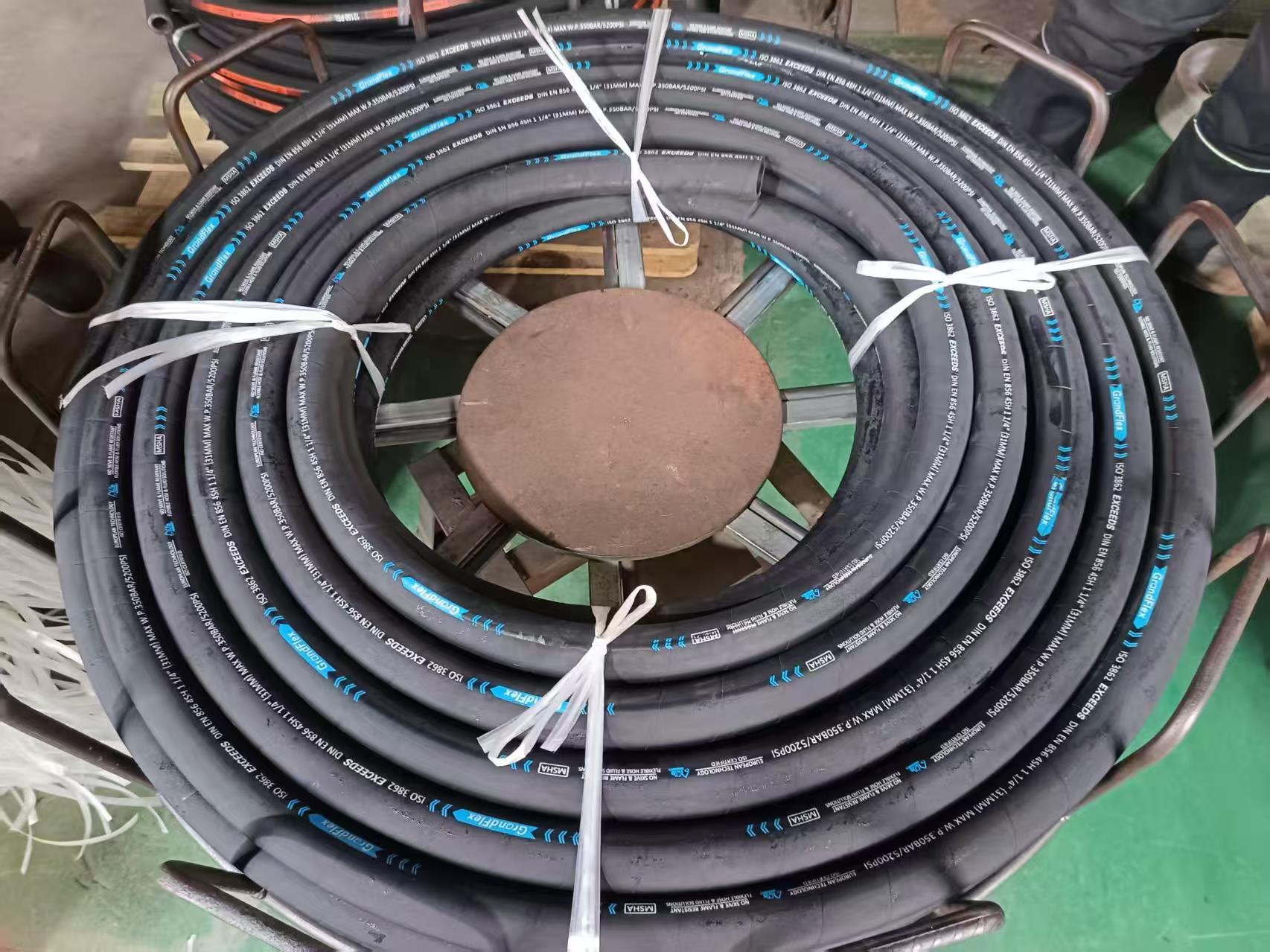

Coil packing
Wrapped rolls
Palletized shipment for bulk quantities
Label and marking support based on order requirements
Custom length supply
Printing or branding support
Hose assembly cooperation
Packing adjustment for container loading or warehouse handling
Specification confirmation support before order processing
Clear construction information for tube, reinforcement, and cover
Defined working pressure, burst pressure, bend radius, and weight data
Product positioning aligned with EN856 4SH heavy-duty hydraulic hose expectations
Broad fitting compatibility for easier assembly matching
Standardized size data for replacement and repeat ordering
Suitable for maintenance demand, hose assembly planning, and equipment integration
It is used for very high-pressure hydraulic applications, especially in systems where repeated pressure cycles, heavy-duty operating conditions, and external abrasion are common.
The current product page states that it is used for petroleum-based hydraulic fluids.
The four spiral steel wire layers provide the hose with the structural strength required for very high-pressure service and help improve stability under demanding hydraulic cycles.
Size, pressure requirement, operating temperature, fitting type, required length, and packing method should all be confirmed before ordering. This is a best-practice recommendation based on the product data and typical industrial hose selection needs.
Yes. The current page lists compatibility with multiple fitting types including ORFS, JIC 37°, SFL, SFS, DKM, DKL, DKOL, DKS, DKOS, DKR, DKRO, Female CM, CORFS, CJIC 37°, CEL, CES, and Banjo.
