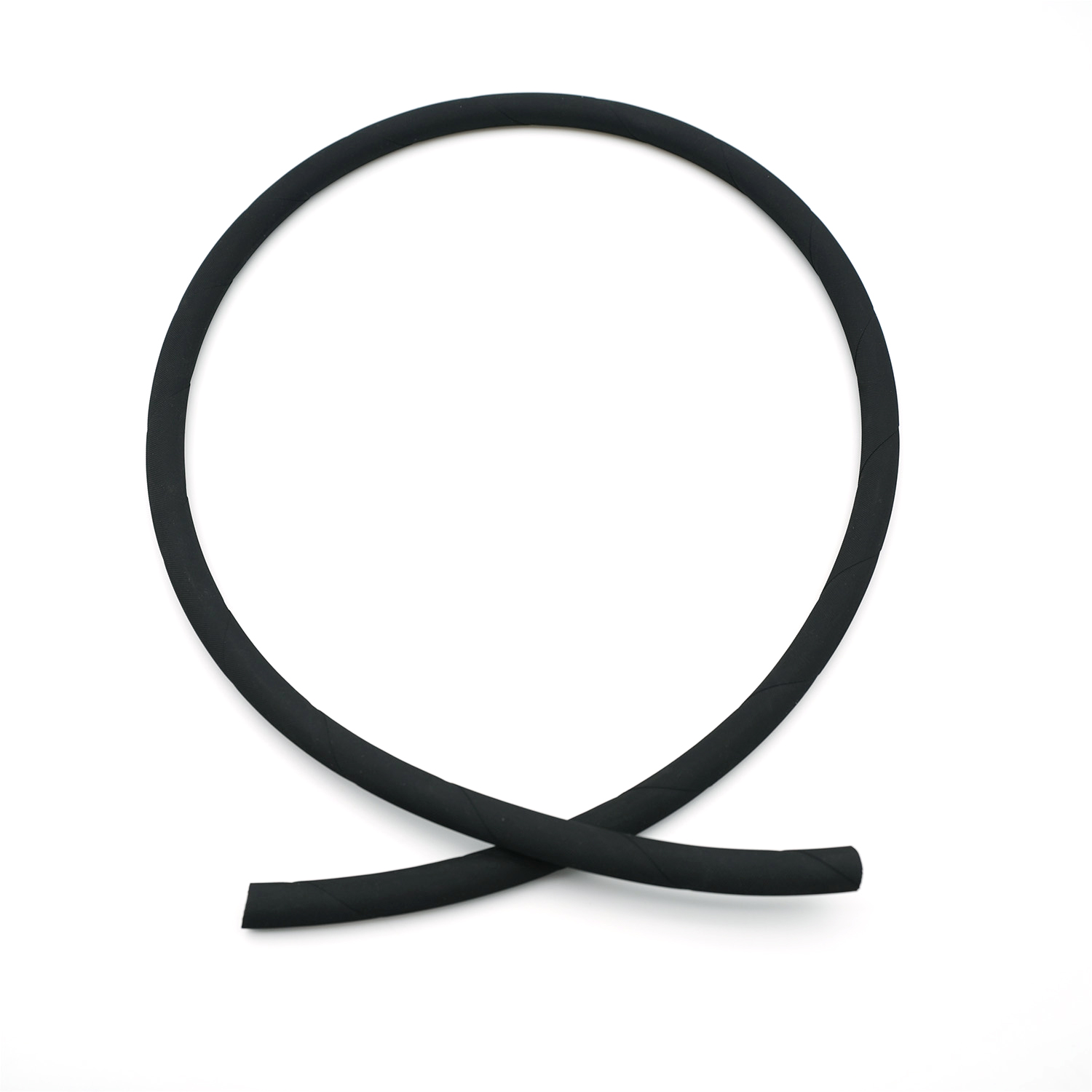

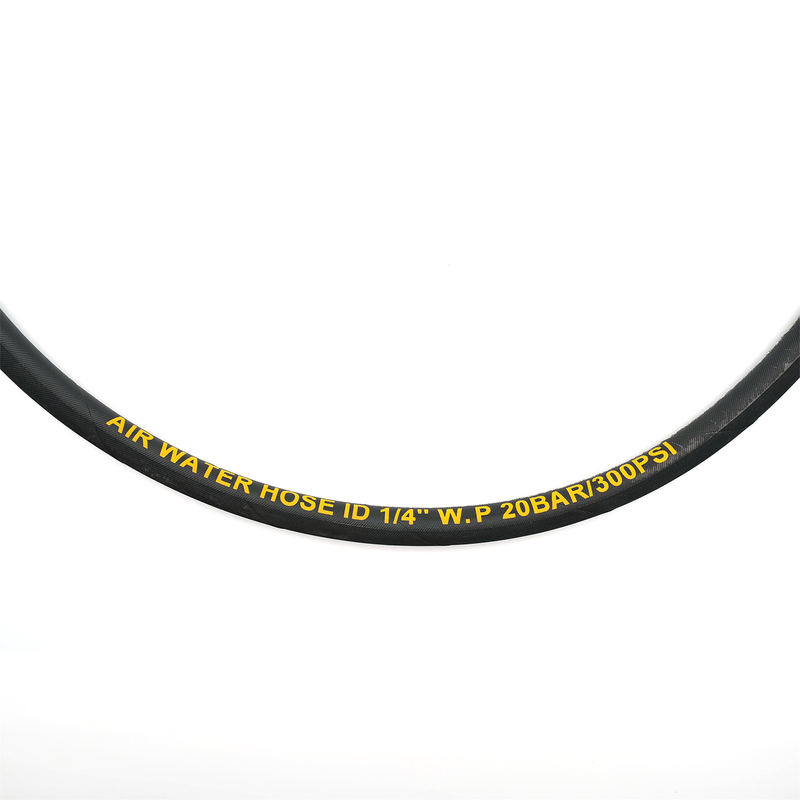

Wrapped Cover Air Hose

Tube:black, smooth, NR/SBR rubber
Reinforcement: High tensile textile cord
Cover: black, wrapped, NR/SBR rubber
Application: A general purpose mandrel built air hose, engineered for medium to heavy duty application. Its strong flexible construction guarantees a long life and easy handling
Temperature Range: -20°C + 80°C

Availability:

Quantity:



Inquire Add to Basket

Product Description

Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Nominal Weight	Bending Radius	Length
inch	mm	mm	bar	psi	bar	psi	kg/m	mm	m
1/4	6	14	20	300	60	900	0.17	60	100
5/16	8	16	20	300	60	900	0.20	75	100
3/8	10	18	20	300	60	900	0.24	75	100
1/2	13	22	20	300	60	900	0.33	100	100
5/8	16	26	20	300	60	900	0.45	125	100
3/4	19	29	20	300	60	900	0.51	150	100
1	25	37	20	300	60	900	0.70	200	100
1-1/4	32	45	20	300	60	900	1.04	250	40 / 60
1-1/2	38	52	20	300	60	900	1.38	300	40 / 60
2	51	65	20	300	60	900	1.78	350	40 / 60
2-1/2	64	79	20	300	60	900	2.25	450	40 / 60
3	76	91	20	300	60	900	2.62	450	40 / 60
4	102	119	20	300	60	900	4.14	600	40 / 60

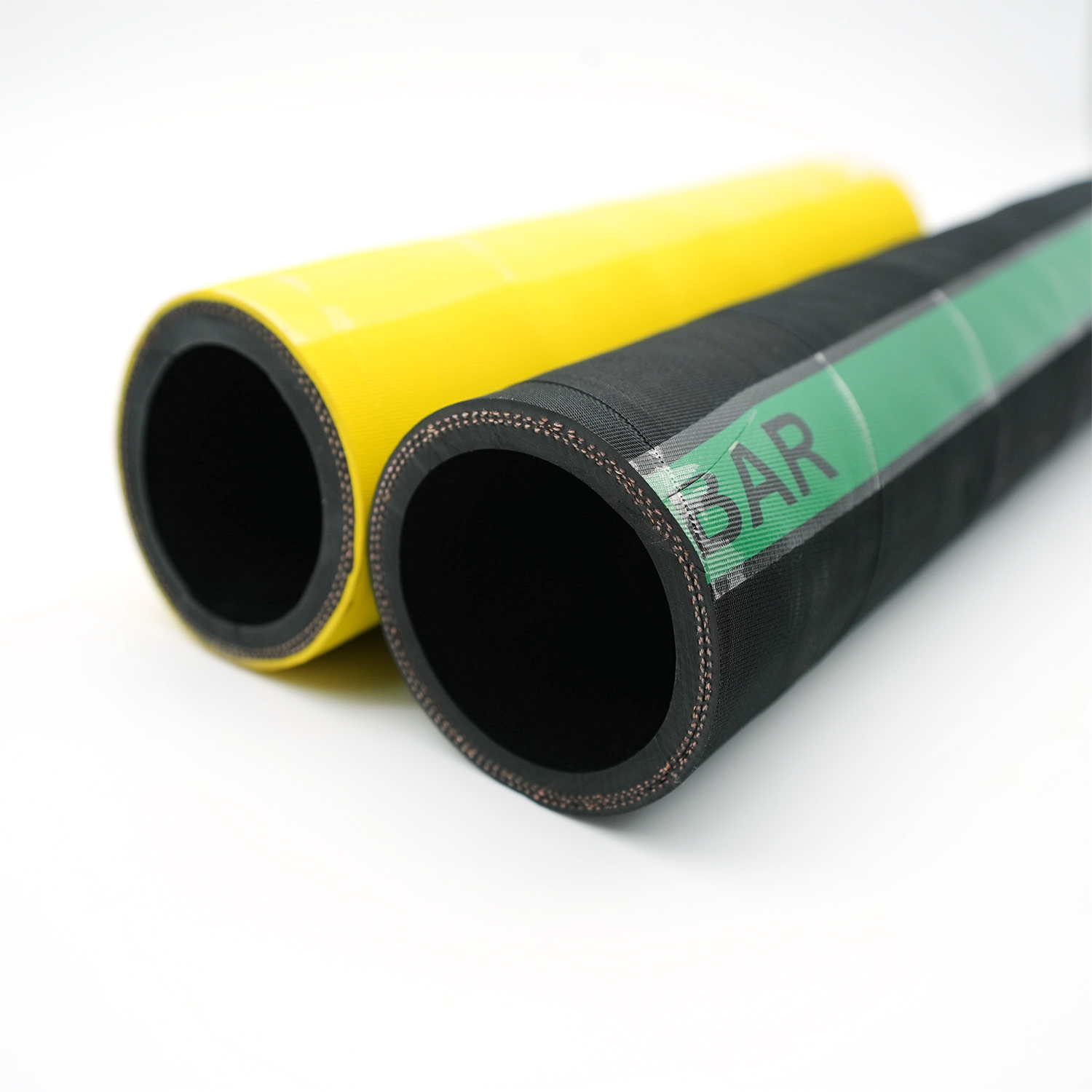

W.P. 10 Bar Wrapped Cover Air Hose W.P. 20 Bar Wrapped Cover Air Hose Yellow Color Wrapped Cover Air Hose Black Color Wrapped Cover Air Hose
