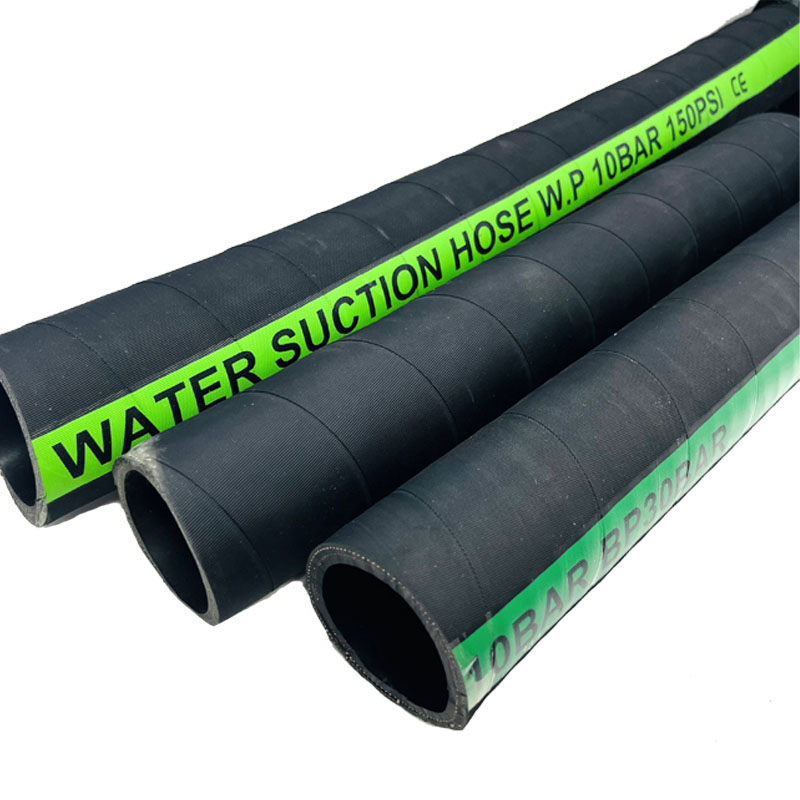

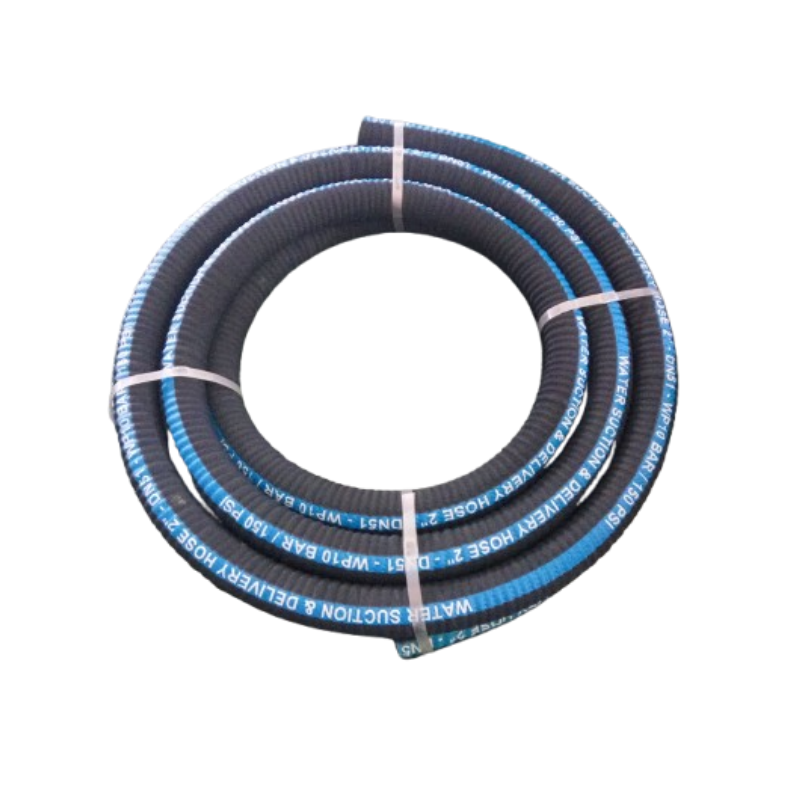

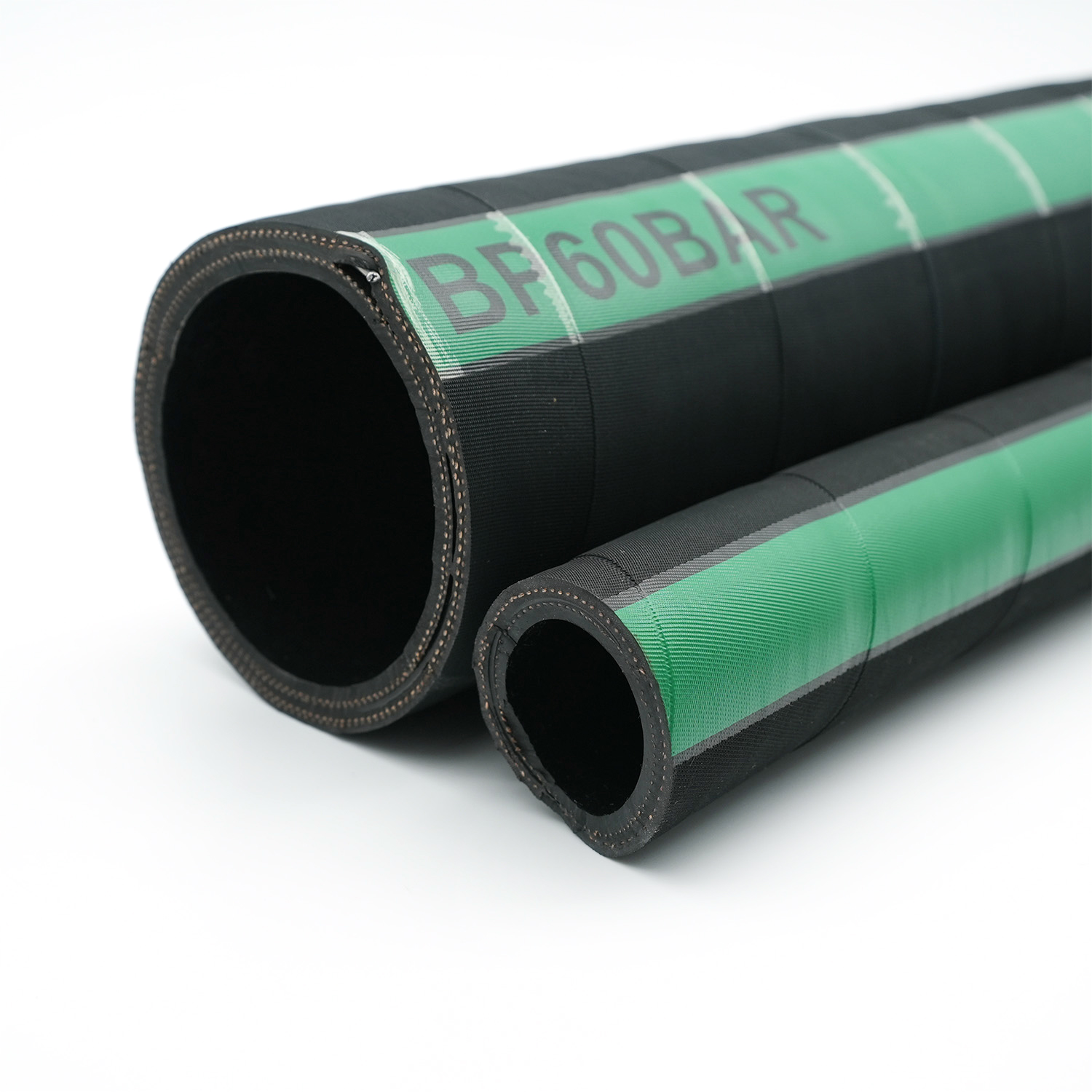

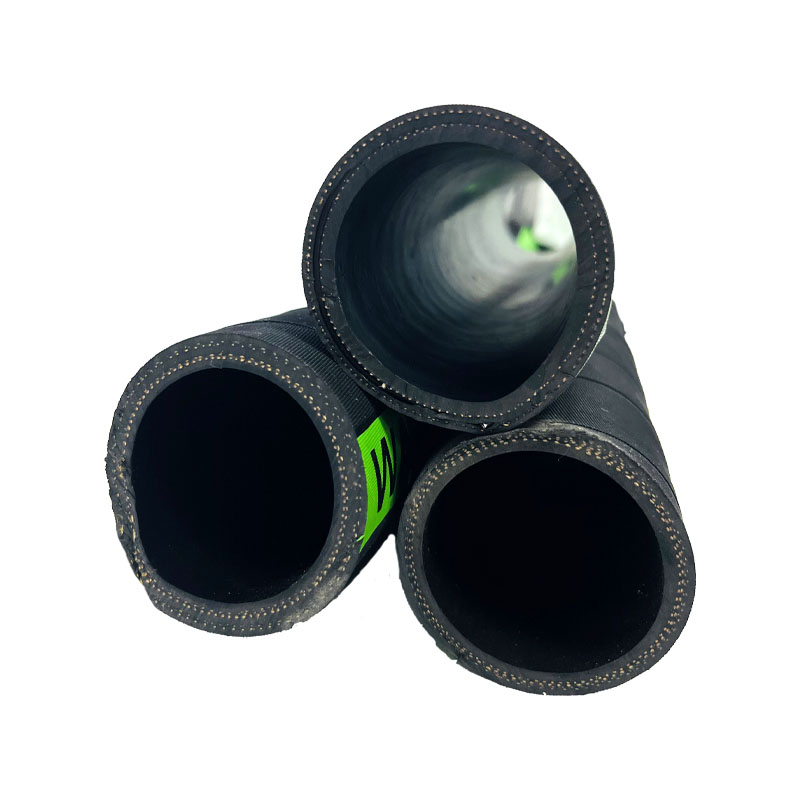

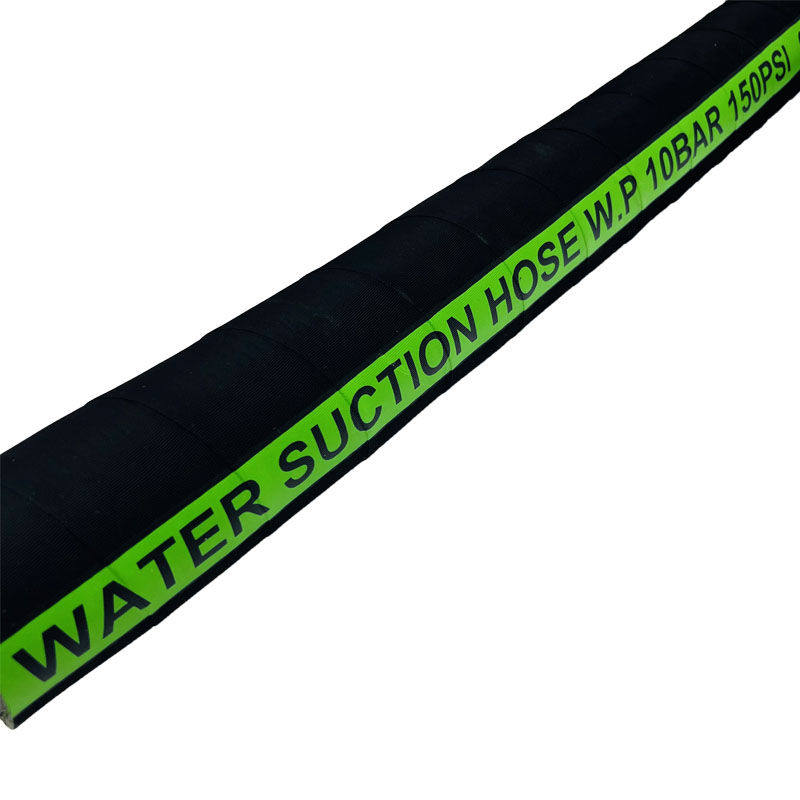

Water Suction And Discharge Hose

Tube: Black, smooth, NR, SBR rubber compound.
Reinforcement: Multi plies High strength synthetic fibre and helix steel wire
Cover: Black, smooth, cloth impression, SBR rubber compound

Water Suction And Discharge Hose Application:
Hardwall hose designed for suction and discharge of water, and non-corrosive fluids used in construction sitesand light duty industrial applications. Ideal high pressure water discharge hose for rugged, tough operating conditions.
Working Temperature: -30℃(-22℉)to+80℃(+176℉)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Grandflex water suction and discharge hose transfers and discharges water. Suitable for both positive and negative pressure, it handles industrial water and neutral liquids at normal temperatures. Widely applied in mines, factories, agriculture, civil and architectural projects, it also serves as an agricultural irrigation water - conveying hose. We can provide this hose.Can be custom manufactured up to 24″ ID and to your specifications.

I.D		O.D	W.P		B.P		VACUUM	Length
inch	mm	mm	bar	psi	bar	psi	bar	m	ft
3/4"	19.1	30	10	150	30	450	0.8	60	200
1"	25.4	36	10	150	30	450	0.8	60	200
1-1/4"	31.8	44	10	150	30	450	0.8	60	200
1-1/2"	38.1	51	10	150	30	450	0.8	60	200
2"	50.8	64	10	150	30	450	0.8	60	200
2-1/2"	63.5	77	10	150	30	450	0.8	60	200
3"	76.2	90	10	150	30	450	0.8	60	200
3-1/2"	88.9	104	10	150	30	450	0.8	60	200
4"	101.6	118	10	150	30	450	0.8	30	200
5"	127	145	10	150	30	450	0.8	30	100
6"	152.4	170	10	150	30	450	0.8	30	100
8"	203.2	224	10	150	30	450	0.8	30	100
10"	254	276	10	150	30	450	0.8	12	40
12"	304	326	10	150	30	450	0.8	12	40
14"	350	378	10	150	30	450	0.8	12	40
