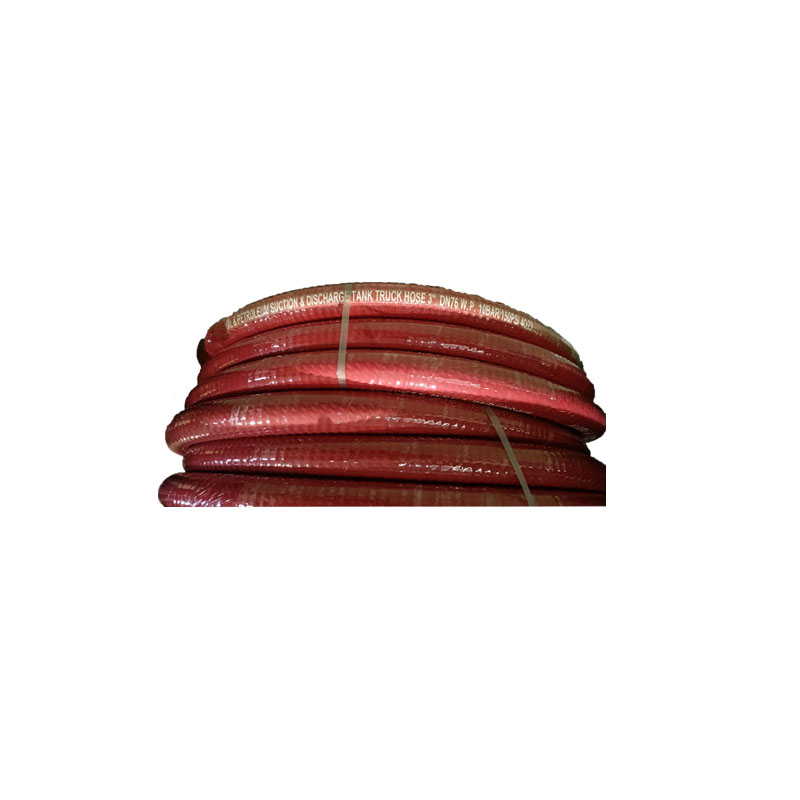

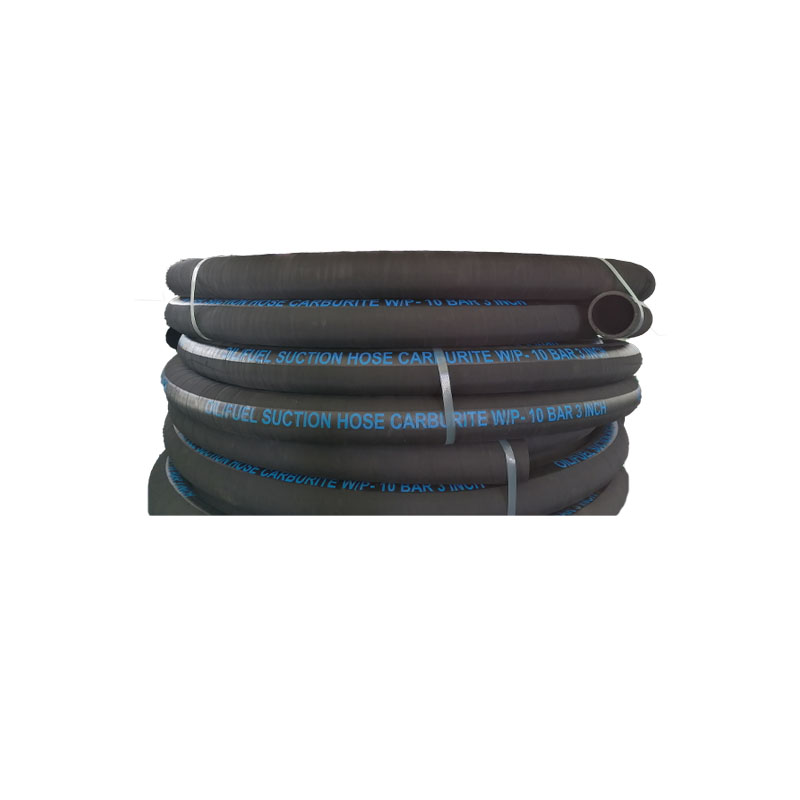

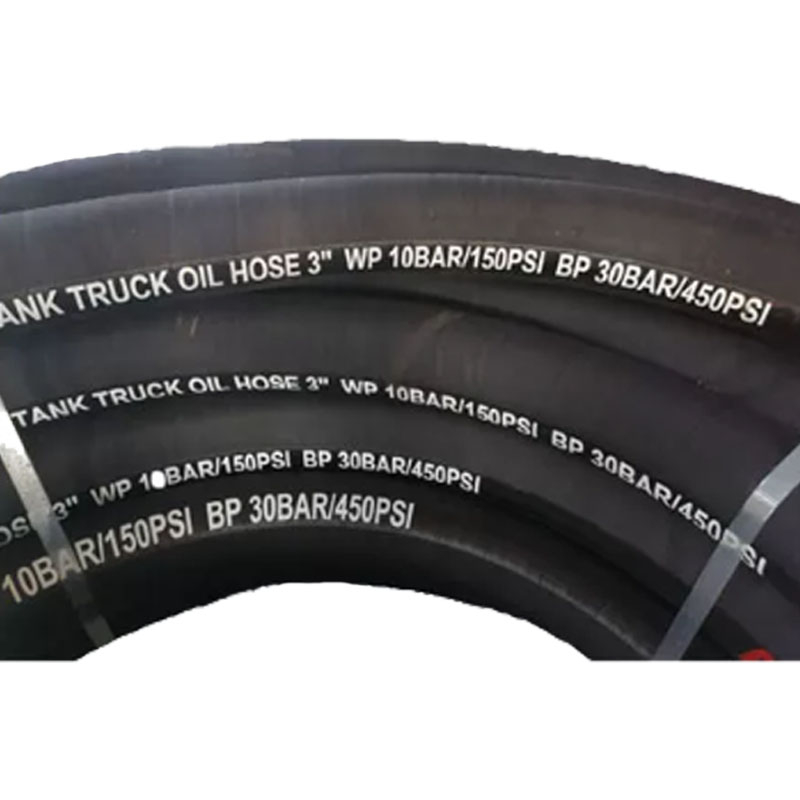

Tank Truck Oil hose is designed for tank tanker, rail tanker and in-plant, oilfield loading operations to transfer and transfer gasoline, oil, ethanol blends and other petroleum base products up to 50% aromatic content. It is designed for pressure, gravity flow, or full-suction service. Working pressure is a vital factor when you select the right hose for your special applications.
Inside Diameter | Outside Diameter | Working Pressure | Bending Radius | Nominal Weight | Length | ||||
inch | mm | inch | mm | bar | psi | mm | kg/m | ft | m |
2 | 51 | 2-5/9 | 65 | 10 | 150 | 300 | 2.01 | 200 | 61 |
2-1/2 | 64 | 3-5/8 | 80 | 10 | 150 | 400 | 3.02 | 200 | 61 |
3 | 76 | 3-5/8 | 92 | 10 | 150 | 400 | 3.51 | 200 | 61 |
4 | 102 | 4-5/7 | 120 | 10 | 150 | 500 | 5.17 | 200 | 61 |
5 | 127 | 5-3/4 | 147 | 10 | 150 | 600 | 7.63 | 200 | 61 |
6 | 152 | 6-3/4 | 172 | 10 | 150 | 600 | 9.01 | 200 | 61 |
Tank Truck Oil hose is designed for tank tanker, rail tanker and in-plant, oilfield loading operations to transfer and transfer gasoline, oil, ethanol blends and other petroleum base products up to 50% aromatic content. It is designed for pressure, gravity flow, or full-suction service. Working pressure is a vital factor when you select the right hose for your special applications.
Inside Diameter | Outside Diameter | Working Pressure | Bending Radius | Nominal Weight | Length | ||||
inch | mm | inch | mm | bar | psi | mm | kg/m | ft | m |
2 | 51 | 2-5/9 | 65 | 10 | 150 | 300 | 2.01 | 200 | 61 |
2-1/2 | 64 | 3-5/8 | 80 | 10 | 150 | 400 | 3.02 | 200 | 61 |
3 | 76 | 3-5/8 | 92 | 10 | 150 | 400 | 3.51 | 200 | 61 |
4 | 102 | 4-5/7 | 120 | 10 | 150 | 500 | 5.17 | 200 | 61 |
5 | 127 | 5-3/4 | 147 | 10 | 150 | 600 | 7.63 | 200 | 61 |
6 | 152 | 6-3/4 | 172 | 10 | 150 | 600 | 9.01 | 200 | 61 |
