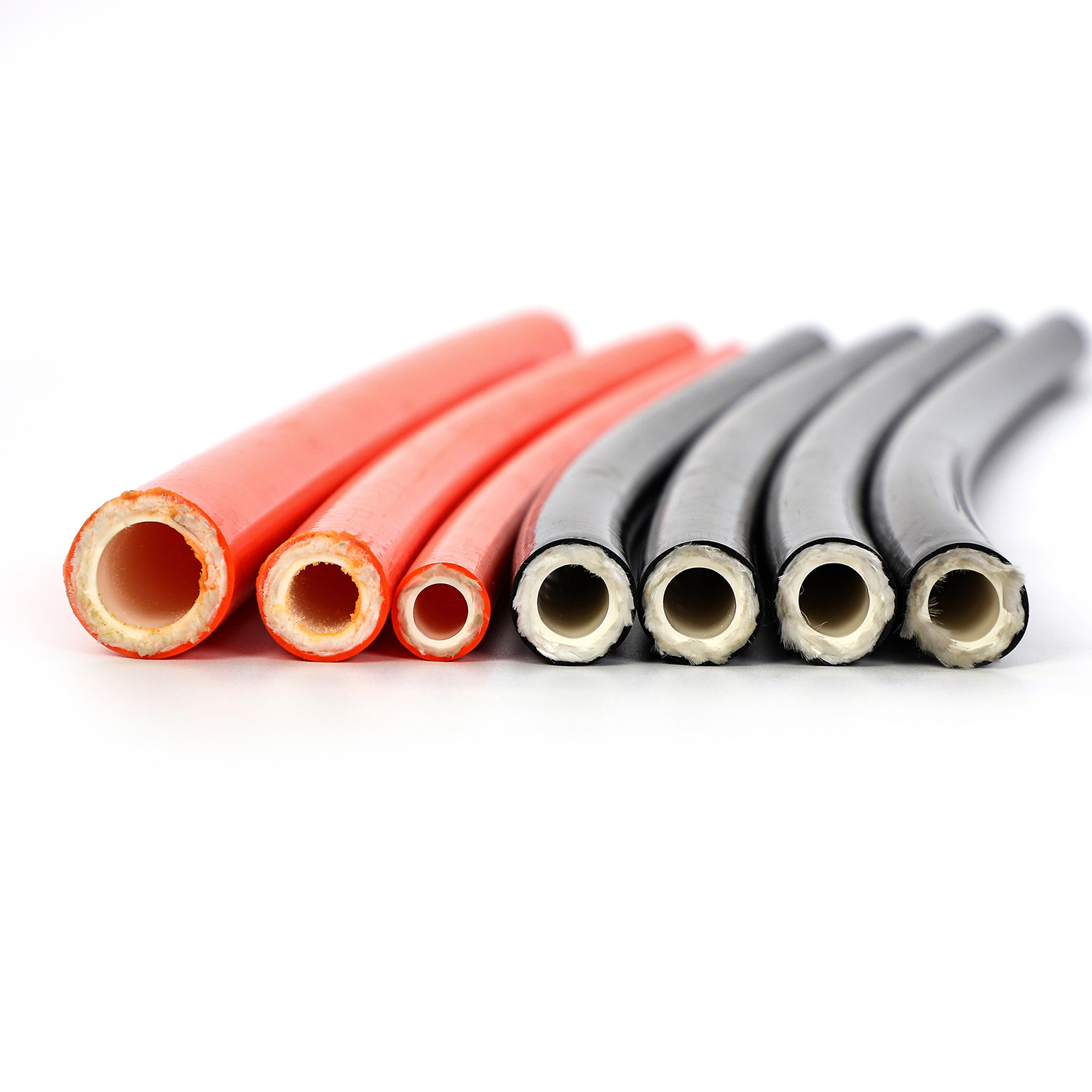

SAE100 R7 Thermoplastic Hydraulic Hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids in the working temperature of -40 °C to +10 °C. It is non-conductive due to its appropriate materials. It is composed of three parts: tube, reinforcement and cover.

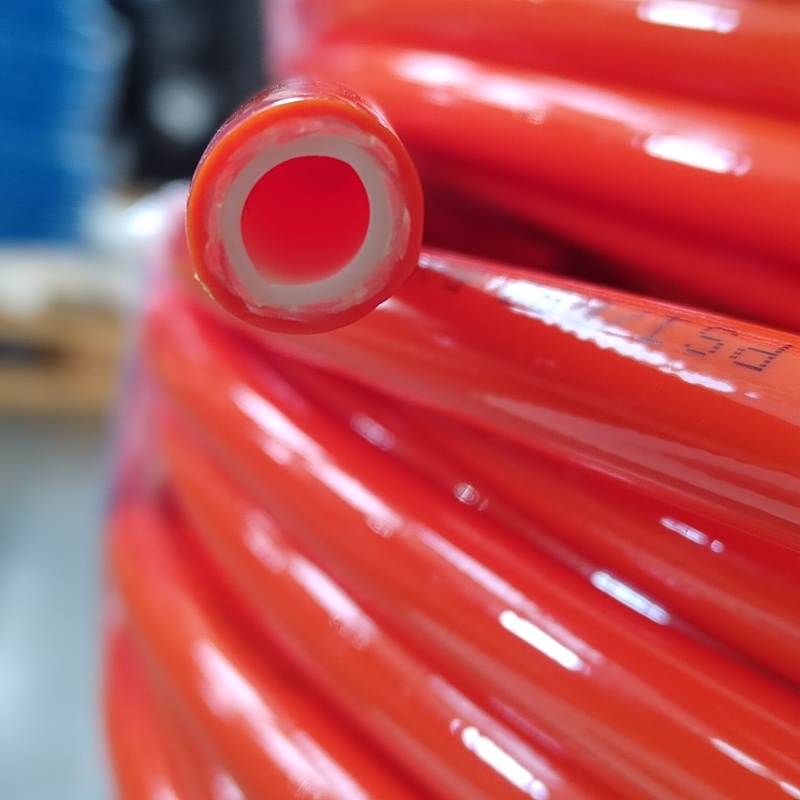

The tube is made from high quality oil resistant thermoplastic, making the hose widely used in delivering synthetic, petroleum or water-based hydraulic fluids. The reinforcement is made from suitable synthetic fiber and the cover is made from high quality thermoplastic, which is resistant to weather and hydraulic fluids.
Metric Size | Inch Size | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P | Min B.P. (Mpa) | MinB.R. (mm) | W.T (g/m) | |||||
Standard | Standard(mm) | one layer | two layers | |||||||||||
mm | Inches | Dash | mm | one layer | two layers | mm | psi | psi | one layer | two layers | one layer | two layers | one layer | two layers |
5 | 3/16 | 03 | 4.8 | 10.3 | 10.8 | ±0.10 | 3045 | 3620 | 84.0 | 100.0 | 35 | 55 | 65 | 70 |
6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 2900 | 3980 | 80.0 | 110.0 | 50 | 75 | 80 | 125 |
8 | 5/16 | 05 | 7.9 | 14.3 | 15.0 | ±0.10 | 2755 | 3770 | 76.0 | 105.0 | 50 | 85 | 125 | 150 |
10 | 3/8 | 06 | 9.5 | 15.9 | 18.0 | ±0.10 | 2540 | 3620 | 70.0 | 100.0 | 80 | 100 | 140 | 210 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | 21.6 | ±0.15 | 2030 | 3040 | 56.0 | 84.0 | 100 | 140 | 200 | 260 |
16 | 5/8 | 10 | 15.9 | 23.3 | 23.6 | ±0.15 | 1885 | 2320 | 52.0 | 64.0 | 160 | 165 | 260 | 295 |
19 | 3/4 | 12 | 18.9 | 26.5 | 26.4 | ±0.15 | 1305 | 2030 | 36.0 | 56.0 | 180 | 195 | 320 | 315 |
25 | 1 | 16 | 25.4 | 34.0 | 34.0 | ±0.20 | 1015 | 1520 | 28.0 | 42.0 | 250 | 256 | 400 | 450 |
Metric Size | Inch Size | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P. | Min B.P. (Mpa) | Min B.R (mm) | W.T (g/m) | |||||
Standard | Standard(mm) | one layer | two layers | |||||||||||
mm | Inches | Dash | mm | one layer | two layers | mm | psi | psi | one layer | two layers | one layer | two layers | one layer | two layers |
6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 3990 | 5070 | 110.0 | 140.0 | 40 | 40 | 160 | 290 |
8 | 5/16 | 05 | 7.9 | 14.3 | 14.9 | ±0.10 | 3620 | 4710 | 100.0 | 130.0 | 55 | 50 | 215 | 340 |
10 | 3/8 | 06 | 9.5 | 15.9 | 16.7 | ±0.10 | 3260 | 4200 | 90.0 | 116.0 | 65 | 70 | 240 | 400 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | 19.8 | ±0.15 | 2540 | 3770 | 70.0 | 105.0 | 85 | 80 | 310 | 560 |
16 | 5/8 | 10 | 15.9 | 23.3 | 23.3 | ±0.15 | 2030 | 2900 | 56.0 | 80.0 | 115 | 130 | 410 | 630 |
19 | 3/4 | 12 | 18.9 | 26.5 | 26.0 | ±0.15 | 1740 | 2540 | 48.0 | 70.0 | 140 | 160 | 500 | 750 |
25 | 1 | 16 | 25.4 | 34.0 | 33.0 | ±0.20 | 1450 | 1740 | 40.0 | 48.0 | 180 | 220 | 650 | 1000 |
SAE100 R7 Thermoplastic Hydraulic Hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids in the working temperature of -40 °C to +10 °C. It is non-conductive due to its appropriate materials. It is composed of three parts: tube, reinforcement and cover.
The tube is made from high quality oil resistant thermoplastic, making the hose widely used in delivering synthetic, petroleum or water-based hydraulic fluids. The reinforcement is made from suitable synthetic fiber and the cover is made from high quality thermoplastic, which is resistant to weather and hydraulic fluids.
Metric Size | Inch Size | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P | Min B.P. (Mpa) | MinB.R. (mm) | W.T (g/m) | |||||
Standard | Standard(mm) | one layer | two layers | |||||||||||
mm | Inches | Dash | mm | one layer | two layers | mm | psi | psi | one layer | two layers | one layer | two layers | one layer | two layers |
5 | 3/16 | 03 | 4.8 | 10.3 | 10.8 | ±0.10 | 3045 | 3620 | 84.0 | 100.0 | 35 | 55 | 65 | 70 |
6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 2900 | 3980 | 80.0 | 110.0 | 50 | 75 | 80 | 125 |
8 | 5/16 | 05 | 7.9 | 14.3 | 15.0 | ±0.10 | 2755 | 3770 | 76.0 | 105.0 | 50 | 85 | 125 | 150 |
10 | 3/8 | 06 | 9.5 | 15.9 | 18.0 | ±0.10 | 2540 | 3620 | 70.0 | 100.0 | 80 | 100 | 140 | 210 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | 21.6 | ±0.15 | 2030 | 3040 | 56.0 | 84.0 | 100 | 140 | 200 | 260 |
16 | 5/8 | 10 | 15.9 | 23.3 | 23.6 | ±0.15 | 1885 | 2320 | 52.0 | 64.0 | 160 | 165 | 260 | 295 |
19 | 3/4 | 12 | 18.9 | 26.5 | 26.4 | ±0.15 | 1305 | 2030 | 36.0 | 56.0 | 180 | 195 | 320 | 315 |
25 | 1 | 16 | 25.4 | 34.0 | 34.0 | ±0.20 | 1015 | 1520 | 28.0 | 42.0 | 250 | 256 | 400 | 450 |
Metric Size | Inch Size | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P. | Min B.P. (Mpa) | Min B.R (mm) | W.T (g/m) | |||||
Standard | Standard(mm) | one layer | two layers | |||||||||||
mm | Inches | Dash | mm | one layer | two layers | mm | psi | psi | one layer | two layers | one layer | two layers | one layer | two layers |
6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 3990 | 5070 | 110.0 | 140.0 | 40 | 40 | 160 | 290 |
8 | 5/16 | 05 | 7.9 | 14.3 | 14.9 | ±0.10 | 3620 | 4710 | 100.0 | 130.0 | 55 | 50 | 215 | 340 |
10 | 3/8 | 06 | 9.5 | 15.9 | 16.7 | ±0.10 | 3260 | 4200 | 90.0 | 116.0 | 65 | 70 | 240 | 400 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | 19.8 | ±0.15 | 2540 | 3770 | 70.0 | 105.0 | 85 | 80 | 310 | 560 |
16 | 5/8 | 10 | 15.9 | 23.3 | 23.3 | ±0.15 | 2030 | 2900 | 56.0 | 80.0 | 115 | 130 | 410 | 630 |
19 | 3/4 | 12 | 18.9 | 26.5 | 26.0 | ±0.15 | 1740 | 2540 | 48.0 | 70.0 | 140 | 160 | 500 | 750 |
25 | 1 | 16 | 25.4 | 34.0 | 33.0 | ±0.20 | 1450 | 1740 | 40.0 | 48.0 | 180 | 220 | 650 | 1000 |
