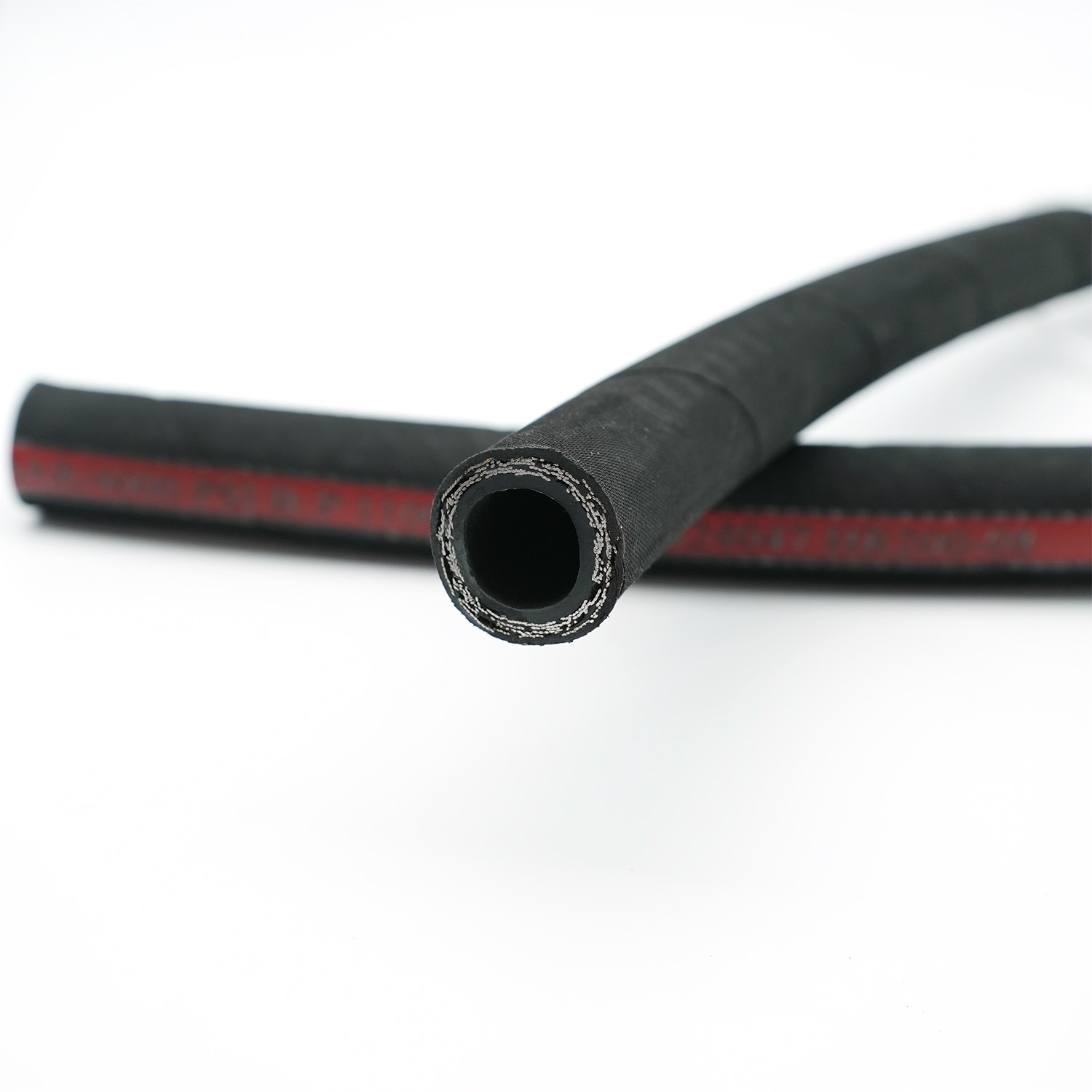

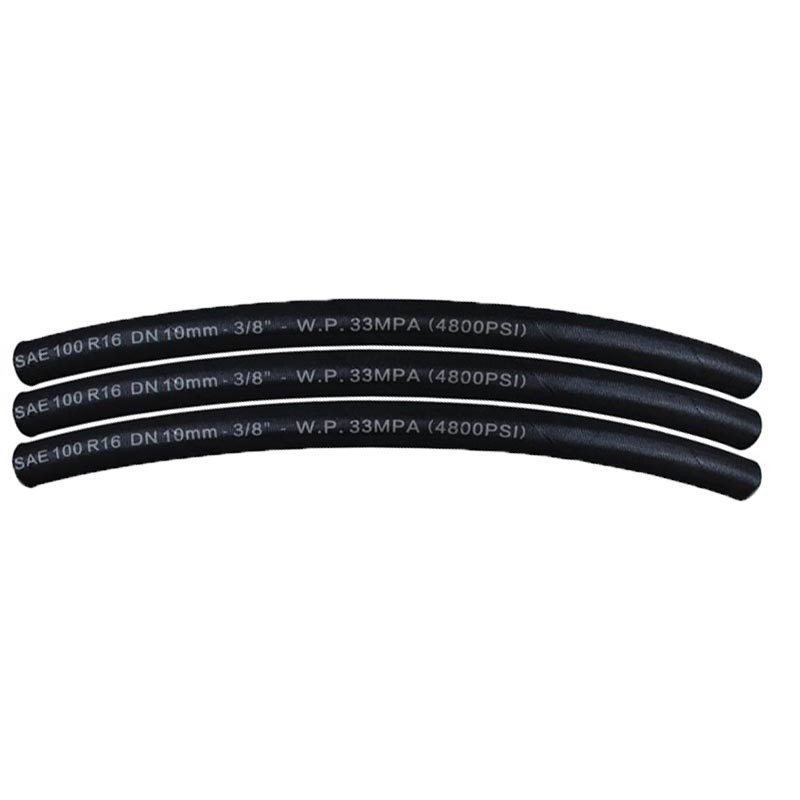

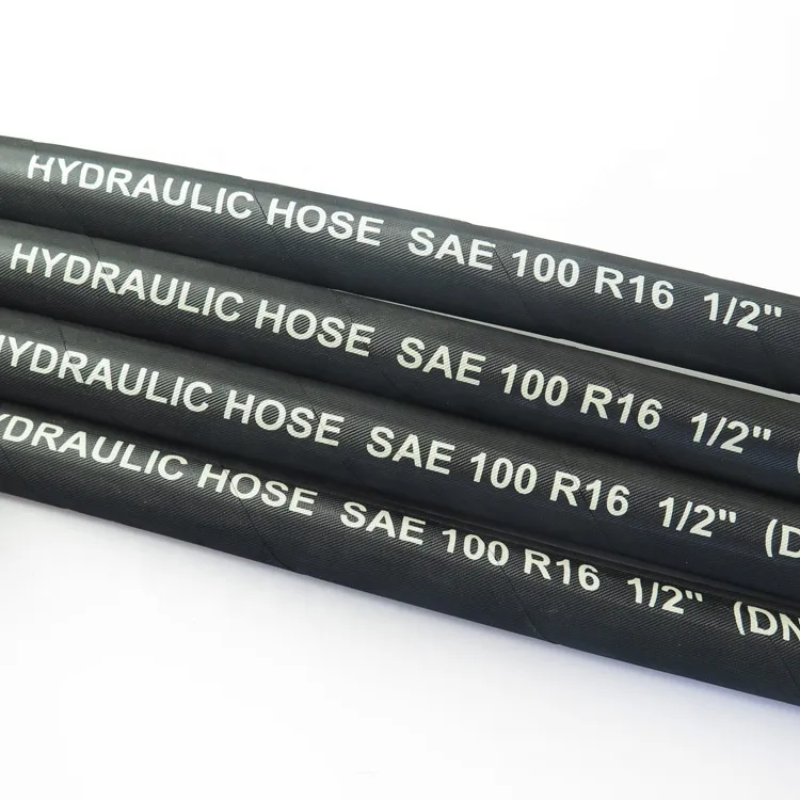

SAE 100 R16 steel wire reinforced hydraulic hose is suitable for connecting hydraulic equipment in narrow installation space, because it has smaller bending radius and outside diameter.

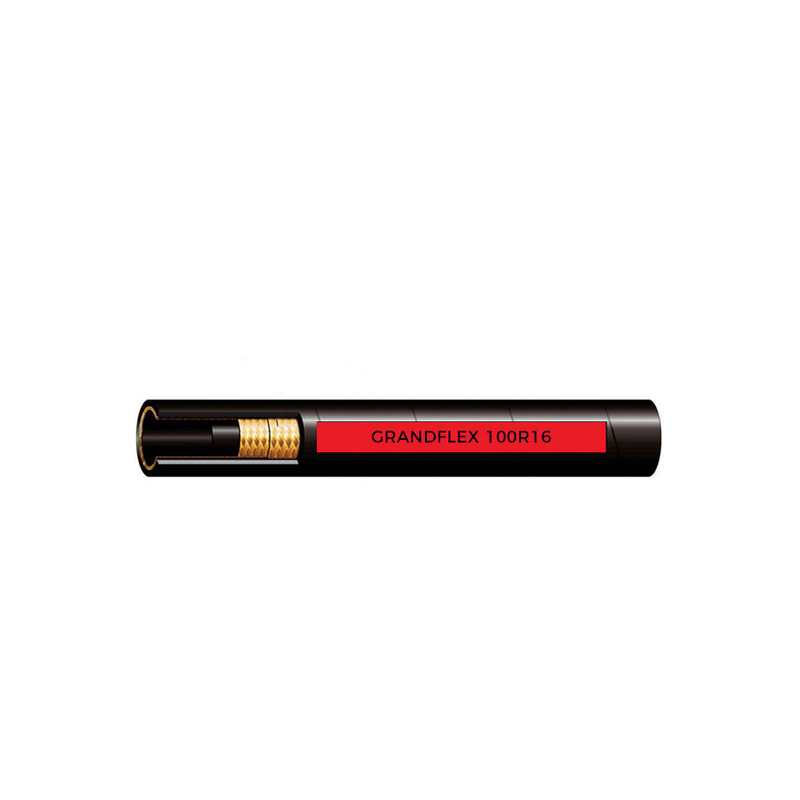

It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making it have excellent performance in delivering oils. The reinforcement is designed of one layer or two layers of braided steel wire, which is highly resistant to high pressure. The cover is made from weather resistant synthetic rubber, making the hose resistant to weather, ozone, aging, abrasion, corrosion and cut.
Metric Size | Inch Size | SAE Dash size | I.D | W.D. | O.D. | Max W.P. | Min B.P. | Min B.R | W.T | ||
Standard(mm) | Standard(mm) | Standard(mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
6.3 | 1/4 | 04 | 6.2 | 7.0 | 12.3 | 14.5 | 35.0 | 5075 | 140.0 | 50.0 | 0.31 |
8 | 5/16 | 05 | 7.7 | 8.5 | 13.3 | 15.7 | 29.7 | 4307 | 119.0 | 55.0 | 0.35 |
10 | 3/8 | 06 | 9.3 | 10.1 | 15.9 | 18.8 | 28.0 | 4060 | 112.0 | 65.0 | 0.47 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.0 | 22.0 | 24.5 | 3553 | 98.0 | 90.0 | 0.54 |
16 | 5/8 | 10 | 15.5 | 16.7 | 22.6 | 25.4 | 19.2 | 2784 | 77.0 | 100.0 | 0.7 |
19 | 3/4 | 12 | 18.6 | 19.8 | 26.3 | 29.0 | 15.7 | 2277 | 63.0 | 120.0 | 0.86 |
25 | 1 | 16 | 25.0 | 26.4 | 34.0 | 36.6 | 14.0 | 2030 | 56.0 | 150.0 | 1.2 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 41.9 | 44.3 | 11.3 | 1639 | 45.0 | 210.0 | 1.6 |
