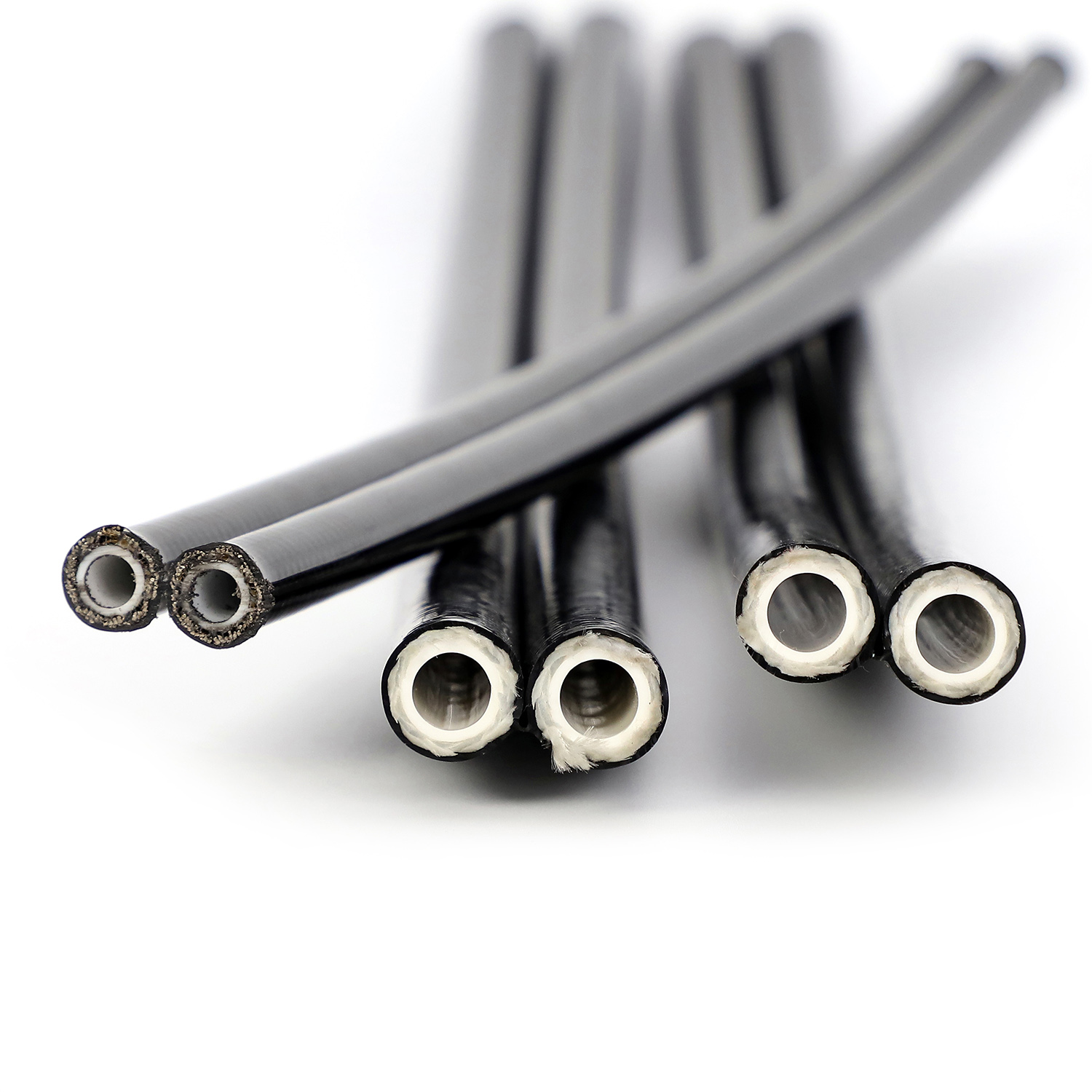

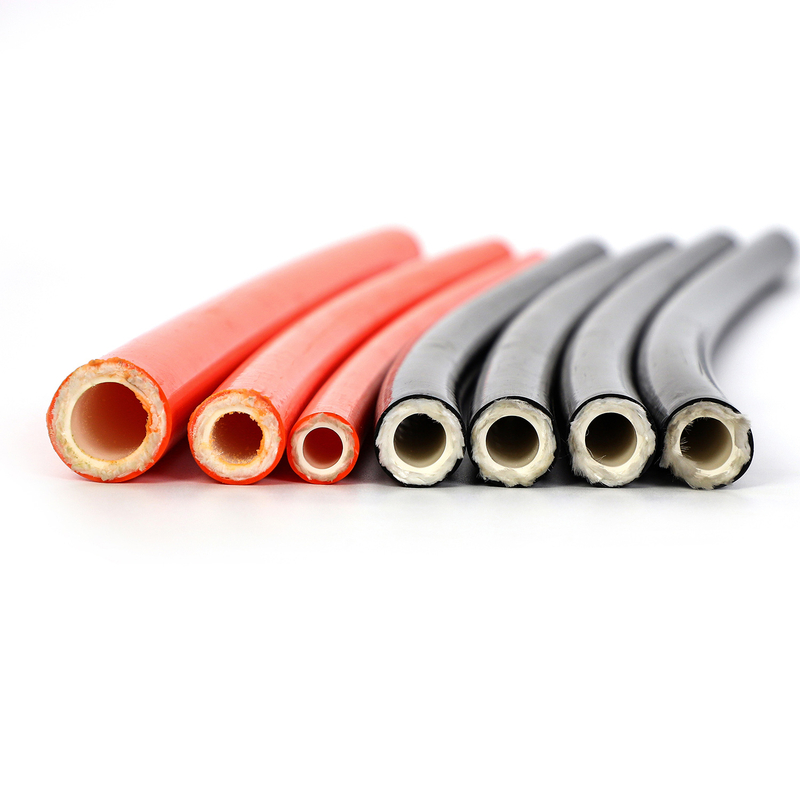

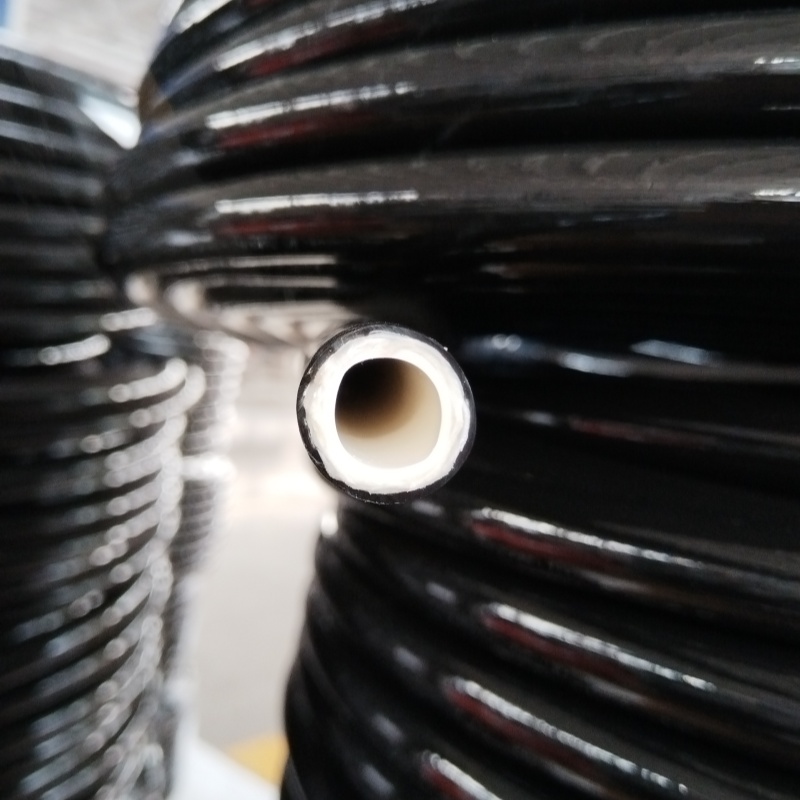

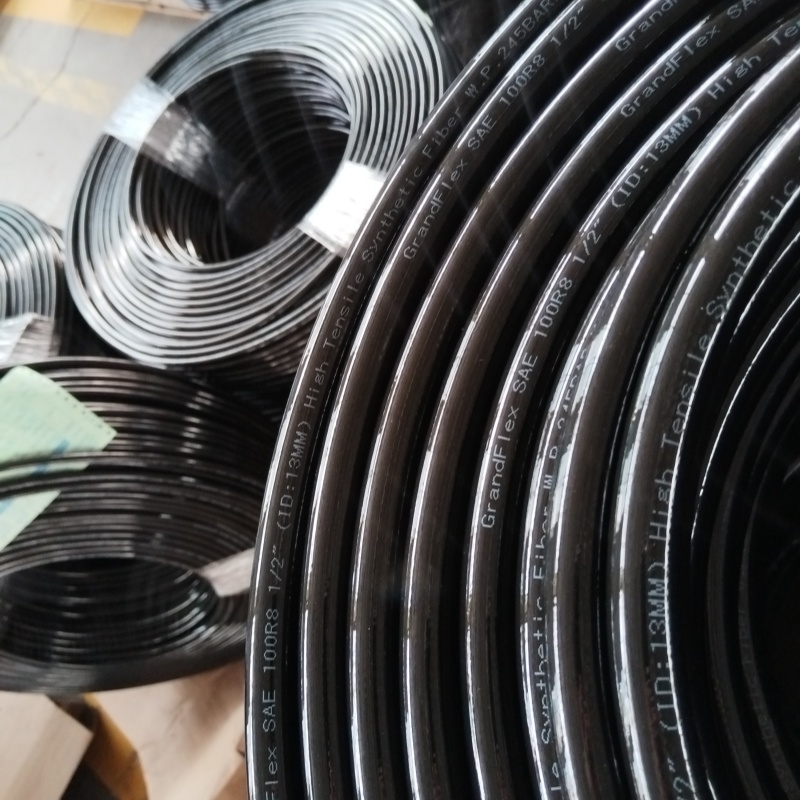

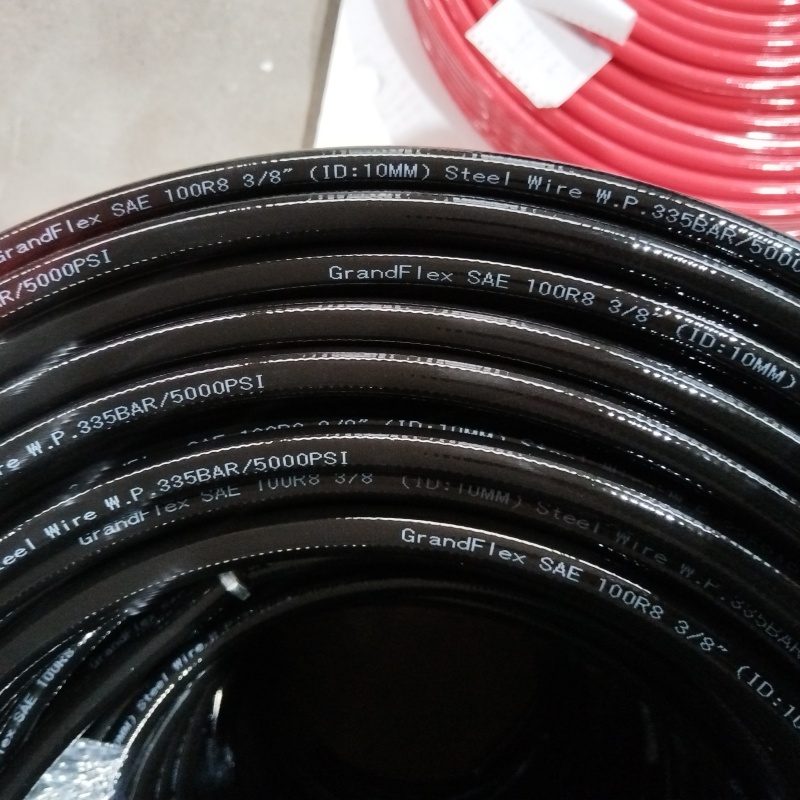

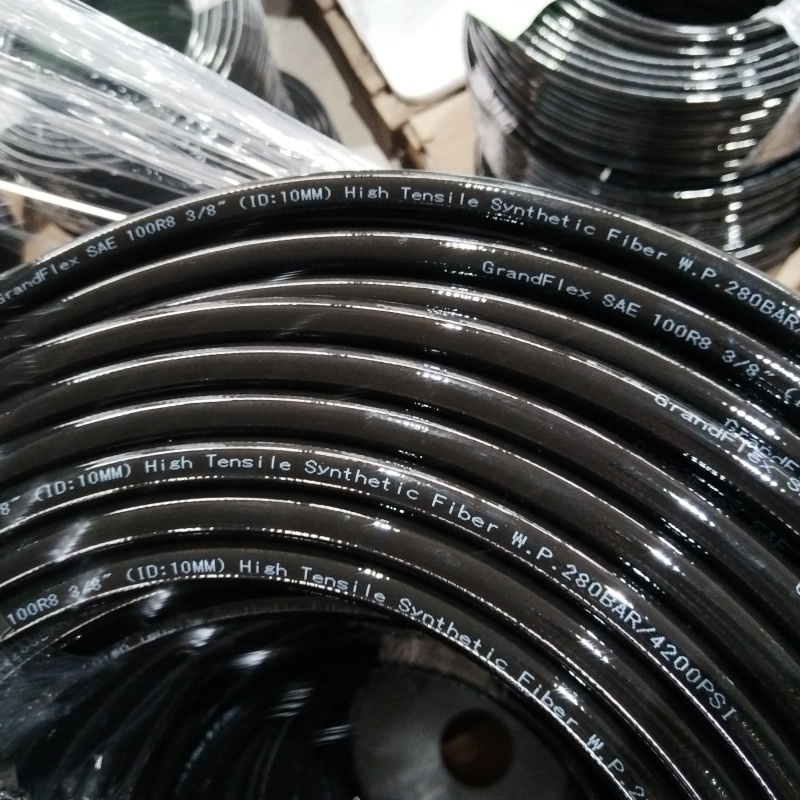

SAE 100 R8 Thermoplastic Hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life
Metric Size | InchSize | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P. | Min B.P. | Min B.R | W.T | |
Standard | Standard | |||||||||
mm | Inches | Dash | mm | mm | mm | Mpa | psi | Mpa | mm | g/m |
6.3 | 1/4 | 04 | 6.3 | 12.3 | ±0.10 | 38 | 5510 | 150.0 | 40 | 90 |
8 | 5/16 | 05 | 7.9 | 14.3 | ±0.10 | 33 | 4785 | 130.0 | 45 | 115 |
10 | 3/8 | 06 | 9.5 | 16.7 | ±0.15 | 28 | 4060 | 112.0 | 60 | 145 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | ±0.15 | 25 | 3625 | 100.0 | 80 | 205 |
16 | 5/8 | 10 | 15.9 | 24.5 | ±0.15 | 23 | 3335 | 90.0 | 120 | 290 |
19 | 3/4 | 12 | 18.9 | 28.0 | ±0.15 | 18 | 2610 | 70.0 | 140 | 345 |
25 | 1 | 16 | 25.4 | 34.0 | ±0.20 | 15 | 2175 | 60.0 | 160 | 450 |
SAE 100 R8 Thermoplastic Hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life
Metric Size | InchSize | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P. | Min B.P. | Min B.R | W.T | |
Standard | Standard | |||||||||
mm | Inches | Dash | mm | mm | mm | Mpa | psi | Mpa | mm | g/m |
6.3 | 1/4 | 04 | 6.3 | 12.3 | ±0.10 | 38 | 5510 | 150.0 | 40 | 90 |
8 | 5/16 | 05 | 7.9 | 14.3 | ±0.10 | 33 | 4785 | 130.0 | 45 | 115 |
10 | 3/8 | 06 | 9.5 | 16.7 | ±0.15 | 28 | 4060 | 112.0 | 60 | 145 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | ±0.15 | 25 | 3625 | 100.0 | 80 | 205 |
16 | 5/8 | 10 | 15.9 | 24.5 | ±0.15 | 23 | 3335 | 90.0 | 120 | 290 |
19 | 3/4 | 12 | 18.9 | 28.0 | ±0.15 | 18 | 2610 | 70.0 | 140 | 345 |
25 | 1 | 16 | 25.4 | 34.0 | ±0.20 | 15 | 2175 | 60.0 | 160 | 450 |
