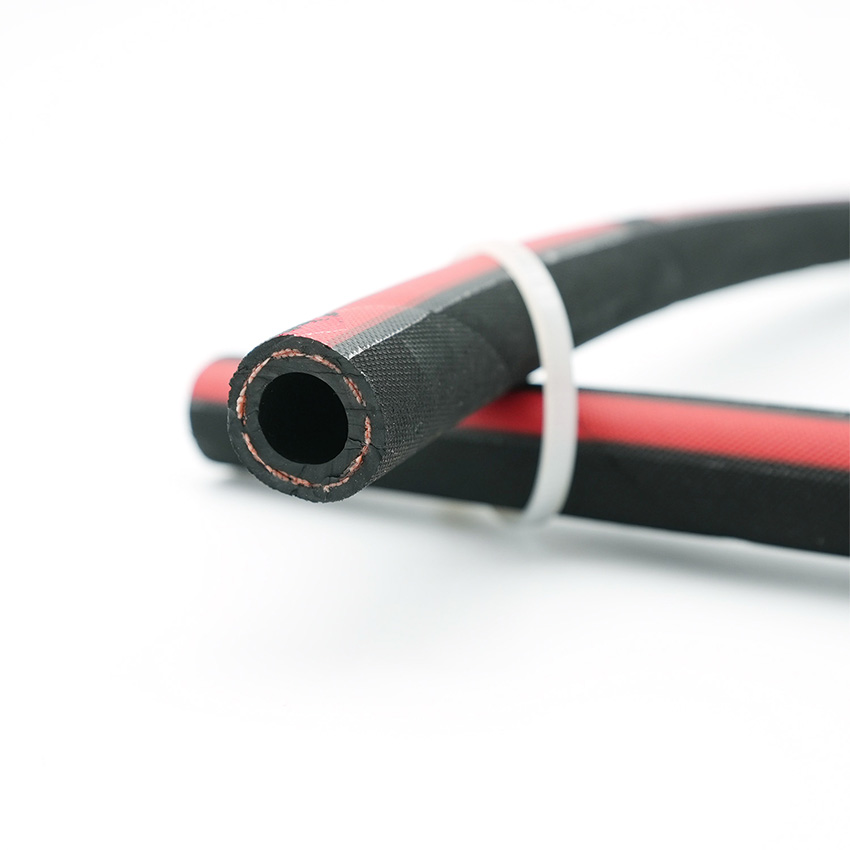

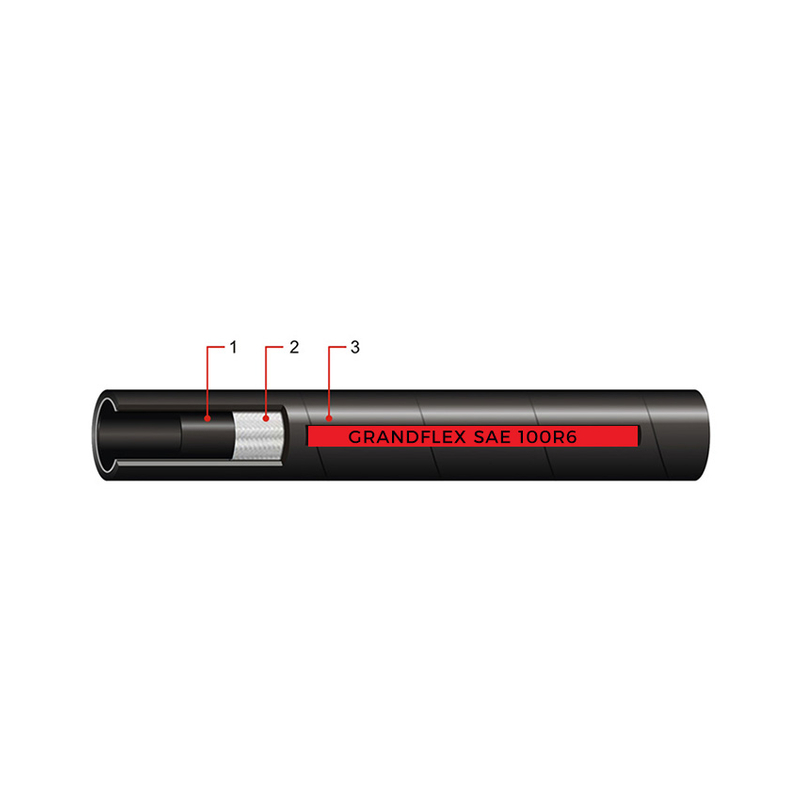

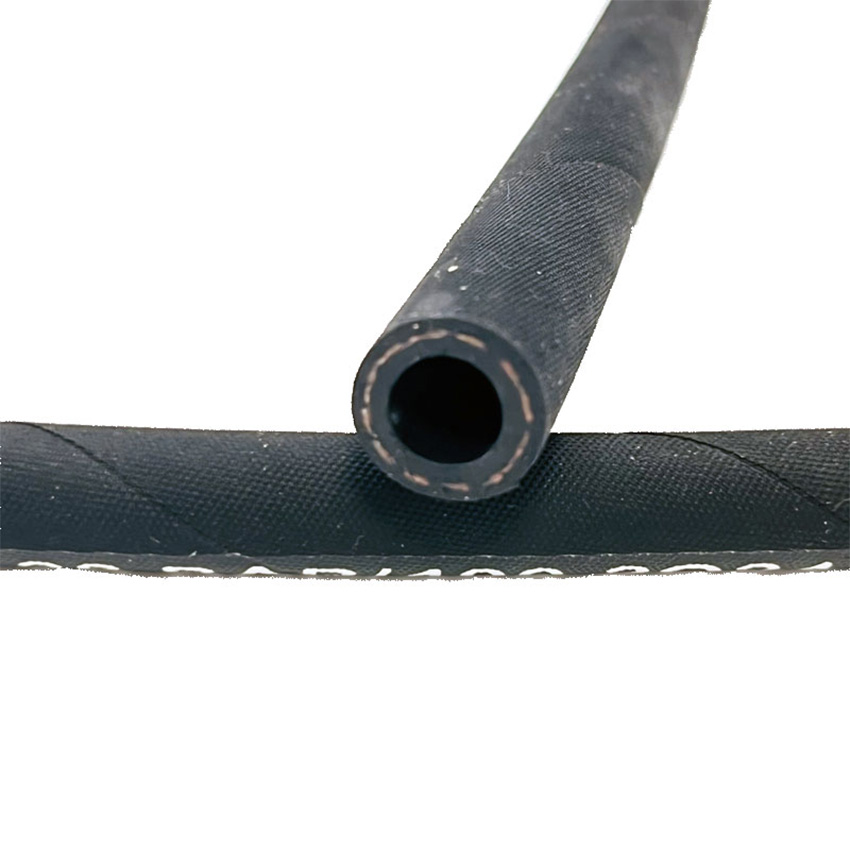

Grandflex SAE 100R6 Hydraulic Hose features textile braid reinforcement with an oil-resistant synthetic rubber tube and abrasion-resistant outer cover. Designed for medium-pressure hydraulic oil, petroleum, and water-based fluids, it resists heat (≤100°C), abrasion, weathering, ozone, UV exposure, and chemical corrosion.
Compliant with SAE 100R6, ISO 4079 Type 1, and DIN EN854 Type 1TE standards, this SAE J517-certified hose ensures reliable performance in industrial/mobile hydraulic systems requiring textile-reinforced fluid transfer solutions.

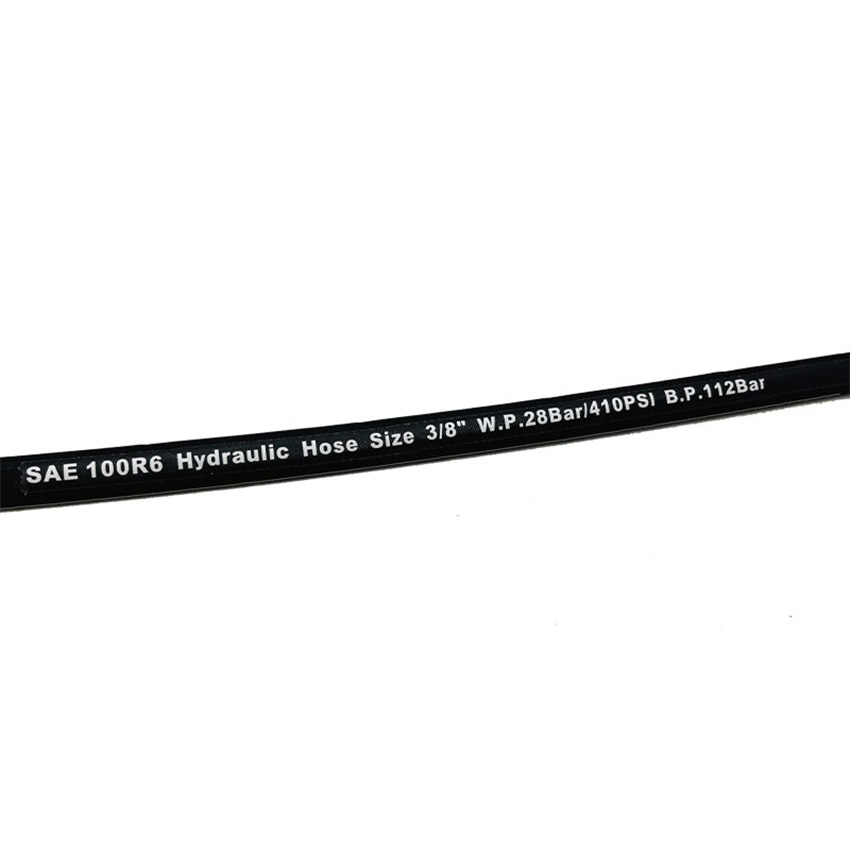

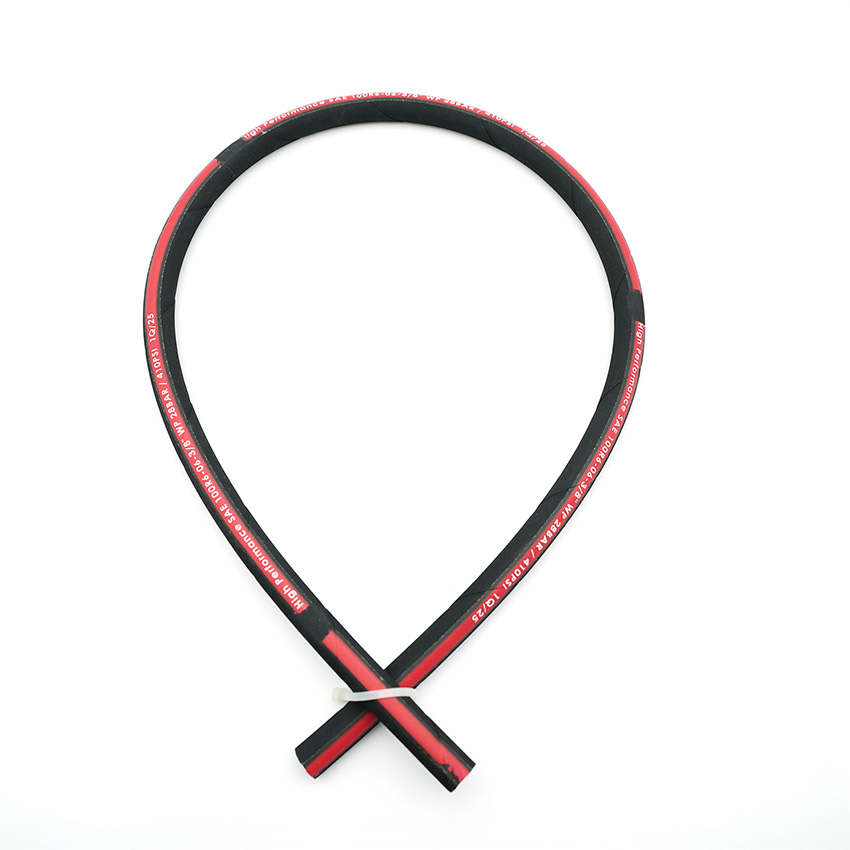

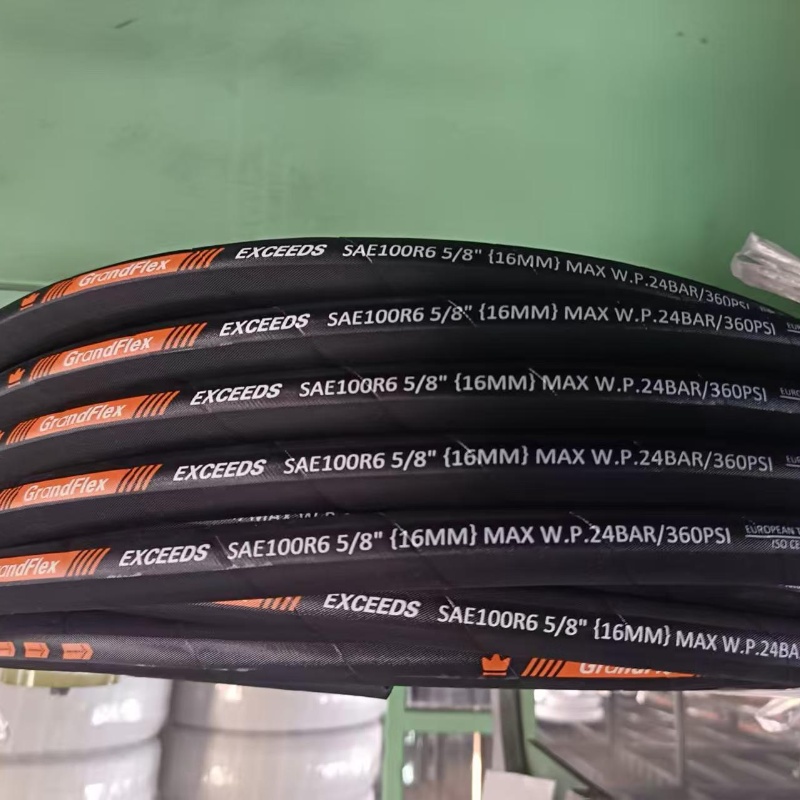

SAE 100R6 One Layer Fiber Braid Hydraulic Hose
Metric Size | Inch Size | SAE Dash Size | I.D | O.D | Max W.P | Min B.P | Min B.R | Weight | |||
Standard(mm) | Standard(mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.2 | 5.4 | 10.3 | 11.9 | 3.5 | 508 | 14 | 50 | 0.12 |
6.3 | 1/4 | 04 | 5.6 | 7.2 | 11.9 | 13.5 | 2.8 | 406 | 11.2 | 65 | 0.15 |
8 | 5/16 | 05 | 7.2 | 8.8 | 13.5 | 15.1 | 2.8 | 406 | 11.2 | 75 | 0.18 |
10 | 3/8 | 06 | 8.7 | 10.3 | 15.1 | 16.7 | 2.8 | 406 | 11.2 | 75 | 0.21 |
12.5 | 1/2 | 08 | 11.9 | 13.5 | 19.0 | 20.6 | 2.8 | 406 | 11.2 | 100 | 0.27 |
16 | 5/8 | 10 | 15.1 | 16.7 | 22.2 | 23.8 | 2.4 | 348 | 9.6 | 9.6 | 0.32 |
19 | 3/4 | 12 | 18.3 | 19.9 | 25.4 | 27.8 | 2.1 | 305 | 8.4 | 8.4 | 0.42 |
Grandflex SAE 100R6 Hydraulic Hose features textile braid reinforcement with an oil-resistant synthetic rubber tube and abrasion-resistant outer cover. Designed for medium-pressure hydraulic oil, petroleum, and water-based fluids, it resists heat (≤100°C), abrasion, weathering, ozone, UV exposure, and chemical corrosion.
Compliant with SAE 100R6, ISO 4079 Type 1, and DIN EN854 Type 1TE standards, this SAE J517-certified hose ensures reliable performance in industrial/mobile hydraulic systems requiring textile-reinforced fluid transfer solutions.
SAE 100R6 One Layer Fiber Braid Hydraulic Hose
Metric Size | Inch Size | SAE Dash Size | I.D | O.D | Max W.P | Min B.P | Min B.R | Weight | |||
Standard(mm) | Standard(mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.2 | 5.4 | 10.3 | 11.9 | 3.5 | 508 | 14 | 50 | 0.12 |
6.3 | 1/4 | 04 | 5.6 | 7.2 | 11.9 | 13.5 | 2.8 | 406 | 11.2 | 65 | 0.15 |
8 | 5/16 | 05 | 7.2 | 8.8 | 13.5 | 15.1 | 2.8 | 406 | 11.2 | 75 | 0.18 |
10 | 3/8 | 06 | 8.7 | 10.3 | 15.1 | 16.7 | 2.8 | 406 | 11.2 | 75 | 0.21 |
12.5 | 1/2 | 08 | 11.9 | 13.5 | 19.0 | 20.6 | 2.8 | 406 | 11.2 | 100 | 0.27 |
16 | 5/8 | 10 | 15.1 | 16.7 | 22.2 | 23.8 | 2.4 | 348 | 9.6 | 9.6 | 0.32 |
19 | 3/4 | 12 | 18.3 | 19.9 | 25.4 | 27.8 | 2.1 | 305 | 8.4 | 8.4 | 0.42 |
