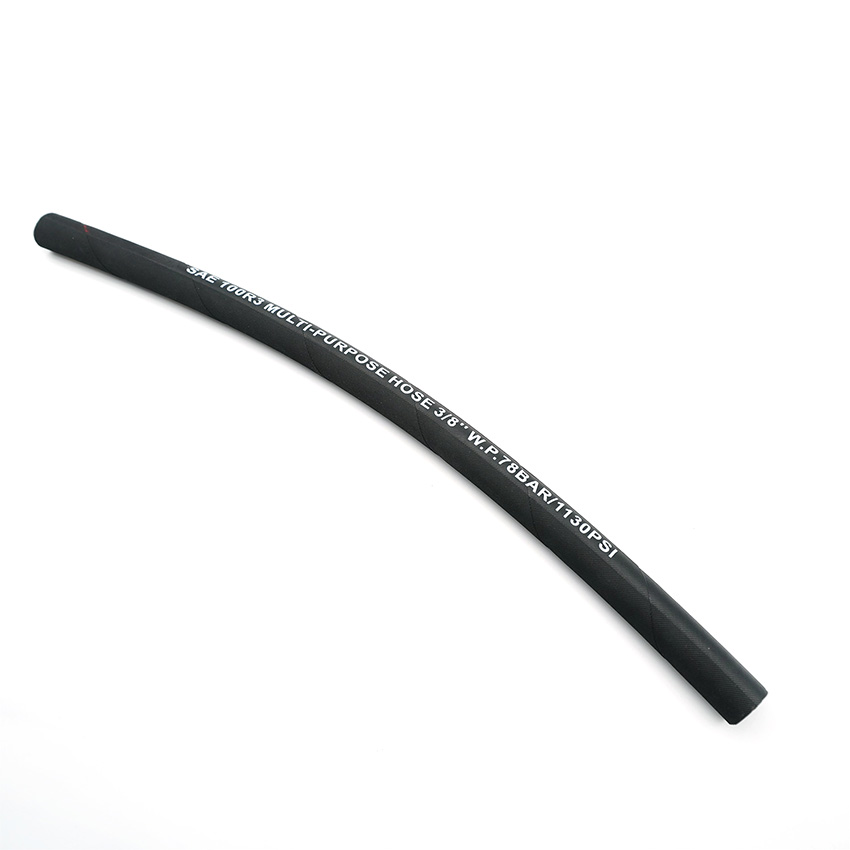

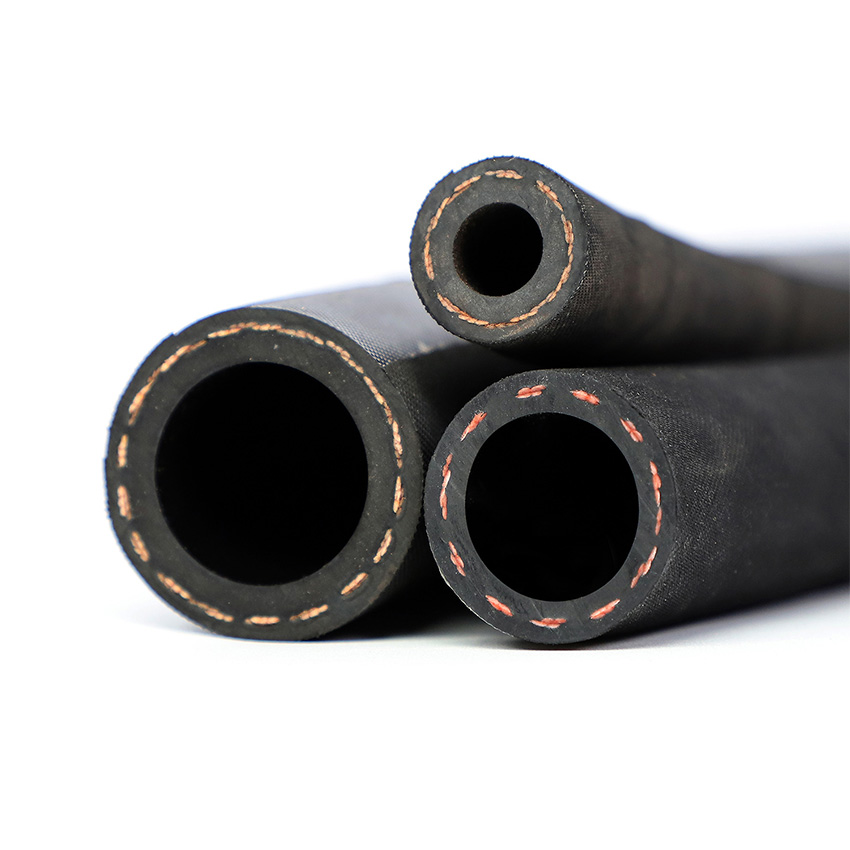

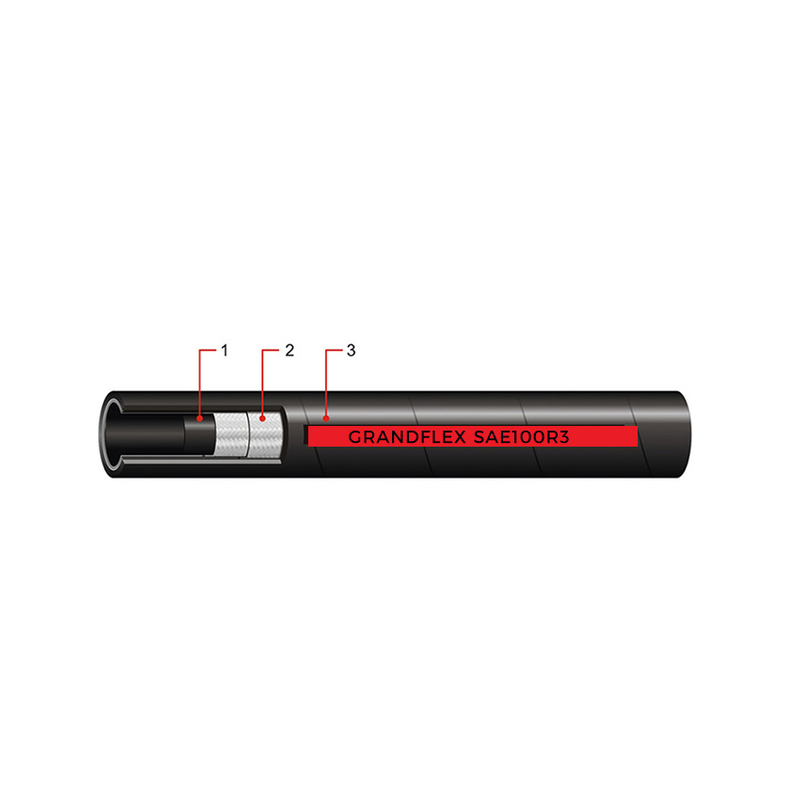

SAE 100 R3 Textile Braid Hydraulic Hose
Metric Size | Inch Size | SAE Dash size | I.D | O.D | W.P | B.P | Bending Radius | Weight | |||
(mm) | (mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.5 | 5.4 | 11.9 | 13.5 | 10.5 | 1523 | 42 | 75 | 0.16 |
6.3 | 1/4 | 04 | 6.1 | 7 | 13.5 | 15.1 | 8.7 | 1262 | 34.8 | 75 | 0.19 |
8 | 5/16 | 05 | 7.6 | 8.5 | 16.7 | 18.3 | 8.4 | 1218 | 33.6 | 100 | 0.25 |
10 | 3/8 | 06 | 9.2 | 10.1 | 18.3 | 19.8 | 7.8 | 1131 | 31.2 | 100 | 0.29 |
12.5 | 1/2 | 08 | 12.4 | 13.5 | 23 | 24.6 | 7 | 1015 | 28 | 125 | 0.41 |
16 | 5/8 | 10 | 15.6 | 16.7 | 26.2 | 27.8 | 6.1 | 885 | 24.4 | 140 | 0.49 |
19 | 3/4 | 12 | 18.7 | 19.8 | 31 | 32.5 | 5.2 | 754 | 20.8 | 150 | 0.66 |
25 | 1 | 16 | 25.1 | 26.2 | 36.9 | 39.3 | 3.9 | 566 | 15.6 | 205 | 0.81 |
31.8 | 1-1/4 | 20 | 31.4 | 32.9 | 42.9 | 46 | 2.6 | 377 | 10.4 | 250 | 0.97 |
