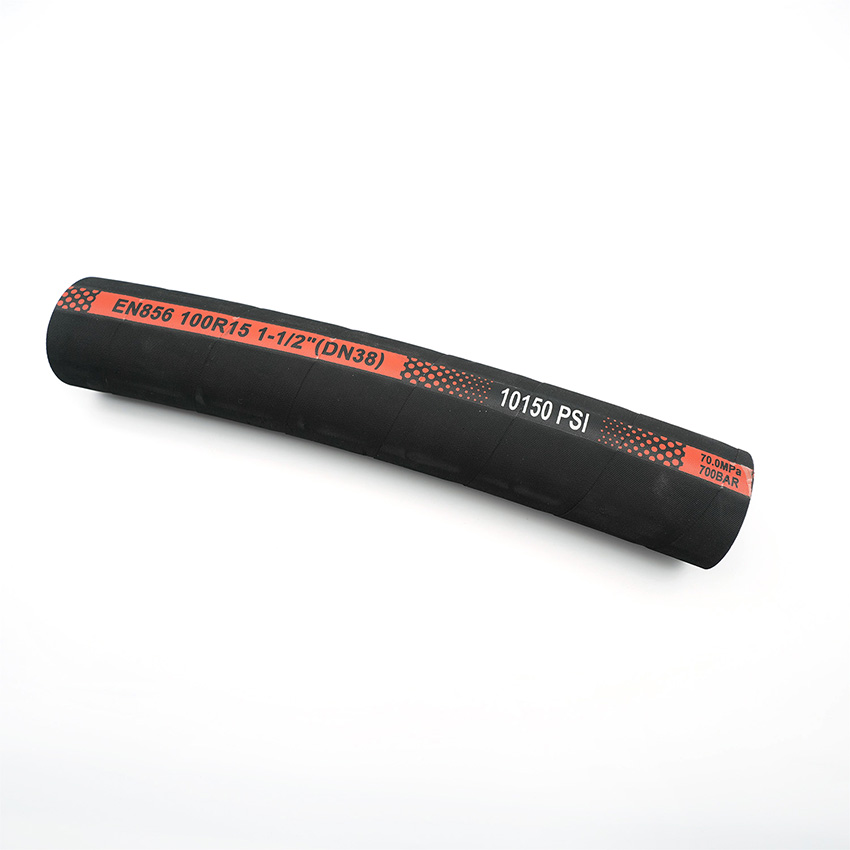

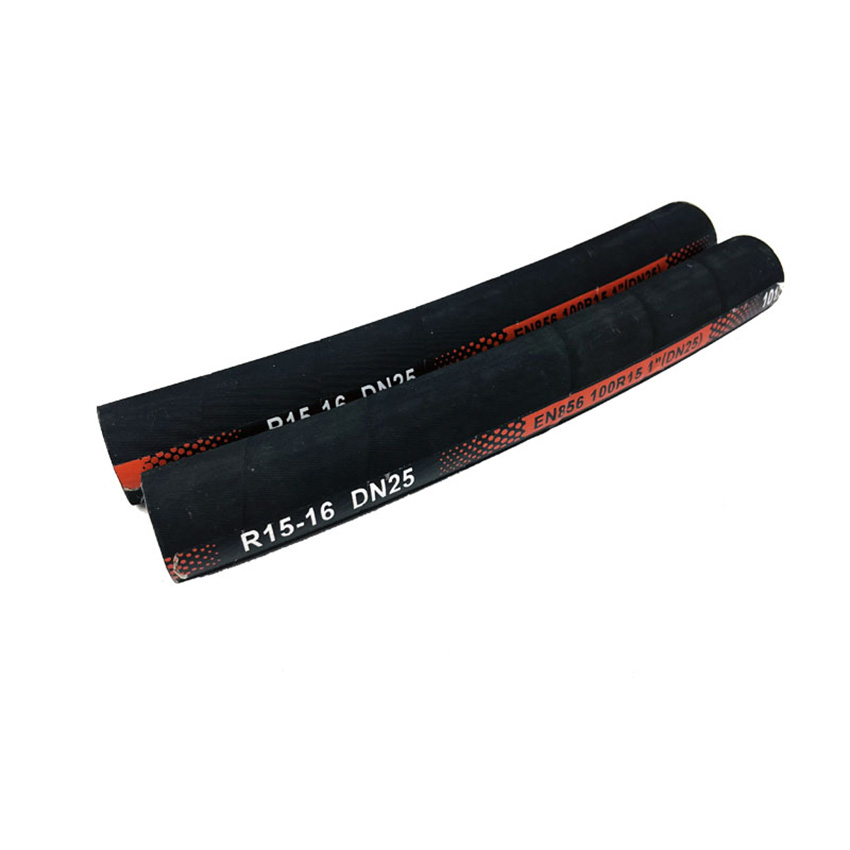

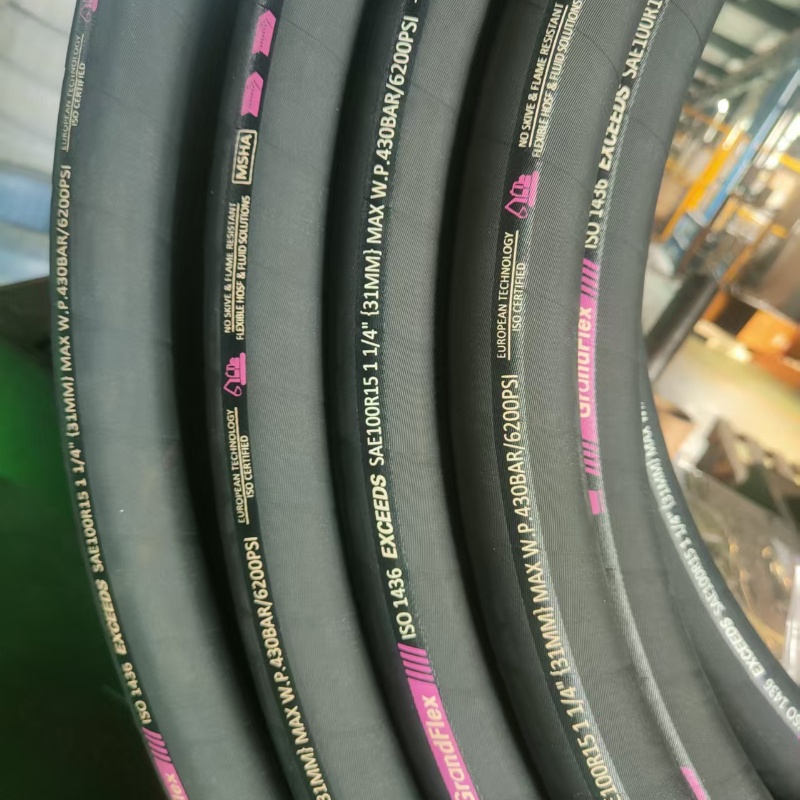

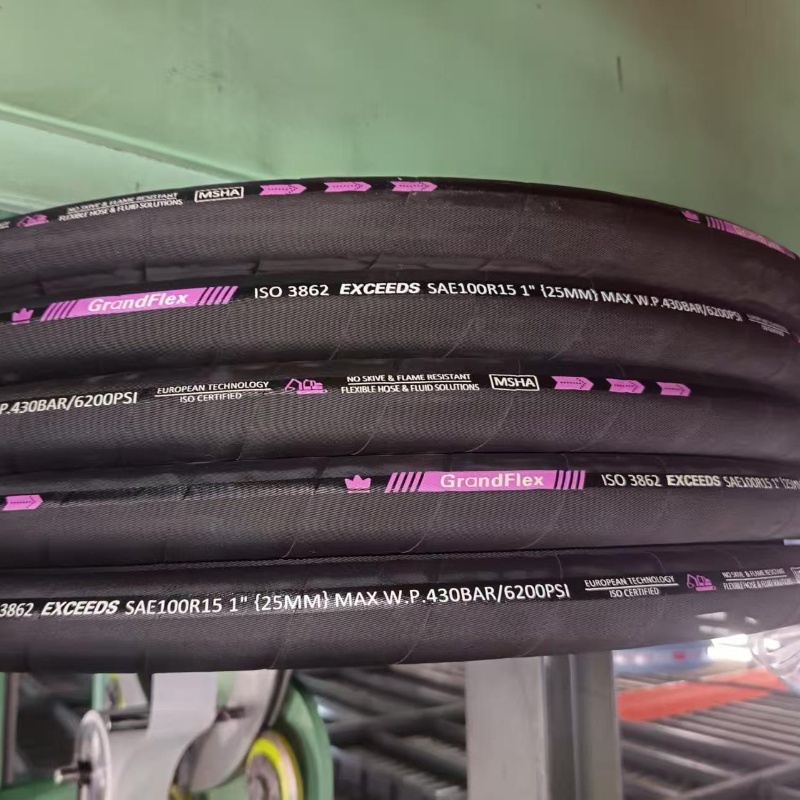

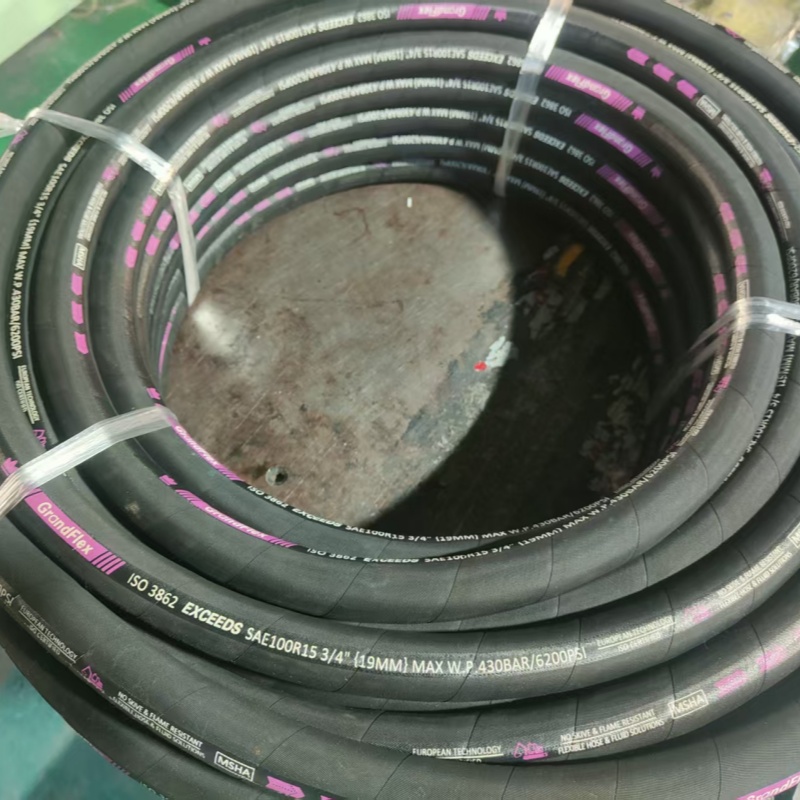

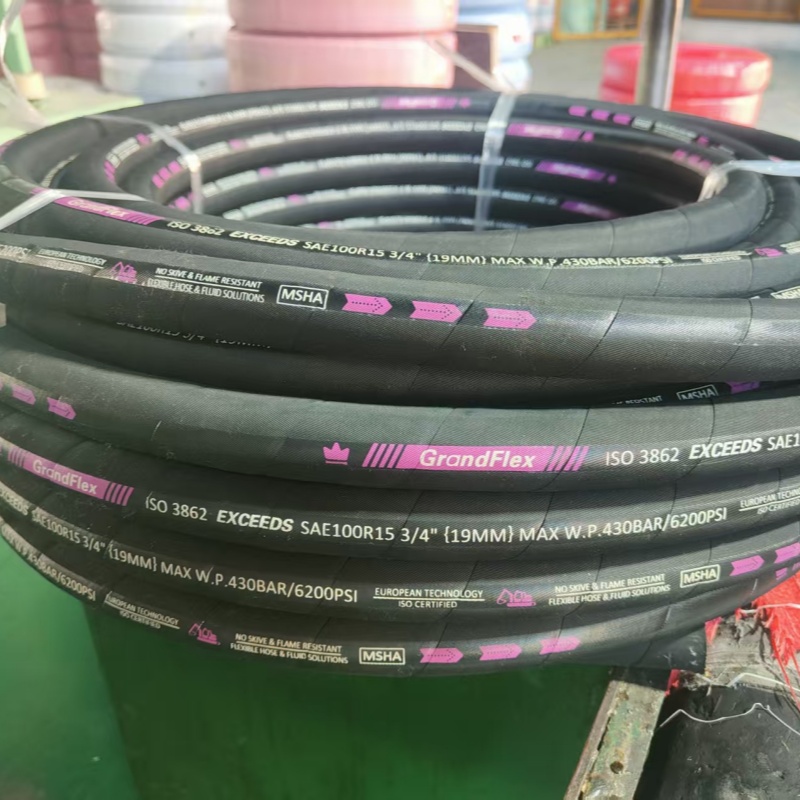

Grandflex SAE 100R15 Spiral Hydraulic Hose

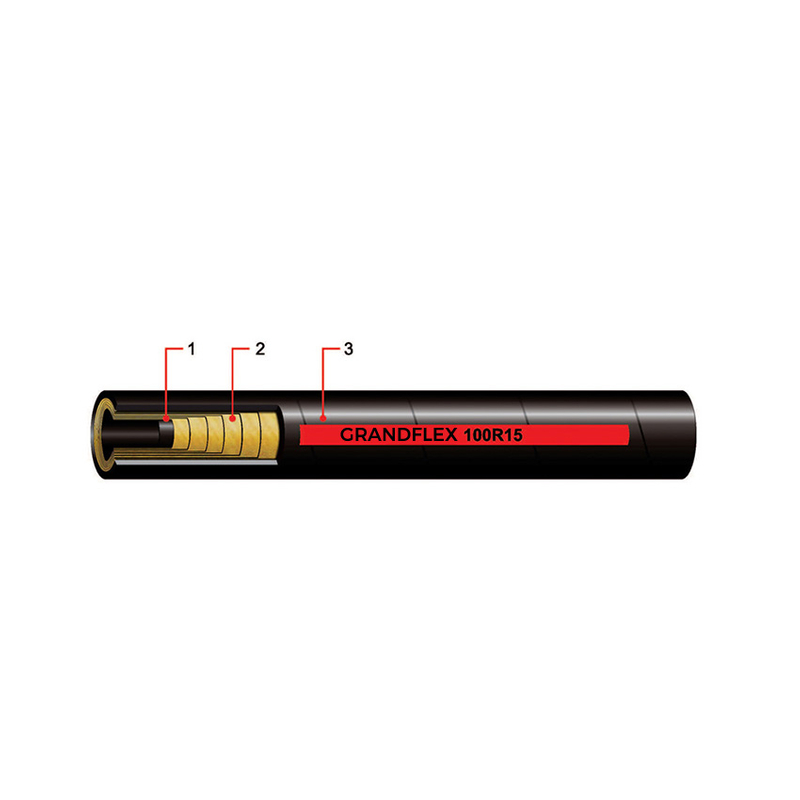

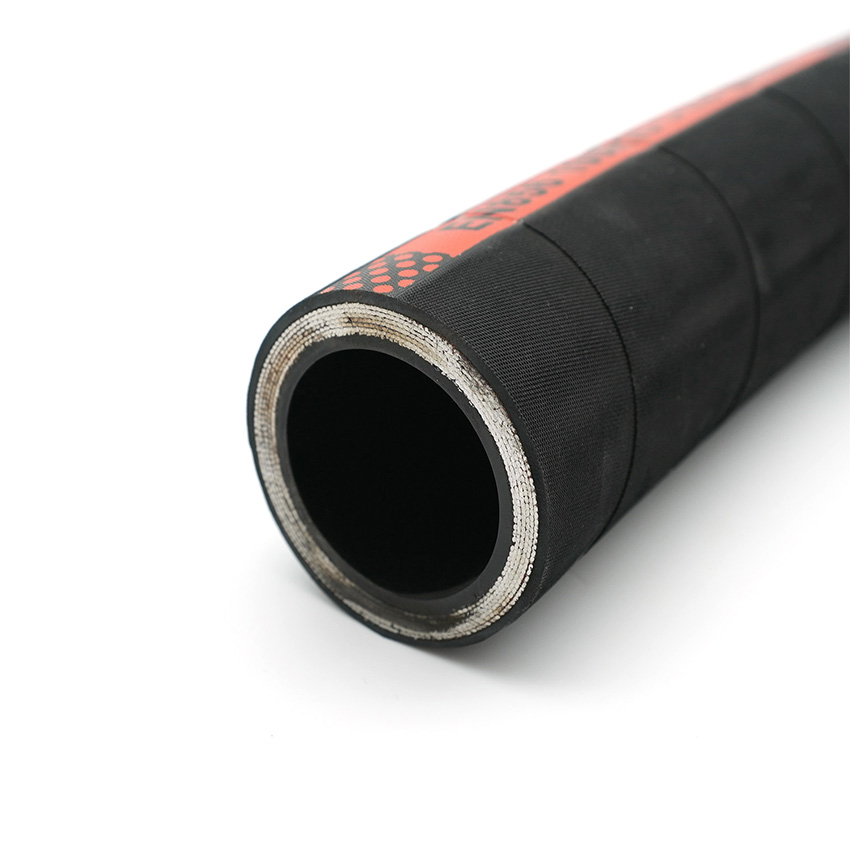

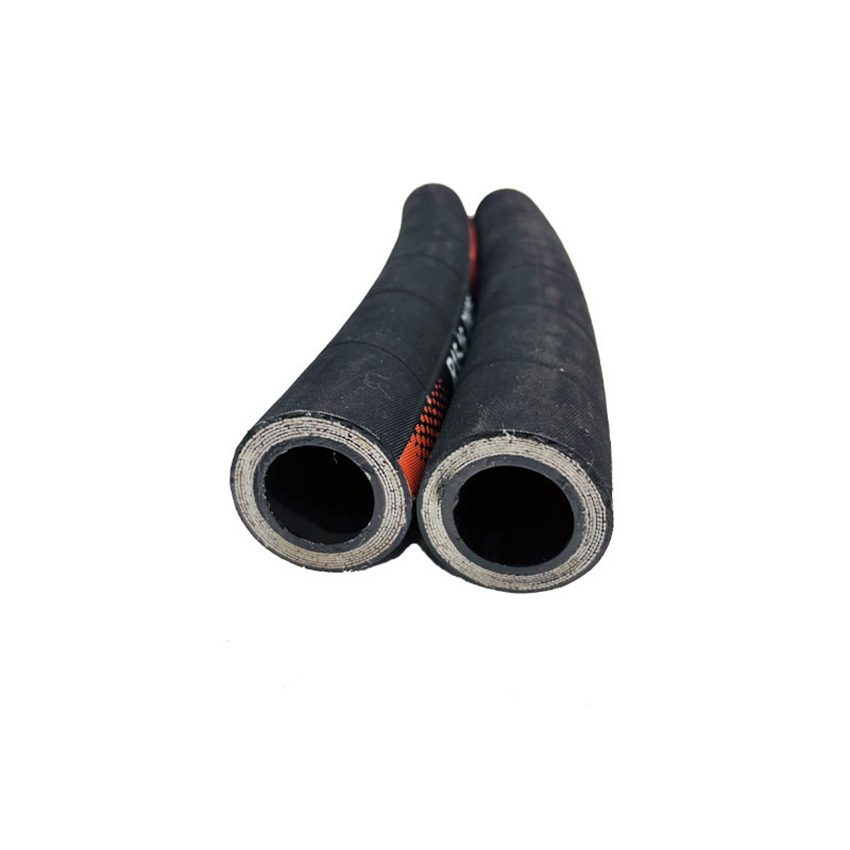

Ultra-high-pressure hydraulic hose with 4/6-layer spiral steel wire reinforcement, engineered for extreme-pressure applications (6000 psi working pressure) and high impulse resistance. Optimized for dynamic, pulsating loads across diverse industries.
Key Features:
6000 psi constant pressure rating, superior impulse strength.
Robust construction for heavy-duty logging, construction/mining, agriculture, and oilfield equipment.
Compatible with 5000+ psi systems, ensuring reliability in demanding environments.
Applications:
Heavy Industry & Agriculture: Logging machinery, mining/construction equipment, agro-forestry systems.
Energy & Transport: Oil/gas operations, aerospace hydraulics, rail systems.
General Industry: High-pressure hydraulic systems requiring SAE 100R15 compliance.
Ideal for sectors prioritizing durability, safety, and performance under extreme operational stress.
Metric Size | Inch Size | SAE Dash size | I.D | Braid | O.D | Max W.P | Min B.P | Min B.R | Weight | ||
Standard(mm) | Standard(mm) | Standard(mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
10 | 3/8 | 06 | 9.3 | 10.1 | 20.3 | 23.3 | 42.0 | 6090 | 168.0 | 150.0 | 0.91 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 24.0 | 26.8 | 42.0 | 6090 | 168.0 | 200.0 | 1.21 |
19 | 3/4 | 12 | 18.6 | 19.8 | 32.9 | 36.1 | 42.0 | 6090 | 168.0 | 265.0 | 2.25 |
25 | 1 | 16 | 25.0 | 26.4 | 38.9 | 42.9 | 42.0 | 6090 | 168.0 | 330.0 | 3.12 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 48.4 | 51.5 | 42.0 | 6090 | 168.0 | 445.0 | 3.87 |
38 | 1-1/2 | 24 | 37.7 | 39.3 | 56.3 | 59.6 | 42.0 | 6090 | 168.0 | 530.0 | 5.29 |
