PTFE hose (SAE100 R14) assemblies is a special process dealing with PTFE inner tube.
Stainless steel wire and the ends coat enhanced layer composed of metal connectors.
PTFE hose assemblies, a notable feature is the anti-aging resistance, chemical corrosion, high and low temperature resistance, light weight (relative to the same working pressure of the rubber hose) can be used as liquid and gas transmission pipe system media.
Apply to aviation, aerospace aircraft hydraulic, servo control, lubricating oil and fuel system, transmission tube

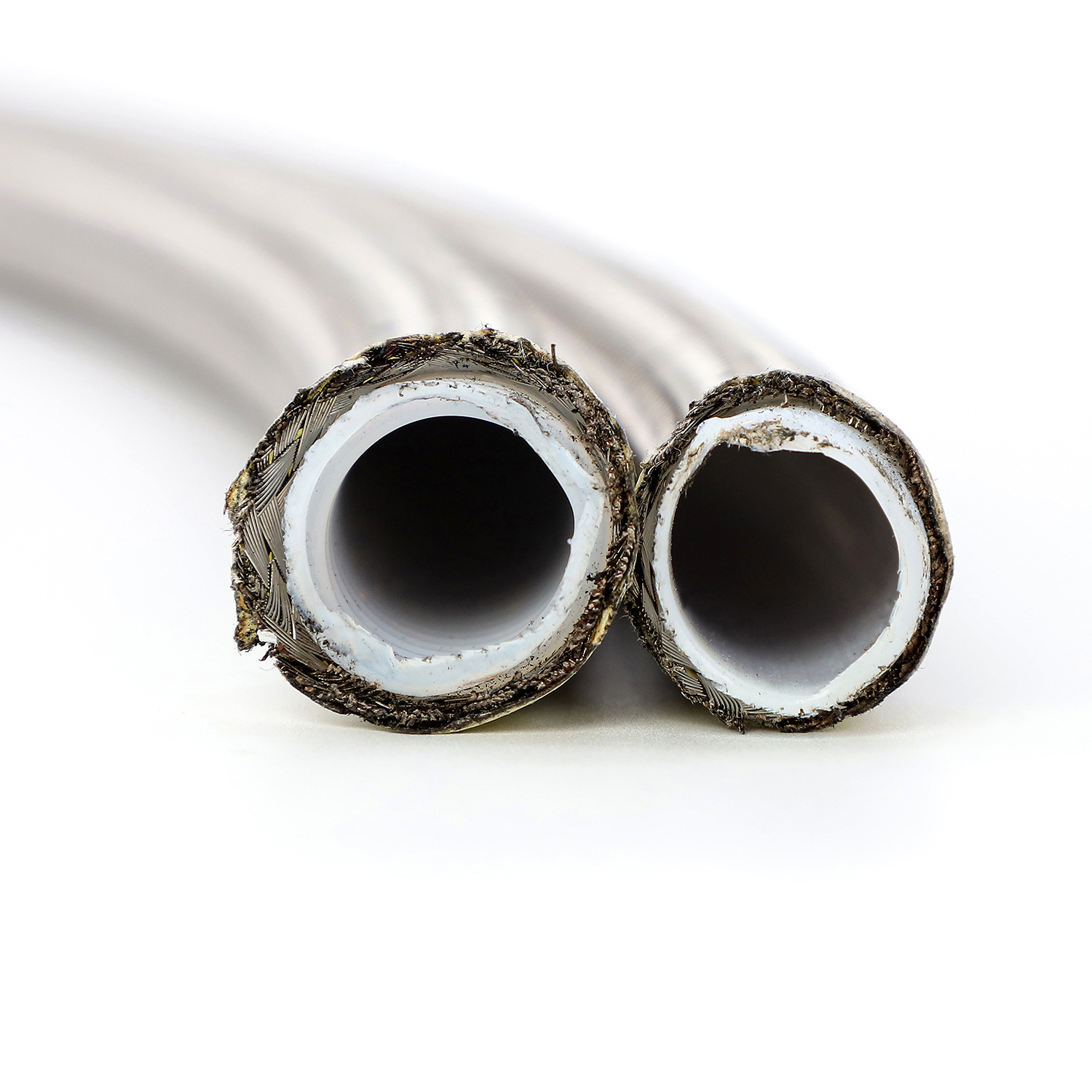

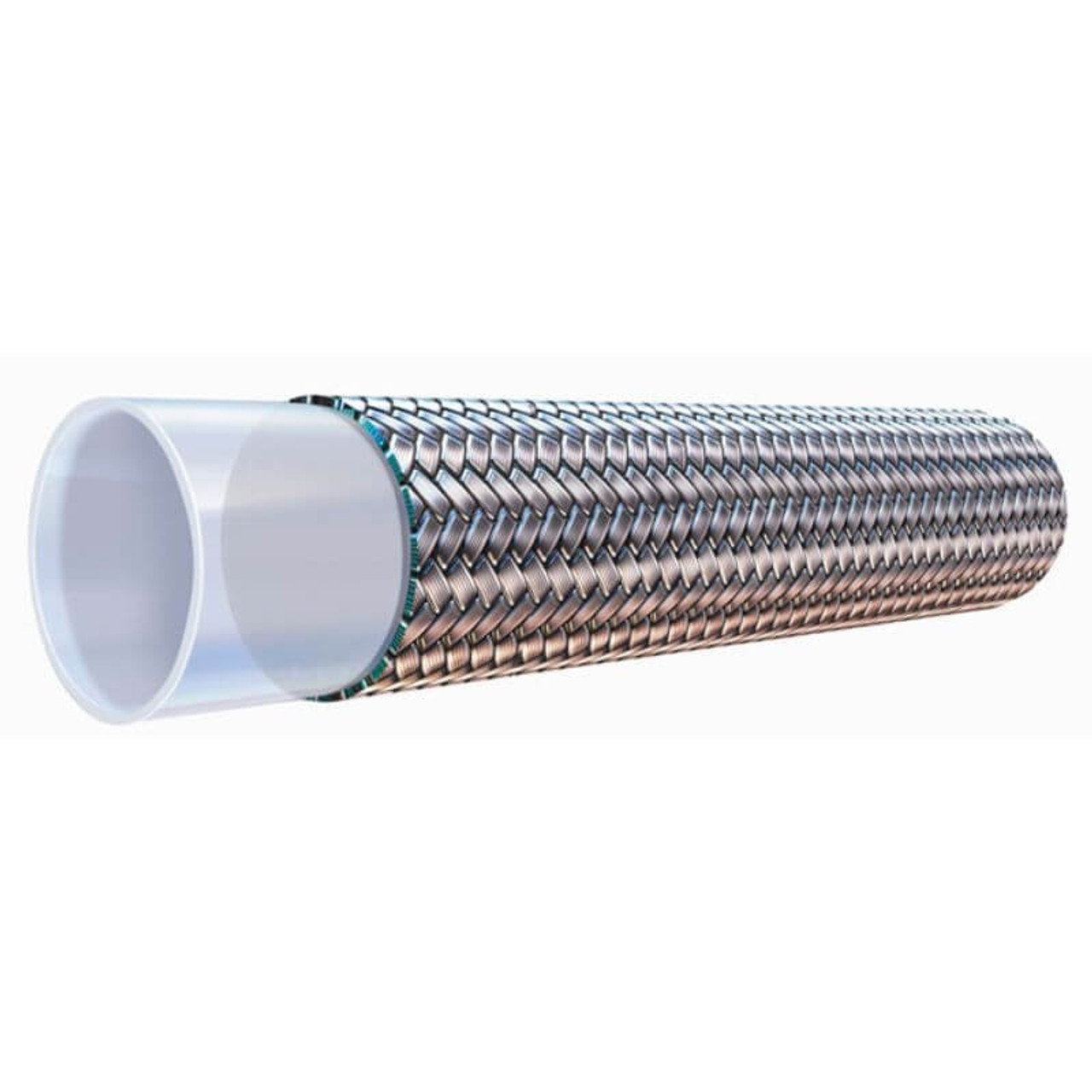

Smoothbore PTFE Hose
Size | I.D. | O.D. | Wall Thickness | W.P. | B.P. | Minimum Bending Radius | ||||
inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
1/8" | 3.5 | 0.138 | 6.6 | 0.26 | 1 | 4727 | 326 | 14613 | 1007.76 | 51 |
3/16" | 4.8 | 0.189 | 8 | 0.315 | 0.85 | 3582 | 247 | 10738 | 740.52 | 75 |
1/4" | 6.4 | 0.252 | 9.2 | 0.362 | 0.85 | 3106 | 214.2 | 9658 | 666.06 | 81 |
5/16" | 8 | 0.315 | 11 | 0.433 | 0.85 | 2781 | 191.76 | 8682 | 598.74 | 92 |
3/8" | 9.7 | 0.382 | 12.8 | 0.504 | 0.85 | 2736 | 188.7 | 8223 | 567.12 | 131 |
1/2" | 12.7 | 0.5 | 15.9 | 0.626 | 1 | 1568 | 108.12 | 6818 | 470.22 | 182 |
5/8" | 16 | 0.63 | 19.2 | 0.756 | 1 | 1878 | 129.54 | 5650 | 389.64 | 211 |
3/4" | 19 | 0.748 | 22.7 | 0.894 | 1.2 | 1154 | 79.56 | 3979 | 274.38 | 338 |
7/8" | 22.2 | 0.874 | 26 | 1.024 | 1.2 | 887 | 61.2 | 2884 | 198.9 | 421 |
1" | 25 | 0.984 | 29.3 | 0.154 | 1.5 | 592 | 40.8 | 2263 | 156.06 | 539 |
2" | 50 | 1.969 | 55.6 | 2.189 | 2 | 444 | 30.6 | 1775 | 122.4 | 1015 |

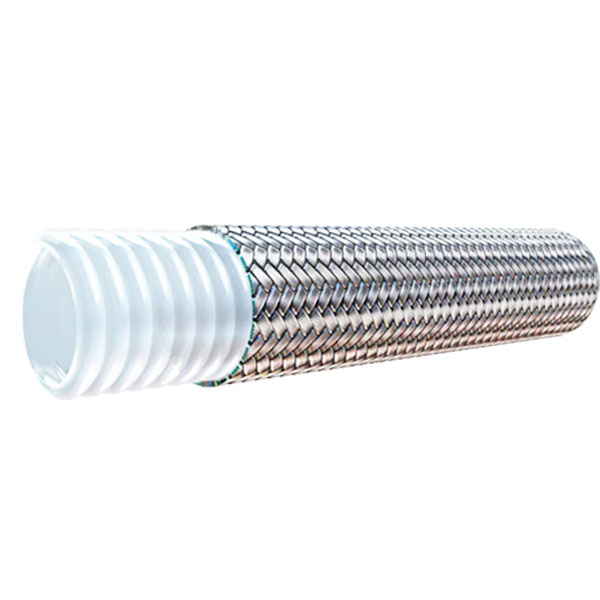

Corrugated PTFE Hose
Size | I.D. | O.D. | Wall Thickness | W.P. | B.P. | Minimum Bending Radius | ||||
inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
1/4" | 6.5 | 0.256 | 11.5 | 0.453 | 0.8 | 1929 | 133 | 5546 | 382.5 | 20 |
5/16" | 8 | 0.315 | 12.3 | 0.484 | 0.65 | 1923 | 132.6 | 5324 | 367.2 | 25 |
3/8" | 10 | 0.394 | 14.2 | 0.559 | 0.65 | 1849 | 127.5 | 5177 | 357 | 33 |
1/2" | 13 | 0.512 | 17.2 | 0.677 | 0.85 | 1627 | 112.2 | 4881 | 336.6 | 42 |
5/8" | 16 | 0.63 | 21.6 | 0.85 | 0.9 | 1183 | 81.6 | 3560 | 244.8 | 60 |
3/4" | 19 | 0.748 | 25.3 | 0.996 | 1 | 1035 | 71.4 | 3108 | 214.2 | 63 |
1" | 25 | 0.984 | 31 | 1.22 | 1 | 740 | 51 | 2219 | 153 | 79 |
1-1/4" | 32 | 1.26 | 39 | 1.535 | 1.1 | 710 | 48.96 | 2071 | 142.8 | 125 |
1-1/2" | 38 | 1.496 | 45 | 1.772 | 1.45 | 636 | 43.86 | 1775 | 122.4 | 145 |
2" | 50 | 1.969 | 60 | 2.362 | 1.5 | 503 | 34.68 | 1479 | 102 | 180 |
PTFE hose (SAE100 R14) assemblies is a special process dealing with PTFE inner tube.
Stainless steel wire and the ends coat enhanced layer composed of metal connectors.
PTFE hose assemblies, a notable feature is the anti-aging resistance, chemical corrosion, high and low temperature resistance, light weight (relative to the same working pressure of the rubber hose) can be used as liquid and gas transmission pipe system media.
Apply to aviation, aerospace aircraft hydraulic, servo control, lubricating oil and fuel system, transmission tube
Smoothbore PTFE Hose
Size | I.D. | O.D. | Wall Thickness | W.P. | B.P. | Minimum Bending Radius | ||||
inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
1/8" | 3.5 | 0.138 | 6.6 | 0.26 | 1 | 4727 | 326 | 14613 | 1007.76 | 51 |
3/16" | 4.8 | 0.189 | 8 | 0.315 | 0.85 | 3582 | 247 | 10738 | 740.52 | 75 |
1/4" | 6.4 | 0.252 | 9.2 | 0.362 | 0.85 | 3106 | 214.2 | 9658 | 666.06 | 81 |
5/16" | 8 | 0.315 | 11 | 0.433 | 0.85 | 2781 | 191.76 | 8682 | 598.74 | 92 |
3/8" | 9.7 | 0.382 | 12.8 | 0.504 | 0.85 | 2736 | 188.7 | 8223 | 567.12 | 131 |
1/2" | 12.7 | 0.5 | 15.9 | 0.626 | 1 | 1568 | 108.12 | 6818 | 470.22 | 182 |
5/8" | 16 | 0.63 | 19.2 | 0.756 | 1 | 1878 | 129.54 | 5650 | 389.64 | 211 |
3/4" | 19 | 0.748 | 22.7 | 0.894 | 1.2 | 1154 | 79.56 | 3979 | 274.38 | 338 |
7/8" | 22.2 | 0.874 | 26 | 1.024 | 1.2 | 887 | 61.2 | 2884 | 198.9 | 421 |
1" | 25 | 0.984 | 29.3 | 0.154 | 1.5 | 592 | 40.8 | 2263 | 156.06 | 539 |
2" | 50 | 1.969 | 55.6 | 2.189 | 2 | 444 | 30.6 | 1775 | 122.4 | 1015 |
Corrugated PTFE Hose
Size | I.D. | O.D. | Wall Thickness | W.P. | B.P. | Minimum Bending Radius | ||||
inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
1/4" | 6.5 | 0.256 | 11.5 | 0.453 | 0.8 | 1929 | 133 | 5546 | 382.5 | 20 |
5/16" | 8 | 0.315 | 12.3 | 0.484 | 0.65 | 1923 | 132.6 | 5324 | 367.2 | 25 |
3/8" | 10 | 0.394 | 14.2 | 0.559 | 0.65 | 1849 | 127.5 | 5177 | 357 | 33 |
1/2" | 13 | 0.512 | 17.2 | 0.677 | 0.85 | 1627 | 112.2 | 4881 | 336.6 | 42 |
5/8" | 16 | 0.63 | 21.6 | 0.85 | 0.9 | 1183 | 81.6 | 3560 | 244.8 | 60 |
3/4" | 19 | 0.748 | 25.3 | 0.996 | 1 | 1035 | 71.4 | 3108 | 214.2 | 63 |
1" | 25 | 0.984 | 31 | 1.22 | 1 | 740 | 51 | 2219 | 153 | 79 |
1-1/4" | 32 | 1.26 | 39 | 1.535 | 1.1 | 710 | 48.96 | 2071 | 142.8 | 125 |
1-1/2" | 38 | 1.496 | 45 | 1.772 | 1.45 | 636 | 43.86 | 1775 | 122.4 | 145 |
2" | 50 | 1.969 | 60 | 2.362 | 1.5 | 503 | 34.68 | 1479 | 102 | 180 |
