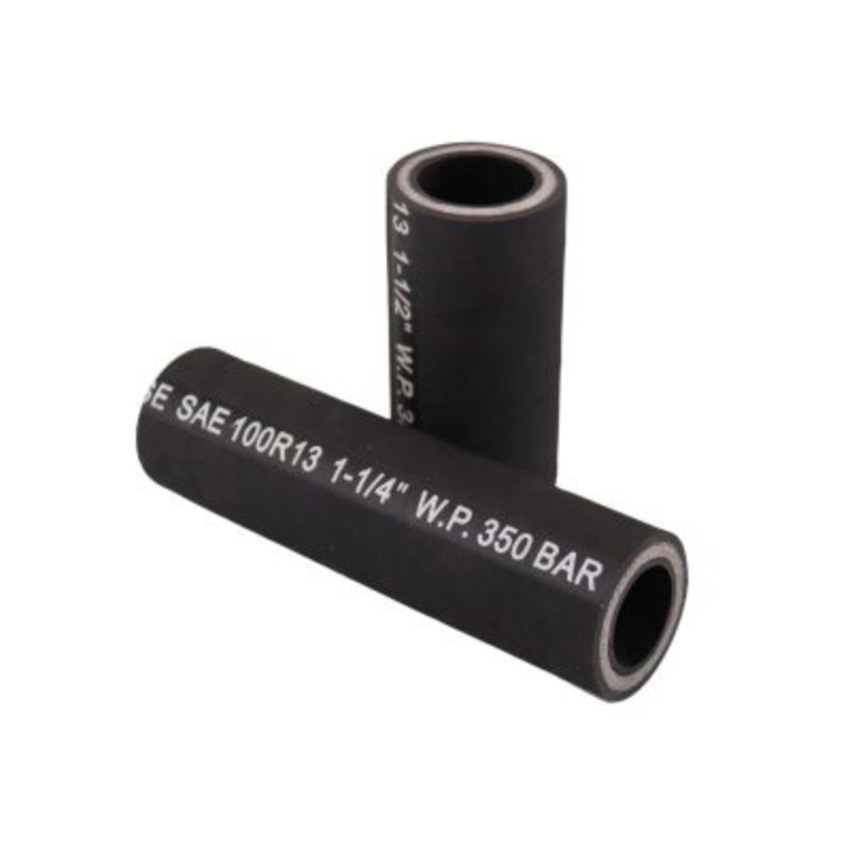

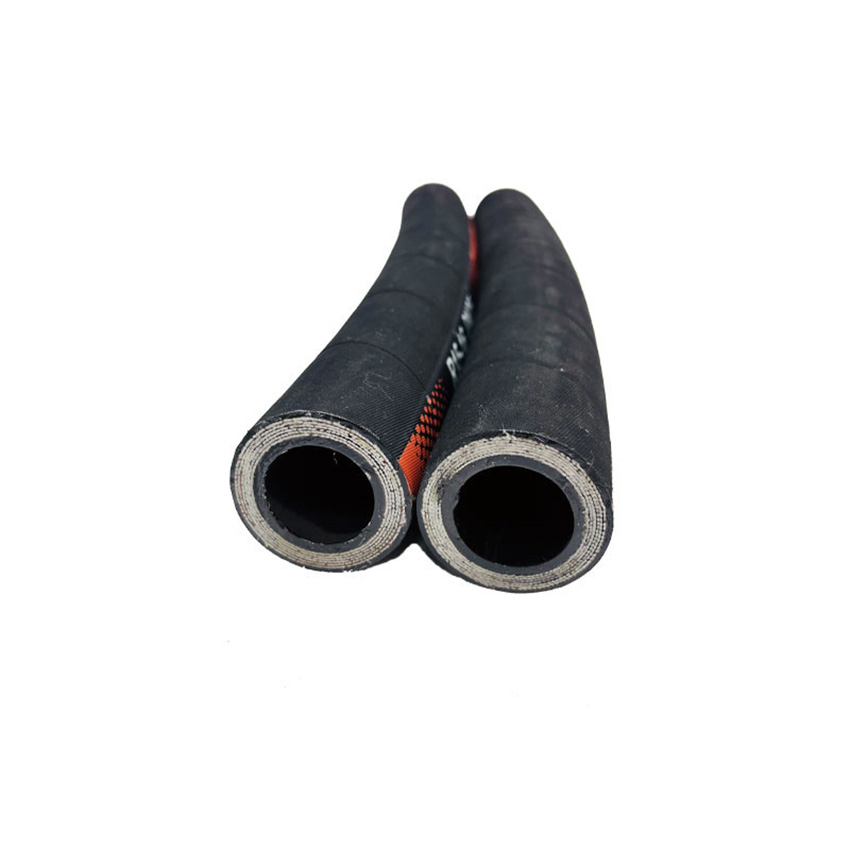

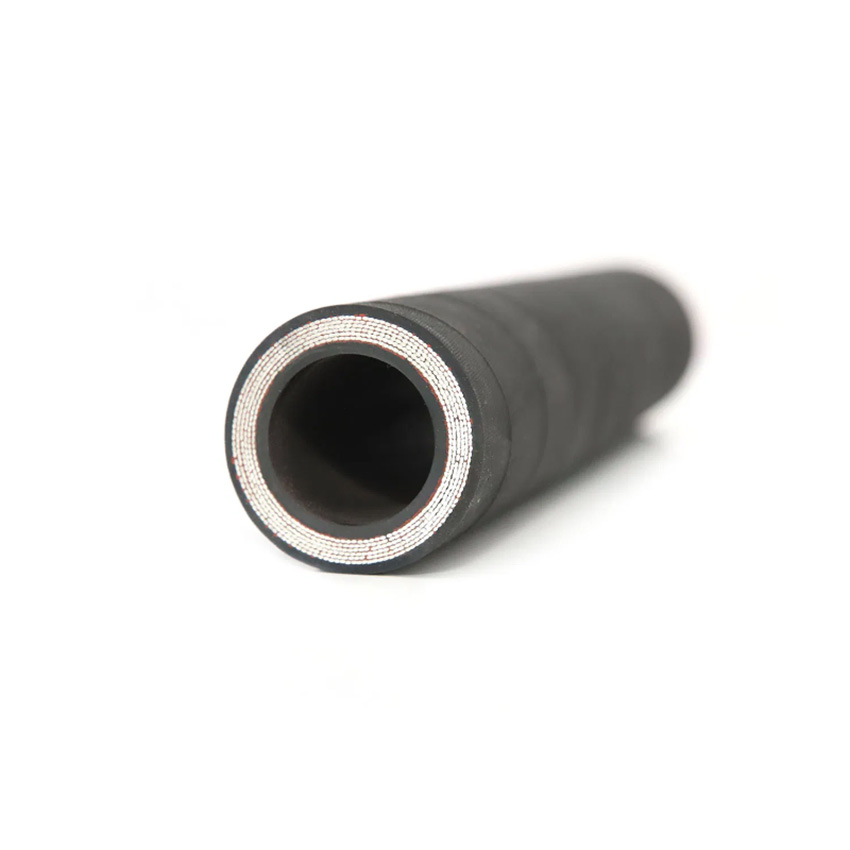

Grandflex SAE 100R13 Hydraulic Hose

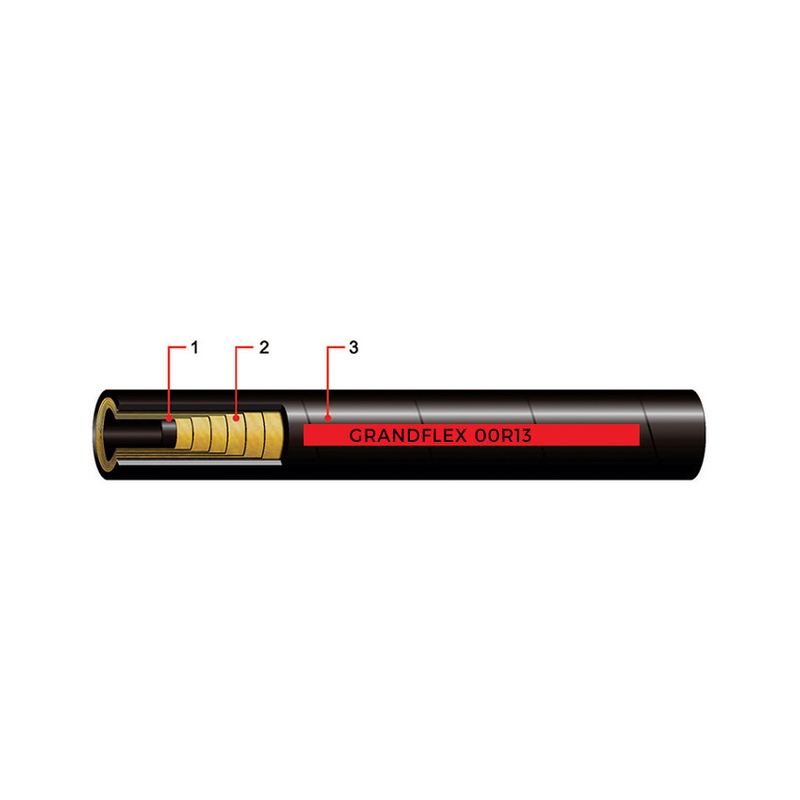

Multi-spiral, high-pressure hydraulic hose featuring a 4/6-spiral steel wire reinforcement for heavy-duty applications with high impulse and dynamic loads. Engineered for extreme temperature resilience, superior abrasion resistance, and ozone compatibility.
Applications:
Construction: Excavators, forklifts, loaders, road rollers, concrete pump trucks, vibratory compactors.
Mining: Drilling rigs, belt conveyors, cranes.
Industrial Machinery: Metallurgical equipment, plastic-processing systems, hydraulic presses.
Optimized for durability in demanding environments, including construction, mining, and industrial sectors.
Metric Size | Inch Size | SAE Dash size | I.D | Braid | O.D | Max W.P | Min B.P | Min B.R | Weight | ||||
(mm) | (mm) | (mm) | |||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Min | Max | Mpa | psi | Mpa | mm | Kg/m |
19 | 3/4 | 12 | 18.6 | 19.8 | 28.2 | 29.8 | 31.0 | 33.2 | 35.0 | 5075 | 140.0 | 240 | 1.53 |
25 | 1 | 16 | 25.0 | 26.4 | 34.1 | 36.0 | 37.6 | 39.8 | 35.0 | 5075 | 140.0 | 300 | 2.09 |
32 | 1-1/4 | 20 | 31.4 | 33.0 | 45.6 | 48.0 | 48.3 | 51.3 | 35.0 | 5075 | 140.0 | 420 | 3.76 |
38 | 1-1/2 | 24 | 37.7 | 39.3 | 53.1 | 55.5 | 55.8 | 58.8 | 35.0 | 5075 | 140.0 | 500 | 4.58 |
51 | 2 | 32 | 50.4 | 52.0 | 66.9 | 69.3 | 69.5 | 72.7 | 35.0 | 5075 | 140.0 | 640 | 6.69 |
