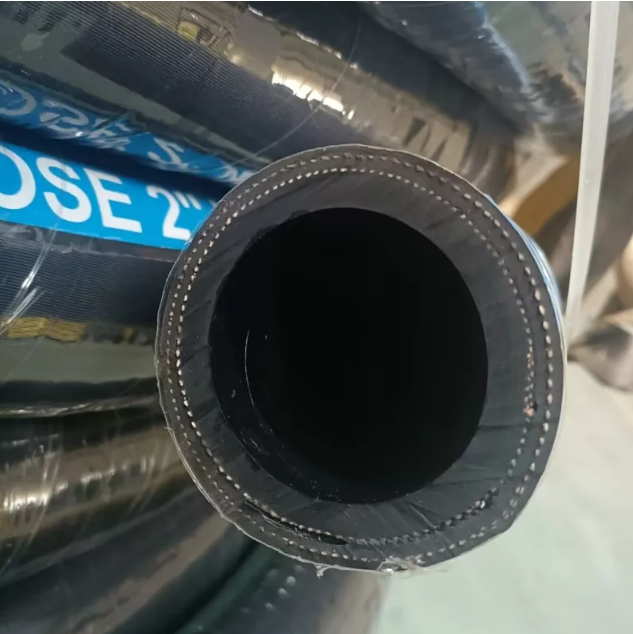

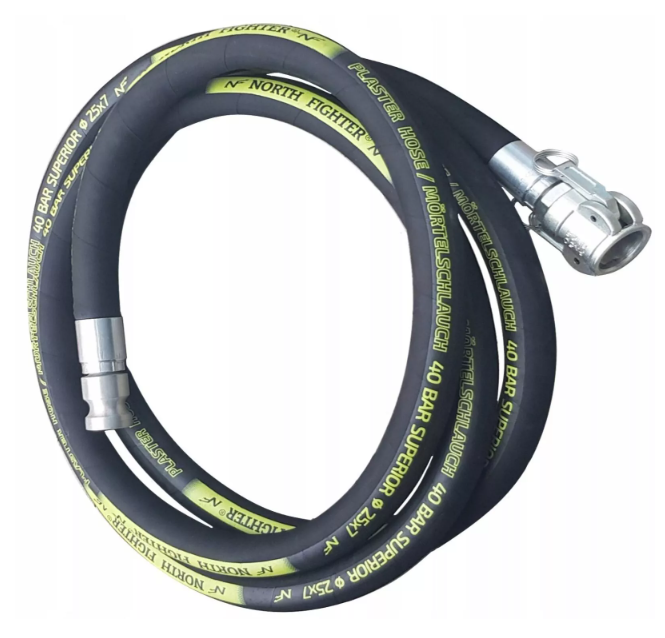

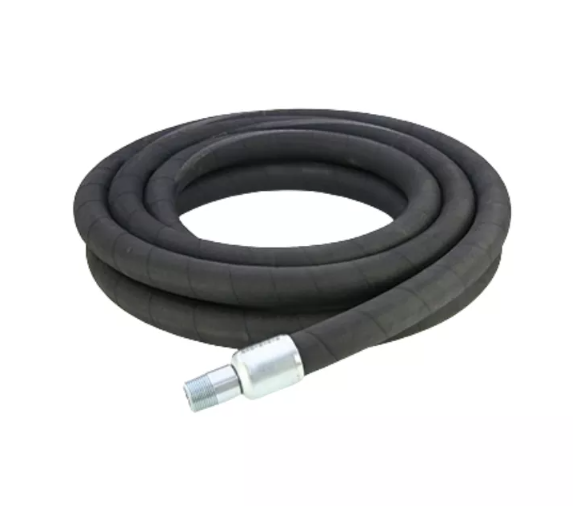

Plaster & Grout Hose is used to conduct wet cement, plaster, grout, wet shotcrete, and concrete to building structures, dams, tunnel faces, swimming pools, or construction sites. It can also be used for material handling on drilling rigs. This is a rugged, durable, high performance hose that is to be coupled with high-quality, abrasion resistant permanent swage fittings. It is also used as a discharge hose on the delivery end of high pressure pumps, Service life of material handling hoses may vary depending on the operating conditions, hours of use, and the product being conveyed. Always rotate the hose regularly for even wear and inspect the tube for degradation before use.
Inside Diameter | Outside Diameter | Working Pressure | Bending Radius | Nominal Weight | Length | |||
inch | mm | mm | bar | psi | mm | kg/m | ft | m |
2 | 51 | 74 | 55 | 800 | 500 | 2.8 | 200 | 61 |
2-1/2 | 64 | 88 | 55 | 800 | 600 | 3.7 | 200 | 61 |
3 | 76 | 104 | 55 | 800 | 900 | 4.9 | 200 | 61 |
3-1/2 | 89 | 119 | 55 | 800 | 1200 | 5.8 | 200 | 61 |
4 | 102 | 135 | 55 | 800 | 1500 | 7.4 | 200 | 61 |
4-1/2 | 114 | 148 | 55 | 800 | 1500 | 8.5 | 200 | 61 |
5 | 127 | 159 | 55 | 800 | 2000 | 9.0 | 200 | 61 |
Plaster & Grout Hose is used to conduct wet cement, plaster, grout, wet shotcrete, and concrete to building structures, dams, tunnel faces, swimming pools, or construction sites. It can also be used for material handling on drilling rigs. This is a rugged, durable, high performance hose that is to be coupled with high-quality, abrasion resistant permanent swage fittings. It is also used as a discharge hose on the delivery end of high pressure pumps, Service life of material handling hoses may vary depending on the operating conditions, hours of use, and the product being conveyed. Always rotate the hose regularly for even wear and inspect the tube for degradation before use.
Inside Diameter | Outside Diameter | Working Pressure | Bending Radius | Nominal Weight | Length | |||
inch | mm | mm | bar | psi | mm | kg/m | ft | m |
2 | 51 | 74 | 55 | 800 | 500 | 2.8 | 200 | 61 |
2-1/2 | 64 | 88 | 55 | 800 | 600 | 3.7 | 200 | 61 |
3 | 76 | 104 | 55 | 800 | 900 | 4.9 | 200 | 61 |
3-1/2 | 89 | 119 | 55 | 800 | 1200 | 5.8 | 200 | 61 |
4 | 102 | 135 | 55 | 800 | 1500 | 7.4 | 200 | 61 |
4-1/2 | 114 | 148 | 55 | 800 | 1500 | 8.5 | 200 | 61 |
5 | 127 | 159 | 55 | 800 | 2000 | 9.0 | 200 | 61 |
