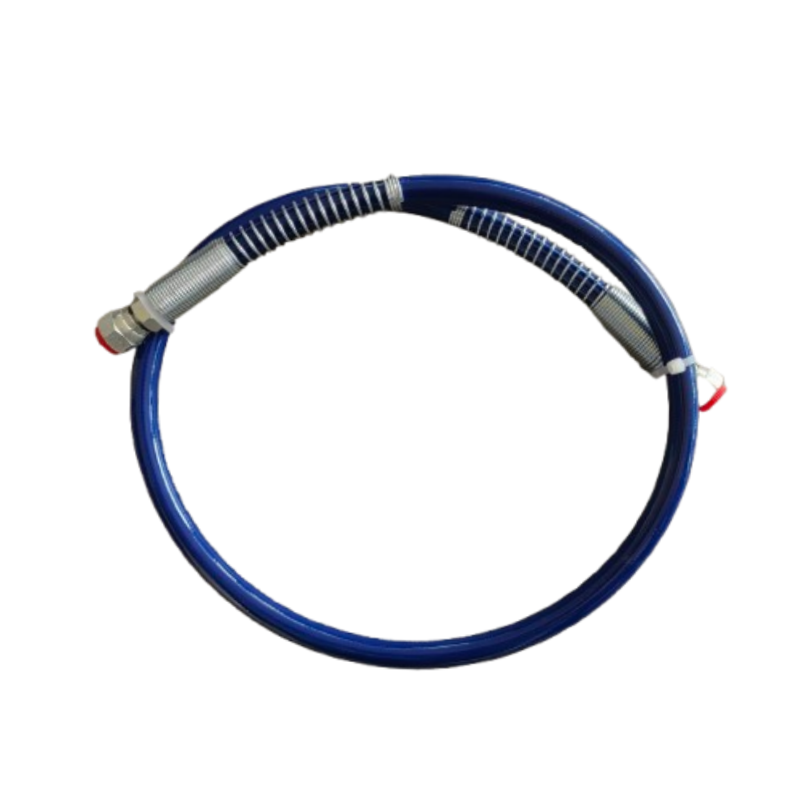

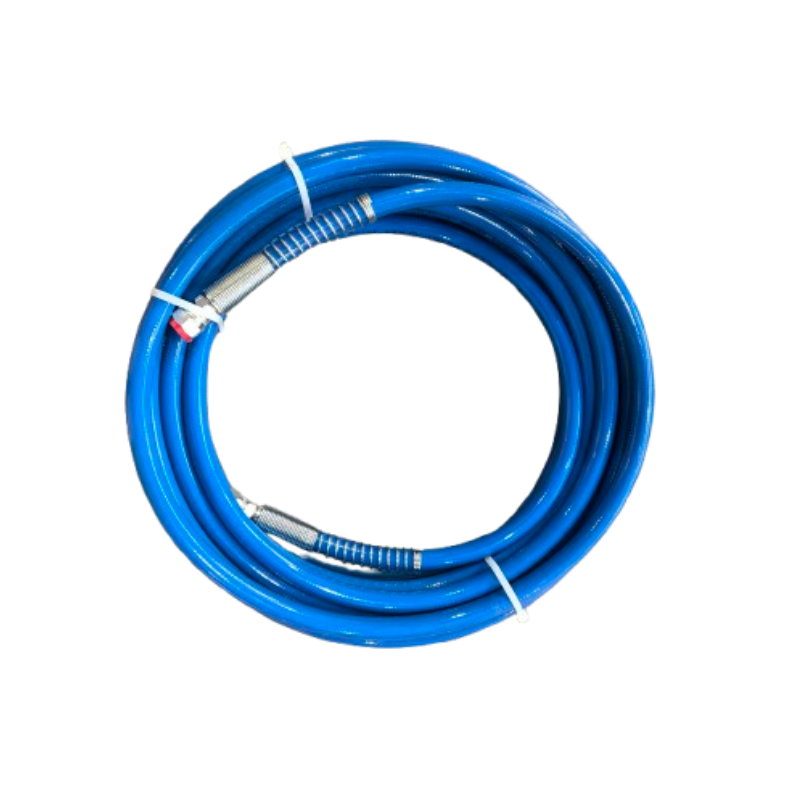

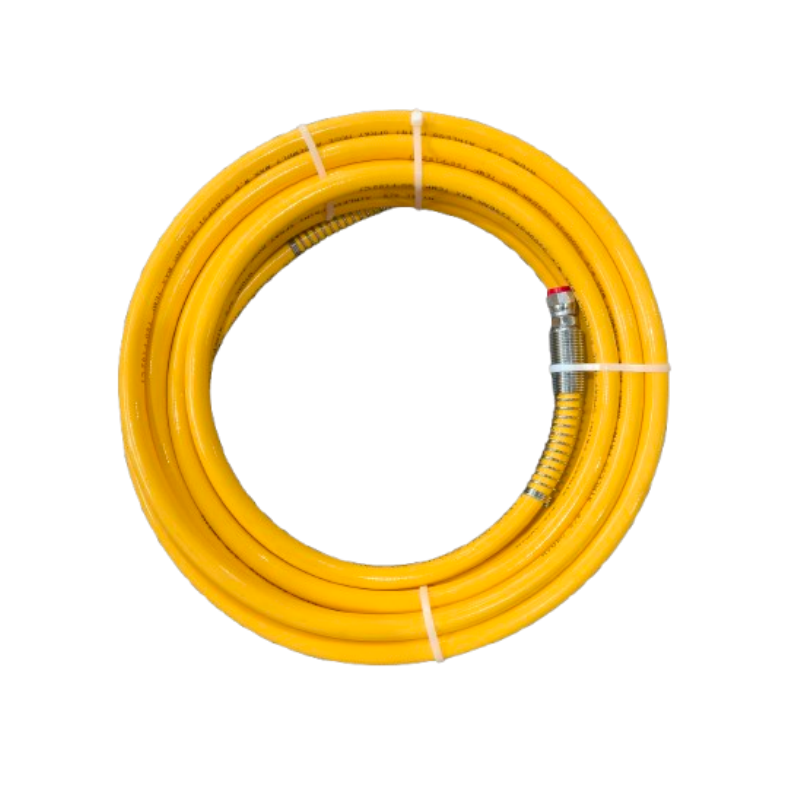

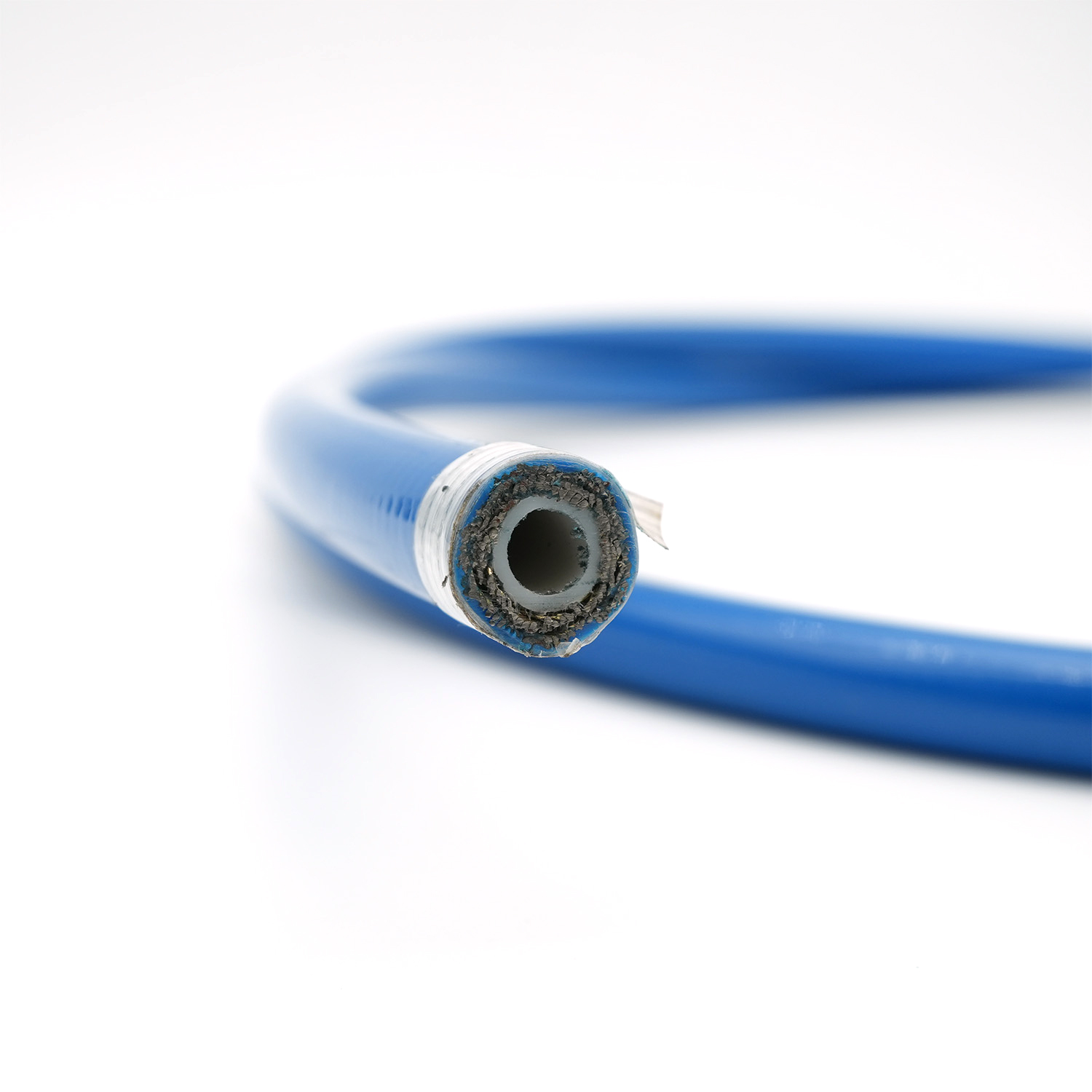

Paint spray hoses have excellent lay flat characteristics and have extremely high shock absorbing and volumetric expansion capabilities. Wire braiding gives the high pressure hose its great strength and ensures 100% electrical conductivity throughout the spray hose. Each of our high pressure flexible hoses assures compatibility with all finishing equipment sprayers. Higher burst pressures allow you to safely work within the surface treatment industry at recommended working pressures.
I.D. | O.D. | W.P. | B.P. | R | kg | ||||
mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m |
6.4 | 1/4 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 |
6.4 | 1/4 | 14.0 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 |
6.4 | 1/4 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 |
8.0 | 5/16 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 |
8.0 | 5/16 | 15.0 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 |
8.0 | 5/16 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 |
9.5 | 3/8 | 16.0 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 |
9.5 | 3/8 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 |
9.5 | 3/8 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.40 |
Paint spray hoses have excellent lay flat characteristics and have extremely high shock absorbing and volumetric expansion capabilities. Wire braiding gives the high pressure hose its great strength and ensures 100% electrical conductivity throughout the spray hose. Each of our high pressure flexible hoses assures compatibility with all finishing equipment sprayers. Higher burst pressures allow you to safely work within the surface treatment industry at recommended working pressures.
I.D. | O.D. | W.P. | B.P. | R | kg | ||||
mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m |
6.4 | 1/4 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 |
6.4 | 1/4 | 14.0 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 |
6.4 | 1/4 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 |
8.0 | 5/16 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 |
8.0 | 5/16 | 15.0 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 |
8.0 | 5/16 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 |
9.5 | 3/8 | 16.0 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 |
9.5 | 3/8 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 |
9.5 | 3/8 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.40 |
