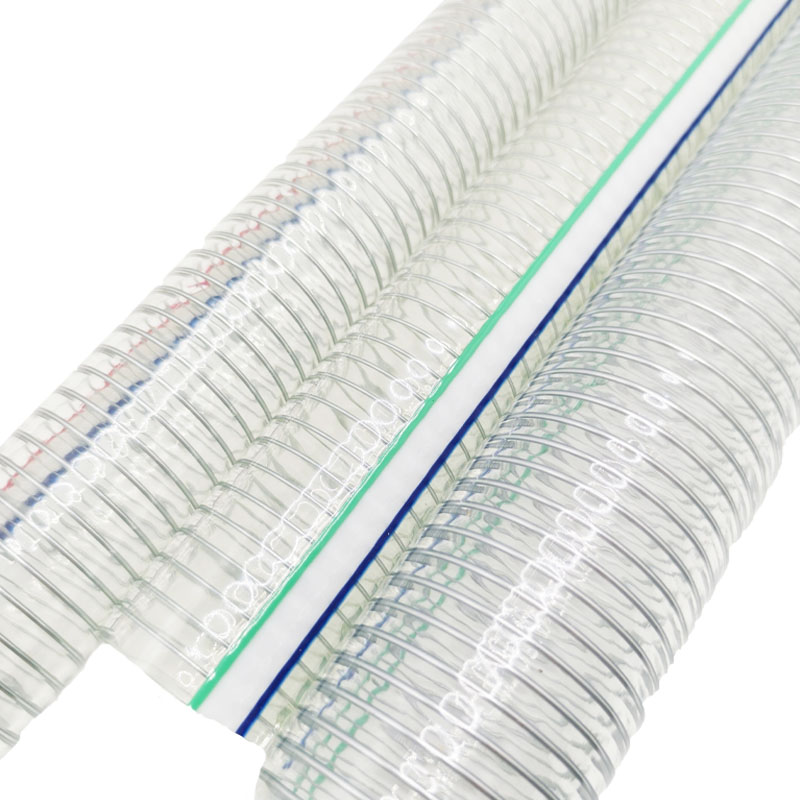

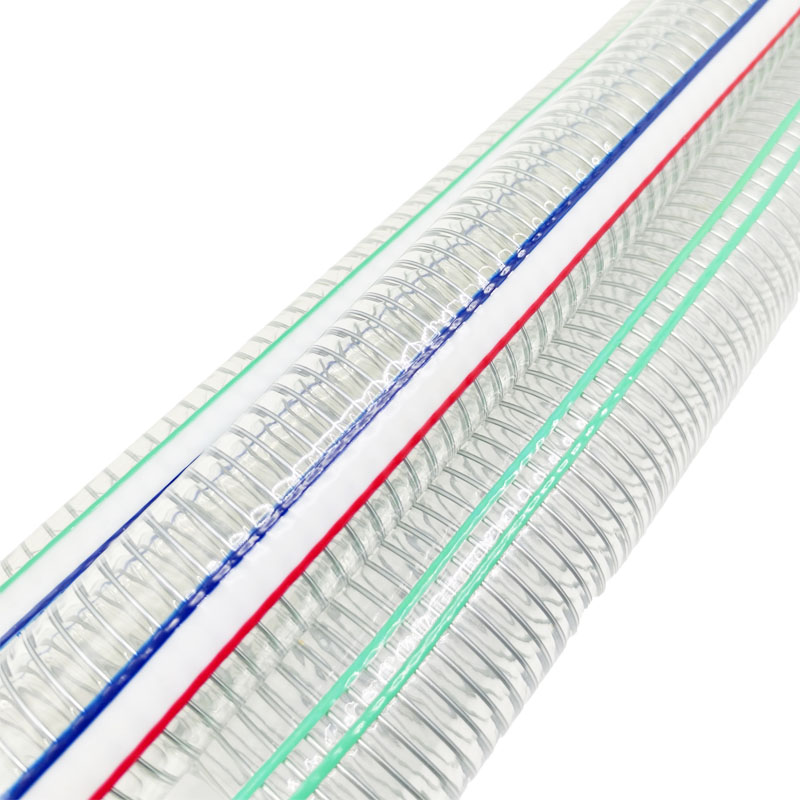

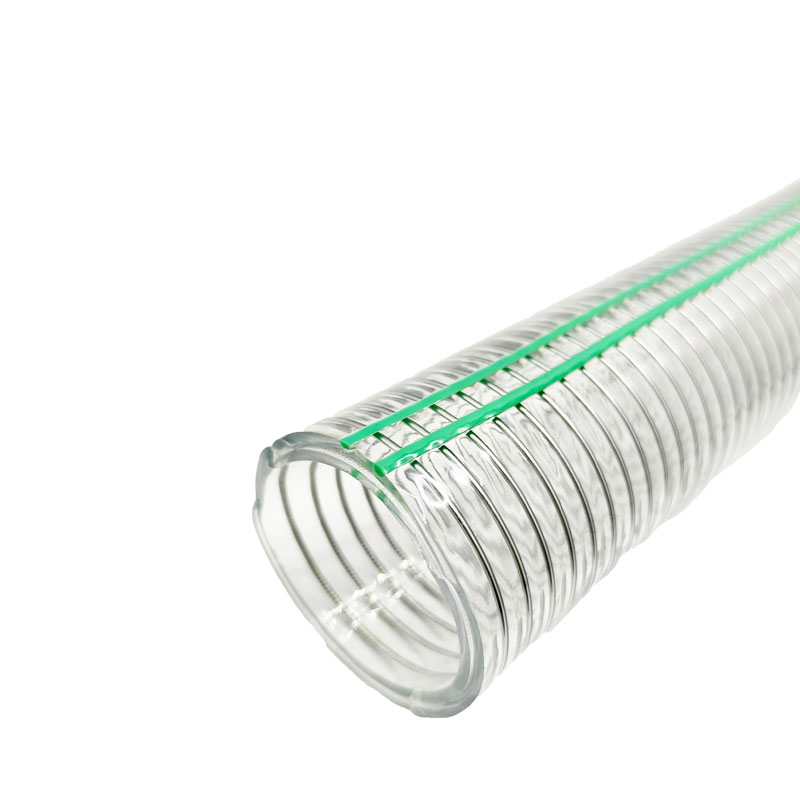

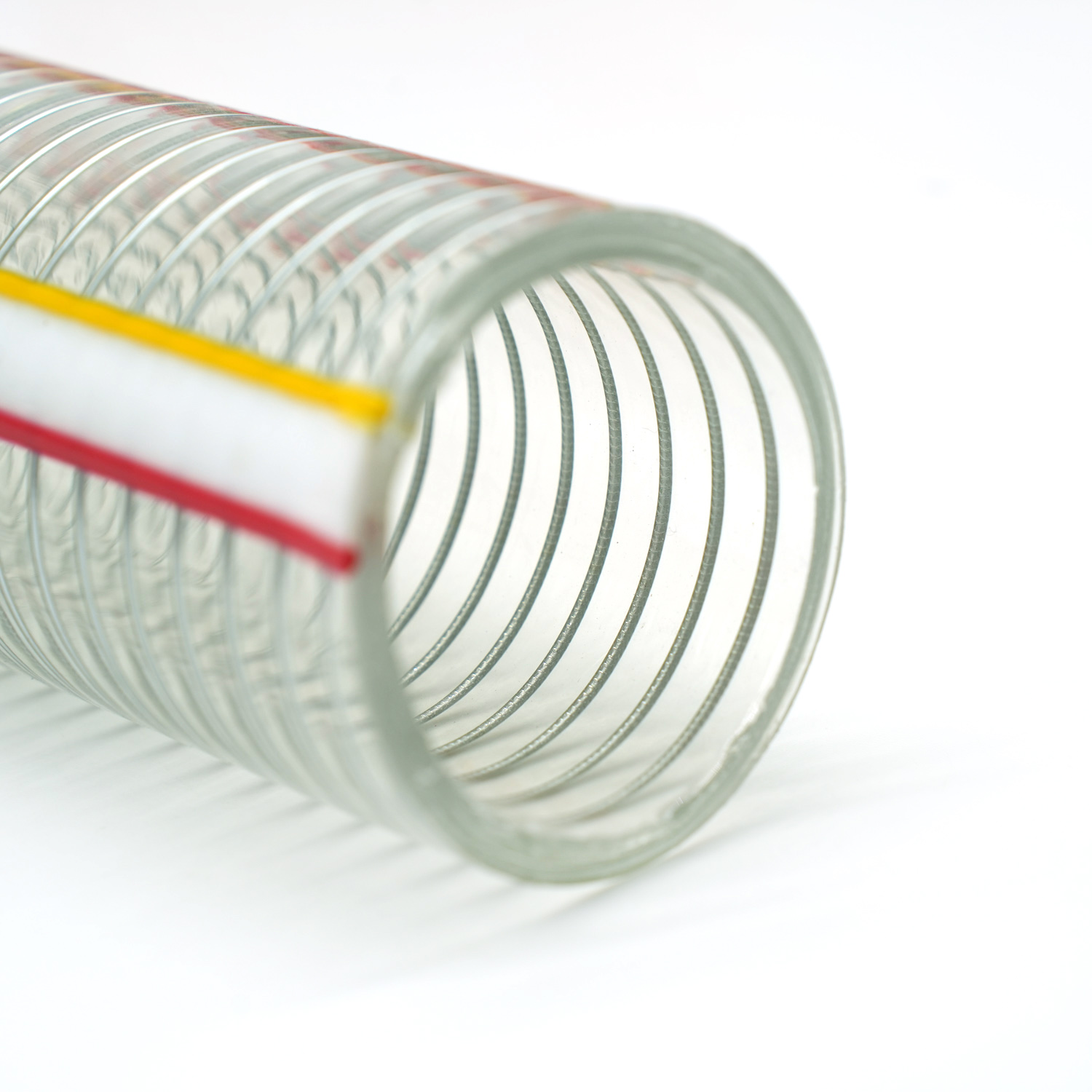

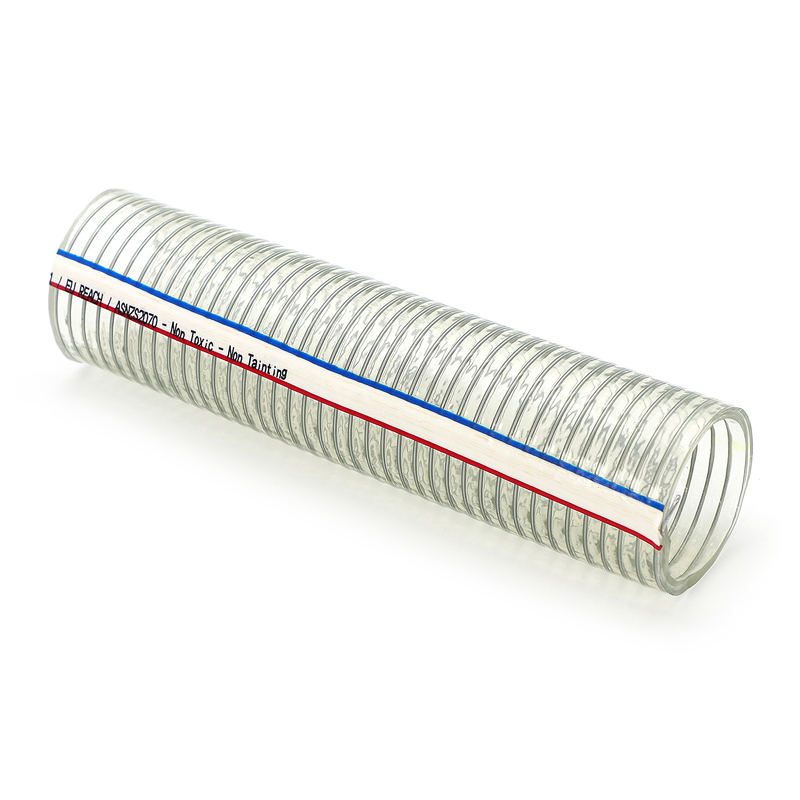

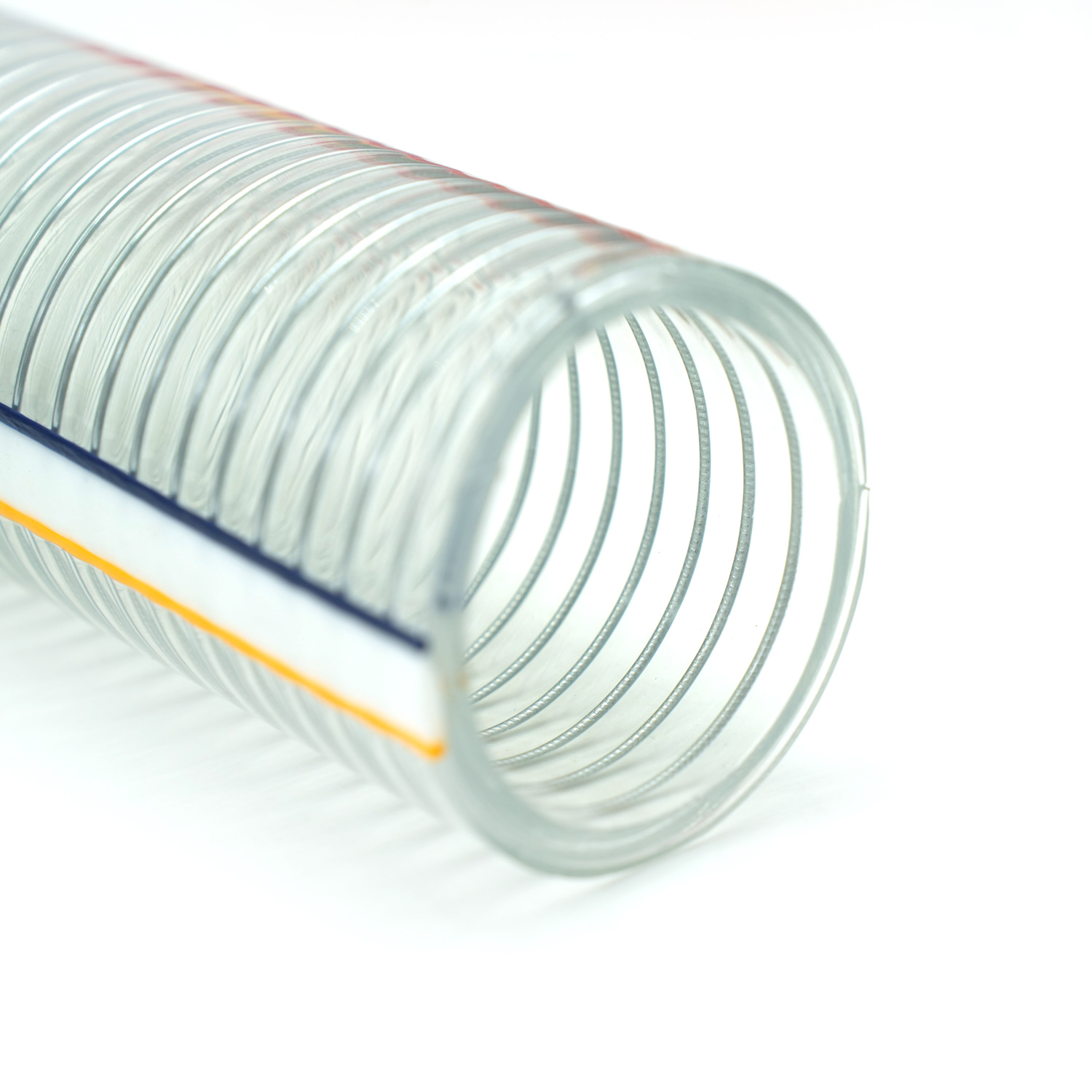

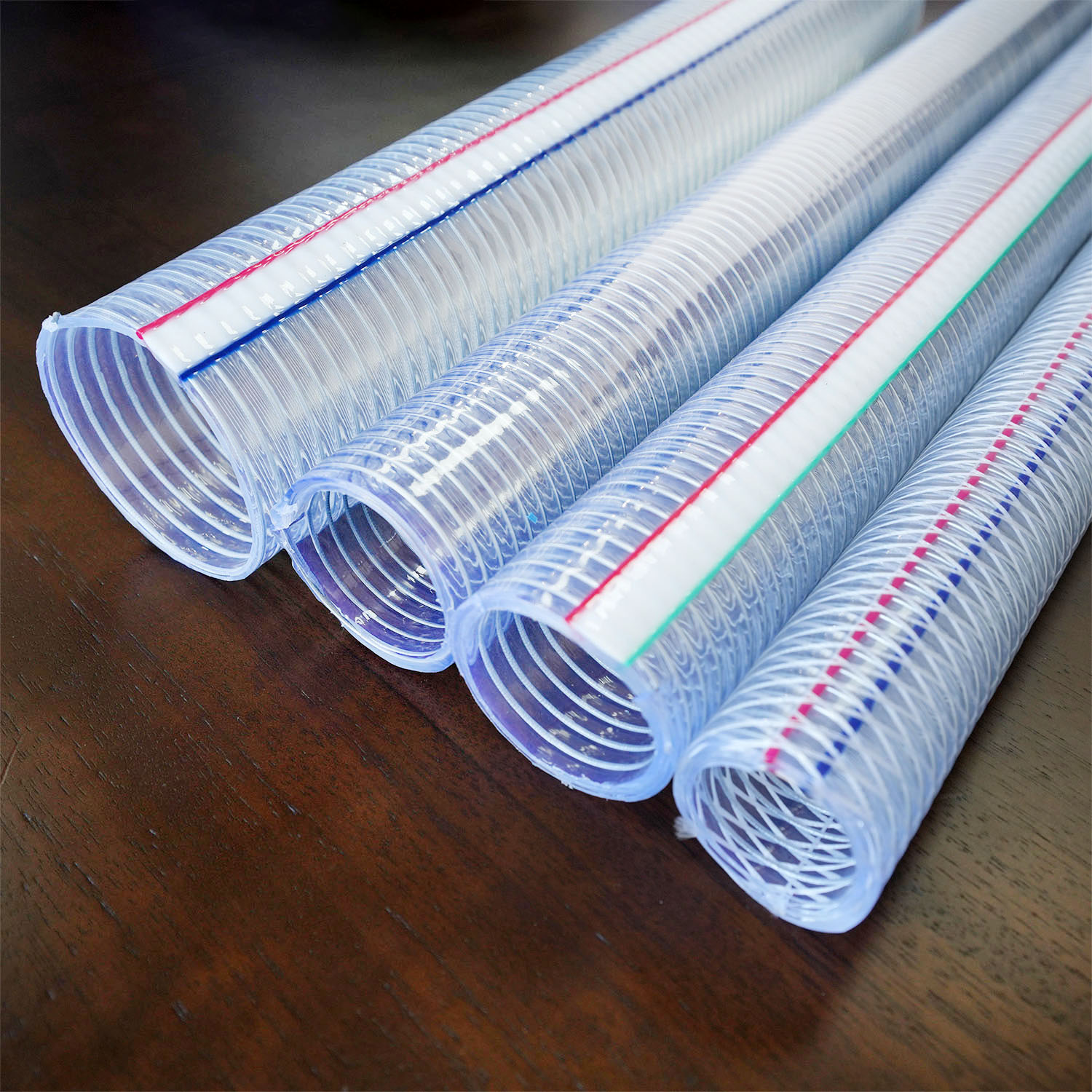

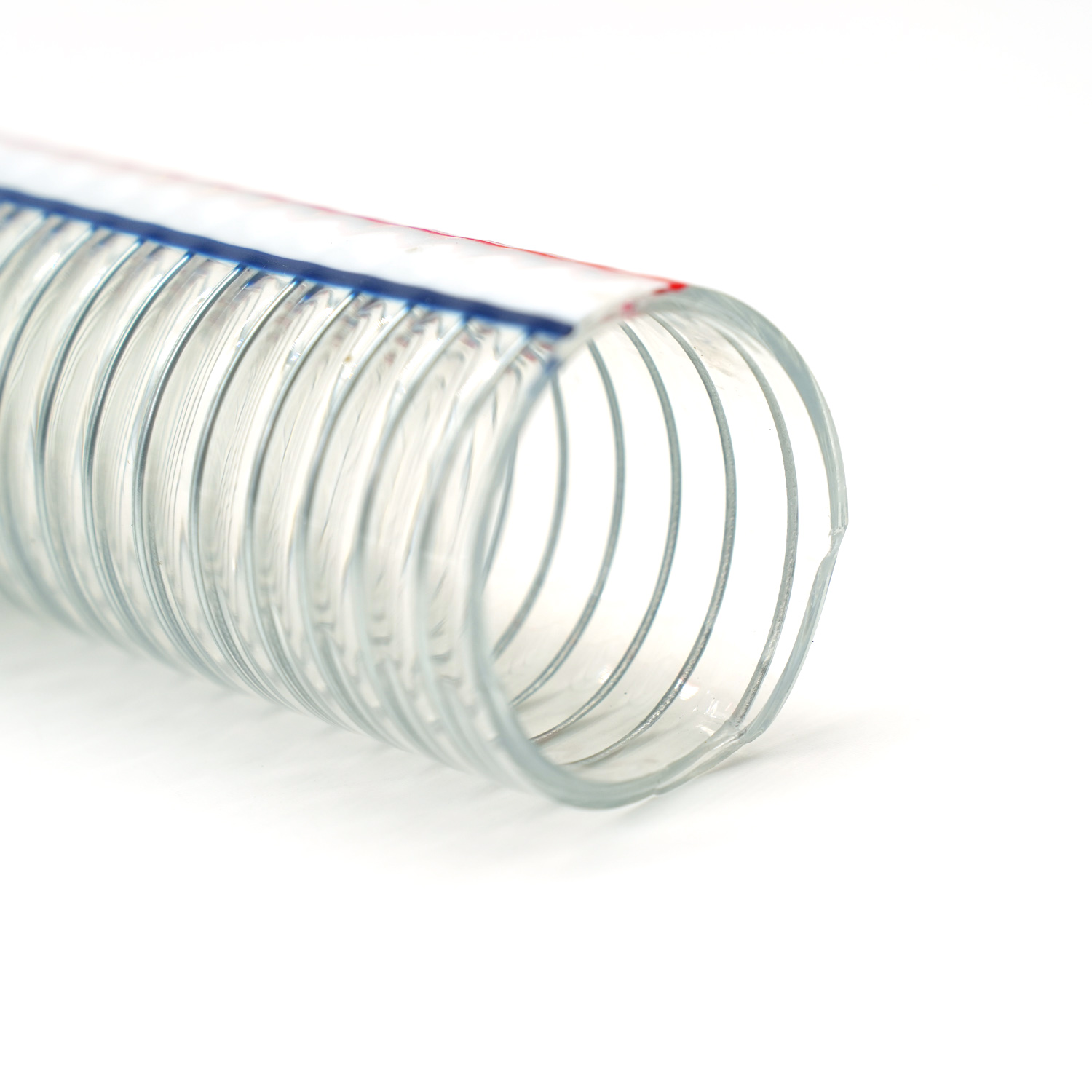

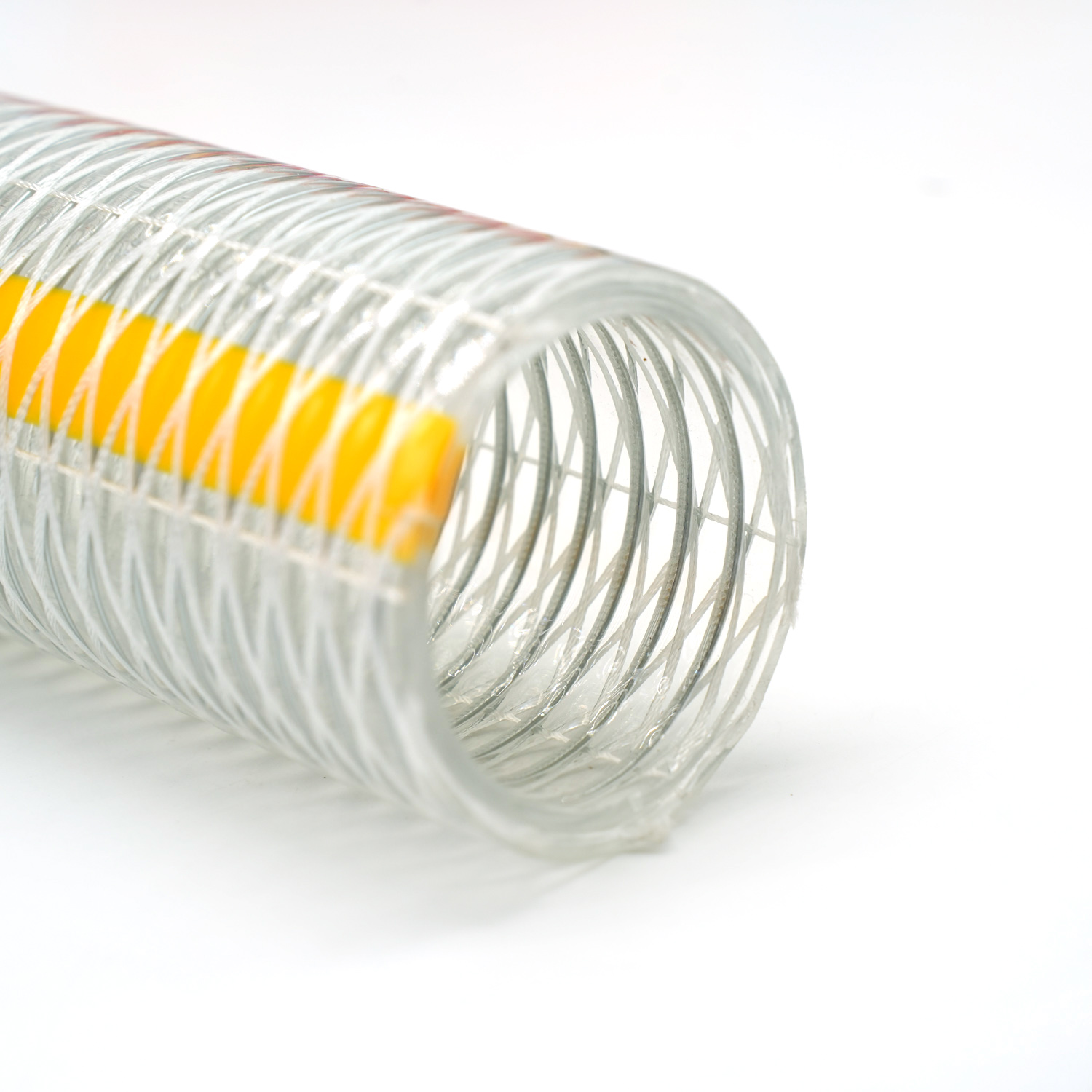

PVC Steel Wire Hose is a transparent suction and discharge hose designed for applications that require visible flow monitoring, reliable anti-collapse performance, and flexible installation. Made with a transparent PVC tube and cover reinforced by spiral steel wire, it is suitable for transferring water, light oil, powder, granules, and similar media in systems where both flow visibility and hose stability are important. With a working temperature range of -10°C to +65°C and a broad size range for different transfer capacities, this hose is well suited for industrial, agricultural, construction, and general-purpose service.
The combination of transparent PVC and spiral steel wire reinforcement makes this hose more suitable for suction and discharge duty than ordinary clear PVC hose. The reinforced structure helps the hose retain its shape under negative pressure, while the transparent wall allows operators to check flow condition, trapped air, and residue directly during operation.
This design is especially useful in transfer systems where hose flexibility, visible flow control, and anti-collapse performance must be considered together. It provides a practical solution for installations exposed to bending, movement, or changing routing conditions, while remaining easier to handle than rigid piping in temporary or mobile systems.
Layer | Material / Structure | Practical Role |
|---|---|---|
Tube | Transparent PVC | Carries media while allowing visual flow monitoring |
Reinforcement | Steel wire spiral | Provides anti-collapse support, pressure stability, and shape retention |
Cover | Transparent PVC | Protects the hose body and keeps the outer surface flexible and durable |
The transparent PVC body supports process visibility and helps detect flow irregularities early.
Spiral steel wire reinforcement is embedded in the hose wall to strengthen the structure without making the hose excessively rigid.
This construction is especially suitable for suction duty because it helps the hose retain its round profile under negative pressure.
The smooth inner wall improves transfer behavior for liquids and reduces buildup of powder, granules, or residue during service.
Compared with layered hoses that depend mainly on textile reinforcement, this design is better aligned with applications where vacuum resistance and anti-collapse performance are more important.
This construction format is widely used in reinforced PVC suction hose products because it delivers a useful combination of transparency, flexibility, and structural support.
Transparent hose wall allows direct observation of flow condition, media movement, sediment presence, and cleaning status
Steel wire spiral reinforcement supports the hose body under suction and helps reduce collapse risk
Flexible PVC construction improves routing in systems with bends, equipment movement, or limited installation space
Smooth inner surface helps reduce material accumulation and supports more stable transfer
Suitable for both suction and discharge service
Better anti-kink and anti-crush behavior than ordinary non-reinforced clear hose
Helps maintain line shape under negative pressure conditions
Lightweight compared with many rubber hose alternatives
Practical for installations where hose handling and replacement efficiency matter
Simplifies inspection because internal media flow can be seen directly
Reduces routing difficulty in equipment and plant layouts
Supports transfer of water, oil, powder, granules, and similar media according to actual operating requirements
Useful in industrial, agricultural, commercial, and workshop environments
Rather than serving only as a basic conveying hose, this product helps solve three common transfer problems at once: collapse under suction, poor visibility of internal flow, and difficult installation in confined spaces.
Water suction and discharge
Light oil transfer
Powder conveying
Granule movement
Vacuum lines
Industrial pump systems
Agricultural irrigation support
Construction and engineering sites
Workshop and utility transfer systems
General-purpose industrial fluid handling
The hose remains flexible enough for practical routing
The steel wire spiral helps prevent flattening under suction
The transparent wall supports quick inspection during operation
The hose can be used where fluid visibility improves process control
It is suitable for systems requiring repeated handling, movement, or replacement
This product may also be described as:
Steel wire reinforced PVC hose
PVC spring hose
Transparent PVC suction hose
PVC suction and discharge hose
Spiral steel wire PVC hose
Clear wire reinforced hose
ID (inch) | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (g/m) | Coil (m) |
|---|---|---|---|---|---|---|---|---|
1/4 | 6 | 11 | 8 | 120 | 24 | 360 | 115 | 100 |
5/16 | 8 | 14 | 8 | 120 | 24 | 360 | 150 | 100 |
3/8 | 10 | 16 | 8 | 120 | 24 | 360 | 200 | 100 |
1/2 | 12 | 18 | 8 | 120 | 24 | 360 | 220 | 100 |
5/8 | 15 | 22 | 6 | 90 | 18 | 270 | 300 | 50 |
3/4 | 19 | 26 | 6 | 90 | 18 | 270 | 360 | 50 |
1 | 25 | 33 | 5 | 75 | 16 | 240 | 540 | 50 |
1-1/4 | 32 | 40 | 5 | 75 | 16 | 240 | 700 | 50 |
1-1/2 | 38 | 48 | 5 | 75 | 15 | 225 | 1000 | 50 |
2 | 50 | 62 | 5 | 75 | 15 | 225 | 1600 | 50 |
2-1/2 | 64 | 78 | 4 | 60 | 12 | 180 | 2500 | 30 |
3 | 76 | 90 | 4 | 60 | 12 | 180 | 3000 | 30 |
3-1/2 | 90 | 106 | 4 | 60 | 12 | 180 | 4000 | 20 |
4 | 102 | 118 | 4 | 60 | 12 | 180 | 4500 | 20 |
5 | 127 | 143 | 3 | 45 | 9 | 135 | 6000 | 10 |
6 | 152 | 168 | 2 | 30 | 6 | 90 | 7000 | 10 |
8 | 202 | 224 | 2 | 30 | 6 | 90 | 10000 | 10 |
10 | 254 | 276 | 2 | 30 | 6 | 90 | 20000 | 10 |
Technical Notes
Tube and cover: transparent PVC
Reinforcement: steel wire spiral
Working temperature: -10°C to +65°C
Food-grade PVC steel wire hose
Anti-static PVC steel wire hose
Copper-wire grounding version
UV-resistant version
Transparent high-clarity version
Different wall thickness options for different service conditions
Barbed fittings
Hose clamps
Cam-operated couplings
Plastic and brass multi-barbed fittings
Quick-connect style connections where suitable
Optional versions improve suitability across food, utility, workshop, and industrial applications
Fittings and clamp compatibility help simplify line integration
Version flexibility supports more accurate hose selection based on media, environment, and installation conditions
Easier to inspect during operation because the hose body is transparent
More flexible than rigid pipe in temporary or movable systems
Practical for bends and changing line routes
Easier to cut, clamp, and assemble for custom transfer setups
Suitable for suction lines that require anti-collapse support
Helps reduce maintenance checks caused by hidden internal blockage
Can be matched with common fittings and clamps for faster line setup
Useful where hose routing must adapt to limited space or moving equipment
Wide size range supports different transfer volumes
Standard coil lengths make logistics and storage easier
Optional versions provide more selection flexibility
Suitable for repeated ordering where dimensional consistency matters
Clear specification coverage from small-bore utility size to large transfer size
Transparent PVC structure supports visual process monitoring
Spiral steel wire reinforcement improves suction reliability and body stability
Balanced flexibility and strength for practical field use
Suitable for water, oil, powder, granules, and vacuum-oriented transfer conditions based on actual service requirements
Better aligned with visible-flow applications than opaque rubber alternatives
More practical than ordinary clear hose where negative pressure is present
Multiple optional versions support more targeted use conditions
Common fitting and clamp compatibility improves installation convenience
Standardized size and pressure data help reduce selection errors
Suitable for projects where users value clear technical data, visible flow control, and practical handling efficiency
It is mainly used for suction and discharge of water, light oil, powder, granules, and similar media in industrial, agricultural, workshop, and utility systems.
The spiral steel wire reinforcement helps the hose maintain shape under suction, improves anti-kink behavior, and makes it more suitable for vacuum or negative-pressure service.
Yes. The transparent PVC body allows direct observation of media flow, which helps identify bubbles, residue, sediment, or blockage more easily.
Yes. This hose category is commonly used for both suction and discharge applications, especially where hose collapse resistance is important.
This product category can include food-grade, anti-static, copper-wire, and UV-resistant versions depending on application requirements and supply arrangement.
The current product page lists a working temperature range of -10°C to +65°C.
