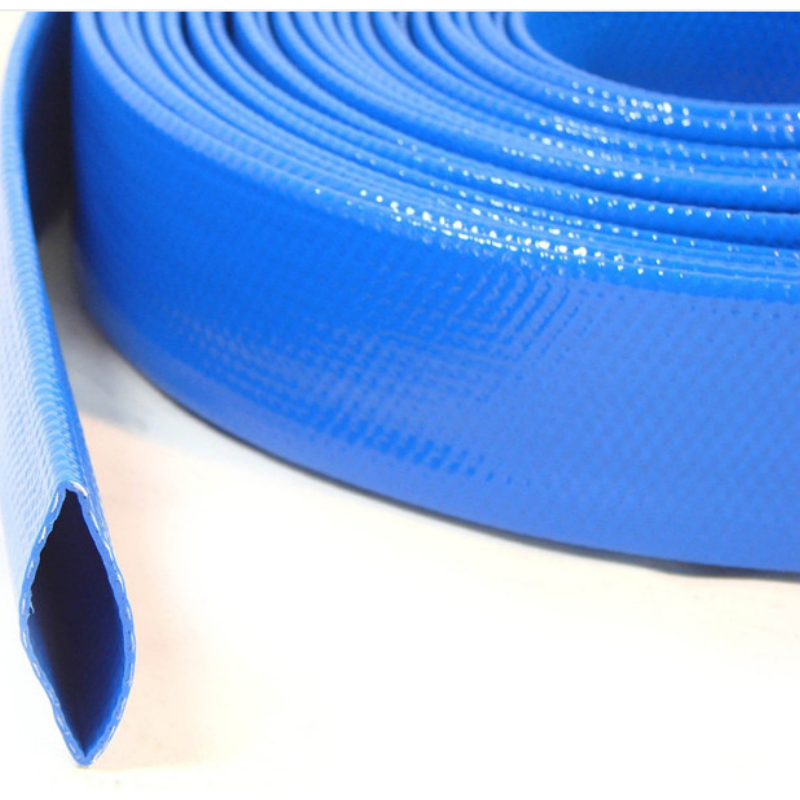

PVC Layflat Hose is a flexible water discharge hose designed for irrigation, pump transfer, construction drainage, mining service, and general water delivery. It combines a PVC tube and cover with high-tensile polyester reinforcement to provide a practical balance of light weight, rollability, and pressure performance. Compared with rigid pipe or bulkier hose constructions, layflat hose simplifies transport, storage, field deployment, and seasonal replacement.
Suitable for water discharge, irrigation, pump service, dewatering, and backwash applications
PVC tube and cover with high-tensile polyester braiding
Available for light duty and standard duty requirements
Lightweight and easy to coil, move, store, and install
Good flexibility for temporary line setup and field use
Assemblies and cut lengths available
Multiple colors available, including blue, orange, and red
Burst pressure rated at 3 times working pressure
PVC Layflat Hose, also referred to as water discharge hose, delivery hose, pump hose, or lay flat irrigation hose, is engineered for the transfer of water, light chemicals, and similar non-aggressive fluids in mobile or temporary piping systems. It is commonly used where rigid pipe is less practical and where a hose must be deployed quickly, moved frequently, or stored compactly after use. This makes it a practical solution for irrigation lines, pump outlet service, construction site water handling, mine dewatering, flood control, pool and spa drainage, and marine utility applications.
The hose structure uses PVC for both the tube and cover, reinforced with high-tensile polyester braiding. This construction helps the hose maintain flexibility while supporting pressure performance suitable for day-to-day discharge service. In real operating conditions, the main value of PVC layflat hose is not only fluid transfer capability, but also handling efficiency. It can be rolled flat after use, occupies less storage volume than many conventional hose types, and is easier to move over long lengths in agricultural or site-based applications.
For users managing seasonal irrigation, mobile pumping, emergency drainage, or temporary transfer lines, PVC Layflat Hose reduces handling time and simplifies replacement planning. Its design is especially useful where fast deployment, low transport weight, and repeatable field use are more important than vacuum resistance or permanent buried installation.
Lightweight construction reduces labor during movement, deployment, retrieval, and storage
Flat-roll design saves storage volume and improves transport efficiency compared with rigid piping
Polyester-reinforced structure supports practical working pressure for water transfer and discharge service
Corrosion and aging resistance helps maintain usability in wet outdoor environments
Good flexibility allows easier handling across irregular ground conditions and temporary line routes
Easy connection options support hose clamps, crimped ends, and common shank-style couplings
Suitable for seasonal, temporary, and mobile fluid transfer systems
Easier to store between jobs, harvest cycles, or maintenance intervals
Helps reduce installation time in irrigation, dewatering, and pump discharge service
Available in cut lengths and assemblies for more direct field integration
Non-toxic and low-odor hose body
Burst pressure is 3 times working pressure
Available in multiple colors for product identification or application differentiation
This product is especially useful where the main requirement is efficient water movement with low handling burden rather than complex high-pressure industrial transfer.
Layer | Material / Structure | Practical Role |
|---|---|---|
Tube | PVC | Carries water and light fluids with good flexibility |
Reinforcement | High tensile polyester braiding | Supports pressure performance and dimensional stability |
Cover | PVC | Protects the hose body from external wear, weather exposure, and handling stress |
The PVC tube and cover help keep the hose lightweight and flexible.
The polyester reinforcement improves pressure retention during discharge service.
This construction is widely used for layflat water hoses because it supports coiling, transport, and repeated field deployment.
Compared with more rigid or heavy hose constructions, PVC layflat hose offers better portability for long-length temporary fluid transfer.
This structure is consistent with common market practice for lay flat discharge hoses used in irrigation, backwash, and pump outlet service.
Agricultural irrigation
Water discharge
Pump outlet service
Dewatering
Flood control
Pool and spa drainage
Construction site drainage
Mining water transfer
Marine utility service
The hose can be deployed quickly over long distances
Flat storage format helps reduce warehouse and vehicle space requirements
Flexible body simplifies handling in field conditions
Suitable for applications where continuous water flow is required
Practical for temporary systems that are installed and removed repeatedly
This product may also be described as:
Water discharge hose
Delivery hose
Pump hose
Lay flat hose
Layflat irrigation hose
Backwash hose
Using these related terms in product content also helps align the page with real search behavior and industry purchasing language.
The current product page clearly separates this product into light duty and standard duty specifications. This is an important commercial and technical detail because layflat hose is often selected not only by size, but also by operating pressure and expected handling conditions.
Intended for lower-pressure water transfer
Suitable for basic irrigation, light pump service, and general discharge work
Easier to handle in smaller sizes and common field setups
Working pressure range: 2–3 bar
Burst pressure range: 6–9 bar
Intended for more demanding discharge and transfer conditions
Better suited for applications where pressure margin and jobsite handling are more important
Commonly selected for construction drainage, irrigation mains, and general water transfer
Working pressure: 4 bar
Burst pressure: 12–15 bar depending on size
Standard roll lengths on the current page are mainly 100 m, with larger sizes also offered in 50 m rolls
Assemblies and cut lengths are available
Multiple colors are available for different supply preferences
Item Code | I.D (inch) | I.D (mm) | W.P. (psi) | W.P. (bar) | B.P. (psi) | B.P. (bar) | Length (m/roll) | Weight (kg/m) | Volume (m³/roll) |
|---|---|---|---|---|---|---|---|---|---|
PLHL20 | 3/4" | 20 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.12 | 0.014 |
PLHL25 | 1" | 25 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.15 | 0.019 |
PLHL32 | 1-1/4" | 32 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.17 | 0.023 |
PLHL38 | 1-1/2" | 38 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.21 | 0.026 |
PLHL51 | 2" | 51 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.23 | 0.039 |
PLHL64 | 2.5" | 64 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.32 | 0.047 |
PLHL76 | 3" | 76 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.36 | 0.060 |
PLHL102 | 4" | 102 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.55 | 0.083 |
PLHL125 | 5" | 127 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.75 | 0.109 |
PLHL153 | 6" | 153 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.90 | 0.141 |
PLHL203 | 8" | 203 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 1.80 | 0.193 |
Item Code | I.D (inch) | I.D (mm) | W.P. (psi) | W.P. (bar) | B.P. (psi) | B.P. (bar) | Length (m/roll) | Weight (kg/m) | Volume (m³/roll) |
|---|---|---|---|---|---|---|---|---|---|
PLHS20 | 3/4" | 20 | 58 | 4 | 218 | 15 | 100 | 0.14 | 0.014 |
PLHS25 | 1" | 25 | 58 | 4 | 218 | 15 | 100 | 0.15 | 0.019 |
PLHS32 | 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 | 0.17 | 0.023 |
PLHS38 | 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 | 0.21 | 0.026 |
PLHS51 | 2" | 51 | 58 | 4 | 174 | 12 | 100 | 0.23 | 0.039 |
PLHS64 | 2.5" | 64 | 58 | 4 | 174 | 12 | 100 | 0.32 | 0.047 |
PLHS76 | 3" | 76 | 58 | 4 | 174 | 12 | 100 | 0.36 | 0.060 |
PLHS102 | 4" | 102 | 58 | 4 | 174 | 12 | 100 | 0.55 | 0.083 |
PLHS125 | 5" | 127 | 58 | 4 | 174 | 12 | 100 | 0.75 | 0.109 |
PLHS153 | 6" | 153 | 58 | 4 | 174 | 12 | 100 | 0.90 | 0.141 |
PLHS203 | 8" | 203 | 58 | 4 | 174 | 12 | 100 | 1.80 | 0.193 |
PLHS254 | 10" | 254 | 58 | 4 | 174 | 12 | 50 | 2.60 | 0.178 |
PLHS305 | 12" | 305 | 58 | 4 | 174 | 12 | 50 | 3.10 | 0.245 |
Tube and Cover: PVC
Reinforcement: high tensile polyester braiding
Working Temperature: -10°C to +60°C
Burst pressure: 3 times working pressure
Aluminum shank connectors
Malleable fittings
Gator Lock shank connectors
Quick-connect fittings
Standard hose clamps
Crimp-on connectors
Easy to roll flat after use
Lower storage space requirement than many round-profile hoses
Easier loading, unloading, and transport for long-length hose supply
Practical for field crews, pump systems, irrigation layouts, and temporary installations
Standard roll packaging
Cut lengths available
Assemblies available
Color options available
Common supply format suitable for warehouse storage and shipment planning
This module is worth keeping because layflat hose is often selected as much for handling efficiency and supply practicality as for pressure rating alone.
Broad size range from 3/4" to 12" supports multiple water transfer requirements
Light duty and standard duty options improve application matching
PVC and polyester construction balances weight, flexibility, and cost efficiency
Multiple connection options support easier integration into existing systems
Clear specification tables help reduce sizing and pressure-selection errors
Cut lengths and assemblies support faster deployment planning
Color options and supply flexibility are useful for product differentiation and jobsite organization
Rollable flat design improves storage and transportation efficiency
This product is not positioned as a specialty chemical hose or high-pressure industrial process hose. Its strength is in efficient water transfer, easy handling, practical pressure capability, and field-friendly deployment. That makes it a strong option for irrigation, drainage, discharge, and temporary transfer systems where usability matters as much as technical data.
It is mainly used for water discharge, agricultural irrigation, pump outlet service, dewatering, backwash, and temporary water transfer applications.
Light duty is intended for lower-pressure general water transfer, while standard duty provides a higher working pressure level for more demanding discharge and irrigation service.
Yes. The current product information states that assemblies and cut lengths are available, and the hose can be connected with aluminum, malleable, Gator Lock, and quick-connect fittings.
Yes. One of the main advantages of layflat hose is that it rolls flat after use, which reduces storage space and improves transport efficiency.
The current page positions it for water, light chemicals, and similar fluids. Final media suitability should still be confirmed against actual operating conditions.
The current page lists a working temperature range of -10°C to +60°C.
PVC Layflat Hose is a flexible water discharge hose designed for irrigation, pump transfer, construction drainage, mining service, and general water delivery. It combines a PVC tube and cover with high-tensile polyester reinforcement to provide a practical balance of light weight, rollability, and pressure performance. Compared with rigid pipe or bulkier hose constructions, layflat hose simplifies transport, storage, field deployment, and seasonal replacement.
Suitable for water discharge, irrigation, pump service, dewatering, and backwash applications
PVC tube and cover with high-tensile polyester braiding
Available for light duty and standard duty requirements
Lightweight and easy to coil, move, store, and install
Good flexibility for temporary line setup and field use
Assemblies and cut lengths available
Multiple colors available, including blue, orange, and red
Burst pressure rated at 3 times working pressure
PVC Layflat Hose, also referred to as water discharge hose, delivery hose, pump hose, or lay flat irrigation hose, is engineered for the transfer of water, light chemicals, and similar non-aggressive fluids in mobile or temporary piping systems. It is commonly used where rigid pipe is less practical and where a hose must be deployed quickly, moved frequently, or stored compactly after use. This makes it a practical solution for irrigation lines, pump outlet service, construction site water handling, mine dewatering, flood control, pool and spa drainage, and marine utility applications.
The hose structure uses PVC for both the tube and cover, reinforced with high-tensile polyester braiding. This construction helps the hose maintain flexibility while supporting pressure performance suitable for day-to-day discharge service. In real operating conditions, the main value of PVC layflat hose is not only fluid transfer capability, but also handling efficiency. It can be rolled flat after use, occupies less storage volume than many conventional hose types, and is easier to move over long lengths in agricultural or site-based applications.
For users managing seasonal irrigation, mobile pumping, emergency drainage, or temporary transfer lines, PVC Layflat Hose reduces handling time and simplifies replacement planning. Its design is especially useful where fast deployment, low transport weight, and repeatable field use are more important than vacuum resistance or permanent buried installation.
Lightweight construction reduces labor during movement, deployment, retrieval, and storage
Flat-roll design saves storage volume and improves transport efficiency compared with rigid piping
Polyester-reinforced structure supports practical working pressure for water transfer and discharge service
Corrosion and aging resistance helps maintain usability in wet outdoor environments
Good flexibility allows easier handling across irregular ground conditions and temporary line routes
Easy connection options support hose clamps, crimped ends, and common shank-style couplings
Suitable for seasonal, temporary, and mobile fluid transfer systems
Easier to store between jobs, harvest cycles, or maintenance intervals
Helps reduce installation time in irrigation, dewatering, and pump discharge service
Available in cut lengths and assemblies for more direct field integration
Non-toxic and low-odor hose body
Burst pressure is 3 times working pressure
Available in multiple colors for product identification or application differentiation
This product is especially useful where the main requirement is efficient water movement with low handling burden rather than complex high-pressure industrial transfer.
Layer | Material / Structure | Practical Role |
|---|---|---|
Tube | PVC | Carries water and light fluids with good flexibility |
Reinforcement | High tensile polyester braiding | Supports pressure performance and dimensional stability |
Cover | PVC | Protects the hose body from external wear, weather exposure, and handling stress |
The PVC tube and cover help keep the hose lightweight and flexible.
The polyester reinforcement improves pressure retention during discharge service.
This construction is widely used for layflat water hoses because it supports coiling, transport, and repeated field deployment.
Compared with more rigid or heavy hose constructions, PVC layflat hose offers better portability for long-length temporary fluid transfer.
This structure is consistent with common market practice for lay flat discharge hoses used in irrigation, backwash, and pump outlet service.
Agricultural irrigation
Water discharge
Pump outlet service
Dewatering
Flood control
Pool and spa drainage
Construction site drainage
Mining water transfer
Marine utility service
The hose can be deployed quickly over long distances
Flat storage format helps reduce warehouse and vehicle space requirements
Flexible body simplifies handling in field conditions
Suitable for applications where continuous water flow is required
Practical for temporary systems that are installed and removed repeatedly
This product may also be described as:
Water discharge hose
Delivery hose
Pump hose
Lay flat hose
Layflat irrigation hose
Backwash hose
Using these related terms in product content also helps align the page with real search behavior and industry purchasing language.
The current product page clearly separates this product into light duty and standard duty specifications. This is an important commercial and technical detail because layflat hose is often selected not only by size, but also by operating pressure and expected handling conditions.
Intended for lower-pressure water transfer
Suitable for basic irrigation, light pump service, and general discharge work
Easier to handle in smaller sizes and common field setups
Working pressure range: 2–3 bar
Burst pressure range: 6–9 bar
Intended for more demanding discharge and transfer conditions
Better suited for applications where pressure margin and jobsite handling are more important
Commonly selected for construction drainage, irrigation mains, and general water transfer
Working pressure: 4 bar
Burst pressure: 12–15 bar depending on size
Standard roll lengths on the current page are mainly 100 m, with larger sizes also offered in 50 m rolls
Assemblies and cut lengths are available
Multiple colors are available for different supply preferences
Item Code | I.D (inch) | I.D (mm) | W.P. (psi) | W.P. (bar) | B.P. (psi) | B.P. (bar) | Length (m/roll) | Weight (kg/m) | Volume (m³/roll) |
|---|---|---|---|---|---|---|---|---|---|
PLHL20 | 3/4" | 20 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.12 | 0.014 |
PLHL25 | 1" | 25 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.15 | 0.019 |
PLHL32 | 1-1/4" | 32 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.17 | 0.023 |
PLHL38 | 1-1/2" | 38 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.21 | 0.026 |
PLHL51 | 2" | 51 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.23 | 0.039 |
PLHL64 | 2.5" | 64 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.32 | 0.047 |
PLHL76 | 3" | 76 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.36 | 0.060 |
PLHL102 | 4" | 102 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.55 | 0.083 |
PLHL125 | 5" | 127 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.75 | 0.109 |
PLHL153 | 6" | 153 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 0.90 | 0.141 |
PLHL203 | 8" | 203 | 30–45 | 2–3 | 90–135 | 6–9 | 100 | 1.80 | 0.193 |
Item Code | I.D (inch) | I.D (mm) | W.P. (psi) | W.P. (bar) | B.P. (psi) | B.P. (bar) | Length (m/roll) | Weight (kg/m) | Volume (m³/roll) |
|---|---|---|---|---|---|---|---|---|---|
PLHS20 | 3/4" | 20 | 58 | 4 | 218 | 15 | 100 | 0.14 | 0.014 |
PLHS25 | 1" | 25 | 58 | 4 | 218 | 15 | 100 | 0.15 | 0.019 |
PLHS32 | 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 | 0.17 | 0.023 |
PLHS38 | 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 | 0.21 | 0.026 |
PLHS51 | 2" | 51 | 58 | 4 | 174 | 12 | 100 | 0.23 | 0.039 |
PLHS64 | 2.5" | 64 | 58 | 4 | 174 | 12 | 100 | 0.32 | 0.047 |
PLHS76 | 3" | 76 | 58 | 4 | 174 | 12 | 100 | 0.36 | 0.060 |
PLHS102 | 4" | 102 | 58 | 4 | 174 | 12 | 100 | 0.55 | 0.083 |
PLHS125 | 5" | 127 | 58 | 4 | 174 | 12 | 100 | 0.75 | 0.109 |
PLHS153 | 6" | 153 | 58 | 4 | 174 | 12 | 100 | 0.90 | 0.141 |
PLHS203 | 8" | 203 | 58 | 4 | 174 | 12 | 100 | 1.80 | 0.193 |
PLHS254 | 10" | 254 | 58 | 4 | 174 | 12 | 50 | 2.60 | 0.178 |
PLHS305 | 12" | 305 | 58 | 4 | 174 | 12 | 50 | 3.10 | 0.245 |

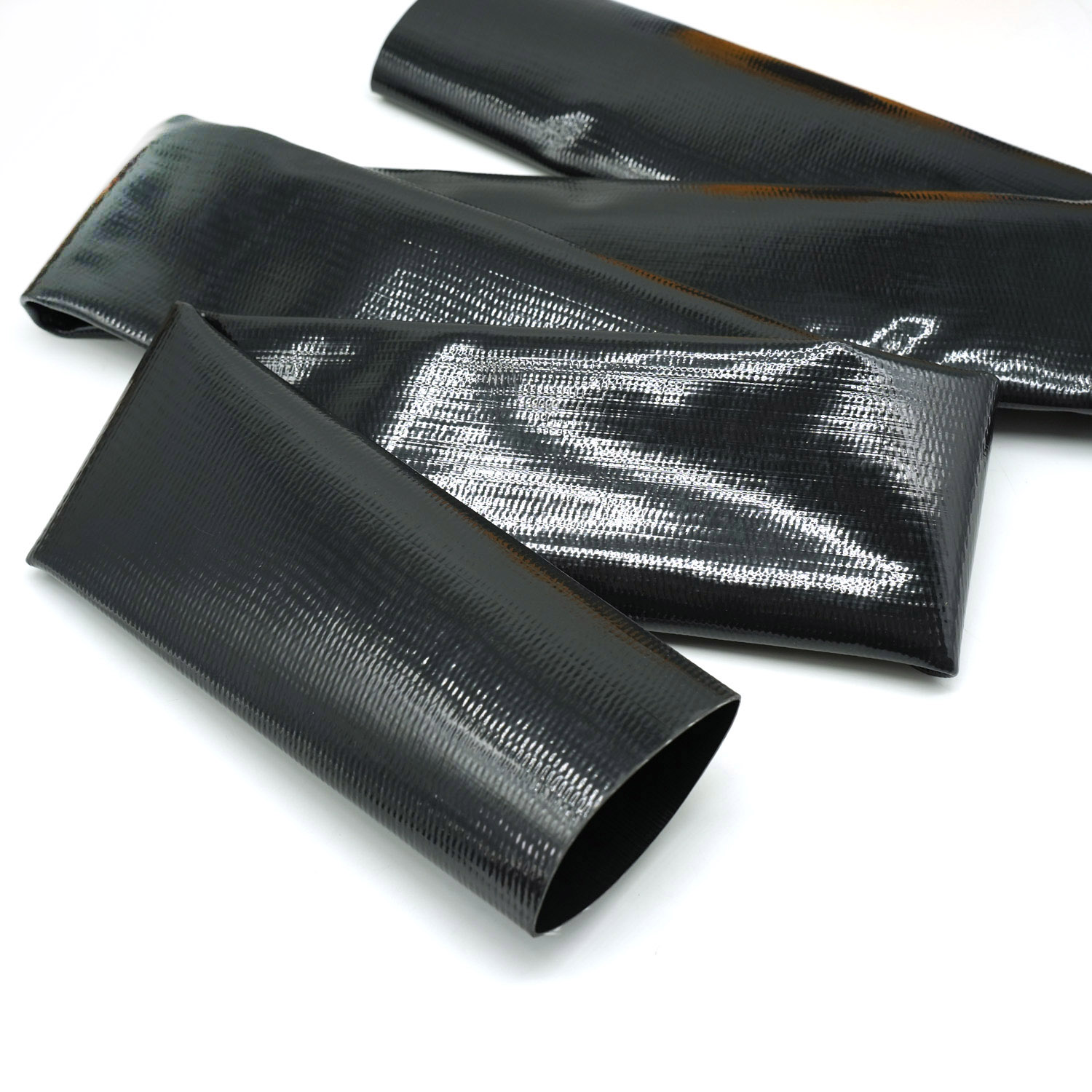

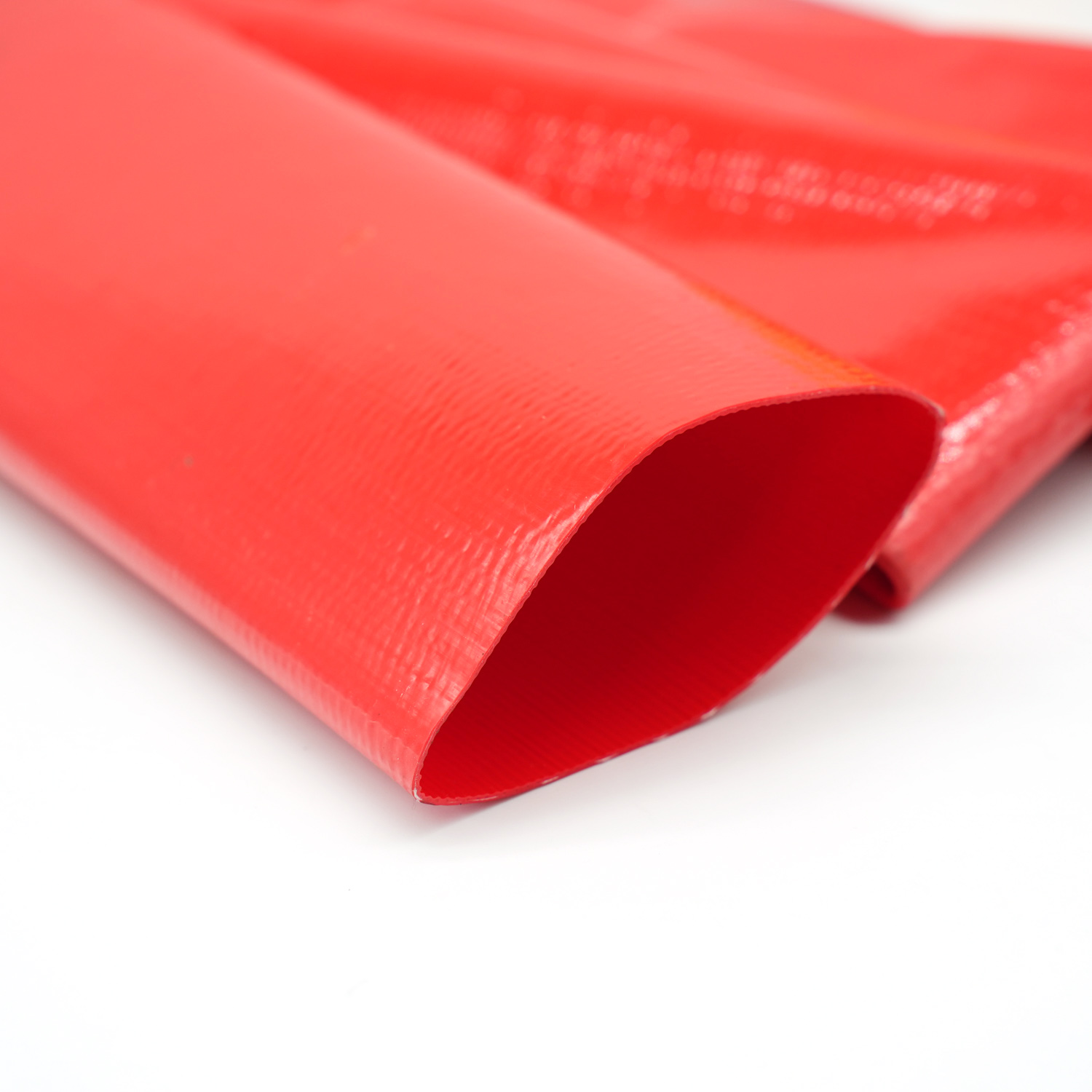

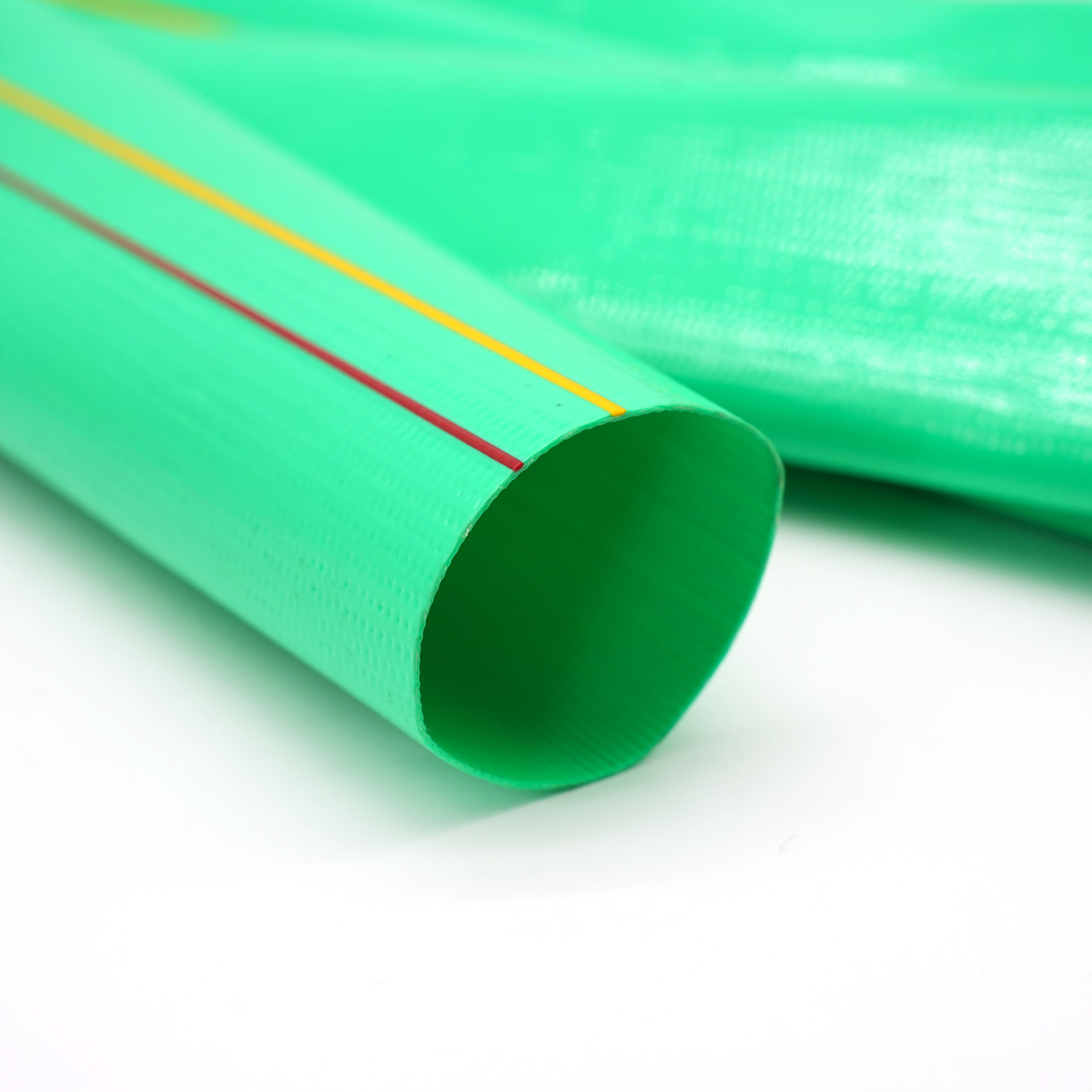

Tube and Cover: PVC
Reinforcement: high tensile polyester braiding
Working Temperature: -10°C to +60°C
Burst pressure: 3 times working pressure
Aluminum shank connectors
Malleable fittings
Gator Lock shank connectors
Quick-connect fittings
Standard hose clamps
Crimp-on connectors
Easy to roll flat after use
Lower storage space requirement than many round-profile hoses
Easier loading, unloading, and transport for long-length hose supply
Practical for field crews, pump systems, irrigation layouts, and temporary installations
Standard roll packaging
Cut lengths available
Assemblies available
Color options available
Common supply format suitable for warehouse storage and shipment planning
This module is worth keeping because layflat hose is often selected as much for handling efficiency and supply practicality as for pressure rating alone.
Broad size range from 3/4" to 12" supports multiple water transfer requirements
Light duty and standard duty options improve application matching
PVC and polyester construction balances weight, flexibility, and cost efficiency
Multiple connection options support easier integration into existing systems
Clear specification tables help reduce sizing and pressure-selection errors
Cut lengths and assemblies support faster deployment planning
Color options and supply flexibility are useful for product differentiation and jobsite organization
Rollable flat design improves storage and transportation efficiency
This product is not positioned as a specialty chemical hose or high-pressure industrial process hose. Its strength is in efficient water transfer, easy handling, practical pressure capability, and field-friendly deployment. That makes it a strong option for irrigation, drainage, discharge, and temporary transfer systems where usability matters as much as technical data.
It is mainly used for water discharge, agricultural irrigation, pump outlet service, dewatering, backwash, and temporary water transfer applications.
Light duty is intended for lower-pressure general water transfer, while standard duty provides a higher working pressure level for more demanding discharge and irrigation service.
Yes. The current product information states that assemblies and cut lengths are available, and the hose can be connected with aluminum, malleable, Gator Lock, and quick-connect fittings.
Yes. One of the main advantages of layflat hose is that it rolls flat after use, which reduces storage space and improves transport efficiency.
The current page positions it for water, light chemicals, and similar fluids. Final media suitability should still be confirmed against actual operating conditions.
The current page lists a working temperature range of -10°C to +60°C.
