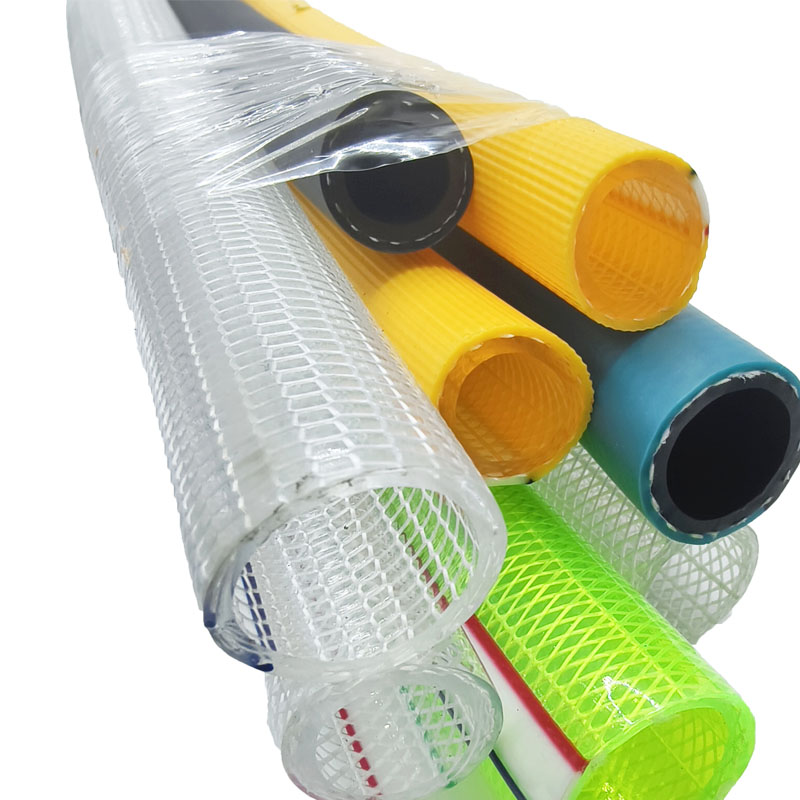

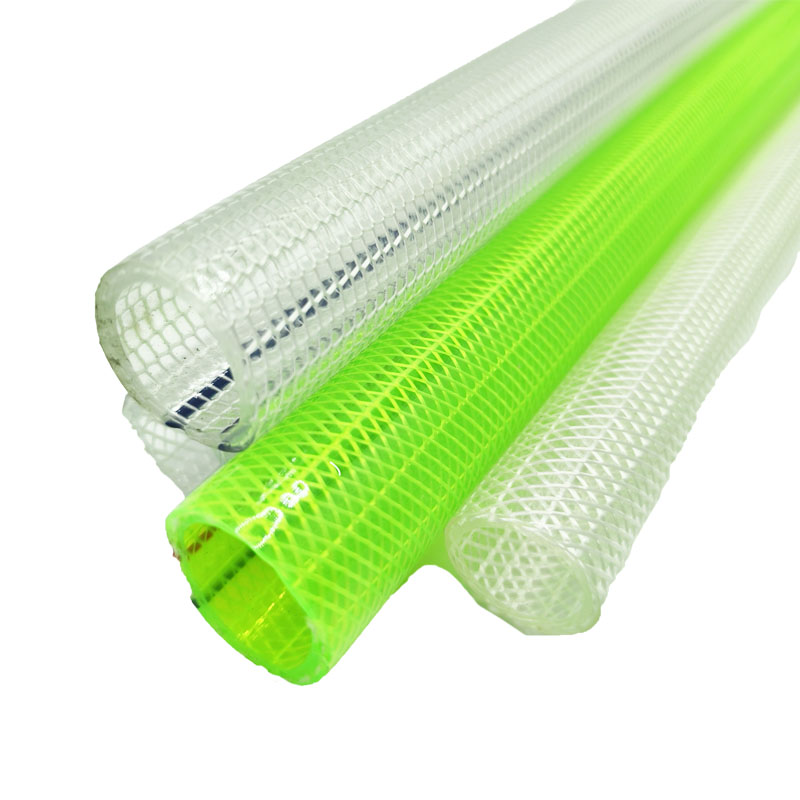

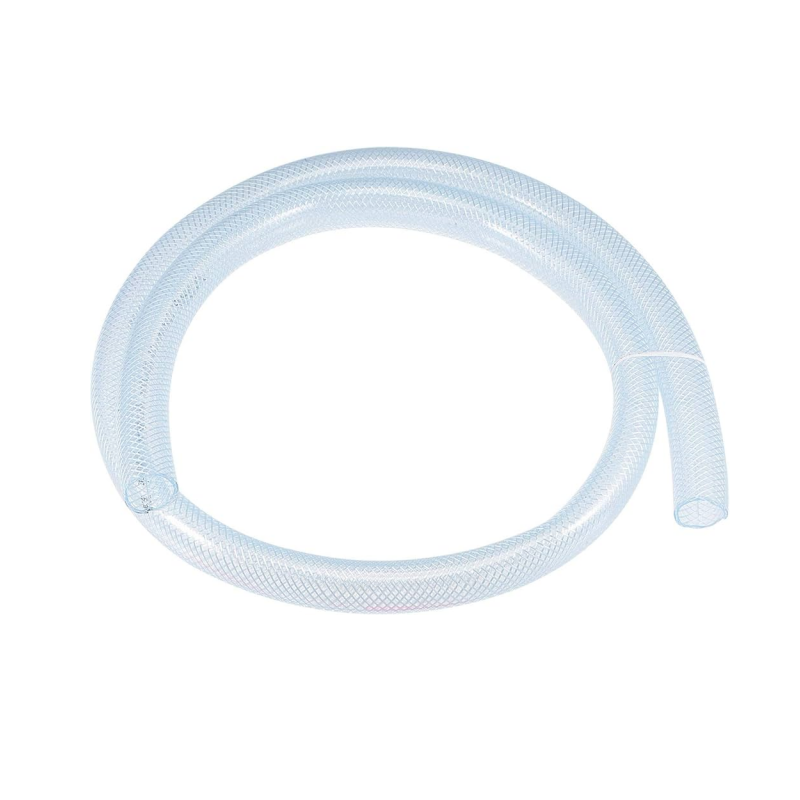

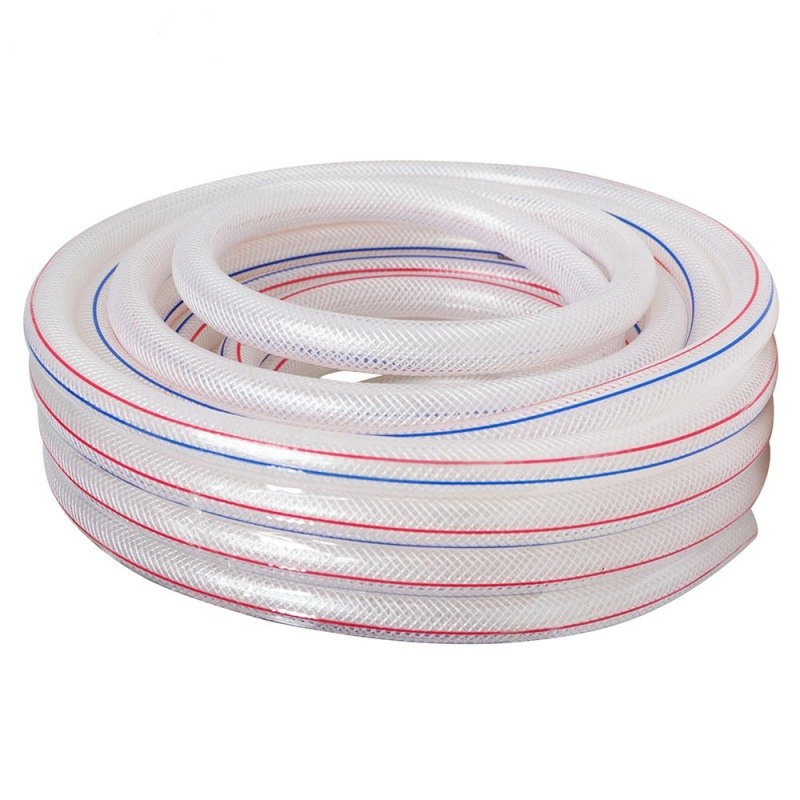

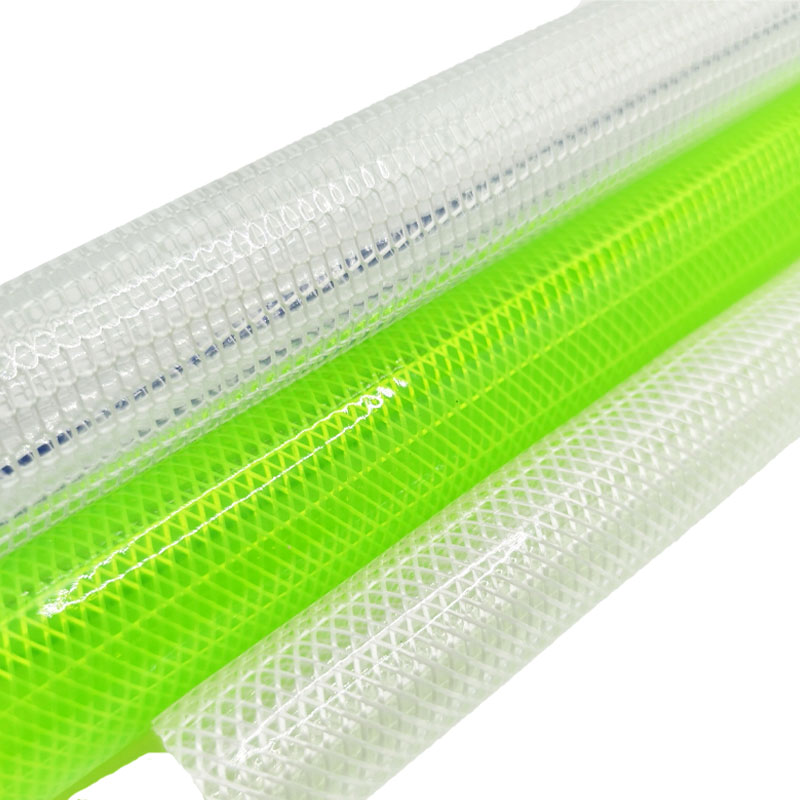

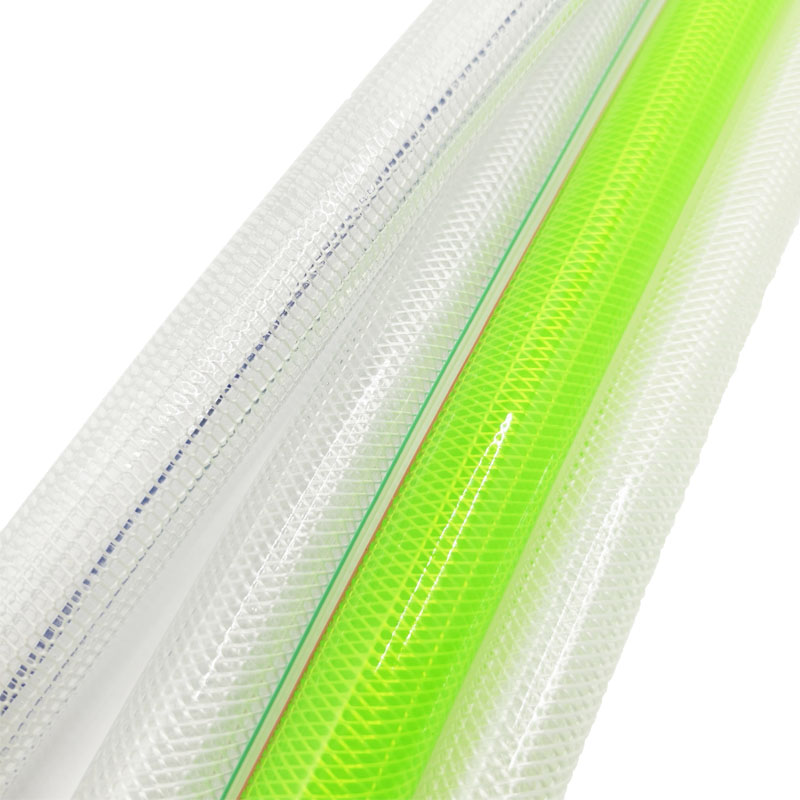

Grandflex The PVC fibre reinforced hose is a high - performance solution engineered for diverse industrial transfer applications. Crafted from high - toughness PVC material and reinforced with strengthened polyester thread, this hose combines the best of both worlds in terms of durability and flexibility.
Due to its comprehensive set of advantageous features, the PVC fibre reinforced hose is an ideal choice for various industrial transfer applications. Whether it is used for transporting fluids, gases, or other materials, this hose can provide reliable and efficient performance, meeting the demanding requirements of modern industries.
Item Code | I.D | O.D | W.P. | B.P. | Length | Weight | Volume | |||
inch | mm | mm | psi | bar | psi | bar | m/roll | kg/roll | m3/roll | |
PFRH-06 | 1/4" | 6 | 10 | 145 | 10 | 435 | 30 | 100 | 6.60 | 0.015 |
PFRH-08 | 5/16" | 8 | 12 | 145 | 10 | 435 | 30 | 100 | 8.30 | 0.019 |
PFRH-09 | 3/8" | 9 | 13 | 131 | 9 | 392 | 27 | 100 | 9.10 | 0.025 |
PFRH-10 | 13/32" | 10 | 14 | 116 | 8 | 348 | 24 | 100 | 9.90 | 0.029 |
PFRH-12 | 1/2" | 12 | 16 | 102 | 7 | 305 | 21 | 100 | 11.60 | 0.038 |
PFRH-13 | 1/2" | 13 | 17 | 87 | 6 | 261 | 18 | 100 | 16.10 | 0.045 |
PFRH-14 | 35/64" | 14 | 19 | 102 | 7 | 305 | 21 | 100 | 17.10 | 0.052 |
PFRH-15 | 5/8" | 15 | 19 | 87 | 6 | 261 | 18 | 50 | 7.05 | 0.030 |
PFRH-16 | 5/8" | 16 | 20 | 73 | 5 | 218 | 15 | 50 | 7.45 | 0.030 |
PFRH-18 | 45/64" | 18 | 24 | 87 | 6 | 261 | 18 | 50 | 13.05 | 0.035 |
PFRH-19 | 3/4" | 19 | 23 | 58 | 4 | 174 | 12 | 50 | 8.70 | 0.043 |
PFRH-20 | 25/32" | 20 | 25 | 87 | 6 | 261 | 18 | 50 | 11.65 | 0.046 |
PFRH-22 | 7/8" | 22 | 27 | 73 | 5 | 218 | 15 | 50 | 12.70 | 0.056 |
PFRH-25 | 1" | 25 | 30 | 58 | 4 | 174 | 12 | 50 | 14.25 | 0.068 |
PFRH-32 | 1-1/4" | 32 | 39 | 58 | 4 | 174 | 12 | 40 | 20.60 | 0.119 |
PFRH-38 | 1-1/2" | 38 | 45 | 58 | 4 | 174 | 12 | 40 | 24.08 | 0.151 |
PFRH-45 | 1-3/4" | 45 | 55 | 58 | 4 | 174 | 12 | 40 | 41.44 | 0.217 |
PFRH-50 | 2" | 50 | 58 | 44 | 3 | 131 | 9 | 40 | 35.80 | 0.198 |
PFRH-64 | 2-1/2" | 64 | 78 | 58 | 4 | 174 | 12 | 40 | 82.40 | 0.304 |
PFRH-75 | 3" | 75 | 90 | 58 | 4 | 174 | 12 | 40 | 102.60 | 0.350 |
