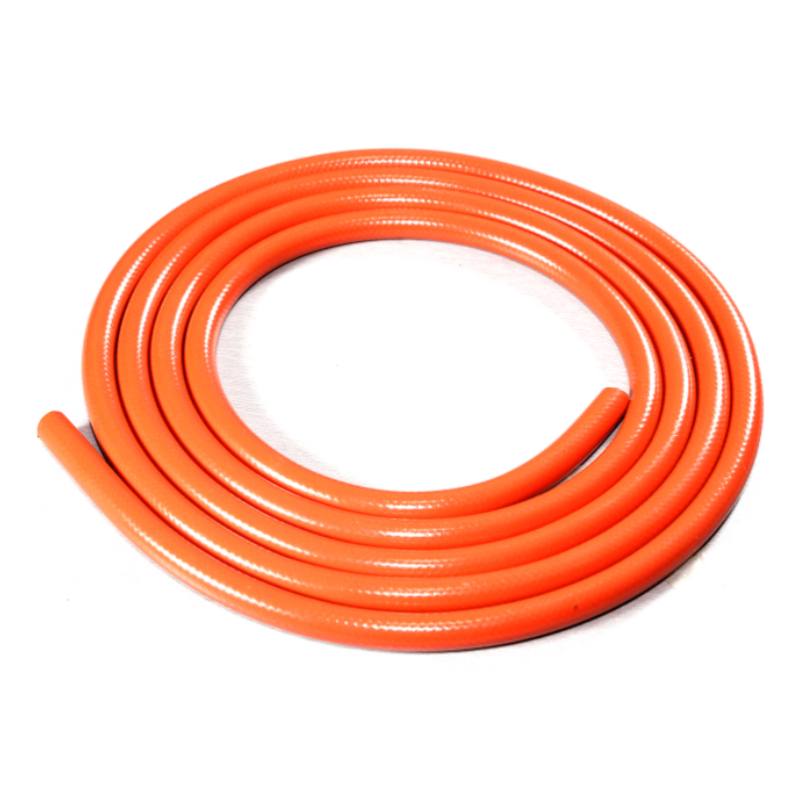

LPG Hose

Tube: Black, smooth, nitrile synthetic rubber
Reinforcement: High strength synthetic yarn braiding
Cover: Orange/red/black, smooth, synthetic rubber NBR or chloroprene CR
Application:For commercial and family gas cooker oven, the connection of gas system of industrial device. Transport media:LPG,CNG,CH4 etc.
Temperature:-32℃ (-90 ℉ ) to 80℃(+176 ℉)
Characteristics:
● Anti abrasion smooth cover
● Weather and ozone resistant cover
● Flexible,light weight,less distortion
● Certification: ISO3821,EN559

Availability:

Quantity:



Inquire Add to Basket

Product Description

Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Nominal Weight	Bending Radius	Length
inch	mm	mm	bar	psi	bar	psi	kg/m	mm	m
1/4	6	13	20	300	60	900	0.15	60	50 / 100
5/16	8	15	20	300	60	900	0.21	65	50 / 100
3/8	10	18	20	300	60	900	0.27	80	50 / 100

Product Details

48371EA23EC2B7F11456E21D8707BC1A 3068C9E22CF41468C5CD7567A40BA863

C22984EEA02AB0C3A9C81D053E42FA7E 67C83226DA5739FA605CFF2009D3D58D

Orange Color LPG Hose Gas Hose Gas Welding Hose 20 Bar LPG Hose

LPG Hose
