Selecting the right hydraulic hose is very important for your equipment’s safety and how long it lasts. When you pick a hose that fits your job, you help stop leaks. You also lower downtime and keep your hydraulic system safe. Many people make mistakes when picking a hydraulic hose, such as:
Picking hoses with the wrong pressure rating, temperature range, or material
Not connecting hose parts the right way, which causes leaks
Not thinking about abrasion risks or using hoses that are the wrong size
You can stop these problems by getting good training and doing regular maintenance. Trusted brands like Grantseed Rubber have hydraulic hose choices made for tough industrial work. This helps you feel sure about every job.
Always use a hydraulic hose that fits your equipment’s pressure, temperature, and fluid type. Use the STAMPED guideline to help you. This keeps things safe and makes the hose last longer.
Pick the right hose size by looking at the inner diameter, outer diameter, and length. This helps stop leaks, pressure loss, and damage to your equipment.
Choose hose materials that work best for your job. Rubber is flexible and not expensive. Thermoplastic is strong and can handle sunlight. PTFE works well with high heat and strong chemicals.
Use the right fittings that fit your hose size and type. This helps stop leaks and system problems. Always follow what the manufacturer says and use industry rules.
Check and take care of your hoses often. This helps you find damage early and stop leaks. It also helps your equipment last longer and have less downtime.
To pick the right hydraulic hose, you need to know your equipment. You also need to know what job the hose will do. There are many things to check so your hose is safe and lasts long. The STAMPED guideline helps you remember what to look for before you choose.
Every job is different. You must know how your equipment works. You also need to know what it needs from a hydraulic hose. For example, a hose on a construction excavator faces dirt and rocks. It also deals with high pressure. A hose on a farm tractor must handle chemicals and sunlight. Here are some questions to ask:
What kind of equipment will use the hose?
Will the hose rub on rough things or bend a lot?
Does the job need a small hose or a very bendy one?
How much room is there to put in the hose?
Will the hose be out in the weather, near chemicals, or shake a lot?
Tip: Always pick a hose that fits your job. This stops the hose from wearing out too soon. It also keeps your equipment working well.
STAMPED stands for Size, Temperature, Application, Material, Pressure, Ends, and Delivery. It helps you check every detail. You should look at hose size, length, and what the hose will do. This helps you avoid mistakes and get the best hose.
| STAMPED Factor | What to Check | Why It Matters |
|---|---|---|
| Size | Inside width, hose length | Makes sure flow and fit are right |
| Temperature | Fluid and air temperature | Stops hose from getting hurt by heat or cold |
| Application | Equipment type, where used | Matches hose to the job |
| Material | If fluid works with hose | Stops hose from breaking |
| Pressure | Working and burst pressure | Keeps hose safe when used |
| Ends | Fitting type and match | Stops leaks |
| Delivery | Check and ready to use | Makes sure hose is ready |
Grantseed Rubber has hydraulic hoses for many jobs. Their hoses work for building, farming, factories, and more.
You must always check if the fluid works with the hose. The inside, outside, and fittings must all work with the fluid you use. If you pick the wrong hose, the fluid can hurt it from inside. This can cause leaks, swelling, or even make the hose break.
Fluids that do not match can make the hose break inside.
Some fluids, like phosphate ester, can eat some hose parts.
Using hoses and fittings from different brands can cause problems.
Note: Always check the fluid type and make sure your hose fits it. This step helps you save money and keeps your system safe.
Grantseed Rubber’s hydraulic hoses come in many materials. They can handle oils, chemicals, and other fluids. This makes it easy to find a hose for your job.

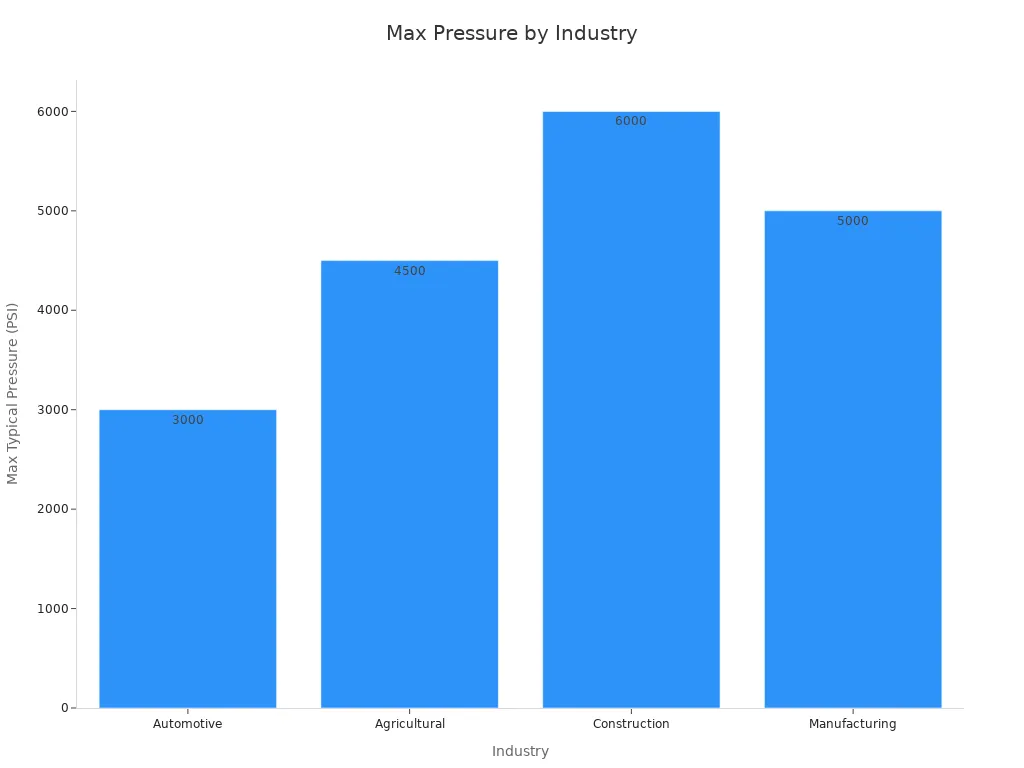

Pressure rating is very important when picking a hydraulic hose. You must know your system’s working pressure. Pick a hose that can handle more than that. Also, check the minimum burst pressure. This makes sure the hose can take sudden high pressure.
Working pressure: The highest pressure your system uses most times.
Minimum burst pressure: The pressure where the hose breaks. Pick a hose with a burst pressure four times higher than working pressure.
Pressure surges: Some systems have short times of high pressure. Your hose must handle these without breaking.
Temperature range is also important. Hydraulic hoses must work in hot and cold. If the hose gets too hot, it can get soft and lose shape. If it gets too cold, it can get stiff and crack. Both can cause leaks or hose breaks.
| Hose Type | Temperature Range (°C) | Max Working Pressure (psi) |
|---|---|---|
| SAE 100R14 PTFE | -54 to +204 | 812 to 1523 |
| SAE 100R8 Thermoplastic | -40 to +93 | 2120 to 5600 |
| SAE 100R9 Four Spiral Steel | -40 to +100 | 3050 to 7360 |
| SAE 100R1 Steel Wire Reinforced | -40 to +100 | 1810 to 2755 |
Alert: If you go over the pressure or temperature limit, the hose can crack, leak, or burst. Always use the STAMPED guideline and check your system’s needs.
Grantseed Rubber’s hydraulic hoses can handle many pressures and temperatures. Their hoses meet world standards, so you can trust them for any job.
Choosing the right hose sizing is one of the most important steps in building a safe and efficient hydraulic system. If you get the size wrong, you risk leaks, pressure loss, and even equipment failure. You need to look at three main things: inner diameter, outer diameter, and hose length. Grantseed Rubber offers a wide range of hydraulic hose sizes to fit many types of equipment and applications.
The inner diameter is the space inside the hydraulic hose where fluid flows. Industry standards measure this in inches, often using Dash Sizes. For example, a -12 dash means a 3/4 inch I.D. You must match the hose size to your system’s flow rate. If the I.D. is too small, fluid moves too fast, causing friction, heat, and pressure drops. This can damage your system and lower efficiency. If the I.D. is too large, the system may respond slowly and cost more to install. Always check pump data and use charts or nomographs to pick the right hose sizing for your needs.
Hose sizing uses Dash Numbers (each dash equals 1/16 inch).
Correct I.D. keeps fluid velocity safe and prevents leaks.
Standards like SAE, EN, DIN, and ISO help you choose the right size.
Tip: Measure the original hose or check the printing on the hose to find the correct I.D.
The outer diameter is the total width of the hydraulic hose, including its cover and reinforcement. You need to know the O.D. when space is tight. If the O.D. is too big, the hose may not fit or bend properly. Most systems need a minimum bend radius, which is usually 6 to 12 times the O.D. Compact hoses with smaller O.D. can help you fit hoses in small spaces. Thermoplastic hoses often have a smaller O.D. and more flexibility, making them a good choice for tight spots.
Always measure the space where you plan to install the hose.
Larger O.D. may need changes to your setup.
Understanding hose length is key to a safe and easy installation. If the hose length is too short, it can kink, pull on connectors, or even leak. If the hose length is too long, it can sag, lose pressure, and make routing harder. Always measure straight runs with a tape, add extra for bends, and include the length of fittings. Allow some slack for movement, vibration, and temperature changes. Work with engineers and use manufacturer specs to get the best hose sizing for your system.
Measure straight runs and bends carefully.
Add slack for movement and thermal changes.
Include fitting lengths in your total hose length.
Avoid twisting or sharp bends to prevent damage.
Alert: Incorrect hose sizing can reduce system efficiency by up to 45%. Always double-check your measurements before ordering.
Grantseed Rubber provides hydraulic hoses in many sizes and lengths, so you can find the perfect fit for your equipment.
Picking the right hose material is very important. Each material has its own strengths. Some work better in certain places. You must match the hose to your fluid, temperature, and pressure. This keeps your equipment safe and working well.
| Property | Rubber Hose | Thermoplastic Hose | PTFE Hose |
|---|---|---|---|
| Flexibility | Very flexible, easy to bend | Flexible and strong | Less flexible, larger bend radius |
| Temperature Range | -40°C to +150°C | Up to 275°F (135°C) | Up to 450°F (232°C) |
| Chemical Resistance | Good for oils and water | Good for many chemicals | Excellent, handles acids and solvents |
| Abrasion Resistance | Good | Better than rubber, great for rough use | Needs extra protection for abrasion |
| Pressure Handling | Good for moderate pressure | Handles high pressure | Excellent for high pressure |
| Cost | Most affordable | Moderate | Most expensive |
Rubber hoses are used in most hydraulic systems. They are very flexible and easy to put in. These hoses work with oils, water, and many chemicals. They help make your system quieter by absorbing noise. You can use long rubber hoses, so there are fewer leaks. Rubber hoses cost less than other types. But they do not handle as much pressure or heat. You should check them often for cracks or swelling. Replace them if you see damage.
Tip: Pick rubber hoses for normal jobs when you want flexibility and a good price.
Thermoplastic hoses are tougher against rough surfaces than rubber. They are great for places with lots of movement. These hoses do not get hurt by sunlight, so you can use them outside. They are light and easy to move. You see them in farms, food factories, and chemical plants. They are safe near electrical machines because they do not carry electricity. Always make sure the fluid in your system matches the hose’s chemical resistance.
Use thermoplastic hoses if you need strength, UV resistance, and flexibility.
These hoses work with high pressure and fit in small spaces.
PTFE hoses are best for strong chemicals and high heat. You can use them with acids, solvents, and in hot places. PTFE hoses have a smooth inside, so fluid moves easily. This helps the hose last longer. They do not get old fast and need less fixing. PTFE hoses are not as flexible, so you need more space to bend them. You often see them in chemical plants, food factories, and hot systems.
Note: Always check the fluid and temperature before using PTFE hoses. They are best when you need top safety and performance.
When picking hydraulic hose materials, always match the hose to your fluid and job. This helps your system last longer and keeps everyone safe.
Choosing the right fittings and following industry standards helps you build a safe and reliable hydraulic system. When you select the right hoses and fittings, you prevent leaks, system failures, and costly downtime. Let’s look at what you need to know.
Hydraulic hose fittings come in several types. Each type has its own way of sealing and connecting. Here is a table to help you understand the most common fitting types:
| Fitting Type | Description | Sealing Mechanism | Advantages | Disadvantages |
|---|---|---|---|---|
| O-Ring Face Seal (ORFS) | O-ring at flat face; seal forms when O-ring contacts female face. | O-ring seal at flat face | Great for high pressure, leak-free, secure | Less prone to over/under-tightening |
| Mated Angle | Thread with angled flare; threads push flares together for seal. | Flared surfaces seat together | Reliable seal, no thread seal | — |
| Tapered Threads | Male and female threads taper and deform to seal under pressure. | Thread deformation and pressure | Common, easy to find | Can leak over time, needs tape, not for all systems |
You should always match the fitting type to your system’s needs.
You must make sure your fittings match your hose and system. If you use the wrong size or type, you can get leaks or even system failure. Here are some best practices:
Choose hoses and fittings that match in size, pressure rating, and fluid type.
Inspect hoses and fittings for cracks, blisters, or worn seals before use.
Use the right tools to measure fitting size and thread pitch.
Follow the manufacturer’s instructions for installation and torque.
Keep fittings clean and use caps when not in use.
Tip: Always check fitting charts and technical drawings to confirm you have the right parts.
Leaks can cause big problems in hydraulic systems. You can prevent leaks by following these steps:
Shut down the system and relieve pressure before working.
Check for damage and replace any worn or broken parts.
Use high-quality, compatible hoses and fittings.
Install fittings using the correct torque and avoid over-tightening.
Test the system for leaks before starting work again.
Bleed the system to remove trapped air.
Alert: Never ignore small leaks. Fix them right away to keep your system safe.
Industry standards help you choose the right hoses and fittings for your equipment. The most common standards include SAE, ISO, DIN, and EN. These standards set rules for pressure ratings, construction, and testing. For example:
SAE J517 and SAE 100R series classify hoses by pressure and construction.
ISO 18752 uses performance classes for pressure and durability.
EN and DIN standards are common in Europe and focus on high quality and precision.
If you do not follow these standards, you risk leaks, system failures, and even workplace accidents. Always check that your hoses and fittings meet the right standards for your job. Grantseed Rubber hoses comply with major international standards and offer a wide range of fittings to help you meet your needs.
Note: Following standards keeps your system safe, efficient, and legal.
Picking the right hydraulic hose helps your equipment stay safe. First, look at what your system needs. Then choose the right size and material for the hose. Make sure the hose works with your fluid and pressure. Use the correct fittings and follow the rules for hoses. Brands like Grantseed Rubber and expert help can stop mistakes and save time.
If you care about safety and doing things well, you spend less money. You also stop leaks and make your equipment last longer. Always check, put in, and take care of your hoses to get the best results.
You need to match the hose to your system’s pressure, temperature, and fluid type. Always check the STAMPED guideline. This helps you pick a hose that keeps your equipment safe and working well.
You should inspect hoses every three months. Replace them if you see cracks, leaks, or swelling. Most hoses last one to five years, but harsh jobs may shorten their life.
No, you must use fittings that match your hose’s size, type, and pressure rating. Using the wrong fitting can cause leaks or hose failure. Always check the manufacturer’s guide.
Check the inner diameter, outer diameter, and length. Use charts or the old hose as a guide. The right size keeps fluid moving safely and prevents leaks.
Common reasons include using the wrong hose, high pressure, extreme temperatures, or poor installation. Regular checks and using quality hoses, like those from Grantseed Rubber, help prevent failures.
