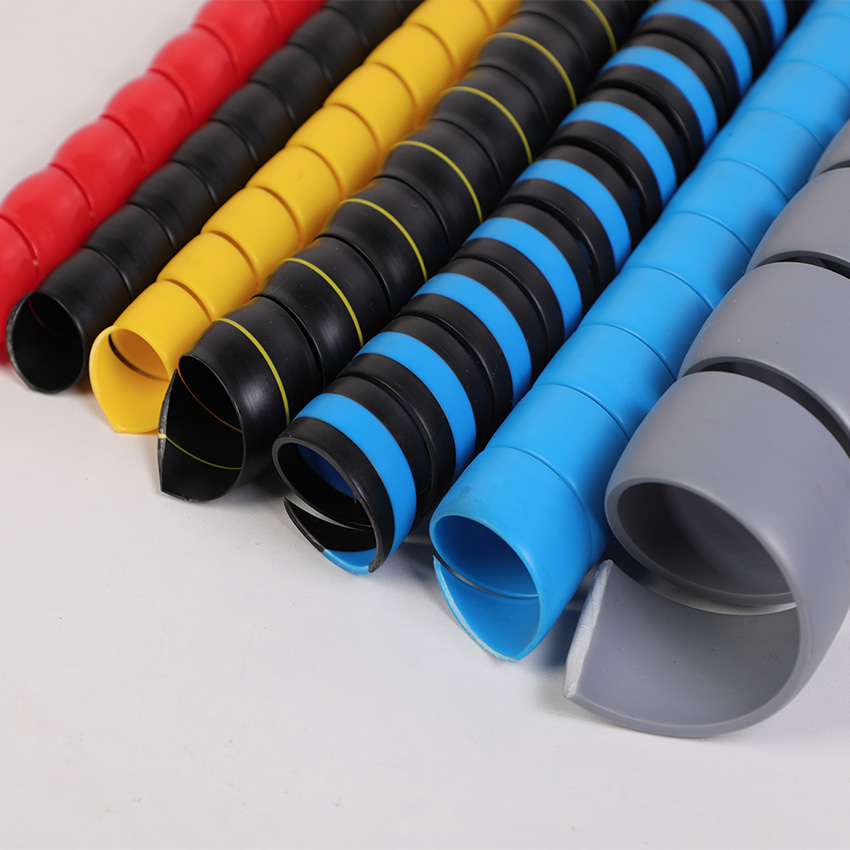

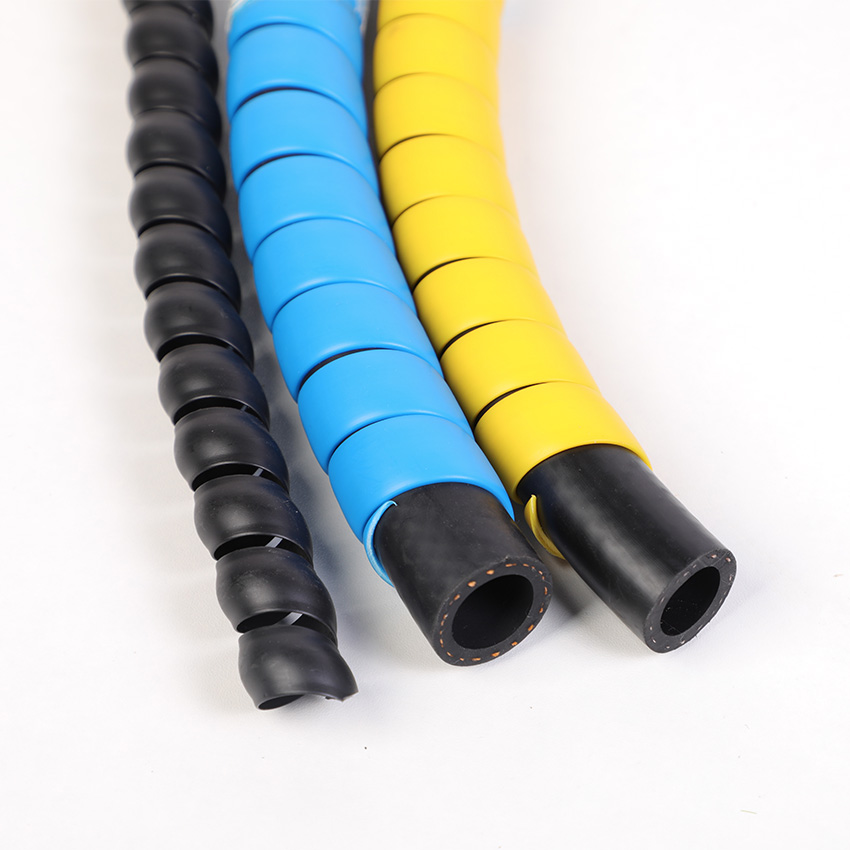

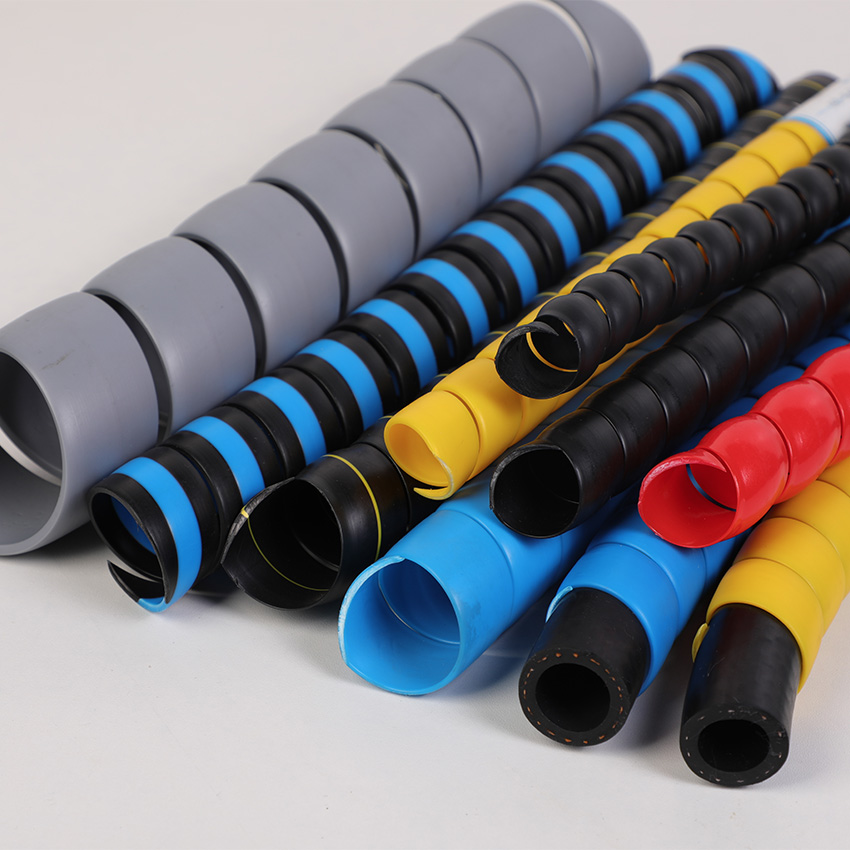

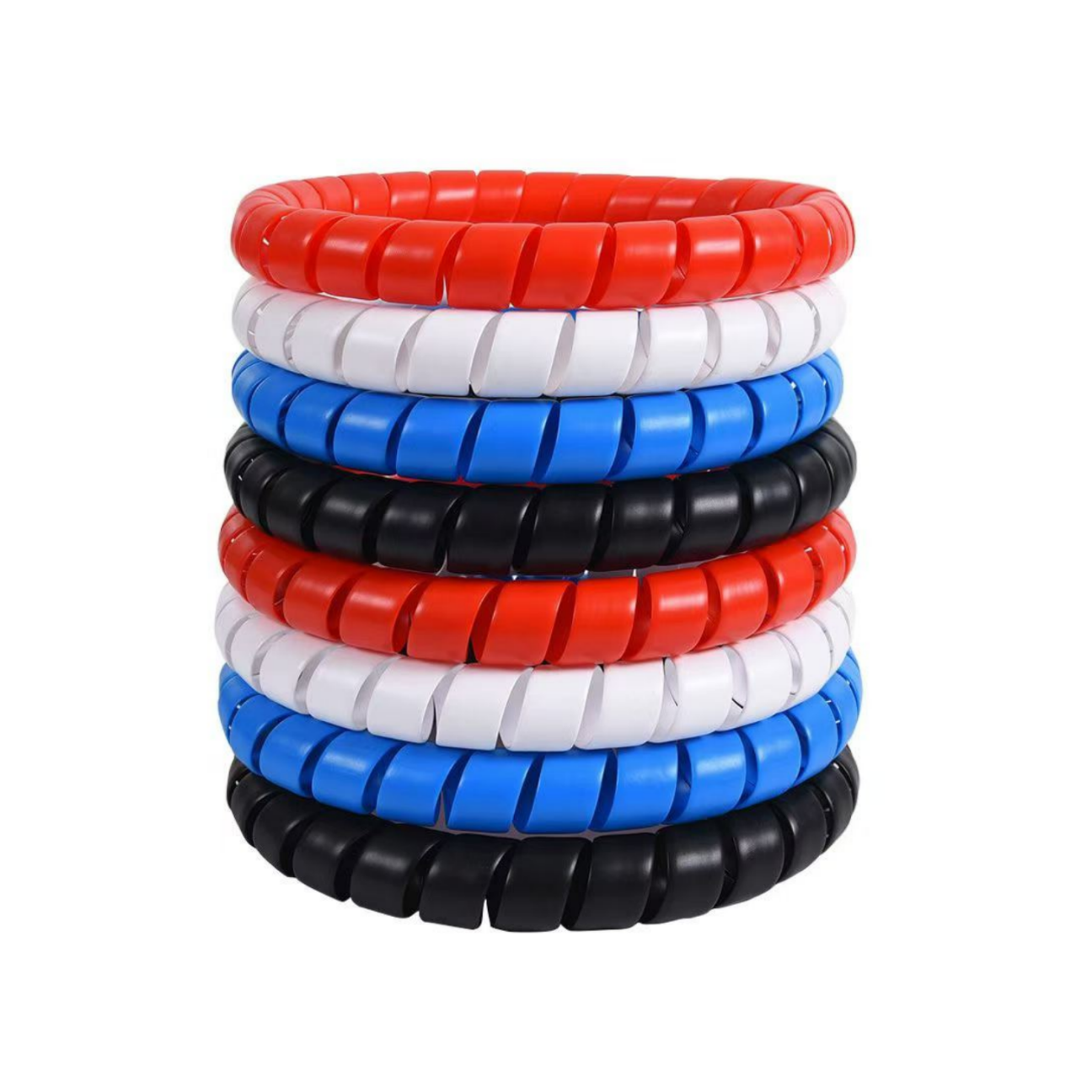

Manufactured from extruded high density polyethylene (HDPE), Spiral Guard Wrap will withstand the extremes of climate and operating conditions. The HDPE extrusion process provides a product with round edges which make for easy installation which will not damage hoses. Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards which can destroy expensive hose and cable assemblies and cause output to suffer due to downtime. Larger sizes are used for both protection and bundling of multiple hose applications. Spiral Guard Wrap’s open spiral design allows for simple installation in the field, without the need to disconnect lines.
O.D | I.D | Thickness | Standard Length | Carton size | Applied for hose O.D | |
mm | mm | mm | m | ft | cm | mm |
12 | 9 | 1.5 | 61 | 200 | 35*35*30 | 10-13 |
16 | 13 | 1.5 | 61 | 200 | 35*35*30 | 14-17 |
20 | 16 | 2 | 61 | 200 | 45*45*30 | 17-21 |
25 | 20.6 | 2.2 | 61 | 200 | 45*45*30 | 22-27 |
32 | 27 | 2.5 | 61 | 200 | 55*55*36 | 28-35 |
40 | 34.4 | 2.8 | 61 | 200 | 60*60*42 | 36-45 |
50 | 43.6 | 3.2 | 30.5 | 100 | 70*70*35 | 46-56 |
63 | 56 | 3.5 | 30.5 | 100 | 70*70*70 | 57-67 |
75 | 66 | 4.5 | 22.5 | 75 | 70*70*70 | 68-81 |
90 | 81 | 4.5 | 15 | 50 | 70*70*70 | 82-100 |
110 | 100 | 5 | 15 | 50 | 70*70*70 | 101-114 |
125 | 114 | 5.5 | 12 | 40 | 70*70*70 | 115-127 |
140 | 127 | 6.5 | 12 | 40 | 70*70*70 | 127-145 |
