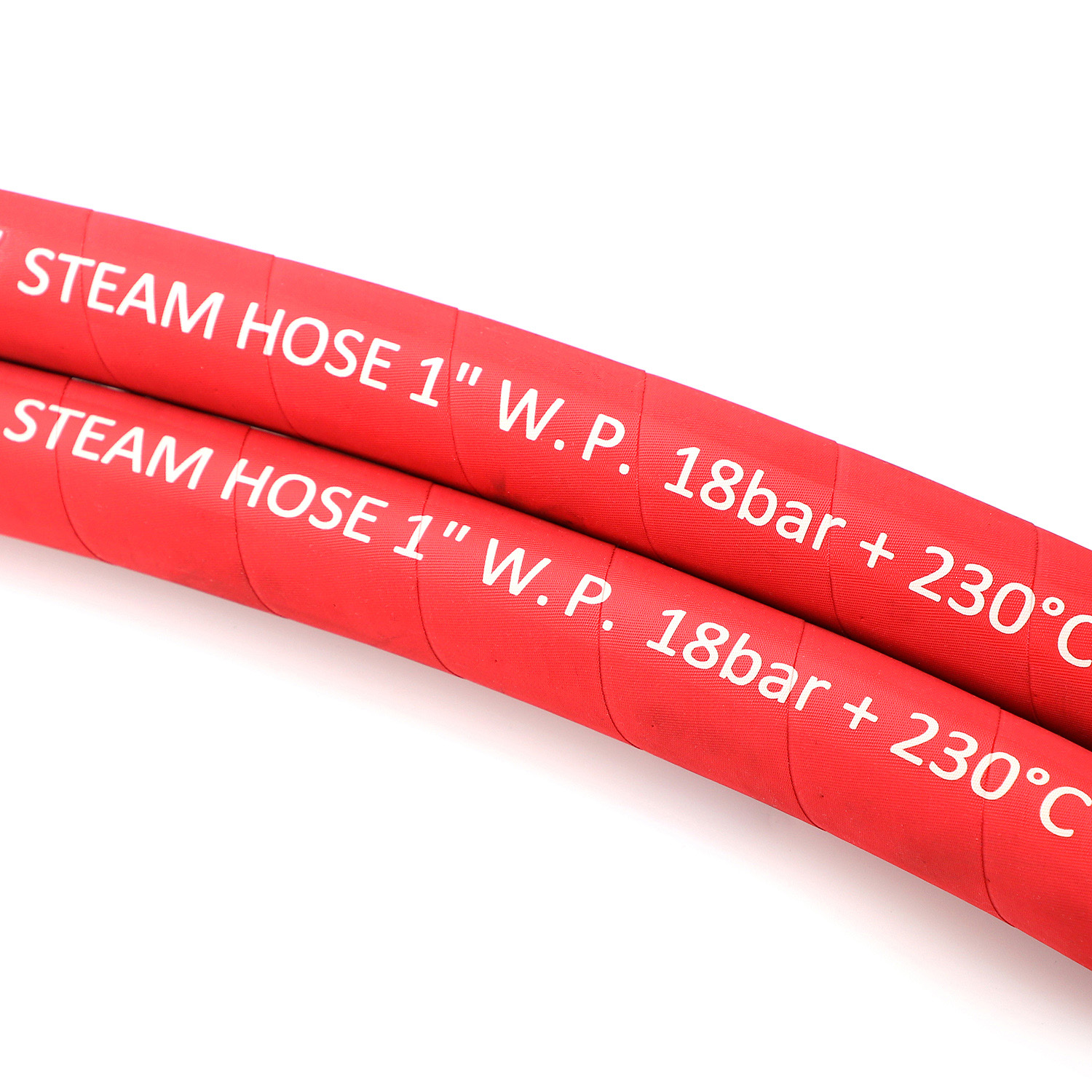

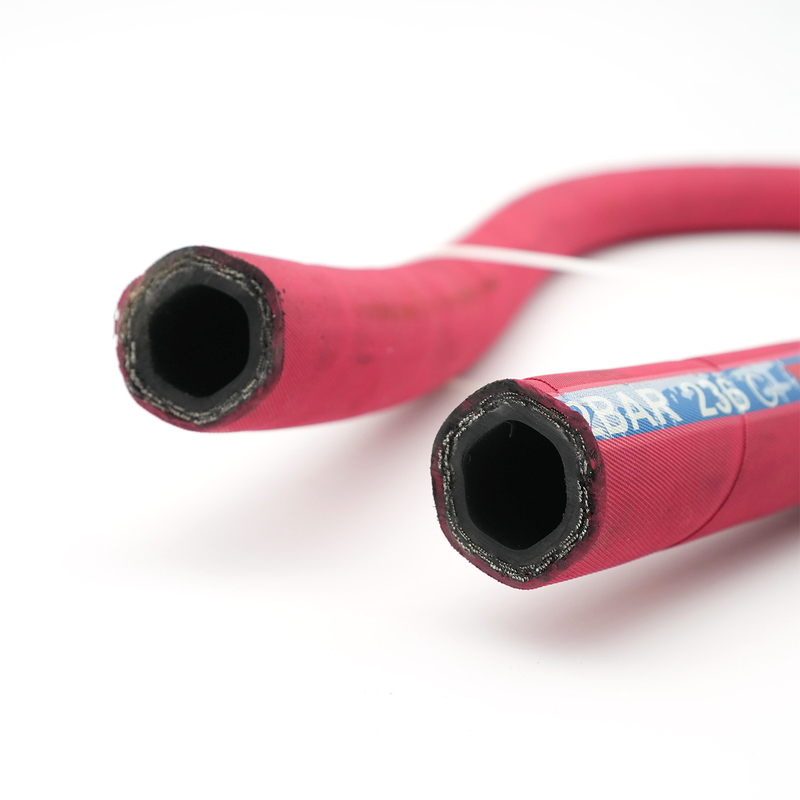

EPDM Steam Hose

Application：Using in petrochemical industry, shipyard,etc. It could resist the super heated steam of maximum 230℃.
Temperature：-40℃ to +210℃(-40℉ to +410℉)
Tube：Black, smooth, Resistance to high temperature EPDM synthetic rubber.

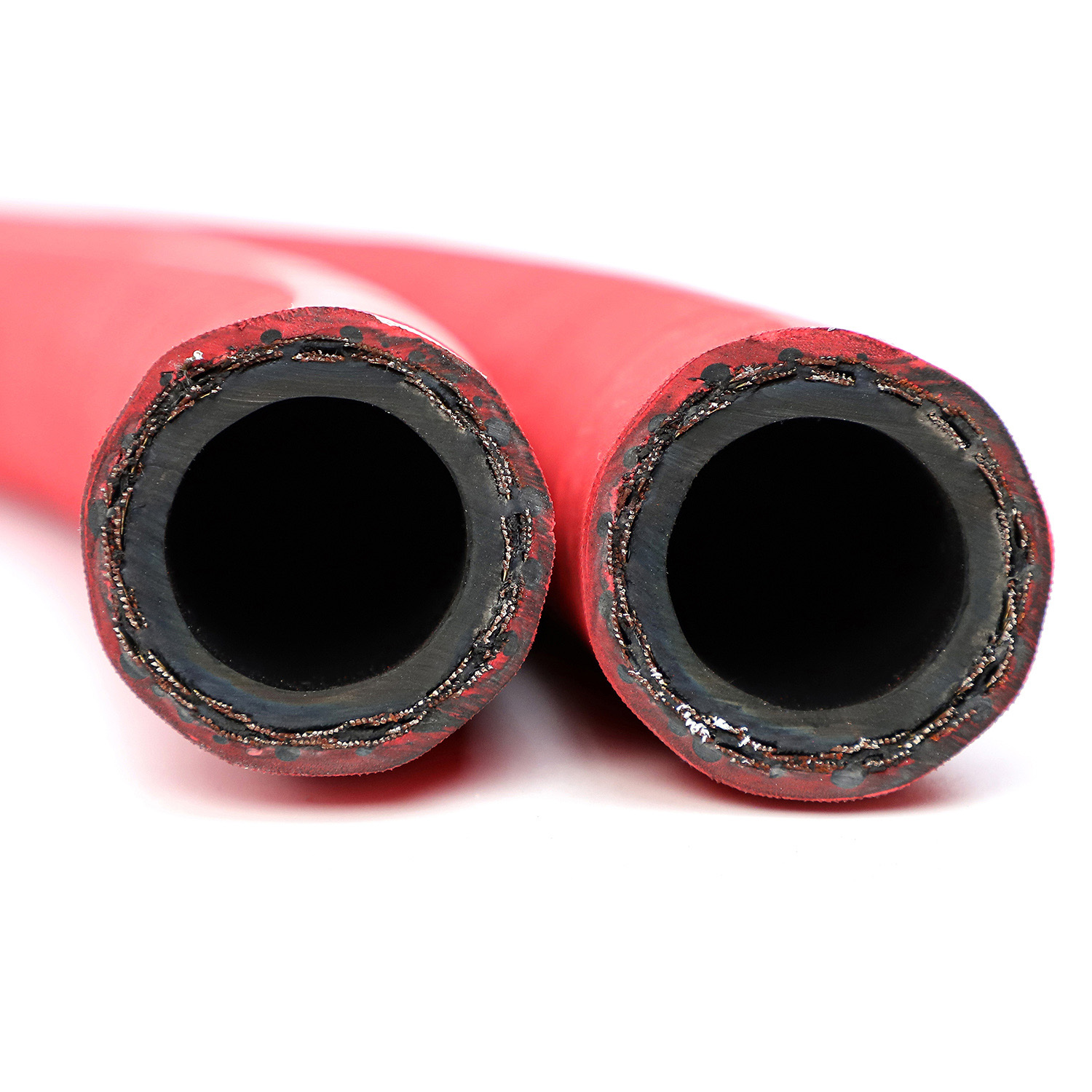

Reinforcement：High strength synthetic cord with 2 layers helix wire
Cover：Black, smooth(wrapped finish)synthetic EPDM rubber. High temperature, oil and weathering resistant.
Optional Request：High strength synthetic helix wire, Black cover, Negative pressure resistance.

Availability:

Quantity:



Inquire Add to Basket

Product Description

I.D		O.D	W.P.		B.P.		R	L
inch	mm	mm	bar	psi	bar	psi	mm	kg/m
3/8"	10	21	17	250	170	2500	50	0.45
1/2"	12	24.9	17	250	170	2500	60	0.53
5/8"	16	29	17	250	170	2500	70	0.6
3/4"	19	33	17	250	170	2500	80	0.68
1"	25	39	17	250	170	2500	110	0.9
11/4"	32	48	17	250	170	2500	150	1.3
11/2"	38	54	17	250	170	2500	180	1.6
2"	51	68	17	250	170	2500	245	2.2
21/2"	64	83	17	250	170	2500	300	3.8
3"	76	90	17	250	170	2500	400	4.6
31/2"	89	110	17	250	170	2500	500	5.2
4"	102	114	17	250	170	2500	600	6.5

Wire Braided Steam Hose EPDM Rubber Steam Hose Red Color Steam Hose Black Color Steam Hose 230 C Steam Hose 175 C Steam Hose
