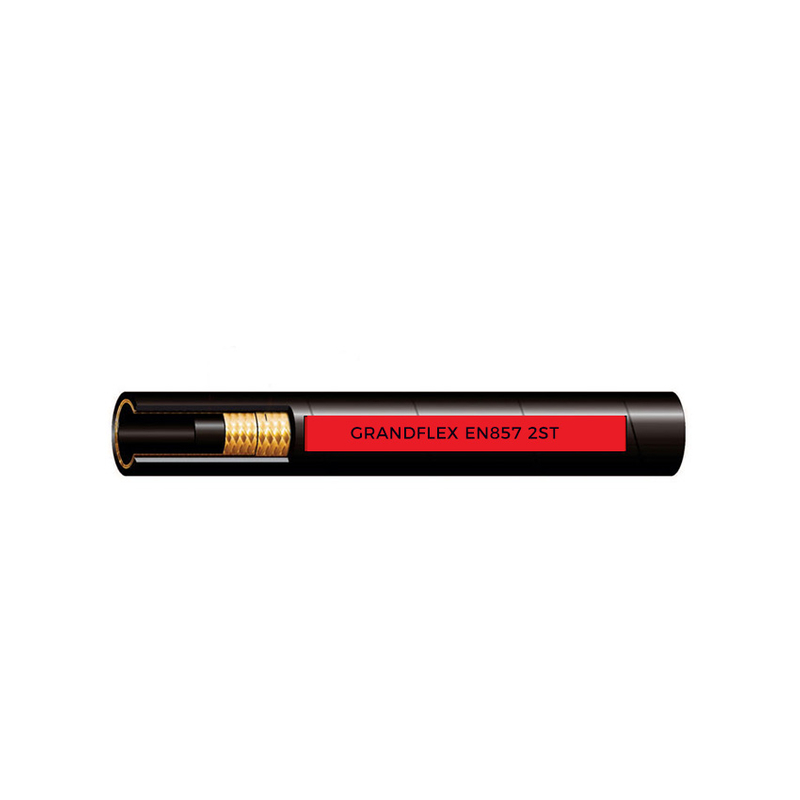

DIN EN857 2ST Hydraulic Hose

Tube: Oil resistant synthetic rubber
Reinforcement: two braids of high tensile steel wire
Cover:Oil and weather resistant resistant synthetic rubber
Temperature:-40°C to +100°C
Application:Be suitable to carry hydraulic fluids,such as glycol,mineral oils,emulsion,hydrocarbons,etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Size		Inside Ø mm			Braid Ø mm			Outside Ø mm	Working Pressure		Burst Pressure		Bend Radius	Length	Weight
Inch	mm	Min		Max	Min	Max		Max	Bar	Psi	Bar	Psi	mm	m	Kg/m
1/4	6.4	6.2	7.0		12.1		12.7	17.5	400	5800	1600	22840	100	50/100	0.42
5/16	7.9	7.7	8.5		13.7		14.3	19.1	360	5250	1400	20000	114	50/100	0.51
3/8	9.5	9.3	10.1		16.1		16.7	21.4	331	4800	1320	18840	127	50/100	0.60
1/2	12.7	12.3	13.5		19.0		19.8	24.6	276	4000	1100	15720	178	50/100	0.74
5/8	15.9	15.5	16.7		22.2		23.0	27.8	250	3630	1000	14280	200	50/100	0.86
3/4	19.0	18.6	19.8		26.2		27.0	31.8	215	3120	850	12280	240	50/100	1.04
1	25.4	25.0	26.4		34.1		34.9	39.7	165	2400	650	9420	300	50	1.42
1 1/4	31.8	31.4	33.0		43.3		44.5	50.8	125	1820	500	7140	419	20/40	2.23
1 1/2	38.1	37.7	39.3		49.6		50.8	57.2	90	1310	360	5140	500	20/40	2.74
2	50.8	50.4	52.0		62.3		63.5	69.8	80	1160	320	4560	630	20/40	3.50
