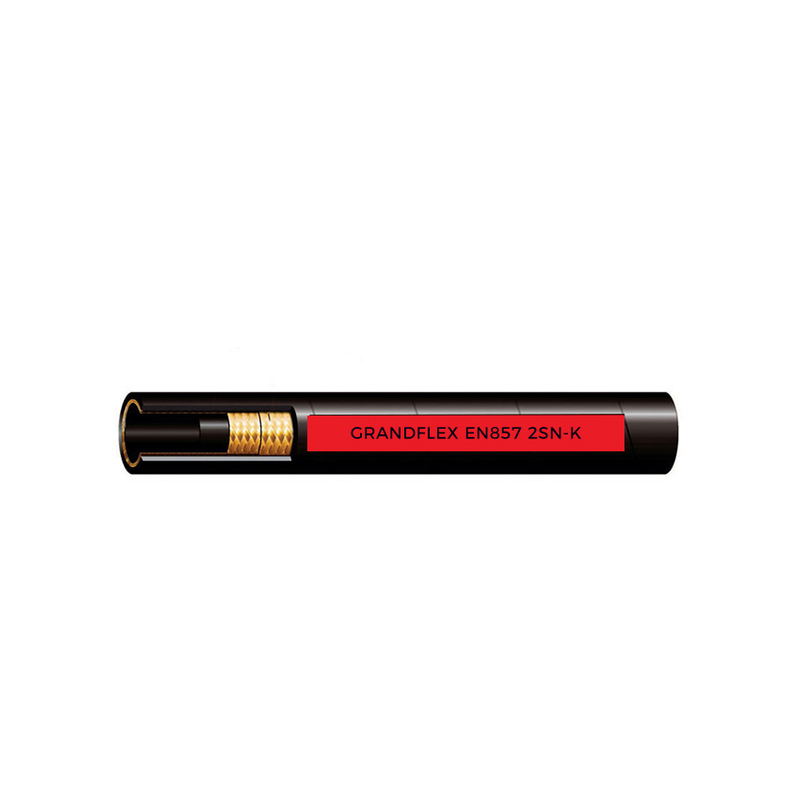

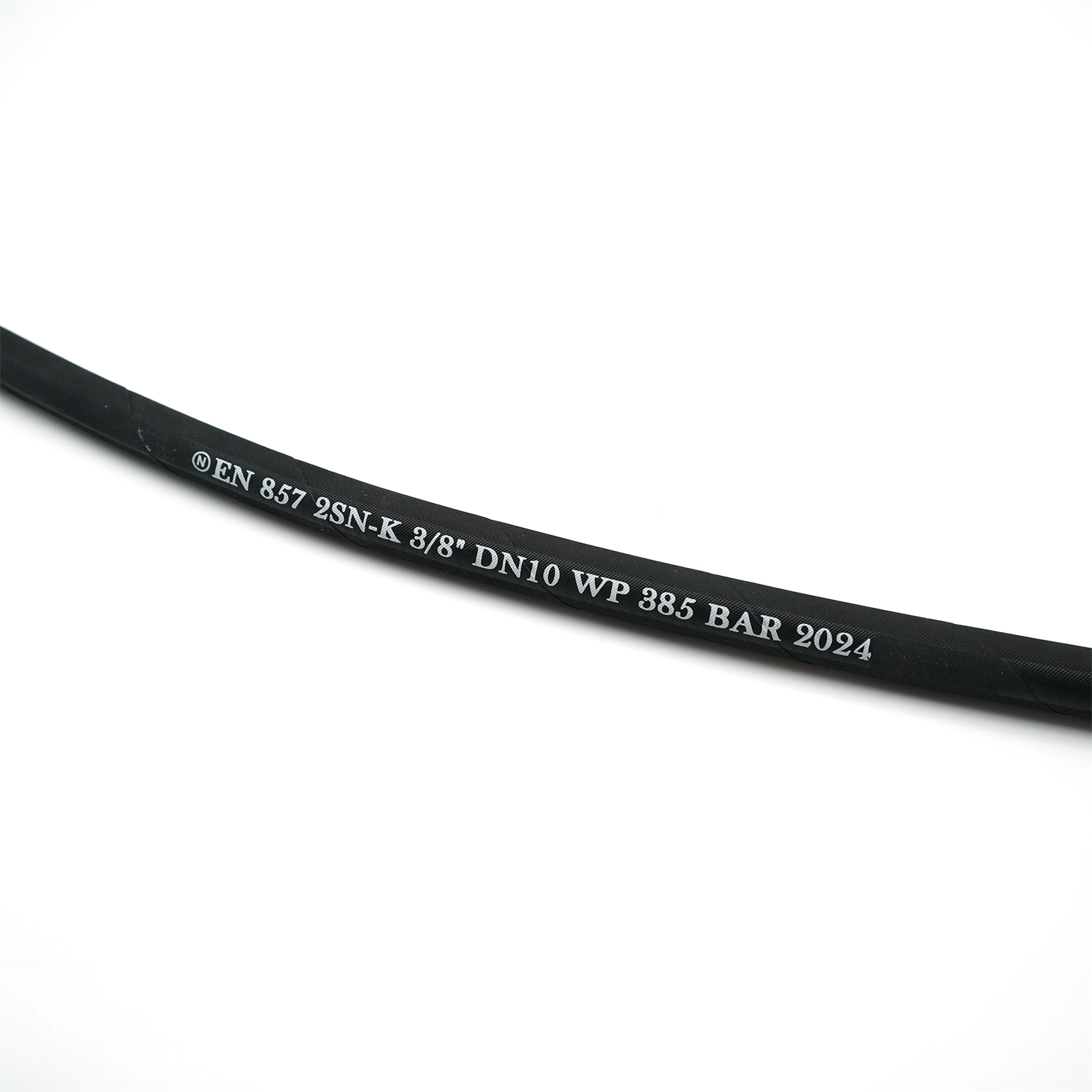

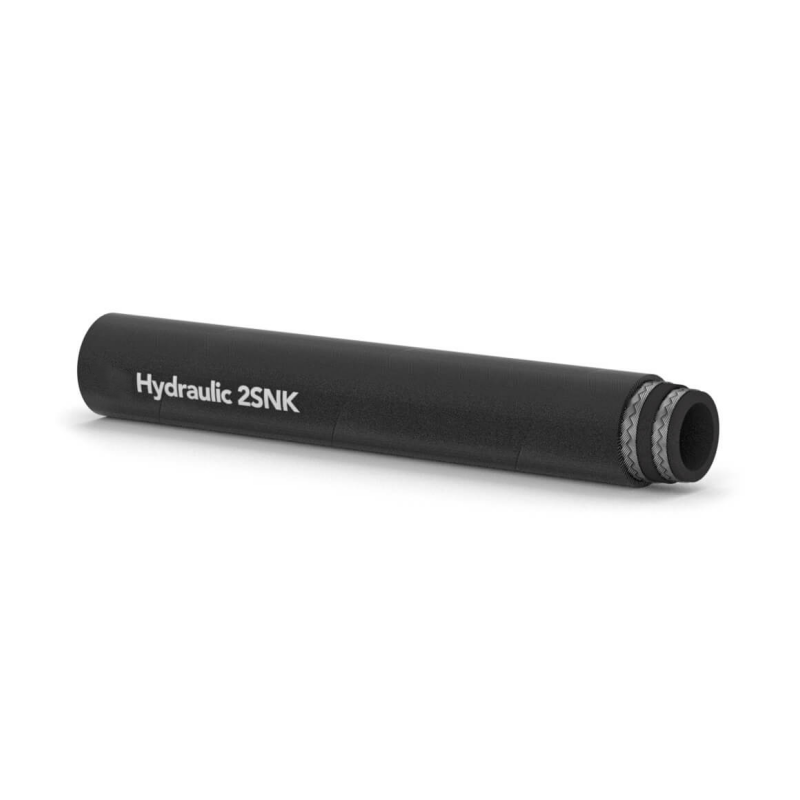

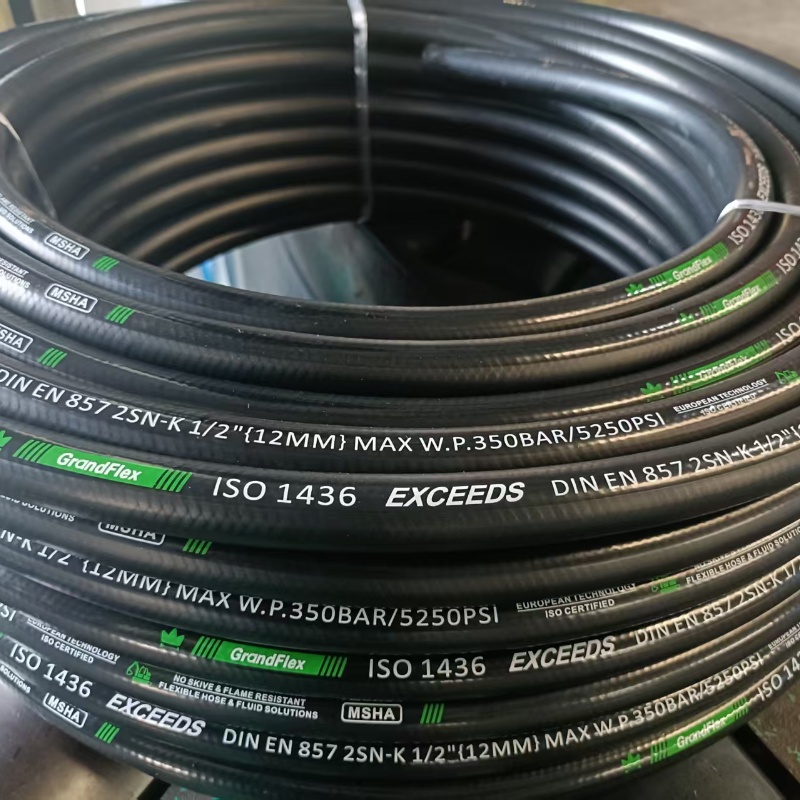

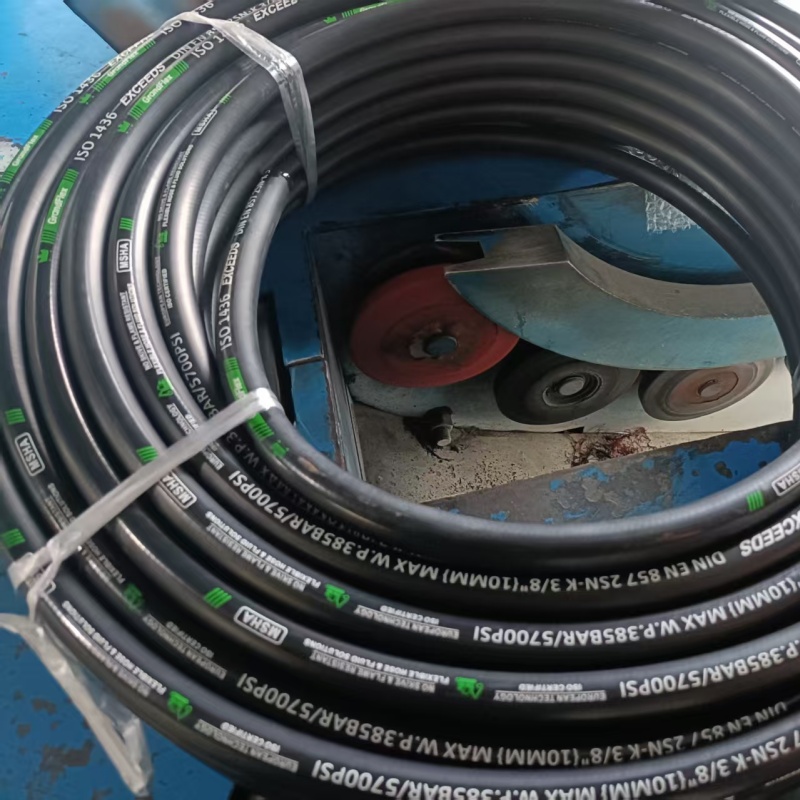

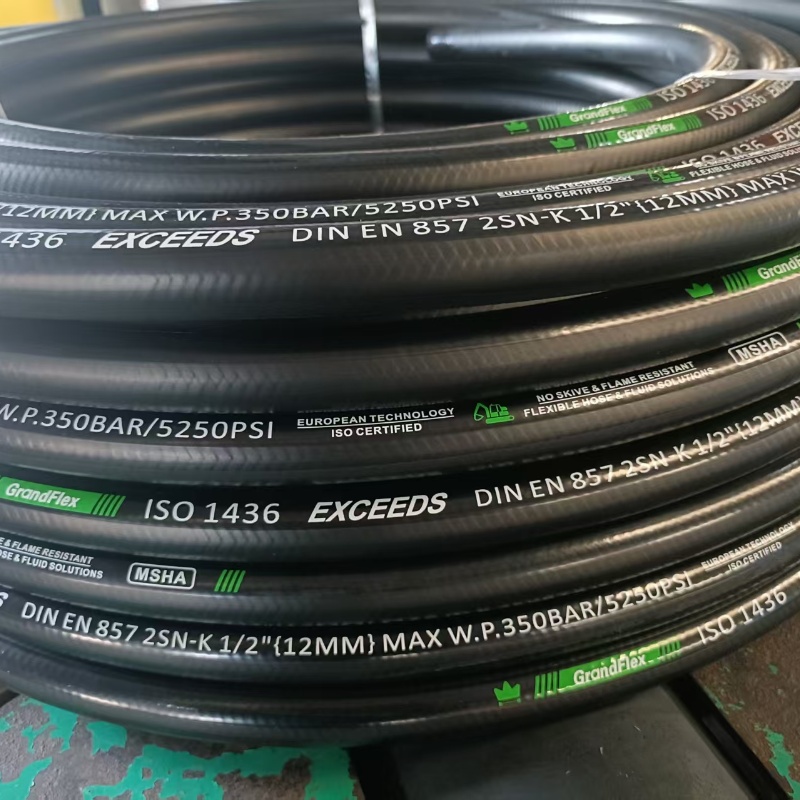

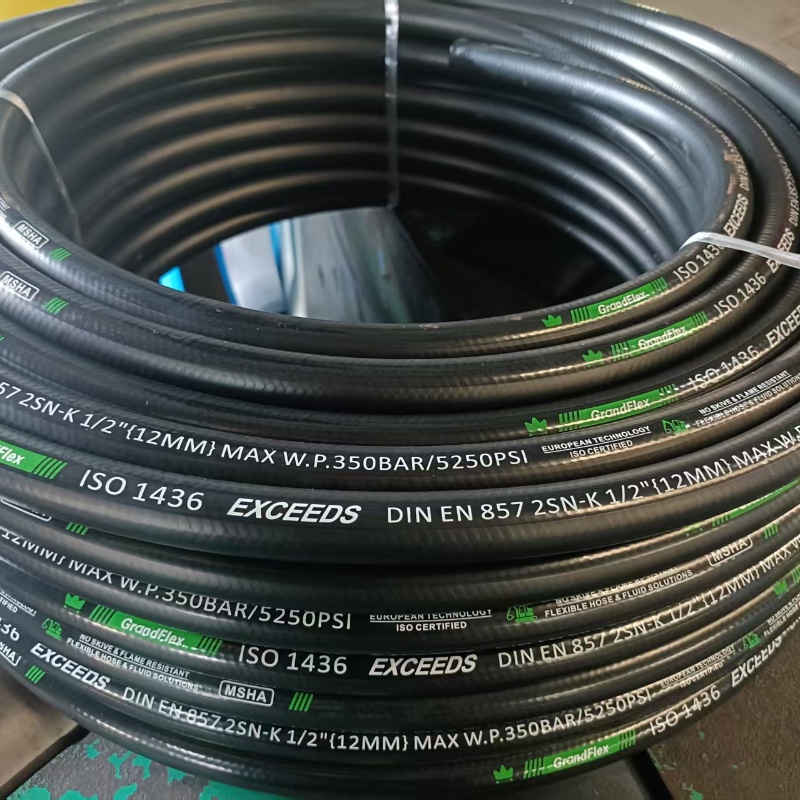

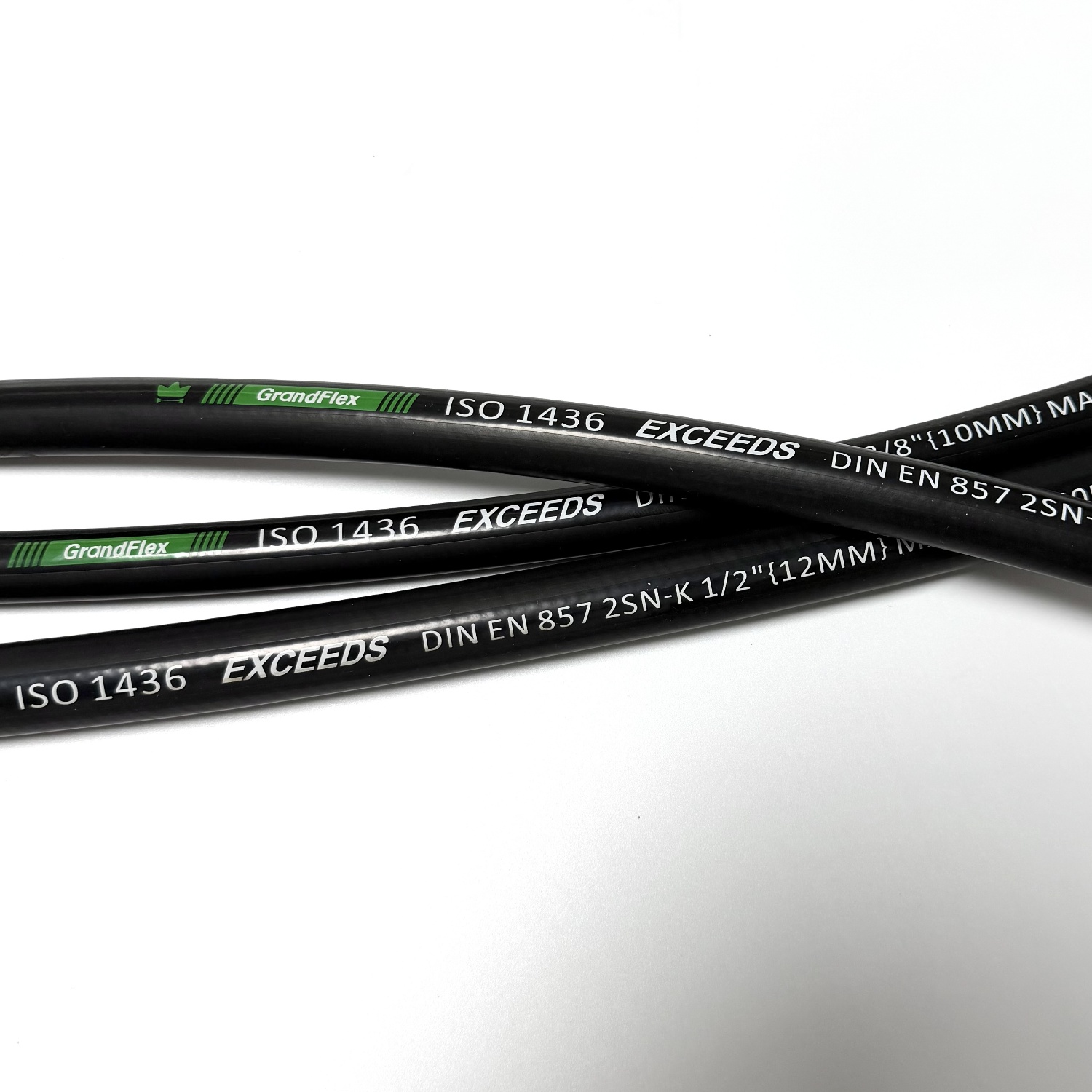

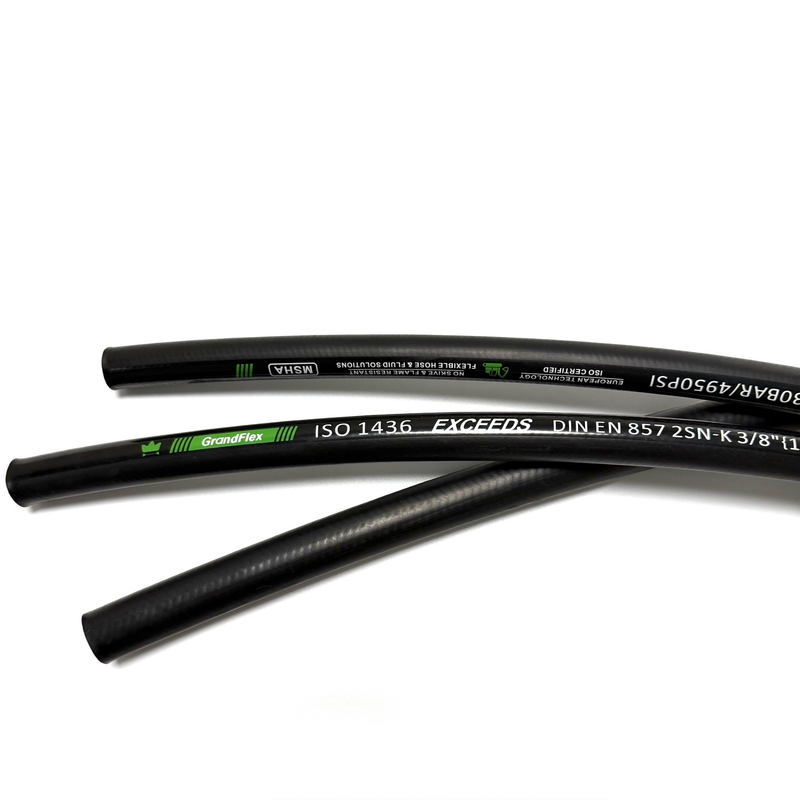

DIN EN857 2SN-K Hydraulic Hose

Tube: Synthetic rubber,resistant against hydraulic fluids
Reinforcement: Two braids of high tensile steel wire
Cover : Abrasion and ozone resistant synthetic rubber
Temperature range: -40℃ to 100℃/-40°F to+212°F(max 120℃/248°F intermittent)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Nominal			Inside		Braid		Outside		Max.working pressure		Min.burst Pressure		Min.bend radius		Weight
mm	inch	dash	mm	inch	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	kg/m	lbs/ft
6	1/4	-4	6.6	0.26	11.5	0.45	13.4	0.53	450	6525	1800	26100	45	1.8	0.27	0.18
8	5/16	-5	8.3	0.33	13.0	0.51	15.0	0.59	420	6090	1680	24360	60	2.4	0.32	0.22
10	3/8	-6	9.9	0.39	14.7	0.58	16.8	0.66	385	5585	1540	22340	70	2.8	0.38	0.26
12	1/2	-8	13.0	0.51	18.4	0.72	20.5	0.81	350	5075	1400	20300	90	3.5	0.52	0.35
16	5/8	-10	16.4	0.65	21.9	0.86	23.7	0.93	290	4205	1160	6820	130	5.1	0.61	0.41
19	3/4	-12	19.5	0.77	25.8	1.02	27.7	1.09	280	4060	1120	16240	160	6.3	0.79	0.53
25	1	-16	26.0	1.02	32.9	1.30	35.6	1.40	200	2900	8800	1600	210	8.3	1.15	0.77
