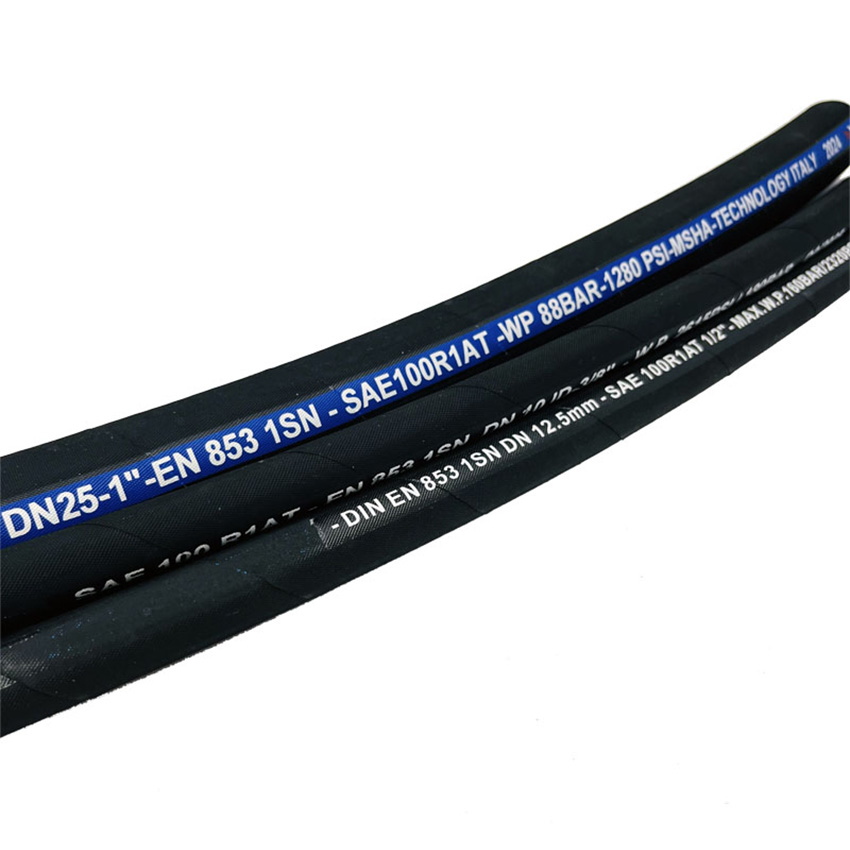

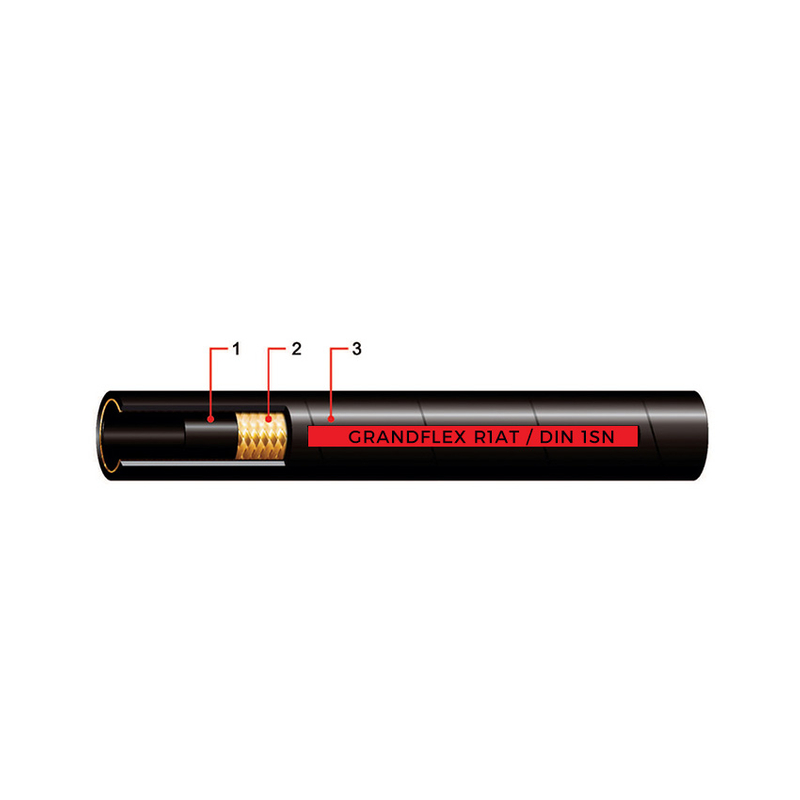

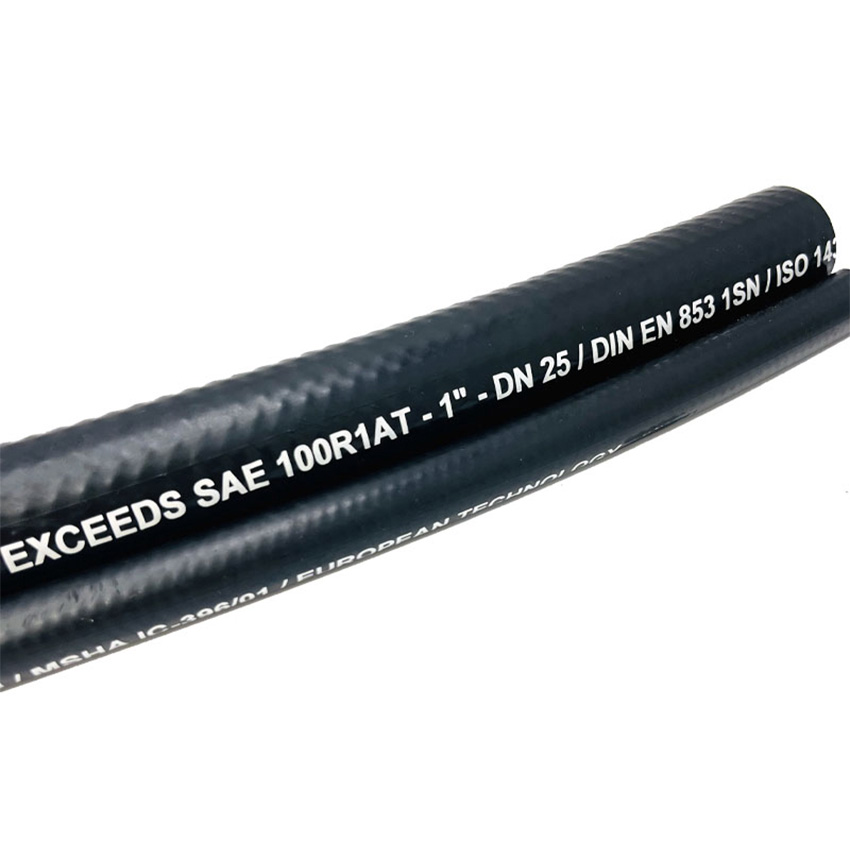

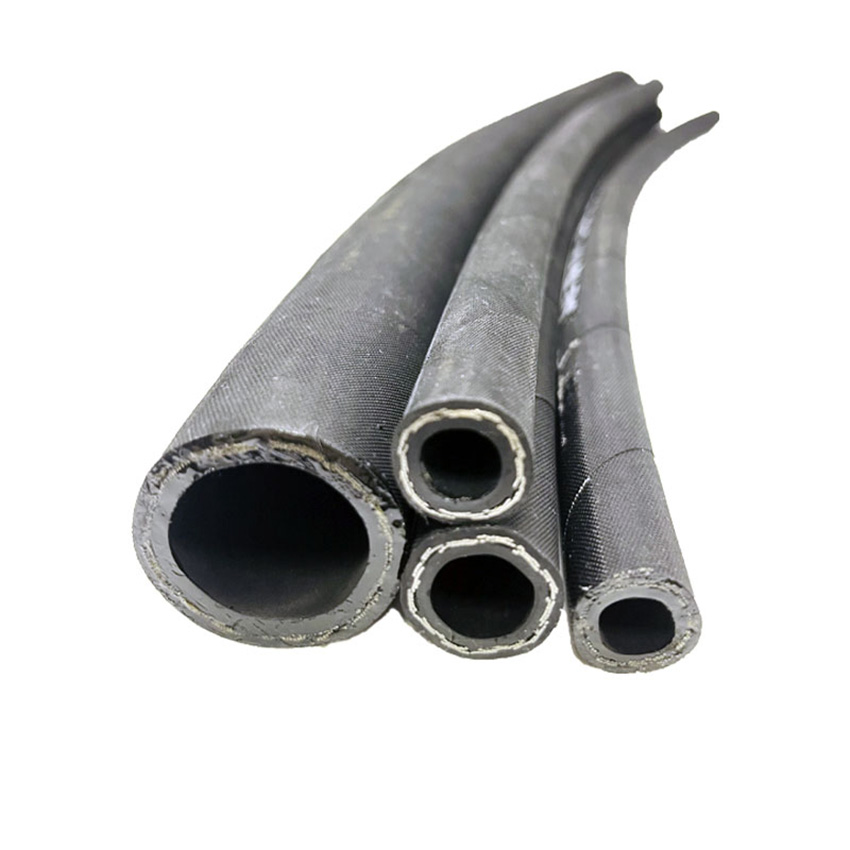

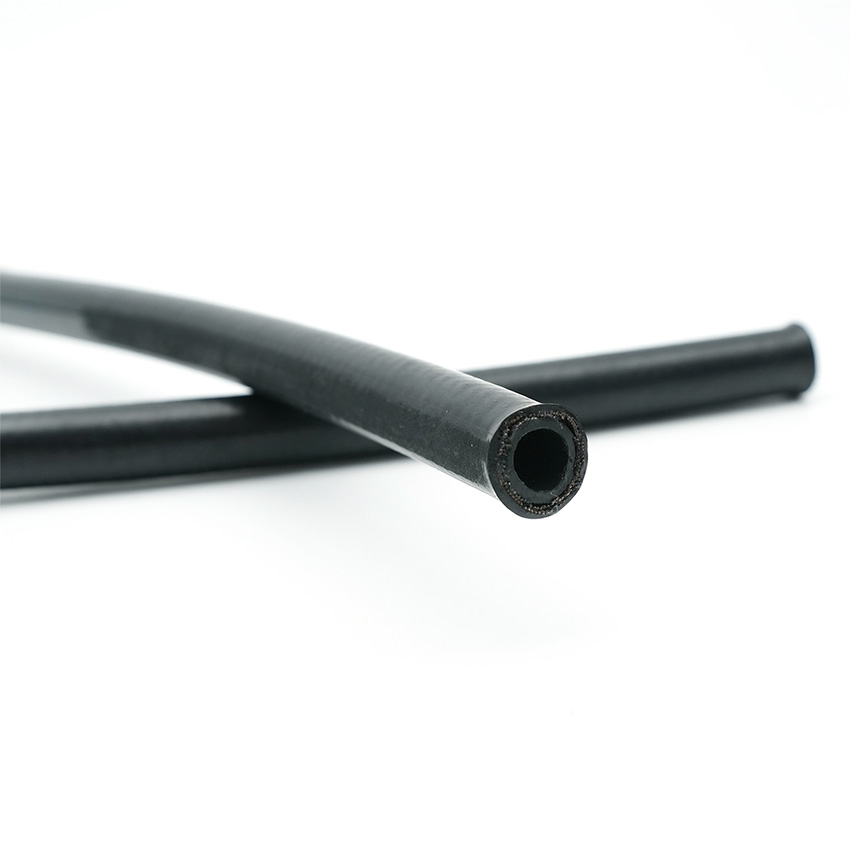

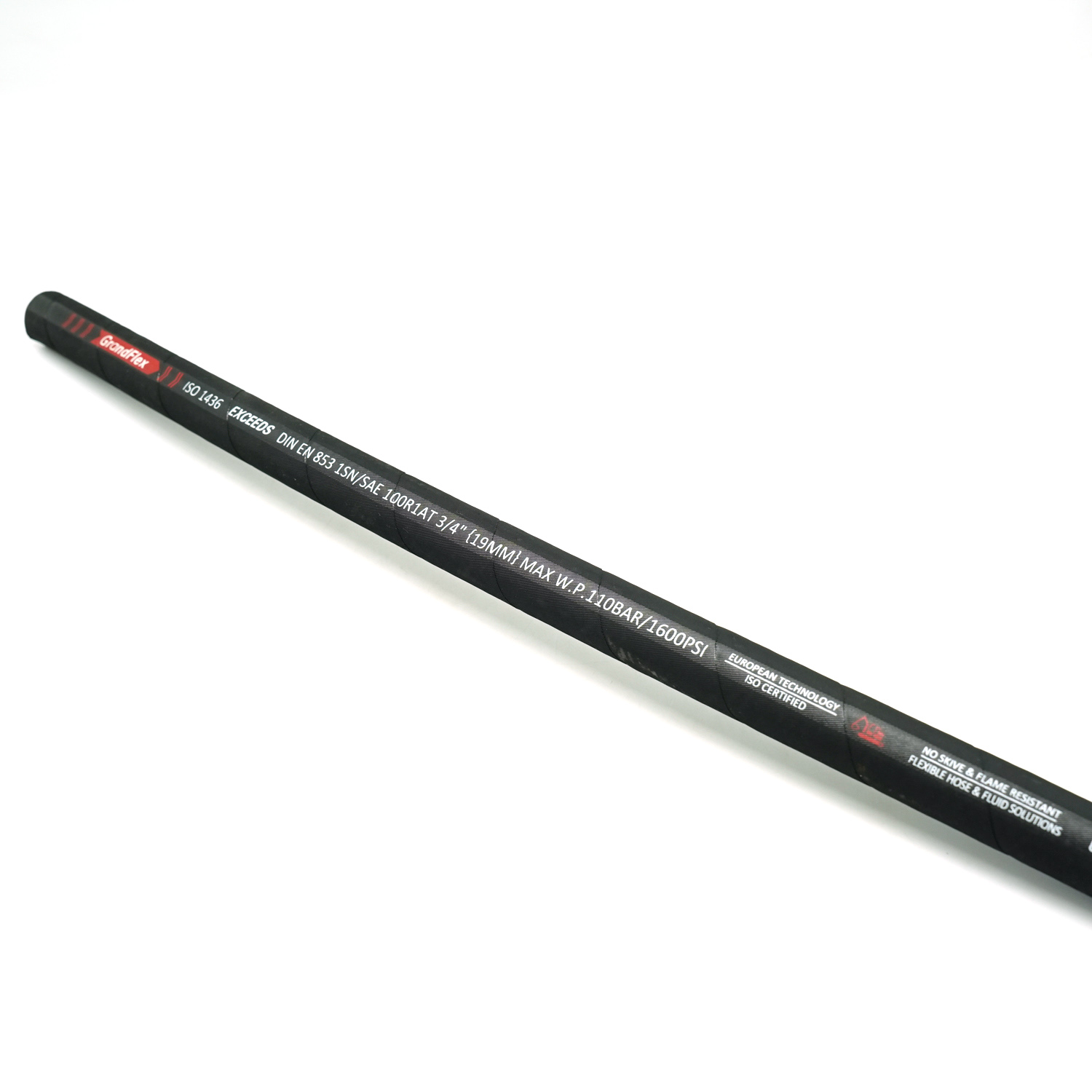

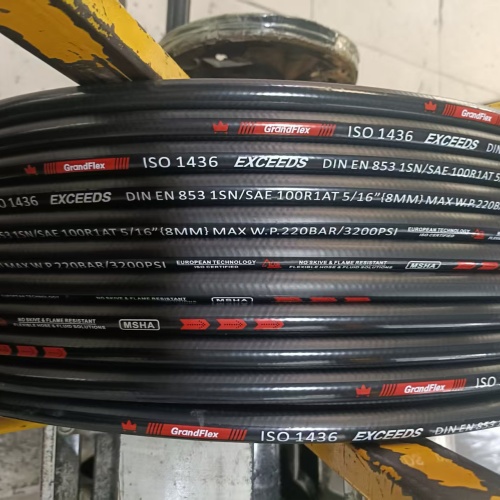

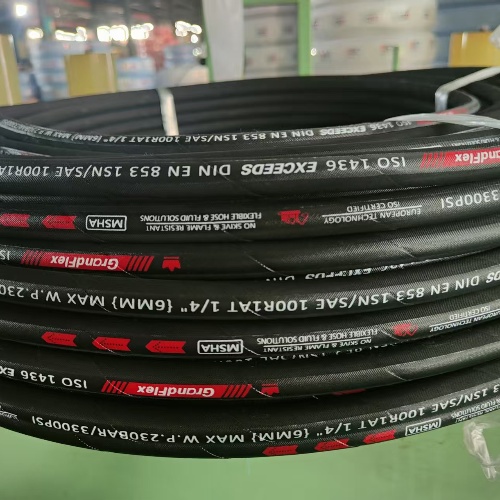

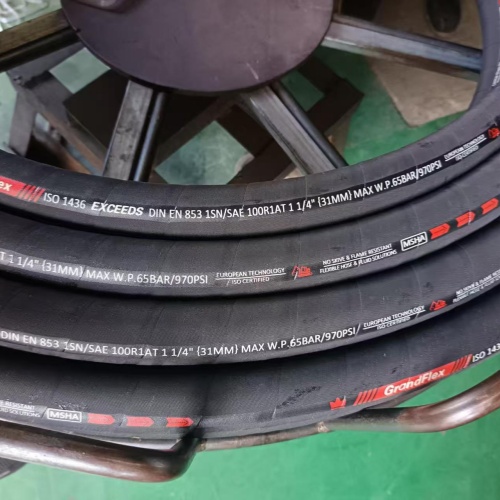

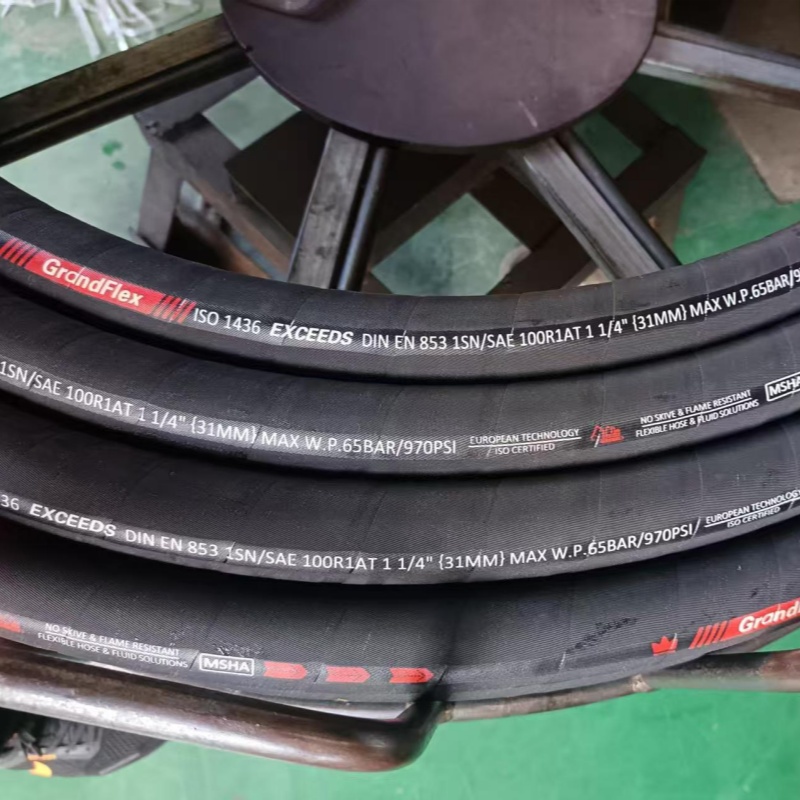

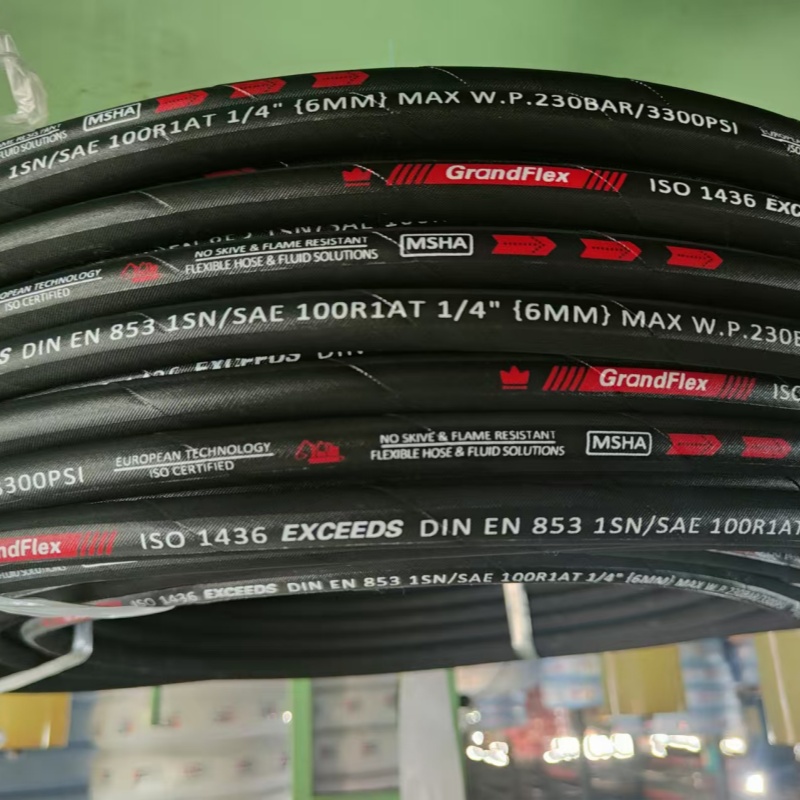

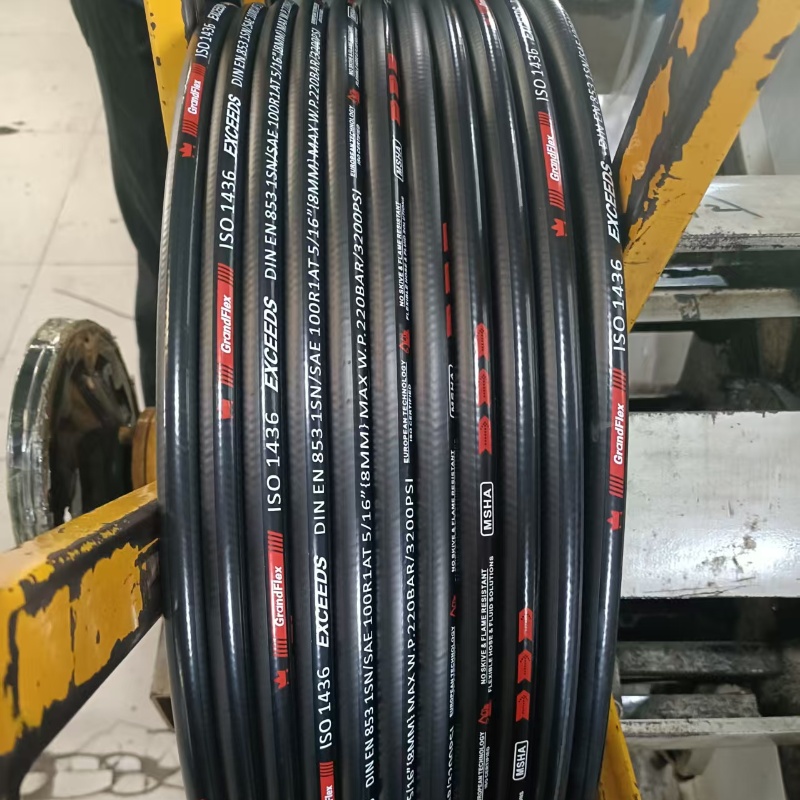

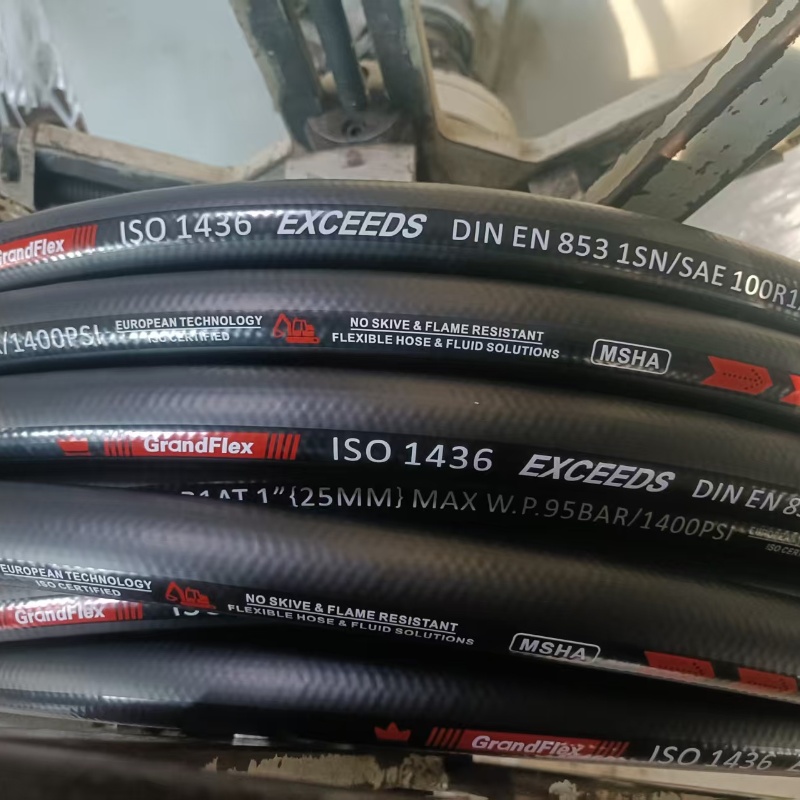

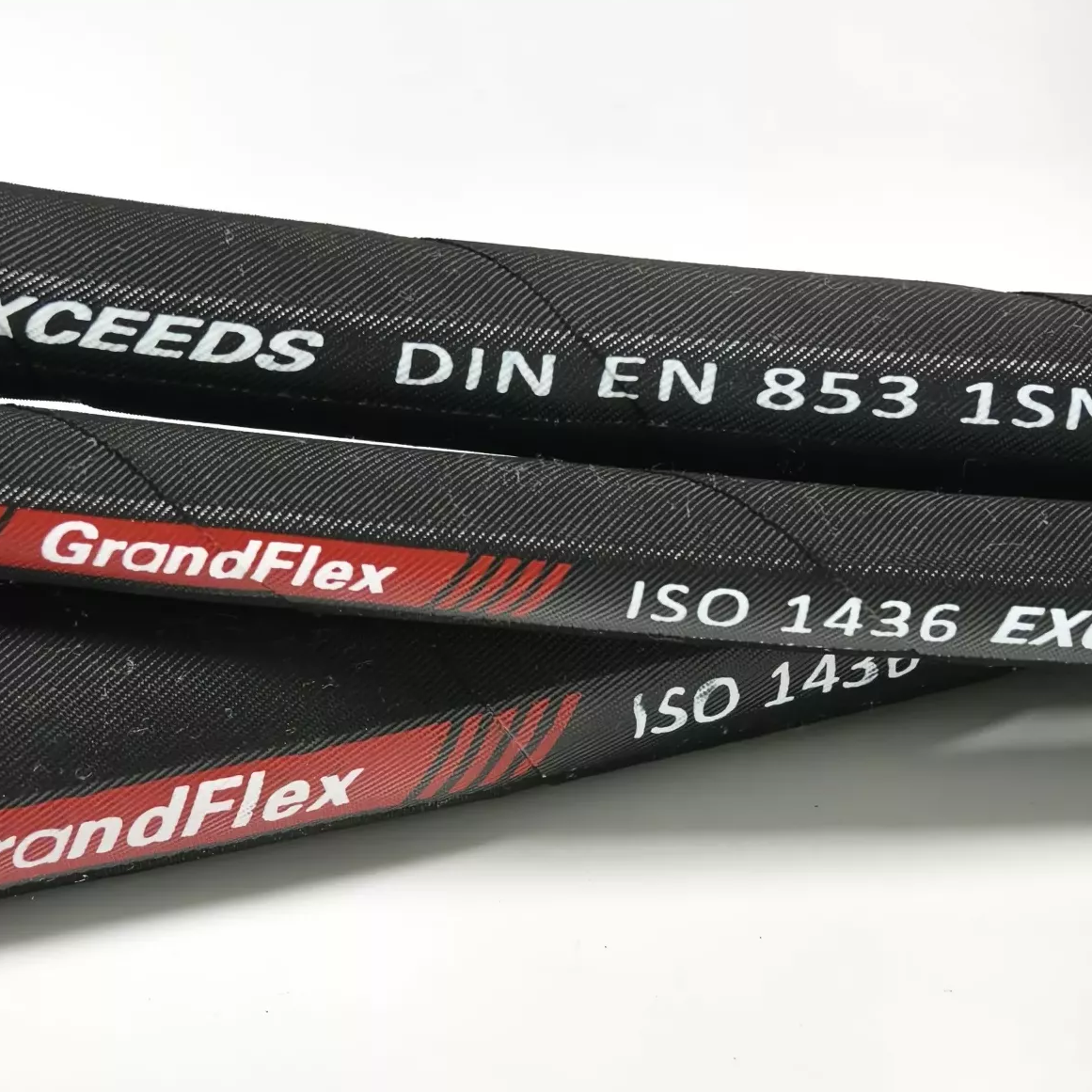

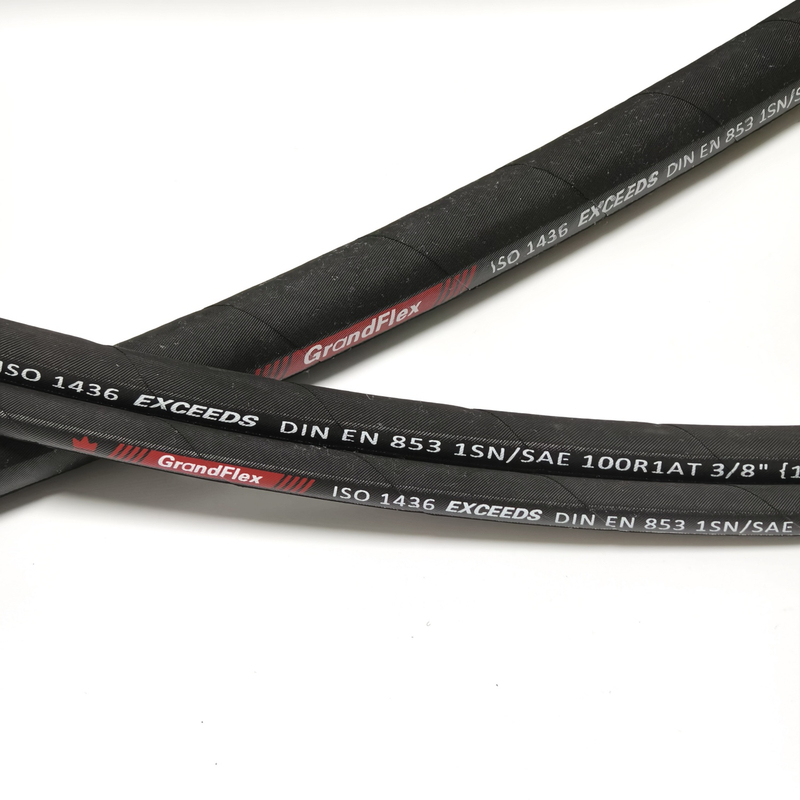

The DIN EN853 1SN hydraulic hose features a single-layer high-tensile steel wire braid reinforcement, engineered for high-pressure hydraulic applications. Compliant with SAE 100R1AT and EN853 1SN standards, while meeting ISO 1436 and SAE J517 specifications.
Designed for extreme-duty environments, this SAE-standard hose combines robust construction with industry-leading certifications. Its optimized braid structure ensures reliable performance in industrial machinery, construction equipment, and mobile hydraulic systems.
Grandflex provides this EN853-certified solution for critical hydraulic applications requiring SAE 100R1AT compliance, offering durability and pressure resistance in demanding operational conditions.
Metric Size | Inch Size | SAE Dash size | I.D. | Braid | O.D. | W.P. | B.P. | Bending Radius | Weight | |||
(mm) | (mm) | (mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | mm | Kg/m |
5.0 | 3/16" | 03 | 4.6 | 5.4 | 9.0 | 10.0 | 12.5 | 25.0 | 3625 | 100 | 90 | 0.20 |
6.3 | 1/4" | 04 | 6.2 | 7.0 | 10.6 | 11.6 | 14.1 | 22.5 | 3263 | 90 | 100 | 0.25 |
8.0 | 5/16" | 05 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 21.5 | 3118 | 85 | 115 | 0.31 |
10.0 | 3/8" | 06 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 18.0 | 2610 | 72 | 130 | 0.36 |
12.5 | 1/2" | 08 | 12.3 | 13.5 | 17.5 | 19.1 | 21.4 | 16.0 | 2320 | 64 | 180 | 0.45 |
16.0 | 5/8" | 10 | 15.5 | 16.7 | 20.6 | 22.2 | 24.5 | 13.0 | 1885 | 52 | 200 | 0.52 |
19.0 | 3/4" | 12 | 18.6 | 19.8 | 24.6 | 26.2 | 28.5 | 10.5 | 1523 | 42 | 240 | 0.65 |
25.0 | 1 | 16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 8.8 | 1276 | 35 | 300 | 0.91 |
31.5 | 1.1/4" | 20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 6.3 | 914 | 25 | 420 | 1.30 |
38.0 | 1.1/2" | 24 | 37.7 | 39.3 | 45.6 | 48.0 | 52.1 | 5.0 | 725 | 20 | 500 | 1.70 |
51.0 | 2 | 30 | 50.4 | 52.0 | 58.7 | 61.7 | 65.5 | 4.0 | 580 | 16 | 630 | 2.00 |
