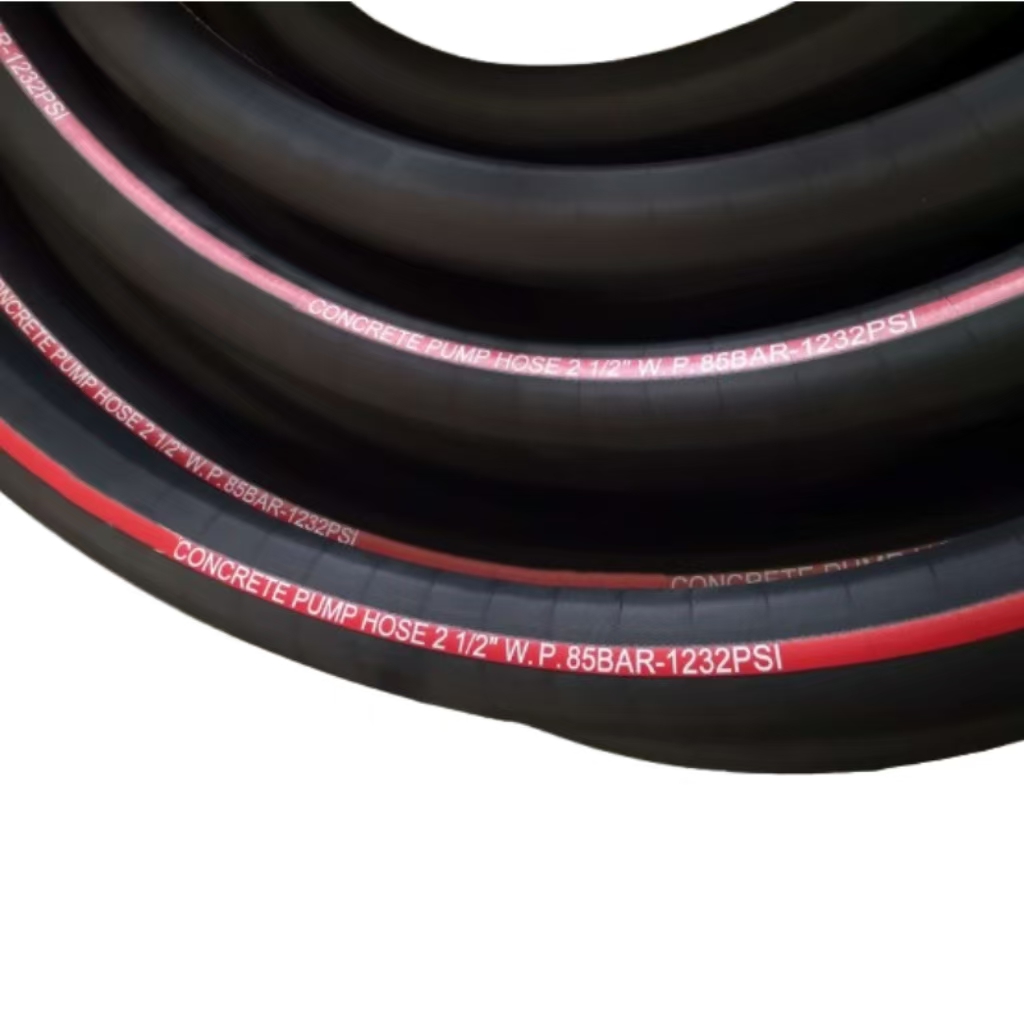

Concrete Pump Hose is a heavy-duty hose uniquely formulated for pumping concrete, fireproofing, plaster, shotcrete and grout materials. This abrasion resistant heavy-wall pump hose is offered in a wide variety of sizes and end configurations. Also known as plaster-grout hose, or mud hose, concrete placement hose assemblies include full-flow internally expanded couplings. This coupling type prevents material build up around the inside hose shank and allows for higher shank retention and an increased working pressure rating. Large diameter placement hose assemblies include true bore crimp couplings.
Size
Outside Ø
Working
Pressure
Burst
Pressure
Bend Radius
Length
Inch
mm
mm
Bar
Psi
Bar
Psi
mm
m
2
51
68±1.5
85
1230
200
2900
200
2.8
2-1/2
64
85±1.5
85
1230
200
2900
250
4.0
3
76
102±1.5
85
1230
200
2900
270
6.0
3-1/2
89
116±1.5
85
1230
200
2900
290
7.5
4
102
130±1.75
85
1230
200
2900
300
9.2
4-1/"
115
143±2
85
1230
200
2900
320
10.5
5
127
158±2
85
1230
200
2900
360
11.7
6
152
186±2
85
1230
200
2900
570
17.0
Product Overview
Grantseed Concrete Placement Hose is a heavy-duty concrete pump hose designed for the transfer of concrete, grout, mortar, plaster, and shotcrete under high-pressure pumping conditions.

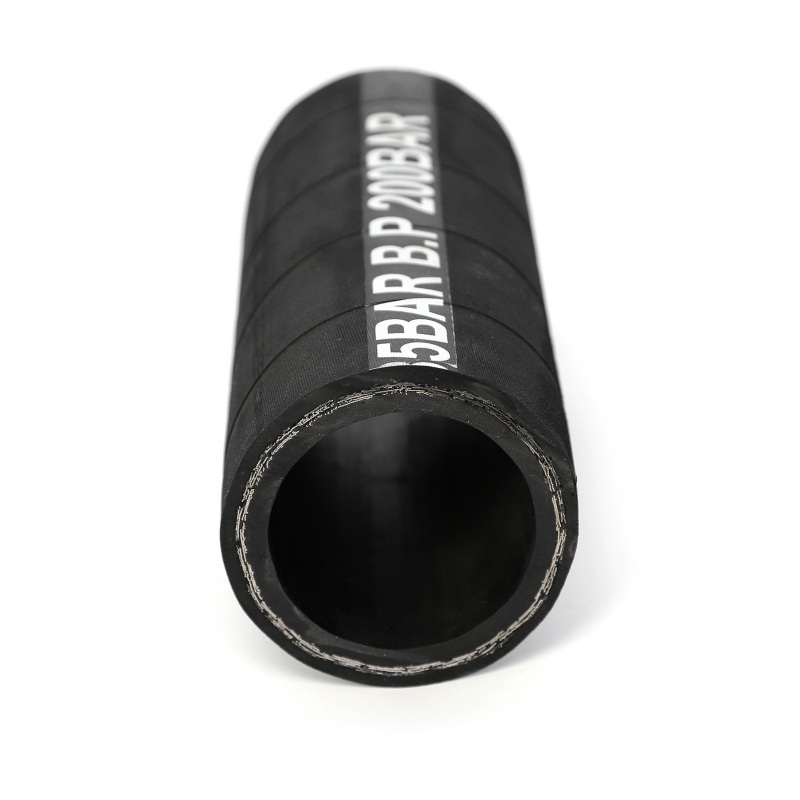

Constructed with a premium abrasion-resistant NR/SBR rubber tube and reinforced with high-strength steel wire braiding or steel cord reinforcement, the hose is engineered to withstand the severe wear, pressure fluctuations, and demanding operating conditions commonly encountered in concrete pumping applications.
The smooth inner tube helps maintain efficient material flow while reducing material buildup and pressure loss during operation. Its heavy-duty construction provides excellent resistance to abrasion, cutting, gouging, and mechanical stress, helping extend service life and reduce maintenance frequency on construction sites.
With a working pressure of up to 85 Bar (1230 PSI) and a burst pressure of 200 Bar (2900 PSI), the hose delivers reliable performance for boom pumps, line pumps, shotcrete systems, and other concrete conveying equipment.
Suitable for high-rise construction, bridge projects, tunnels, highways, foundations, and infrastructure developments, Grantseed Concrete Placement Hose is available in sizes from 2 inch to 6 inch with various coupling and hose assembly options to meet different project requirements. The hose features an abrasion loss value of DIN53516 70±5 mm³, helping extend service life in demanding concrete pumping applications involving abrasive aggregates and continuous operation.
Key Benefits
Abrasion-resistant NR/SBR tube for extended service life
Heavy-duty steel reinforcement for high-pressure applications
85 Bar working pressure and 200 Bar burst pressure
Smooth interior for improved flow efficiency
Excellent kink, weather, and ozone resistance
Available in sizes from 2" to 6"
Compatible with multiple coupling and assembly options
Technical Specifications
Hose Construction
Component
Material
Tube
Black smooth abrasion-resistant NR/SBR compound
Reinforcement
2"-3": Two steel wire braids
Reinforcement
3-1/2"-6": Four layers steel cords
Cover
Black NR/SBR abrasion-resistant cover
Temperature Range
-40°C to +70°C
Abrasion Loss
DIN53516 70±5 mm³
Size (Inch)
ID (mm)
OD (mm)
Working Pressure (Bar)
Working Pressure (PSI)
Burst Pressure (Bar)
Burst Pressure (PSI)
Bend Radius (mm)
Weight (Kg/m)
2"
51
68±1.5
85
1230
200
2900
200
2.8
2-1/2"
64
85±1.5
85
1230
200
2900
250
4.0
3"
76
102±1.5
85
1230
200
2900
270
6.0
3-1/2"
89
116±1.5
85
1230
200
2900
290
7.5
4"
102
130±1.75
85
1230
200
2900
300
9.2
4-1/2"
115
143±2
85
1230
200
2900
320
10.5
5"
127
158±2
85
1230
200
2900
360
11.7
6"
152
186±2
85
1230
200
2900
570
17.0
How to Select the Right Concrete Pump Hose Size
Hose Size
Typical Application
2"
Grout transfer, mortar pumping, residential construction
2.5"
Small commercial concrete pumping
3"
Shotcrete and medium-volume pumping
4"
Boom pumps and commercial construction
5"–6"
High-volume pumping, tunnels, bridges, and infrastructure projects
Selecting the proper hose diameter helps improve pumping efficiency, reduce pressure loss, and extend hose service life. The ideal size depends on the pumping equipment, material characteristics, and project requirements.
Concrete Pump Hose Applications by Equipment Type
Different concrete pumping systems require hose assemblies designed to match their operating pressure, flow rate, and application requirements.
Boom Pump Hose
Used on truck-mounted boom pumps for high-rise buildings, bridges, large commercial projects, and infrastructure construction where precise concrete placement is required.
Line Pump Hose
Suitable for long-distance concrete delivery in residential construction, foundations, slabs, and projects with restricted site access.
Shotcrete Hose
Designed for shotcrete and sprayed concrete applications in tunnels, mining operations, slope stabilization, and underground construction projects.
Grout & Mortar Pump Hose
Used for grout injection, plaster transfer, fireproofing materials, and cement-based slurry pumping where flexibility and abrasion resistance are essential.
Concrete Placement Hose vs Concrete Delivery Hose
Although the two terms are often used interchangeably, they may refer to different stages of the concrete pumping process.
Feature
Concrete Placement Hose
Concrete Delivery Hose
Primary Function
Final concrete placement
Material transportation
Typical Equipment
Boom pumps
Line pumps
Flexibility
High
Moderate
Flow Control
Excellent
Standard
Common Applications
Foundations, buildings, structural work
Long-distance concrete transfer
Concrete placement hoses are typically installed at the end of a pumping system where precise concrete placement is required. Concrete delivery hoses are often used for transporting concrete through longer pumping circuits.
Grantseed hoses are designed to perform effectively in both applications.
Concrete Pump Hose Coupling Options
Selecting the correct coupling system is essential for maintaining pumping efficiency, reducing downtime, and ensuring safe operation.
Victaulic Couplings
Widely used in concrete pumping systems due to their quick installation, secure connection, and easy maintenance.
HD Couplings
Heavy-duty couplings designed for high-pressure pumping applications where maximum connection strength is required.

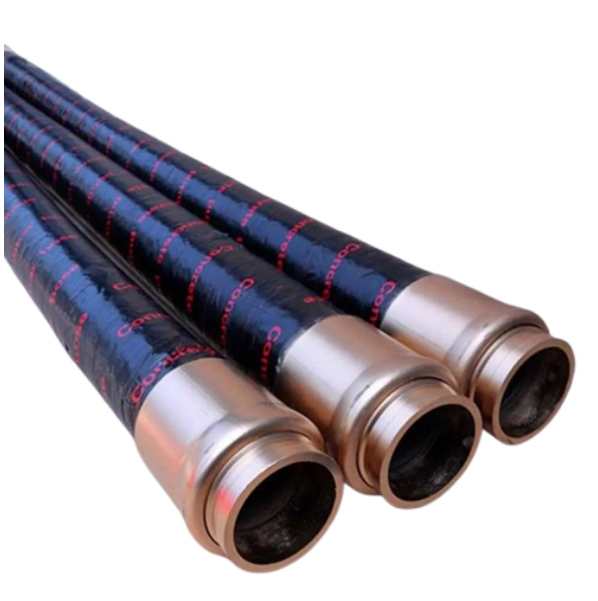

Full-Flow Internal Expansion Couplings
Designed to minimize material buildup inside the hose assembly, improving flow efficiency and reducing cleaning frequency.
Flanged Connections
Commonly used in fixed pipeline systems and large-scale concrete pumping projects requiring stable and durable connections.
Customized coupling configurations and complete hose assemblies are available to meet specific equipment and project requirements.
Victaulic couplings are commonly used for quick installation and maintenance, while HD couplings are preferred for high-pressure pumping systems requiring maximum retention strength.
Coupling Type
Typical Use
Victaulic
Quick installation and maintenance
HD Coupling
High-pressure concrete pumping
Full-Flow Coupling
Reduced material buildup
Flanged Connection
Fixed pipeline systems
Why 85 Bar Concrete Pump Hose Matters
Concrete pumping operations often involve high pressure, abrasive concrete mixtures, long pumping distances, and continuous operation. Selecting the correct hose pressure rating is essential for maintaining efficiency and reducing operational risks.
With a working pressure of 85 Bar (1230 PSI), Grantseed Concrete Placement Hose is designed to handle demanding pumping conditions commonly encountered in modern construction projects.
Advantages of 85 Bar Working Pressure
Suitable for boom pumps and high-pressure line pumping systems
Handles dense concrete mixtures and abrasive aggregates more effectively
Maintains stable performance during continuous pumping operations
Reduces the risk of hose failure caused by pressure fluctuations
Supports long-distance concrete transfer in tunnels, bridges, and infrastructure projects
Provides an additional safety margin with a burst pressure of 200 Bar (2900 PSI)
For contractors and equipment operators, an 85 Bar concrete pump hose offers greater reliability and durability in challenging pumping environments where lower-pressure hoses may wear out or fail prematurely.
Why Choose Grantseed
Abrasion-Resistant Hose Design
NR/SBR tube compound with DIN53516 70±5 mm³ abrasion loss value for extended service life.
85 Bar High-Pressure Capability
Designed for demanding boom pump, line pump, and shotcrete applications.
Complete Hose Assembly Solutions
Available with Victaulic, HD, flanged, and customized coupling options.
Sizes from 2" to 6"
Supporting residential construction, commercial projects, infrastructure, and tunnel applications.
FAQ
What is a concrete placement hose?
A concrete placement hose is a flexible high-pressure hose used at the end of a concrete pumping system to accurately place concrete at the desired location.
What materials can this concrete pump hose handle?
The hose is designed for concrete, wet cement, mortar, grout, plaster, shotcrete, fireproofing materials, and other highly abrasive construction mixtures.
What is the working pressure of the hose?
The standard working pressure is 85 Bar (1230 PSI), while the burst pressure reaches 200 Bar (2900 PSI).
Is the hose suitable for boom pumps?
Yes. The hose is commonly used on concrete pump trucks, boom pumps, trailer pumps, and stationary pumping systems.
Can the hose be supplied with couplings installed?
Yes. Various coupling configurations, including full-flow hardened couplings and custom end fittings, are available.
What temperature range can the hose withstand?
The hose operates reliably from -40°C to +70°C (-40°F to +158°F).
How does the hose resist wear?
The inner tube utilizes a specially formulated abrasion-resistant NR/SBR compound with an abrasion loss value of DIN53516 70±5 mm³, providing excellent resistance against concrete aggregates and abrasive slurries.
Do you offer customized lengths and assemblies?
Yes. Customized lengths, diameters, coupling types, branding, packaging, and complete hose assemblies can be supplied according to project requirements.
How long does a concrete pump hose typically last?
Service life depends on pumping pressure, material type, operating conditions, and maintenance practices. Under proper operating conditions, high-quality abrasion-resistant concrete pump hoses can provide significantly longer service life than standard industrial hoses.
Why choose an 85 Bar concrete pump hose?
An 85 Bar concrete pump hose offers greater safety, improved pressure resistance, enhanced durability, and compatibility with demanding concrete pumping applications compared to lower-pressure alternatives.
