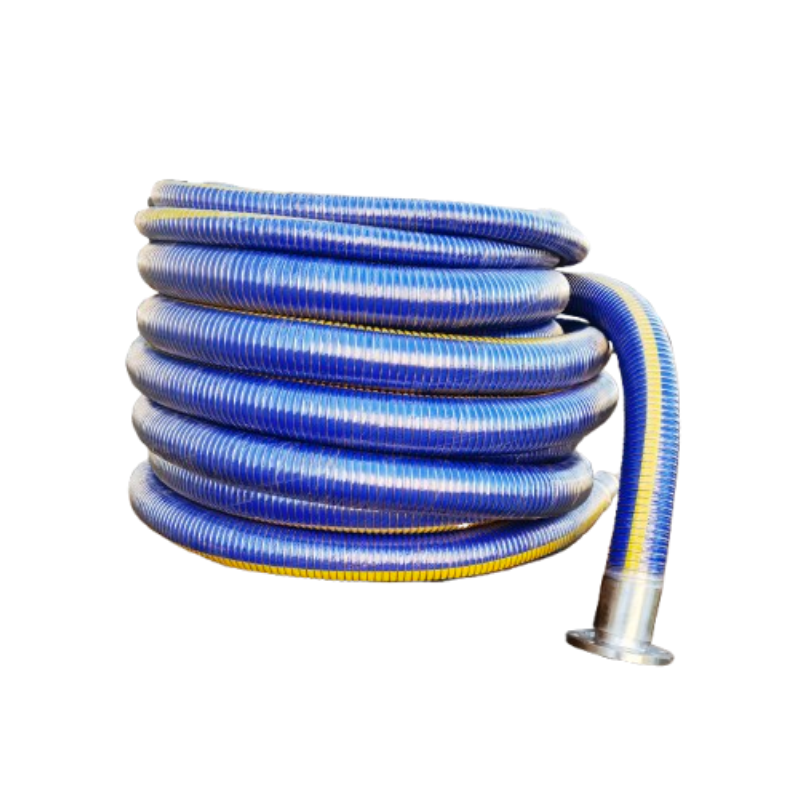

Flexible, lightweight chemical composite hose featuring a multilayer PTFE liner for industrial fluid transfer applications. Available in six sizes with multiple coupling options and custom manufacturing support.
Key Features & Specifications
Multilayer PTFE Liner: Designed for compatible chemical fluid transfer.
Lightweight & Flexible: Easy handling with a flexible multilayer construction.
Working Pressure: 10 Bar.
Size & Temperature: 25–100 mm ID | -30°C to +100°C.
Custom Hose Assemblies: Multiple coupling options, including NPT, Camlock and Flange.
| Quantity: | |
|---|---|
Grantseed Rubber offers flexible chemical composite hoses designed for industrial fluid transfer applications. Featuring a multilayer PTFE film liner, polypropylene fabrics, polyester barrier layers, and an abrasion-resistant PVC-coated outer cover, these hoses combine flexible handling with a lightweight composite construction.
Our chemical composite hose range includes six models with inside diameters from 25 mm to 100 mm, a working pressure of 10 bar, and a specified temperature range of -30°C to +100°C.
With multiple coupling configurations and customer-specific manufacturing options, Grantseed Rubber can help industrial buyers select composite hose solutions for their fluid handling requirements.
Specification | Details |
|---|---|
Product Name | Chemical Composite Hose |
Product Series | GSDCCH |
Inner Liner | Multiple Layers of PTFE Films |
Hose Carcass | Multiple Layers of Polypropylene Fabrics, Films and Polyester Barrier Layers |
Outer Cover | Abrasion-Resistant PVC-Coated Fabric |
Temperature Range | -30°C to +100°C |
Inside Diameter | 25, 38, 50, 65, 75, 100 mm |
Outside Diameter | 38, 52, 64, 80, 92, 120 mm |
Minimum Bend Radius | 90–350 mm, Depending on Size |
Working Pressure | 10 Bar |
Standard Listed Length | 15 m |
Coupling Options | Externally Swaged NPT Threaded, Cam and Groove, Fixed Flange, Floating Flange, Reducing Flange |
Customization | Available According to Customer Requirements |
The combination of multiple fabric and film layers creates a lightweight, flexible composite hose structure. It allows easier handling and routing in industrial fluid transfer systems while maintaining the specified minimum bend radius.
The hose incorporates multiple layers of PTFE films as its inner liner. PTFE is commonly selected for its chemical resistance, making it an important material consideration in chemical fluid transfer applications.
The compatibility of the complete hose assembly with the intended fluid must be verified before use.
The hose carcass consists of multiple layers of polypropylene fabrics, films, and polyester barrier layers. This multilayer construction forms the main body of the composite hose and contributes to its flexible handling characteristics.
An abrasion-resistant PVC-coated fabric provides external protection during normal handling and installation, helping reduce exposure of the underlying hose layers to surface abrasion.
Grantseed Rubber offers six standard hose models, from 25 mm to 100 mm inside diameter. Various externally swaged coupling configurations are available for different industrial piping and transfer connections.
The GSDCCH series includes six chemical composite hose models. The following table provides dimensions, bend radius, working pressure, unit weight, and listed length for each model.
Hose Model | Inside Diameter (mm) | Outside Diameter (mm) | Bend Radius (mm) | Working Pressure (bar) | Weight (kg/m) | Length (m) |
|---|---|---|---|---|---|---|
GSDCCH-01 | 25 | 38 | 90 | 10 | 1.0 | 15 |
GSDCCH-02 | 38 | 52 | 125 | 10 | 1.6 | 15 |
GSDCCH-03 | 50 | 64 | 160 | 10 | 1.8 | 15 |
GSDCCH-04 | 65 | 80 | 180 | 10 | 2.6 | 15 |
GSDCCH-05 | 75 | 92 | 220 | 10 | 3.0 | 15 |
GSDCCH-06 | 100 | 120 | 350 | 10 | 5.4 | 15 |
Note: The above specifications refer to the listed GSDCCH models. Please confirm the compatibility of the hose construction and couplings with your operating medium, temperature, pressure, and installation conditions.
Grantseed Rubber chemical composite hoses are manufactured using a multilayer structure that combines an internal PTFE film liner, a polypropylene and polyester carcass, and an abrasion-resistant PVC-coated protective cover.
Multiple PTFE film layers form the inner lining of the hose. They provide a material option for applications where the chemical resistance of the liner is an important selection factor.
Multiple layers of polypropylene fabrics, films, and polyester barrier materials form the carcass. These materials work together as part of the flexible composite hose structure.
The external PVC-coated fabric protects the hose surface against abrasion associated with routine industrial handling.
For specific chemical transfer applications, compatibility must be evaluated for the complete hose assembly, rather than the PTFE liner alone.
Chemical composite hoses are used in industrial applications requiring flexible hose connections for fluid transfer. The suitability of each hose must be determined according to the transferred material and the complete assembly specifications.
PTFE-lined chemical composite hoses can be considered for the transfer of compatible industrial chemicals between storage tanks, pumps, and processing equipment.
Flexible composite hoses provide a potential solution for liquid transfer systems where manageable hose weight, bend radius, and suitable end connections are important.
Composite hose assemblies may be selected for compatible tank loading and unloading operations, including installations requiring threaded or flanged connections.
These hoses can also be evaluated for suitable industrial equipment connections where flexible fluid transfer lines are needed.
Important: For flammable liquids, petroleum products, or hazardous chemical service, the assembly's chemical compatibility, electrical properties, operating pressure, and applicable safety requirements must be confirmed before use.

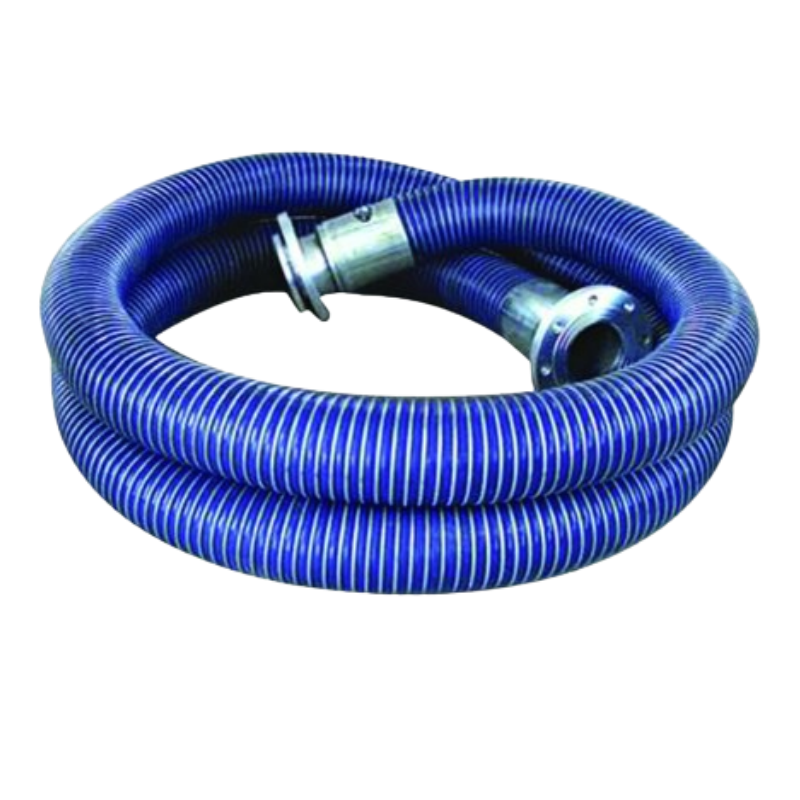

Different industrial transfer systems require different hose end connections. Grantseed Rubber lists the following externally swaged coupling options for its chemical composite hoses:
Coupling Type | Description |
|---|---|
NPT Threaded Coupling | Threaded connection option for compatible piping and equipment |
Cam and Groove Coupling | Quick connection and disconnection for compatible fluid handling systems |
Fixed Flange | Bolted flange connection for compatible fixed piping interfaces |
Floating Flange | Flange option that facilitates bolt-hole alignment |
Reducing Flange | Connection option for equipment with different nominal connection sizes |
When requesting a composite hose assembly, please provide the required hose diameter, length, end connection type, transferred medium, and operating conditions.
Grantseed Rubber can manufacture chemical composite hoses according to customers' requirements.
For custom industrial composite hose inquiries, please share the following information:
Required inside diameter and hose length
Transferred chemical or industrial fluid
Working pressure and operating temperature
Required coupling or flange type
Installation conditions and minimum bend radius
Other technical requirements or project drawings, if available
Our team can review the supplied specifications and discuss suitable composite hose configurations for your application.
A chemical composite hose is a flexible multilayer hose designed for compatible chemical and industrial fluid transfer applications. It typically combines multiple films, fabric layers, and protective materials to form a flexible hose structure.
Grantseed Rubber chemical composite hoses incorporate multiple layers of PTFE films in the liner, polypropylene fabrics and films with polyester barrier layers in the carcass, and an abrasion-resistant PVC-coated outer cover.
All six listed GSDCCH models have a specified working pressure of 10 bar. The actual operating suitability should be confirmed according to the transferred fluid, operating temperature, and complete hose assembly configuration.
The GSDCCH series includes six inside diameter options: 25 mm, 38 mm, 50 mm, 65 mm, 75 mm, and 100 mm.
The specified temperature range is -30°C to +100°C. Fluid compatibility and safe operation throughout this range should be confirmed for the intended application.
Yes, appropriately selected composite hoses are commonly used in chemical transfer applications. The suitability of a specific hose depends on the chemicals involved, their concentration, temperature, pressure, and the materials used in the complete hose assembly.
Grantseed Rubber lists NPT threaded, cam and groove, fixed flange, floating flange, and reducing flange coupling configurations.
Yes. Grantseed Rubber states that chemical composite hoses can be manufactured according to customer requirements. Please provide your required dimensions, working conditions, and connection specifications for evaluation.
