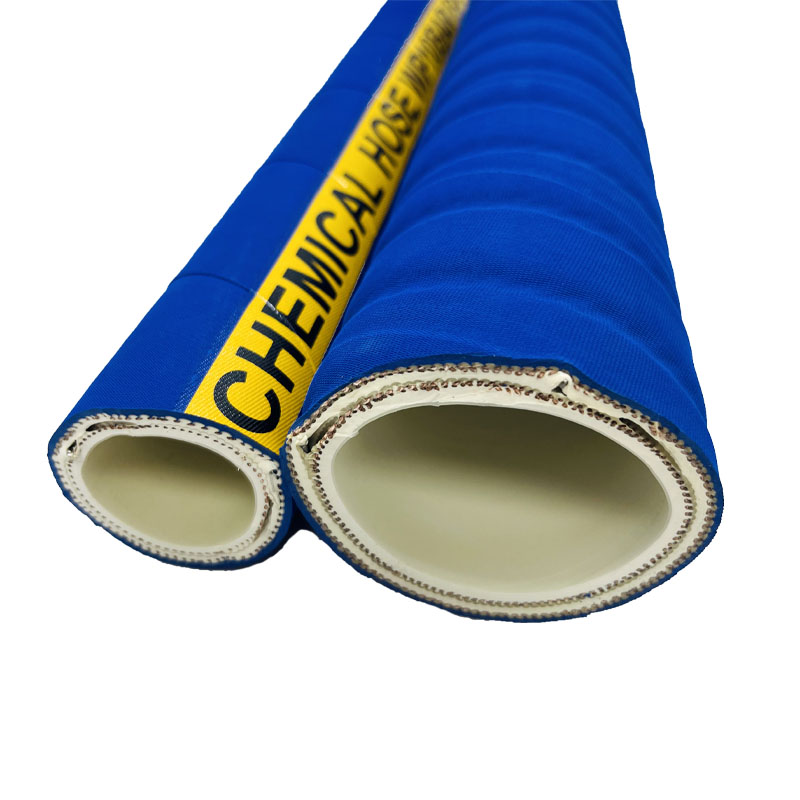

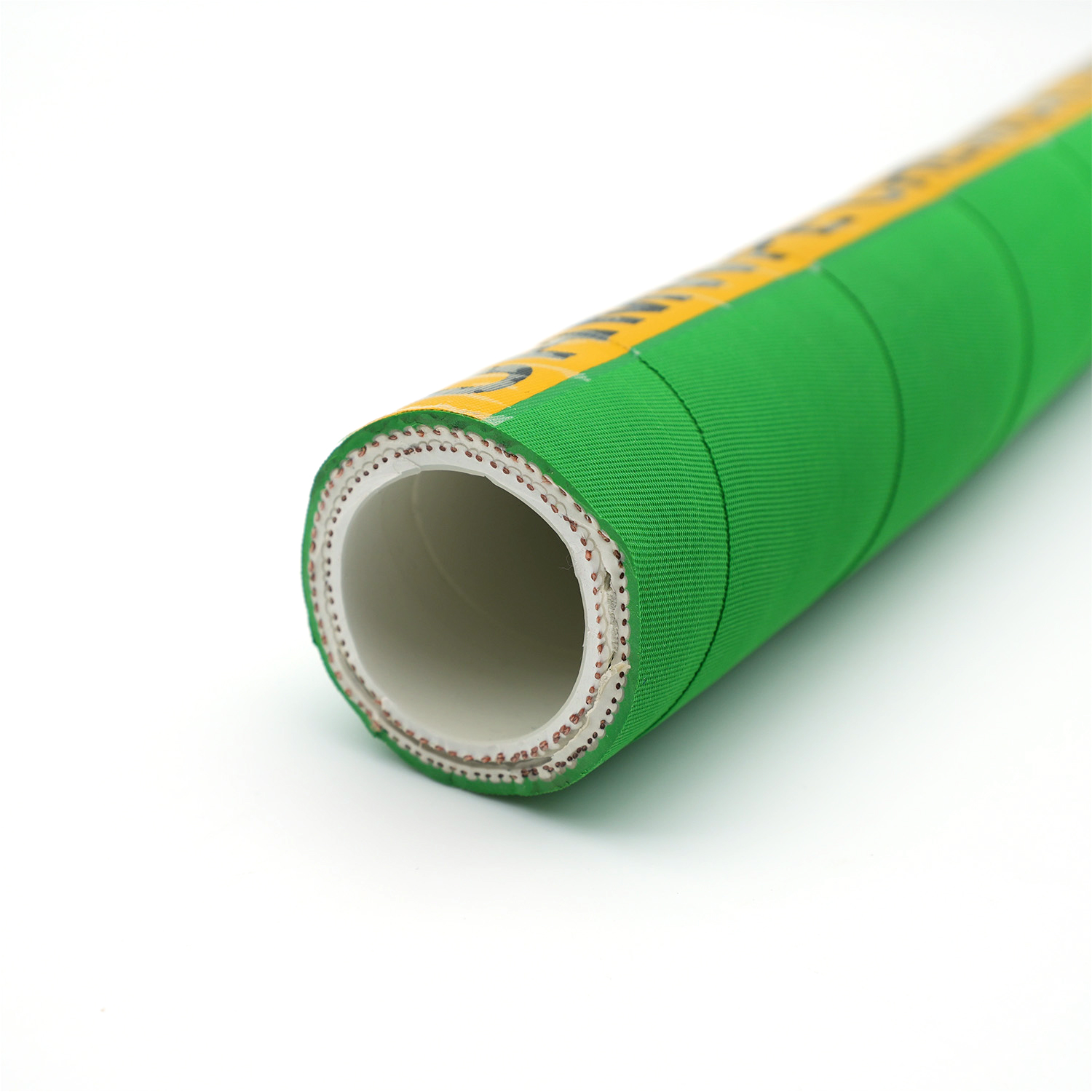

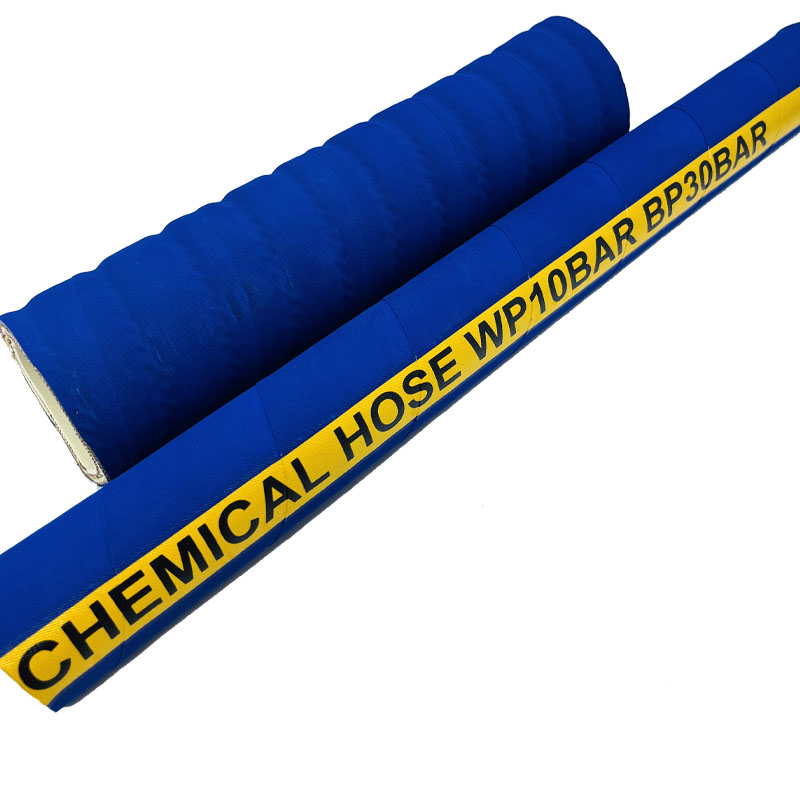

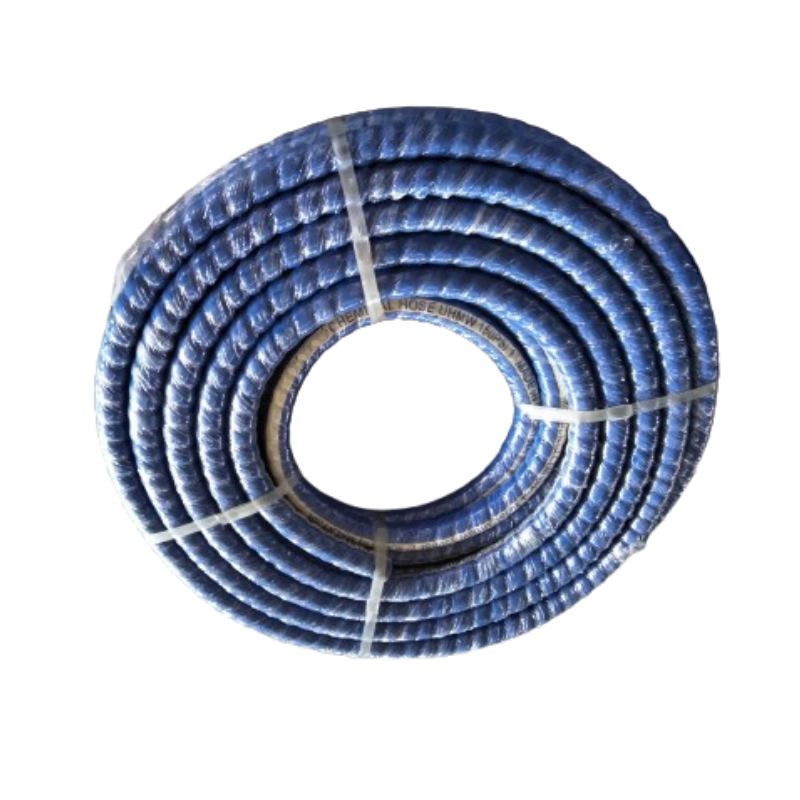

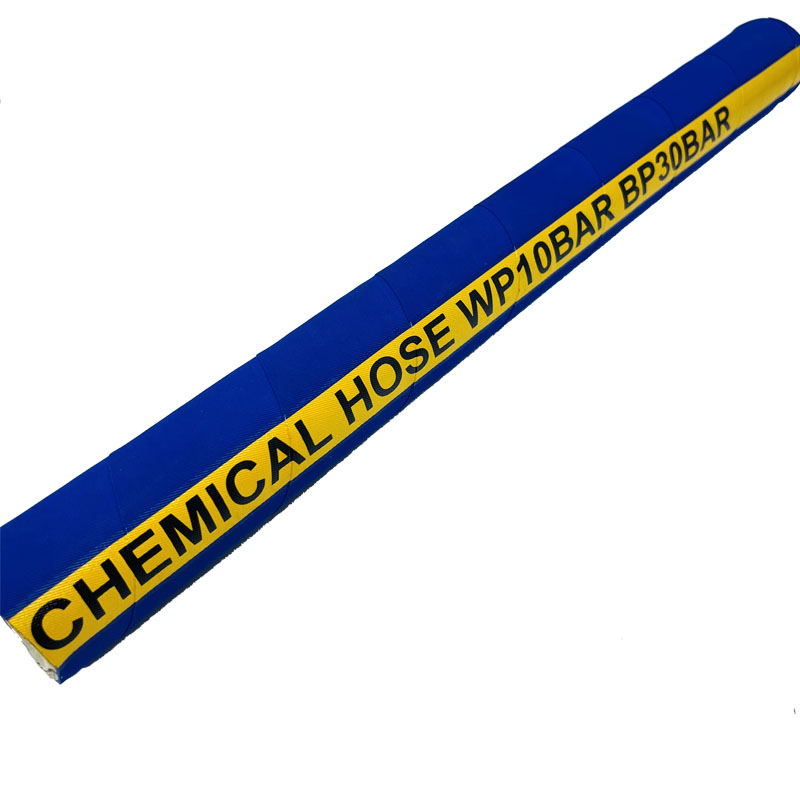

Grandflex Chemical Suction Hose is a high - pressure, high - temperature hose for suction and discharge of common acids, chemicals, and solvents. Its construction uses a smooth Ultra High Molecular Weight Polyethylene (UHMWPE) with EPDM. It has a 120°C temperature rating, meets FDA, USDA, and 3 - A standards, ensuring no product contamination. A dual - wire helix enables full suction, resists kinking, and grounds static electricity. It's compatible with internally - expanded couplings. The cover offers abrasion, mild - chemical, and ozone resistance. A heavy-duty solution engineered for aggressive media handling under extreme operational conditions. Combines chemical inertness with mechanical durability for industrial process applications.
I.D | O.D | W.P | B.P | LENGTH | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft |
3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 61 | 200 |
1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 61 | 200 |
1-1/4" | 31.8 | 47 | 20 | 300 | 60 | 900 | 61 | 200 |
1-1/2" | 38.1 | 54 | 20 | 300 | 60 | 900 | 61 | 200 |
2" | 50.8 | 67.8 | 20 | 300 | 60 | 900 | 61 | 200 |
2-1/2" | 63.5 | 84 | 20 | 300 | 60 | 900 | 61 | 200 |
3" | 76.2 | 96 | 20 | 300 | 60 | 900 | 61 | 200 |
4" | 101.6 | 123 | 20 | 300 | 60 | 900 | 61 | 200 |
6" | 152 | 175 | 20 | 300 | 60 | 900 | 30.5 | 100 |
