| Dami: | |
|---|---|

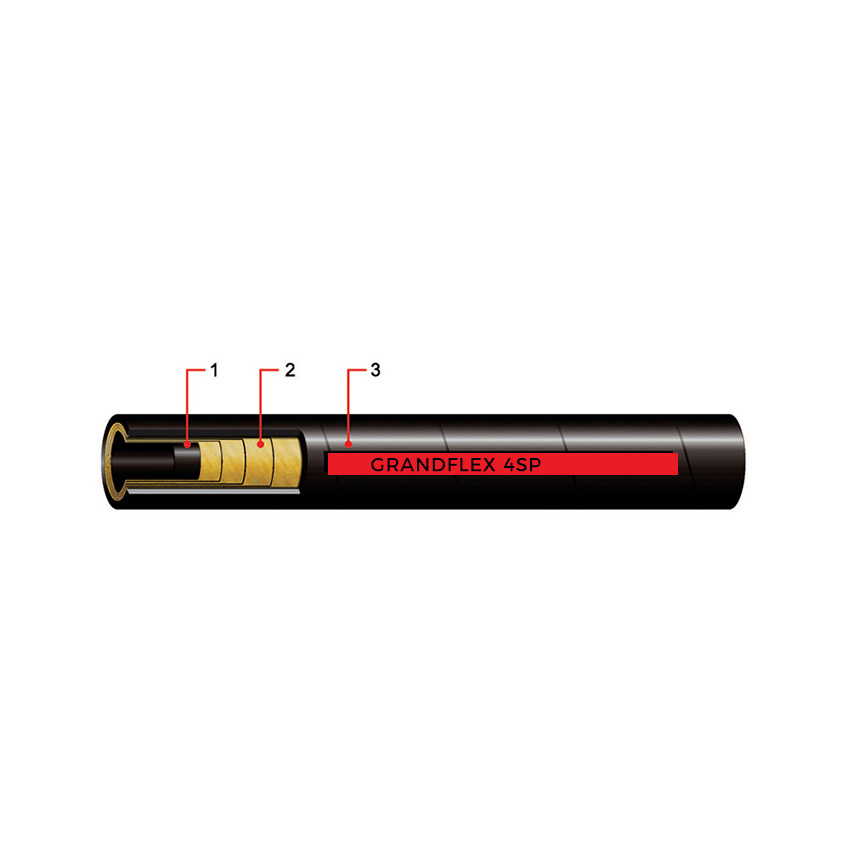

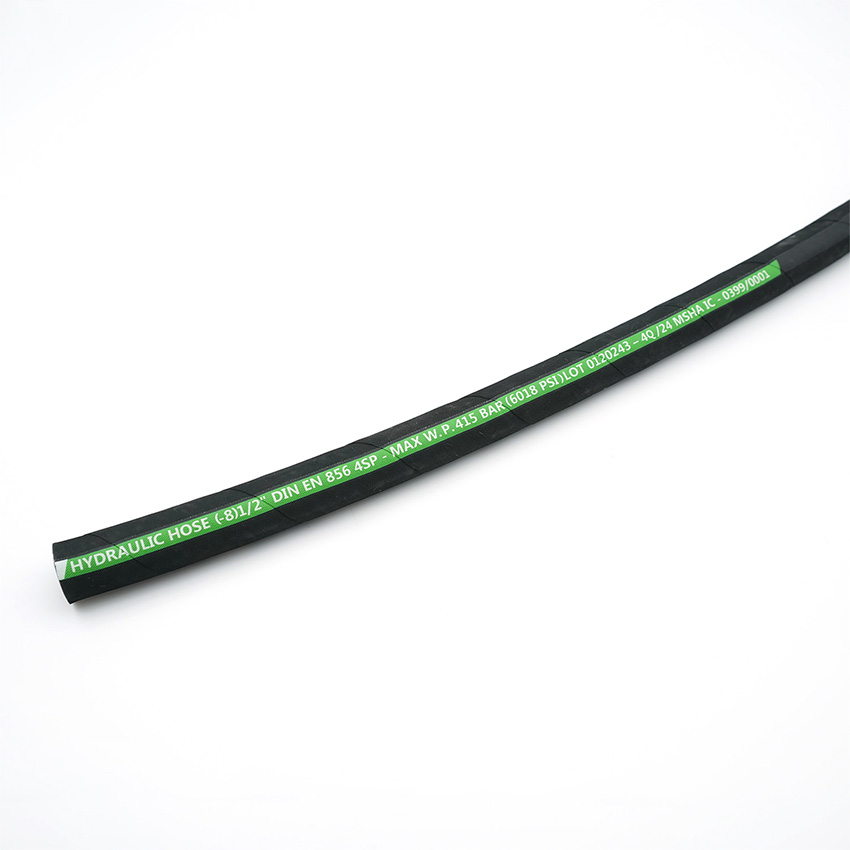

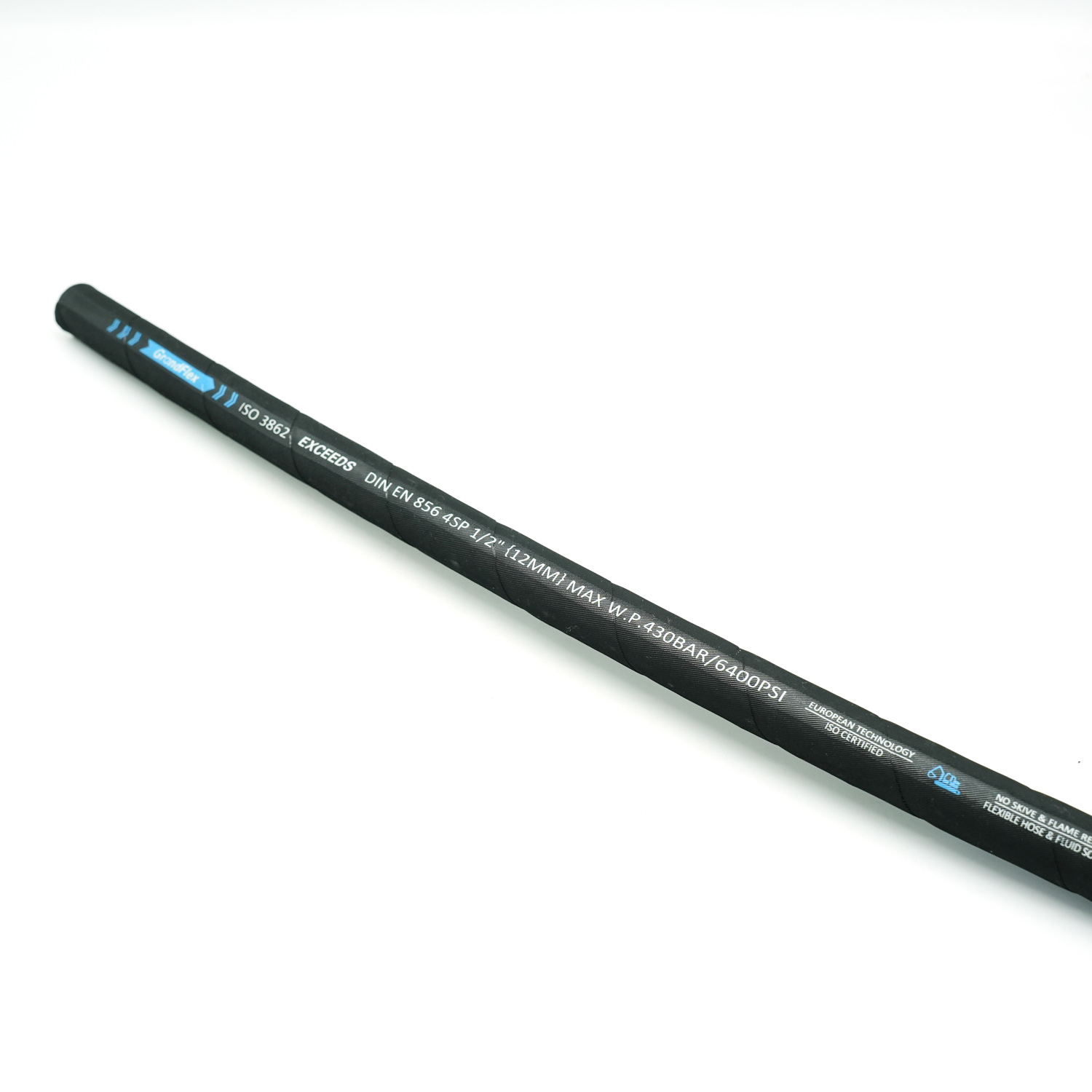

Gumagamit ang Grandflex EN 856 4SP Hydraulic Hose ng four-spiral high-tensile steel wire reinforcement na may oil-resistant synthetic rubber tube at weather/oil/abrasion-resistant cover. Ininhinyero para sa matinding-duty na mga hydraulic system, nakakatugon ito sa mga detalye ng EN 856 4SP, DIN 20023 4SP, at R9R.
Dinisenyo para sa mabibigat na makinarya sa construction, mining, at industrial na sektor, ang hose na ito ay naghahatid ng maaasahang performance sa high-pressure (hanggang 6,000 PSI) na mga application na nangangailangan ng matatag na wire spiral construction at multi-environmental resistance.
Sukat ng Sukatan |
Laki ng pulgada |
Laki ng SAE Dash |
ID |
Itrintas |
OD |
Max WP |
Min BP |
Min BR |
Timbang |
||||
(mm) |
(mm) |
(mm) |
|||||||||||
mm |
pulgada |
Dash |
Min |
Max |
Min |
Max |
Min |
Max |
Mpa |
psi |
Mpa |
mm |
Kg/m |
6.3 |
1/4 |
04 |
6.2 |
7.0 |
14.1 |
15.3 |
17.1 |
18.7 |
45.0 |
6525 |
180.0 |
150.0 |
0.6 |
10 |
3/8 |
06 |
9.3 |
10.1 |
16.9 |
18.1 |
20.6 |
22.2 |
44.5 |
6453 |
178.0 |
180.0 |
0.76 |
12.5 |
1/2 |
08 |
12.3 |
13.5 |
19.4 |
21.0 |
23.8 |
25.4 |
41.5 |
6018 |
166.0 |
230.0 |
0.9 |
16 |
5/8 |
10 |
15.5 |
16.7 |
23.0 |
24.6 |
27.4 |
29.0 |
35.0 |
5075 |
140.0 |
250.0 |
1.1 |
19 |
3/4 |
12 |
18.6 |
19.8 |
27.4 |
29.0 |
31.4 |
33.0 |
35.0 |
5075 |
140.0 |
300.0 |
1.48 |
25 |
1 |
16 |
25.0 |
26.4 |
34.5 |
36.1 |
38.5 |
40.9 |
28.0 |
4060 |
112.0 |
340.0 |
2.02 |
31.5 |
1-1/4 |
20 |
31.4 |
33.0 |
45.0 |
47.0 |
49.2 |
52.4 |
21.0 |
3045 |
84.0 |
460.0 |
2.98 |
38 |
1-1/2 |
24 |
37.7 |
39.3 |
51.4 |
53.6 |
55.6 |
58.8 |
18.5 |
2683 |
74.0 |
560.0 |
3.55 |
51 |
2 |
32 |
50.4 |
52.0 |
64.3 |
66.3 |
68.2 |
71.4 |
16.5 |
2393 |
66.0 |
660.0 |
4.86 |
